Nissan Cube. Manual - part 788





SB-12

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

OUTER SEAT BELT RETRACTOR

1.

Remove the outer anchor.
• Slide the rear seat assembly to front most position.
• Remove the outer anchor fixing anchor bolt.

2.

Remove the shoulder anchor bolt.

3.

Remove the outer seat belt retractor.
• Remove the luggage side lower finisher. Refer to

INT-24, "Removal and Installation"

.

• Remove the outer seat belt anchor bolt.

CENTER SEAT BELT RETRACTOR

1.

Remove shoulder anchor bolt.

2.

Remove center seat belt retractor.
• Slide rear seat assembly to front most position.
• Remove luggage side lower finisher LH. Refer to

INT-24, "Removal and Installation"

.

• Remove center seat belt retractor mounting bolt.

INSTALLATION

Install in the reverse order of removal.

SEAT BELT BUCKLE

SEAT BELT BUCKLE : Inspection

INFOID:0000000009945637

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. Fail-
ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be replaced if either damage or improper operation was noted. Seat belt
pre-tensioners should be replaced even if the seat belts were not in use during a frontal collision in
which the air bags were deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buck-

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident. (i.e. torn webbing, bent retractor or guide, etc.)
• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioner must be replaced even if the seat belts were not in use during the collision in

which the air bags are deployed.

PRELIMINARY CHECKS

1.

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

2.

Repeat step above if necessary to check the other seat belts.

REAR SEAT BELT

SB-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

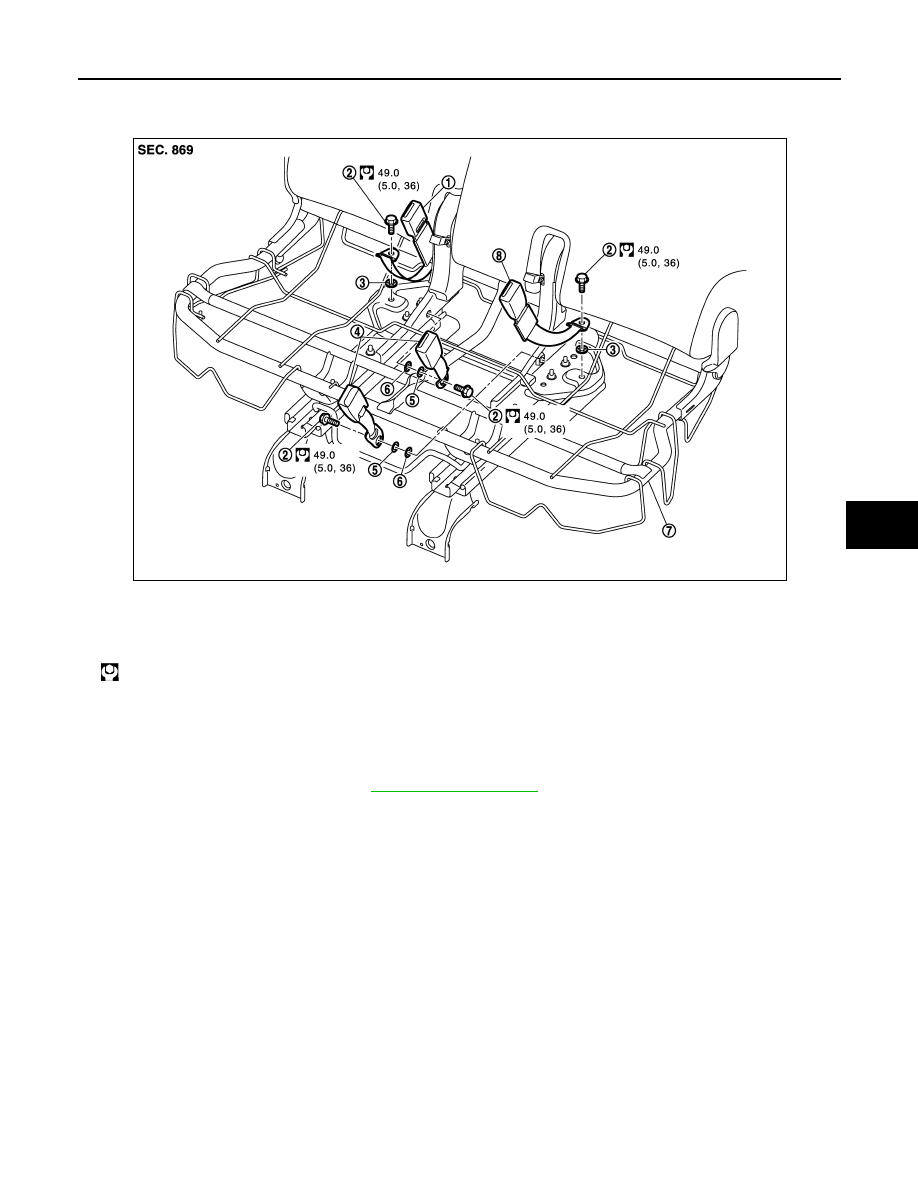

SEAT BELT BUCKLE : Exploded View

INFOID:0000000009945638

SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000009945639

REMOVAL

Remove the center and outer seat belt buckle.
• Remove the rear seat cushion. Refer to

SE-17, "Exploded View"

.

• Remove the seat belt anchor bolt.

INSTALLATION

Install in the reverse order of removal.

1.

Center seat belt connector buckle

2.

Anchor bolt

3.

Fiber washer

4.

Outer seat belt buckle

5.

Washer

6.

Locking washer

7.

Rear seat cushion frame

8.

Center seat belt buckle

: N·m (kg-m, ft-lb)

JMHIA1054GB

SBC-1

RESTRAINTS

C

D

E

F

G

I

J

K

L

M

SECTION

SBC

A

B

SBC

N

O

P

CONTENTS

SEAT BELT CONTROL SYSTEM

BASIC INSPECTION  ....................................

2

DIAGNOSIS AND REPAIR WORK FLOW  .........

2

Work Flow  .................................................................

2

SYSTEM DESCRIPTION  ..............................

3

SEAT BELT WARNING SYSTEM .......................

3

System Diagram ........................................................

3

System Description  ...................................................

3

Component Parts Location ........................................

4

Component Description .............................................

4

DTC/CIRCUIT DIAGNOSIS  ..........................

5

SEAT BELT BUCKLE SWITCH  ..........................

5

DRIVER SIDE  ..............................................................

5

DRIVER SIDE : Description  ......................................

5

DRIVER SIDE : Component Function Check ............

5

DRIVER SIDE : Diagnosis Procedure  .......................

5

DRIVER SIDE : Component Inspection (Seat Belt
Buckle Switch) .........................................................
..

6

PASSENGER SIDE  .....................................................

6

PASSENGER SIDE : Description  .............................

6

PASSENGER SIDE : Component Function Check

......

6

PASSENGER SIDE : Diagnosis Procedure  .............

7

PASSENGER SIDE : Component Inspection
(Seat Belt Buckle Switch)  ........................................
.

8

SEAT BELT WARNING LAMP CIRCUIT  ..........

9

Diagnosis Procedure  ................................................

9

SEAT BELT WARNING SYSTEM  ....................

10

Wiring Diagram - SEAT BELT WARNING SYS-
TEM - .......................................................................

10

SYMPTOM DIAGNOSIS  ..............................

13

SEAT BELT WARNING LAMP DOES NOT
TURN OFF .........................................................

13

Diagnosis Procedure  ...............................................

13

SEAT BELT WARNING LAMP DOES NOT
TURN ON  ..........................................................

14

Diagnosis Procedure  ...............................................

14

PRECAUTION ..............................................

15

PRECAUTIONS .................................................

15

Precautions for Removing of Battery Terminal ........

15

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

15

SBC-2

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009949391

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much malfunction information (conditions and environment when the mal-
function occurs) as possible when the customer brings the vehicle in.

>> GO TO 2.

2.

REPRODUCE THE MALFUNCTION INFORMATION

Check the malfunction on the vehicle that the customer describes.
Inspect the relation of the symptoms and the condition when the symptoms occur.

>> GO TO 3.

3.

IDENTIFY THE MALFUNCTIONING SYSTEM WITH “SYMPTOM DIAGNOSIS”

Use “Symptom diagnosis” from the symptom inspection result in step 2 and then identify where to start per-
forming the diagnosis based on possible causes and symptoms.

>> GO TO 4.

4.

IDENTIFY THE MALFUNCTIONING PARTS WITH “COMPONENT DIAGNOSIS”

Perform the diagnosis with “Component diagnosis” of the applicable system.

>> GO TO 5.

5.

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the specified malfunctioning parts.

>> GO TO 6.

6.

FINAL CHECK

Check that the malfunction is not reproduced, referring to the symptom inspection result in step 2.
Are the malfunctions corrected?

YES

>> INSPECTION END

NO

>> GO TO 3.















Content   ..  786  787  788  789   ..
