BCM (BODY CONTROL MODULE)

PWC-89

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

REAR WIPER MOTOR PROTECTION

BCM detects the rear wiper stopping position according to the rear wiper auto stop signal.
When the rear wiper auto stop signal does not change more than 5 seconds while driving the rear wiper, BCM
stops power supply to protect the rear wiper motor.

Condition of cancellation

1.

Pass more than 1 minute after the rear wiper stop.

2.

Turn rear wiper switch OFF.

3.

Operate the rear wiper switch or rear washer switch.

WITHOUT INTELLIGENT KEY : DTC Inspection Priority Chart

INFOID:0000000010230400

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.

WITHOUT INTELLIGENT KEY : DTC Index

INFOID:0000000010230401

NOTE:

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-

tion switch OFF

 ON again.

• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1

 2

 3...38

 39 after returning to the normal condition whenever ignition switch OFF

 ON. The counter

remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF

 ON after returning to the normal condition if the malfunction is detected again.

Display contents of CONSULT

Fail-safe

Cancellation

B2190: NATS ANTENNA AMP

Inhibit engine cranking

Erase DTC

B2191: DIFFERENCE OF KEY

Inhibit engine cranking

Erase DTC

B2192: ID DISCORD BCM-ECM

Inhibit engine cranking

Erase DTC

B2193: CHAIN OF BCM-ECM

Inhibit engine cranking

Erase DTC

B2195: ANTI SCANNING

Inhibit engine cranking

Ignition switch ON

 OFF

Priority

DTC

1

• U1000: CAN COMM
• U1010: CONTROL UNIT (CAN)

2

• B2190: NATS ANTENNA AMP
• B2191: DIFFERENCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM
• B2195: ANTI SCANNING

3

C1735: IGN CIRCUIT OPEN

4

• C1704: LOW PRESSURE FL
• C1705: LOW PRESSURE FR
• C1706: LOW PRESSURE RR
• C1707: LOW PRESSURE RL
• C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1716: [PRESSDATA ERR] FL
• C1717: [PRESSDATA ERR] FR
• C1718: [PRESSDATA ERR] RR
• C1719: [PRESSDATA ERR] RL
• C1729: VHCL SPEED SIG ERR

PWC-90

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

CONSULT display

Fail-safe

Tire pressure

monitor warn-

ing lamp ON

Reference

U1000: CAN COMM

BCS-120

U1010: CONTROL UNIT (CAN)

BCS-121

B2190: NATS ANTENNA AMP

×

SEC-197

B2191: DIFFERENCE OF KEY

×

SEC-200

B2192: ID DISCORD BCM-ECM

×

SEC-201

B2193: CHAIN OF BCM-ECM

×

SEC-202

B2195: ANTI SCANNING

×

SEC-203

C1704: LOW PRESSURE FL

×

WT-26

C1705: LOW PRESSURE FR

×

C1706: LOW PRESSURE RR

×

C1707: LOW PRESSURE RL

×

C1708: [NO DATA] FL

×

WT-28

C1709: [NO DATA] FR

×

C1710: [NO DATA] RR

×

C1711: [NO DATA] RL

×

C1716: [PRESS DATA ERR] FL

×

WT-31

C1717: [PRESS DATA ERR] FR

×

C1718: [PRESS DATA ERR] RR

×

C1719: [PRESS DATA ERR] RL

×

C1729: VHCL SPEED SIG ERR

×

WT-33

C1735: IGN CIRCUIT OPEN

BCS-122

POWER WINDOW MAIN SWITCH

PWC-91

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

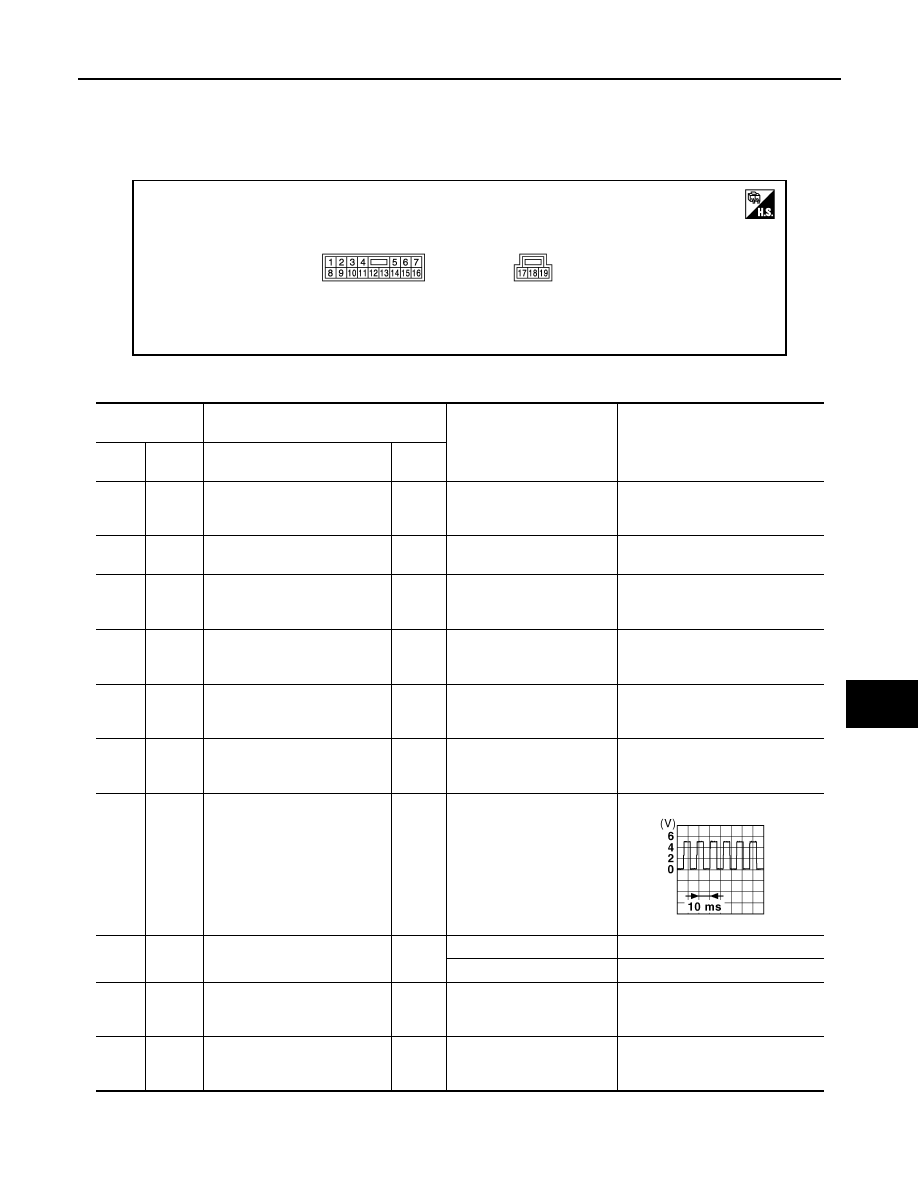

POWER WINDOW MAIN SWITCH

Reference Value

INFOID:0000000009950893

TERMINAL LAYOUT

PHYSICAL VALUES

JMKIA5358ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage [V]

(Approx.)

+

-

Signal name

Input/

Output

1

(R)

Ground

Rear power window motor LH
UP signal

Output

When rear LH switch in pow-
er window main switch is in
UP operation.

Battery voltage

2

(LG)

Ground

Encoder ground

0

3

(O)

Ground

Rear power window motor LH
DOWN signal

Output

When rear LH switch in pow-
er window main switch is in
DOWN operation.

Battery voltage

5

(Y)

Ground

Rear power window motor RH
DOWN signal

Output

When rear RH switch in
power window main switch
is in DOWN operation.

Battery voltage

7

(LG)

Ground

Rear power window motor RH
UP signal

Output

When rear RH switch in
power window main switch
is in UP operation.

Battery voltage

8

(BR)

Ground

Front power window motor
(driver side) UP signal

Output

When front LH switch in
power window main switch
is in UP operation.

Battery voltage

9

(V)

Ground

Encoder pulse signal 2

Input

When front power window
motor (driver side) operates.

10

(L)

Ground

Ignition switch power supply

Input

Ignition switch ON

Battery voltage

Other than above

0

11

(GR)

Ground

Front power window motor
(driver side) DOWN signal

Output

When front LH switch in
power window main switch
is in DOWN operation.

 Battery voltage

12

(SB)

Ground

Front power window motor
(passenger side) DOWN
signal

Output

When front RH switch in
power window main switch
is in DOWN operation.

 Battery voltage

JMKIA0070GB

PWC-92

< ECU DIAGNOSIS INFORMATION >

POWER WINDOW MAIN SWITCH

13

(W)

Ground

Encoder pulse signal 1

Input

When front power window
motor (driver side) operates.

15

(G)

Ground

Encoder power supply

Output

Ignition switch ON.

Battery voltage

16

(W)

Ground

Front power window motor
(passenger side) UP signal

Output

When front RH switch in
power window main switch
is in UP operation.

 Battery voltage

17

(B)

Ground

Ground

0

19

(P)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Voltage [V]

(Approx.)

+

-

Signal name

Input/

Output

JMKIA0070GB
