BCM (BODY CONTROL MODULE)

PWC-69

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

TRNK OPNR SW

NOTE:
The item is indicated, but not monitored.

Off

TRNK OPN MNTR

NOTE:
The item is indicated, but not monitored.

Off

HOOD SW

Close the hood

Off

Open the hood

On

TRANSPONDER

Other than the ignition switch is ON by key registered to BCM.

Off

The ignition switch is ON by key registered to BCM.

On

INTELLI KEY

NOTE:
The item is indicated, but not used.

Off

AUTO RELOCK

NOTE:
The item is indicated, but not monitored.

Off

OIL PRESS SW

• Ignition switch OFF or ACC
• Engine running

Off

Ignition switch ON

On

BRAKE SW

Brake pedal is not depressed

Off

Brake pedal is depressed

On

Monitor Item

Condition

Value/Status

PWC-70

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

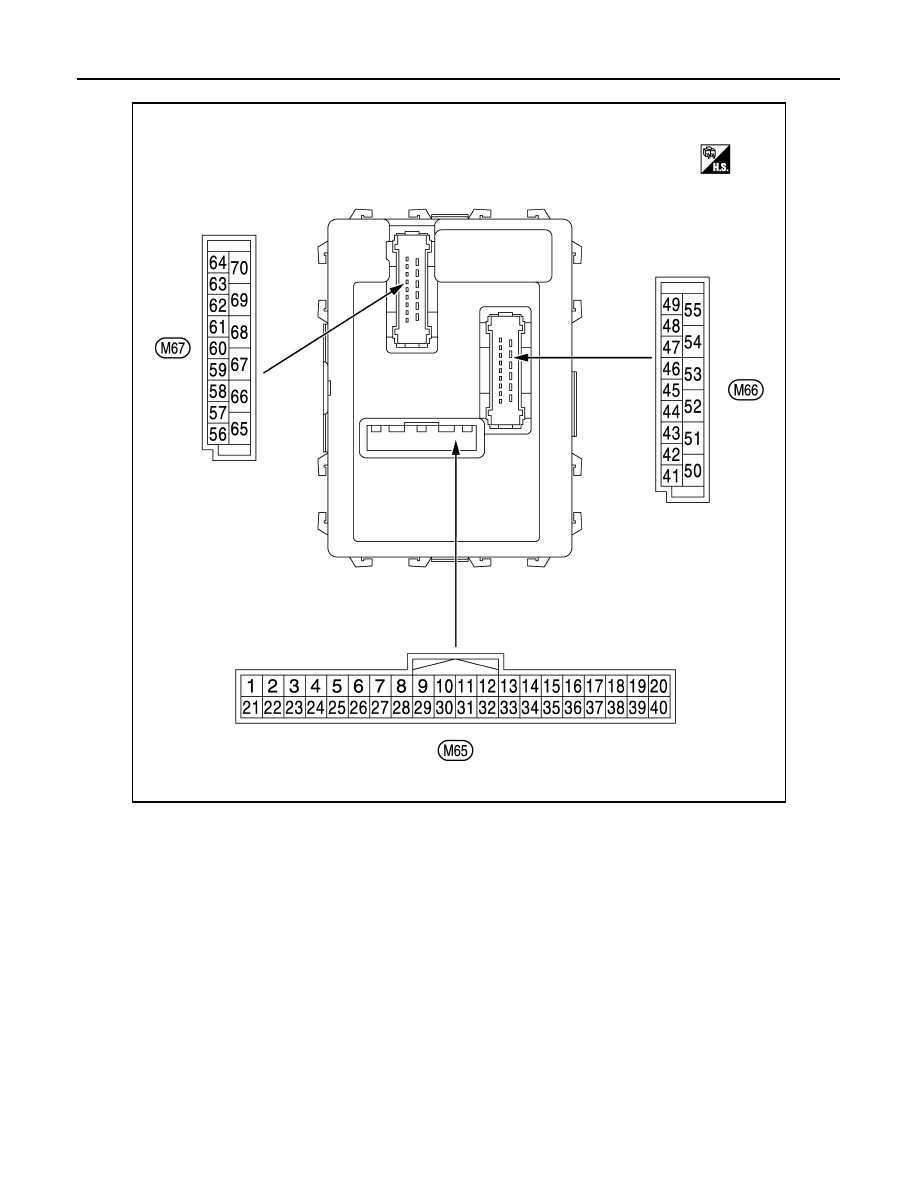

TERMINAL LAYOUT

NOTE:
• M65, M66: White
• M67: Black

PHYSICAL VALUES

JPMIA1439ZZ

BCM (BODY CONTROL MODULE)

PWC-71

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

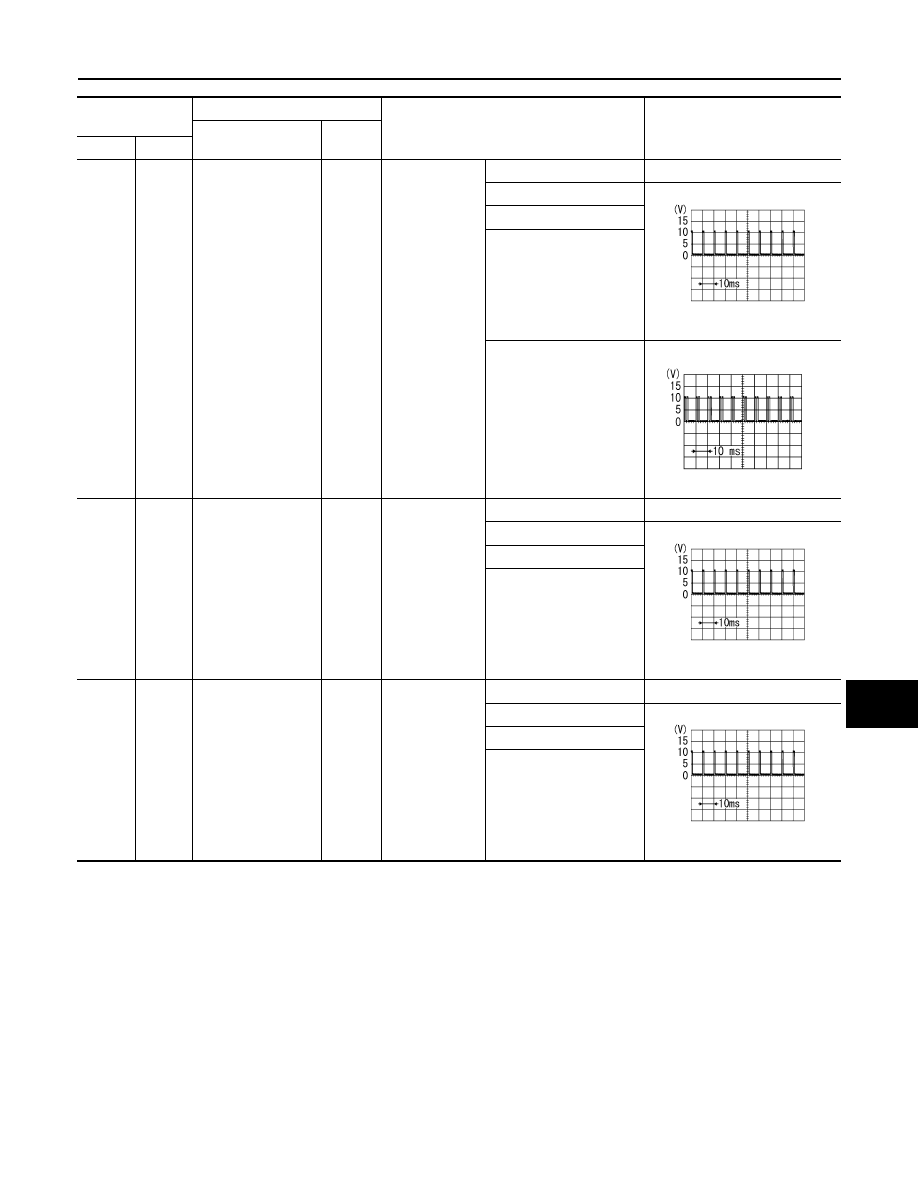

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

2

(BR/W)

Ground

Combination switch
INPUT 5

Input

Combination
switch
(Wiper intermit-
tent dial 4)

All switch OFF

0 V

Turn signal switch RH

1.0 V

Lighting switch HI

Lighting switch 1ST

Lighting switch 2ND

2.0 V

3

(GR)

Ground

Combination switch
INPUT 4

Input

Combination
switch
(Wiper intermit-
tent dial 4)

All switch OFF

0 V

Turn signal switch LH

1.0 V

Lighting switch PASS

Lighting switch 2ND

4

(L/Y)

Ground

Combination switch
INPUT 3

Input

Combination
switch
(Wiper intermit-
tent dial 4)

All switch OFF

0 V

Front wiper switch LO

1.0 V

Front wiper switch MIST

Front wiper switch INT

PKIB4958J

JPMIA0342JP

PKIB4958J

PKIB4958J

PWC-72

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

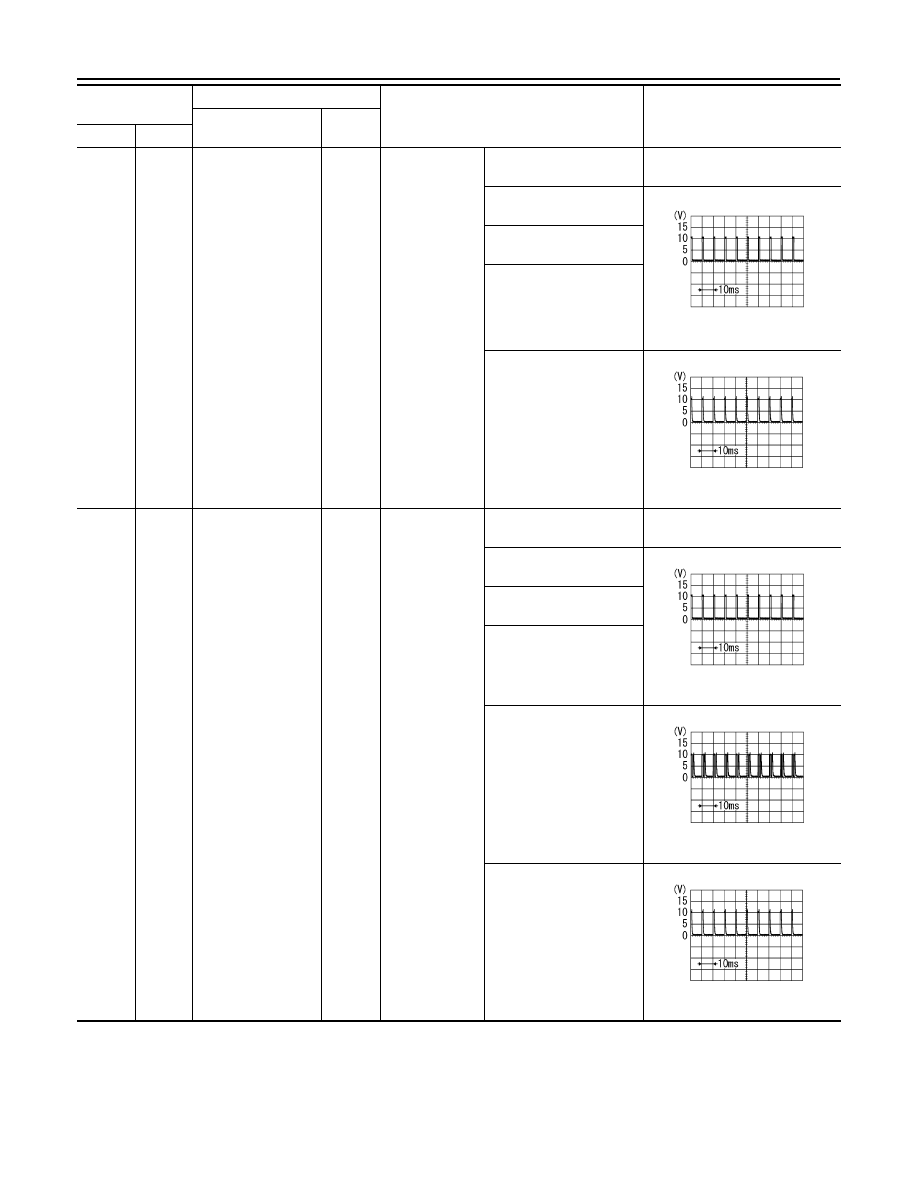

5

(G)

Ground

Combination switch
INPUT 2

Input

Combination
switch

All switch OFF
(Wiper intermittent dial 4)

0 V

Front washer switch
(Wiper intermittent dial 4)

1.0 V

Rear washer switch ON
(Wiper intermittent dial 4)

Any of the condition below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 5
• Wiper intermittent dial 6

Rear wiper switch ON
(Wiper intermittent dial 4)

0.8 V

6

(L/R)

Ground

Combination switch
INPUT 1

Input

Combination
switch

All switch OFF
(Wiper intermittent dial 4)

0 V

Front wiper switch HI
(Wiper intermittent dial 4)

1.0 V

Rear wiper switch INT
(Wiper intermittent dial 4)

Wiper intermittent dial 3
(All switch OFF)

Any of the condition below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 2

1.9 V

Any of the condition below
with all switch OFF
• Wiper intermittent dial 6
• Wiper intermittent dial 7

0.8 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

PKIB4958J

PKIB4956J

PKIB4958J

PKIB4952J

PKIB4956J
