POWER SUPPLY ROUTING CIRCUIT

PG-29

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWE7858GB

PG-30

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

JRMWE7859GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-31

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWE7860GB

PG-32

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

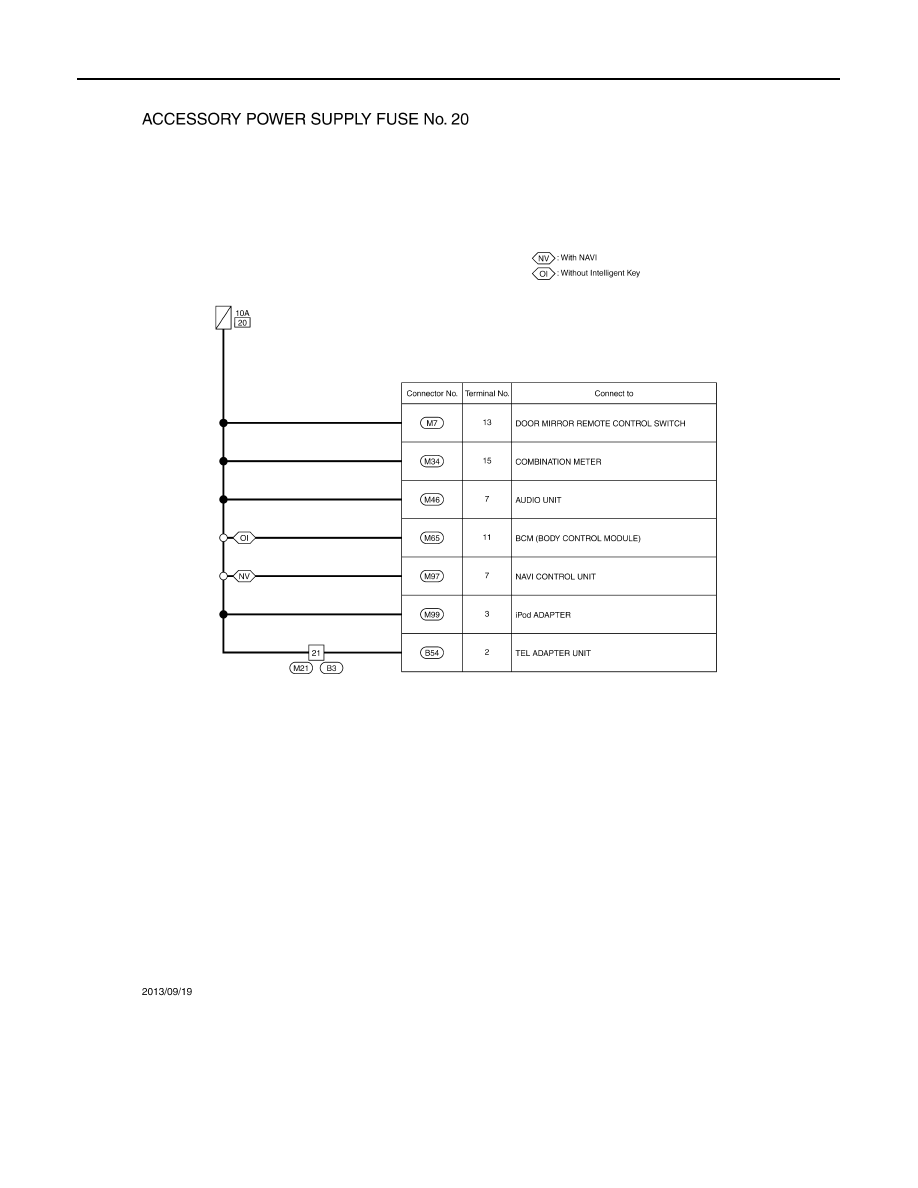

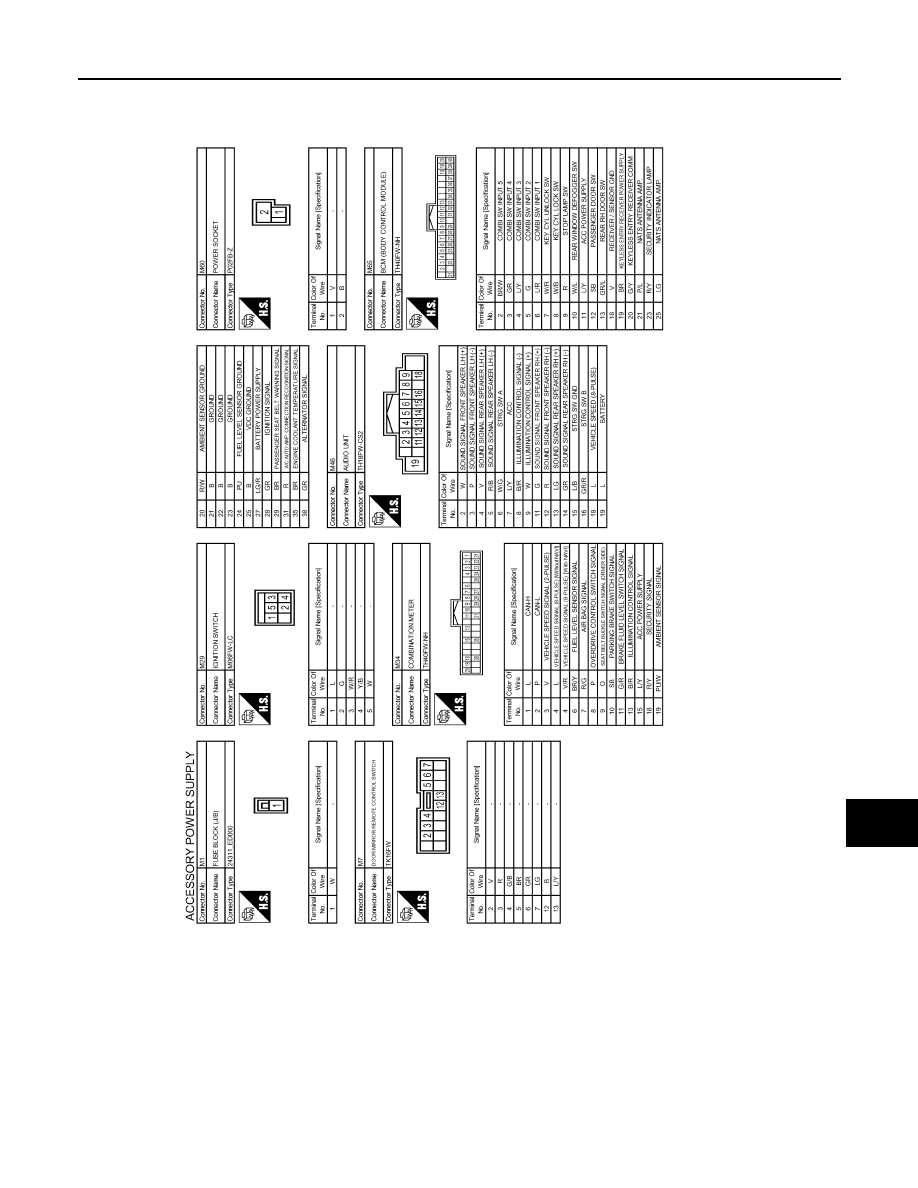

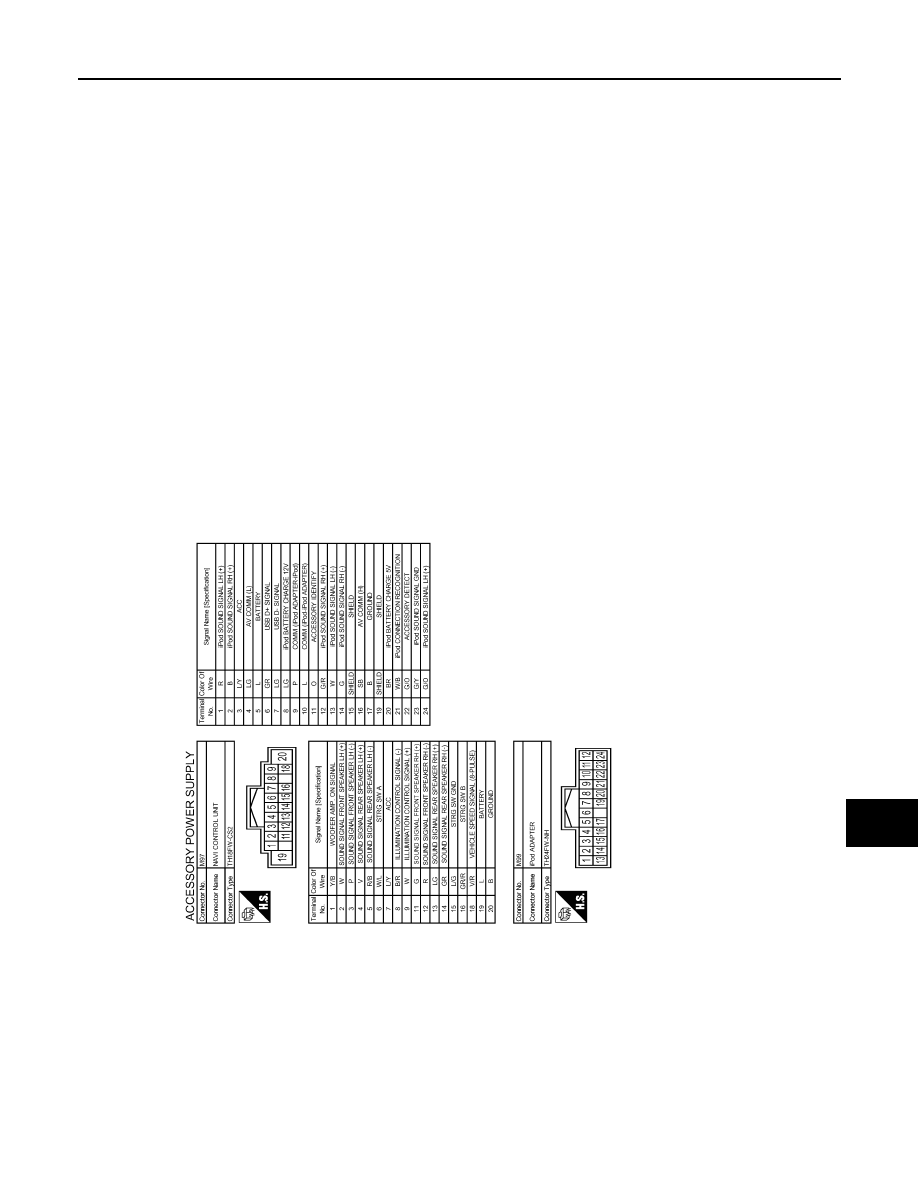

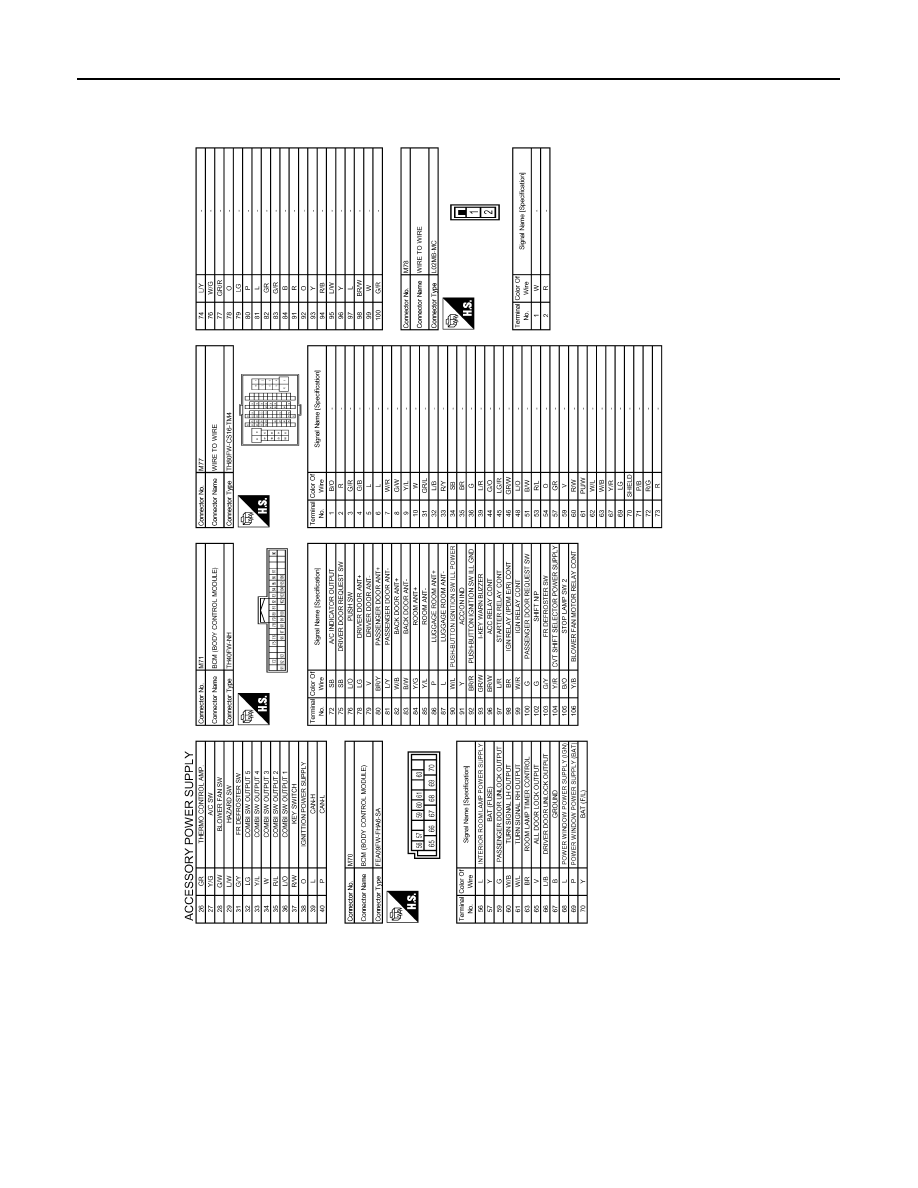

Wiring Diagram - ACCESSORY POWER SUPPLY FUSE No. 20 -

INFOID:0000000009945572

JRMWE7736GB
