Nissan Cube. Manual - part 733

PG

POWER SUPPLY ROUTING CIRCUIT

PG-13

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

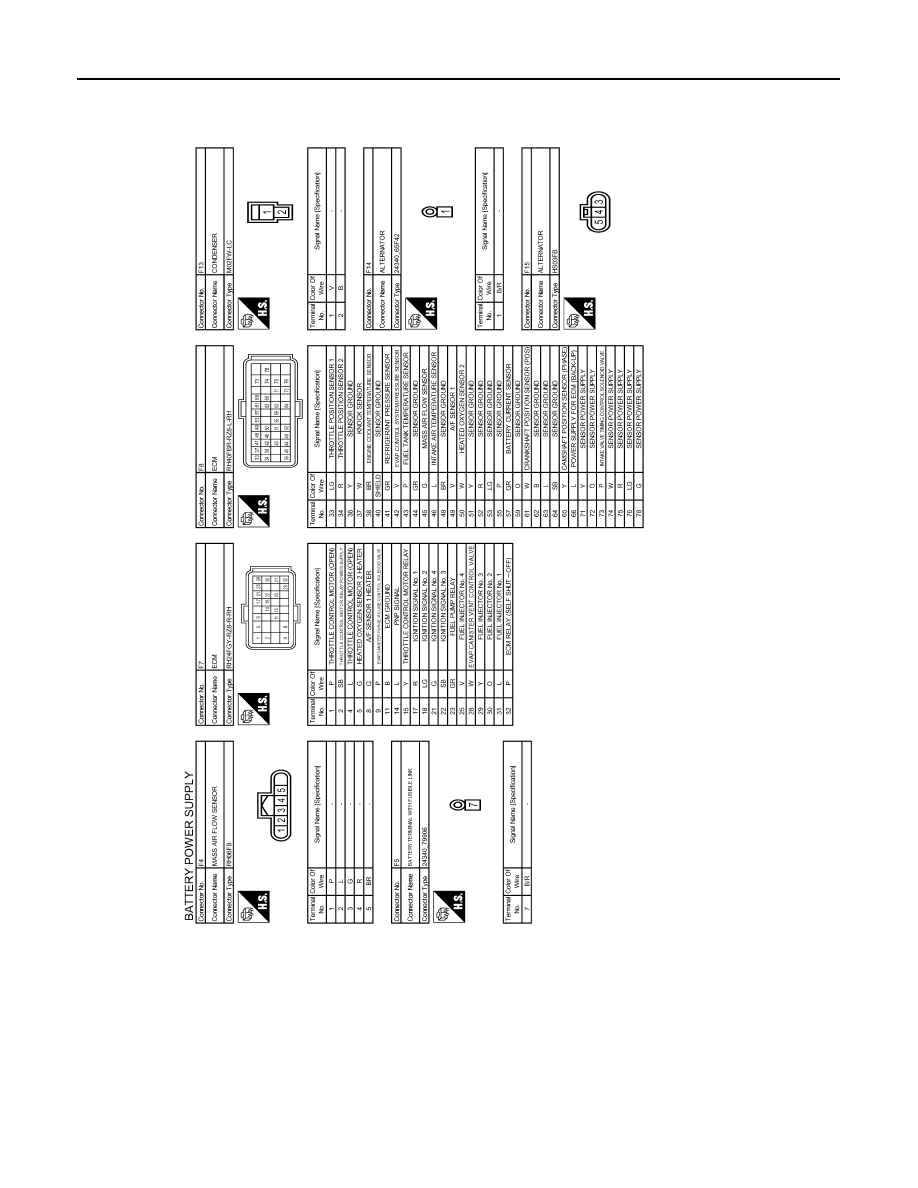

JRMWE7848GB

PG-14

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

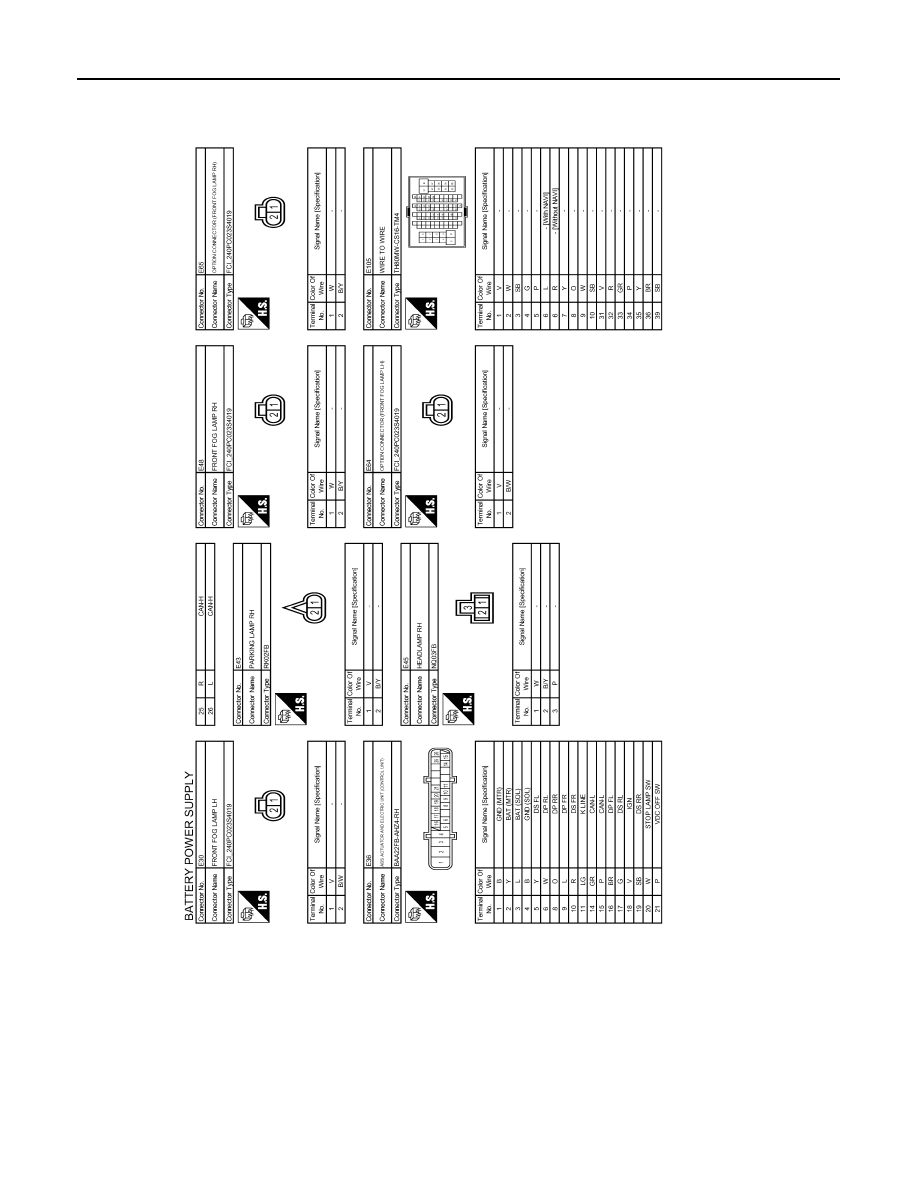

JRMWE7849GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-15

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

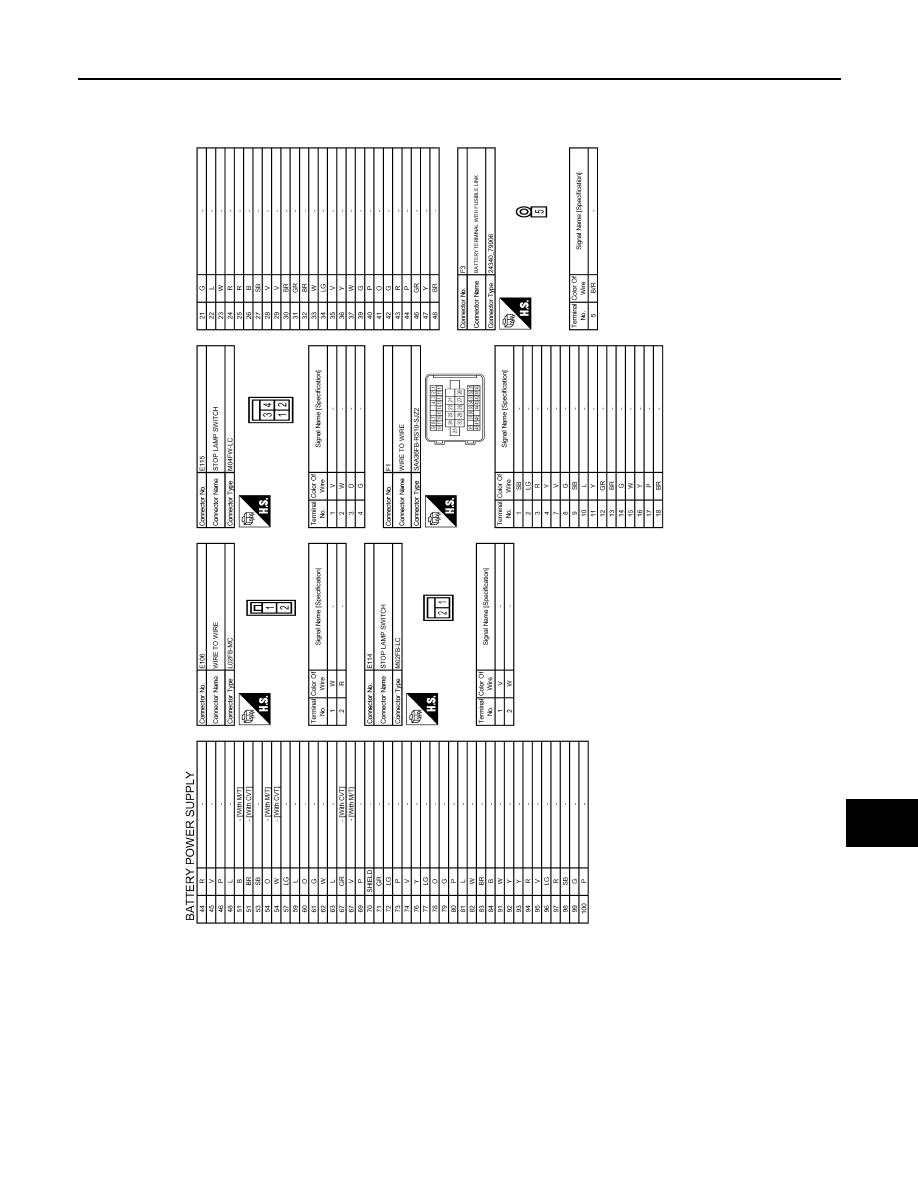

JRMWE7850GB

PG-16

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

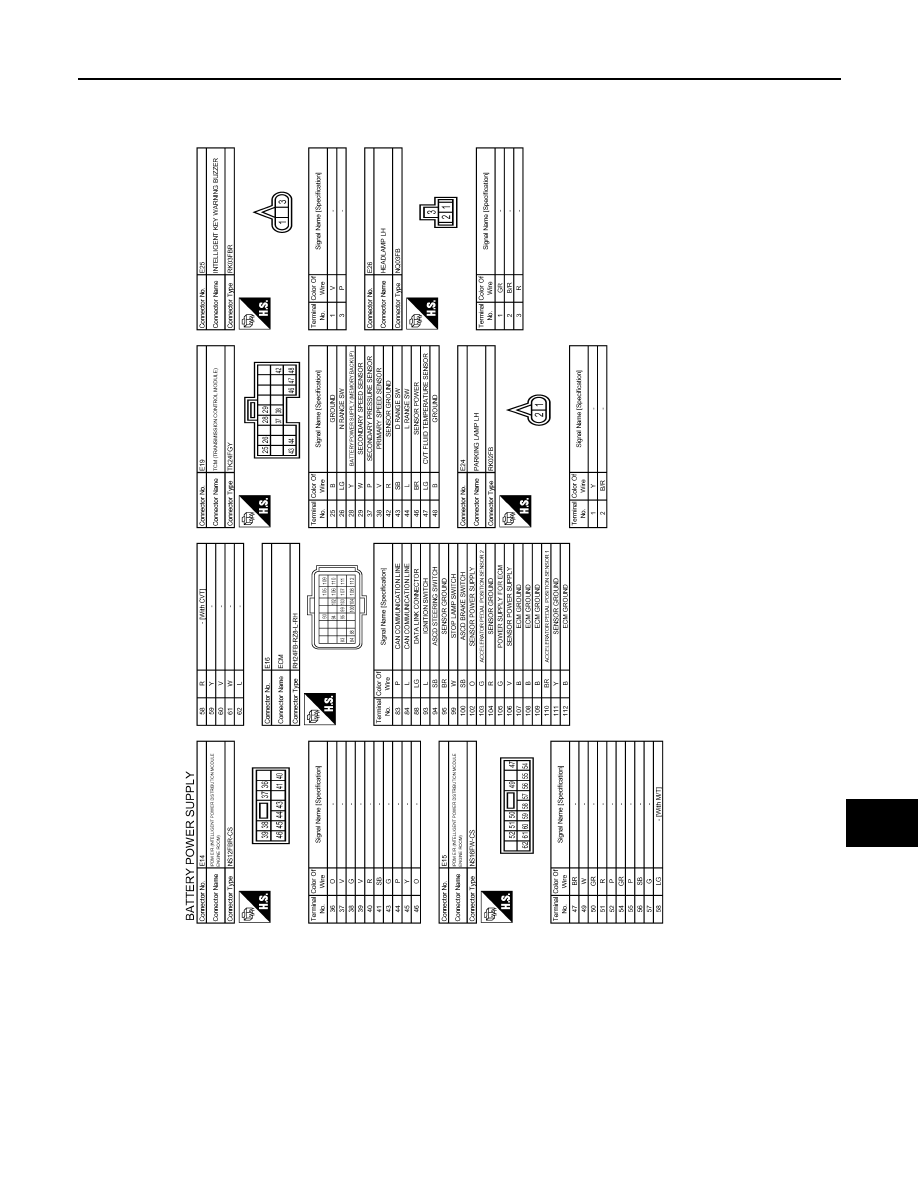

JRMWE7851GB
