CONTENTS

POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

POWER SUPPLY & GROUND CIRCUIT

BASIC INSPECTION  ....................................

3

BATTERY ............................................................

3

How to Handle Battery  ..............................................

3

Work Flow  .................................................................

3

DTC/CIRCUIT DIAGNOSIS  ..........................

6

POWER SUPPLY ROUTING CIRCUIT  ...............

6

Wiring Diagram - BATTERY POWER SUPPLY - ......

6

Wiring Diagram - BATTERY POWER SUPPLY
FUSIBLE LINK No. H - ............................................

22

Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 10 - .........................................................

23

Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 34 - .........................................................

24

Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 43 - .........................................................

25

Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 47 - .........................................................

26

Wiring Diagram - ACCESSORY POWER SUP-
PLY -  .......................................................................

27

Wiring Diagram - ACCESSORY POWER SUP-
PLY FUSE No. 20 -  .................................................

32

Wiring Diagram - IGNITION POWER SUPPLY - ....

33

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 2 - ...........................................................

46

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 16 - .........................................................

47

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 41, 42 - ...................................................

48

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 55 - .........................................................

49

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 57 - .........................................................

50

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 62 - .........................................................

51

Fuse ........................................................................

52

Fusible Link  .............................................................

55

Circuit Breaker .........................................................

55

OPTION HARNESS  ..........................................

56

Wiring Diagram - OPTION HARNESS -  ..................

56

HARNESS LAYOUT  .........................................

59

Outline .....................................................................

59

Engine Room Harness  ............................................

60

Engine Control Harness  ..........................................

62

Main Harness  ..........................................................

63

Body Harness / Tail Harness ...................................

64

Door Harness  ..........................................................

66

Room Lamp Harness ...............................................

71

HARNESS CONNECTOR  .................................

72

Description ...............................................................

72

STANDARDIZED RELAY  .................................

75

Description ...............................................................

75

FUSE BLOCK - JUNCTION BOX (J/B)  ............

77

Fuse, Connector and Terminal Arrangement  ..........

77

FUSE, FUSIBLE LINK AND RELAY BOX ........

78

Fuse and Fusible Link Arrangement ........................

78

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  ................

79

Fuse, Connector and Terminal Arrangement  ..........

79

PRECAUTION ..............................................

80

PRECAUTIONS .................................................

80

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

80

Precautions for Removing of Battery Terminal ........

80

PREPARATION ...........................................

81

PREPARATION .................................................

81

Special Service Tools  ..............................................

81

PG

BATTERY

PG-3

< BASIC INSPECTION >

[POWER SUPPLY & GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BASIC INSPECTION

BATTERY

How to Handle Battery

INFOID:0000000009945563

CAUTION:

• If it becomes necessary to start the engine with a booster battery and jumper cables, use a 12-volt

booster battery.

• After connecting battery cables, ensure that they are tightly clamped to battery terminals for good

contact.

• Never add distilled water through the hole used to check specific gravity.

METHODS OF PREVENTING OVER-DISCHARGE

The following precautions must be taken to prevent over-discharging a battery.

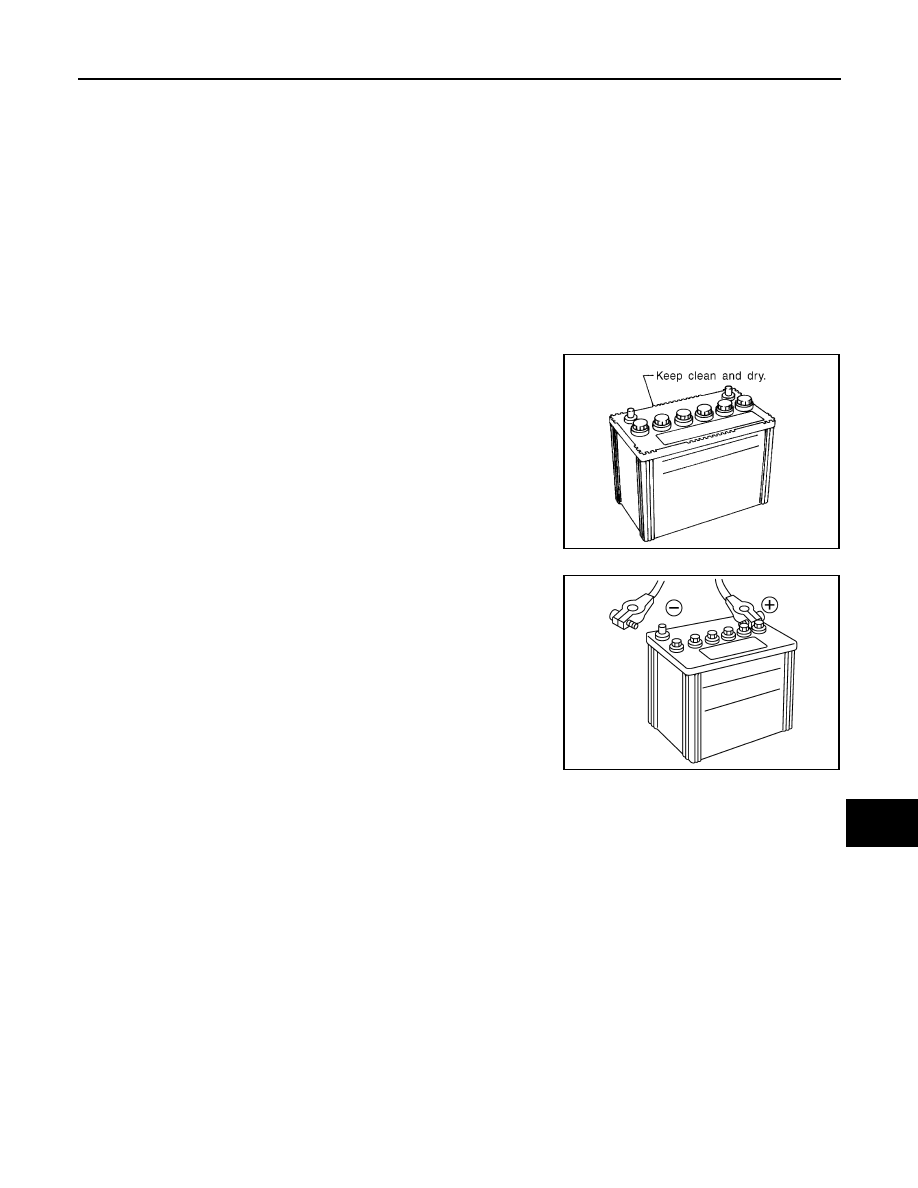

• The battery surface (particularly its top) should always be kept

clean and dry.

• The terminal connections should be clean and tight.
• At every routine maintenance, check the electrolyte level.

This also applies to batteries designated as “low maintenance” and
“maintenance-free”.

• When the vehicle is not going to be used over a long period of

time, disconnect the battery cable from the negative terminal. (If
the vehicle has an extended storage fuse switch, turn it off.)

Work Flow

INFOID:0000000009945564

BATTERY DIAGNOSIS WITH EXP-800 NI OR GR8-1200 NI

To diagnose and confirm the condition of the battery, use the following special service tools:
• EXP-800 NI Battery and electrical diagnostic analyzer
• GR8-1200 NI Multitasking battery and electrical diagnostic station
NOTE:
Refer to the applicable instruction manual for proper battery diagnosis procedures.

BATTERY DIAGNOSIS WITHOUT EXP-800 NI OR GR8-1200 NI

Check Electrolyte Level

WARNING:

Never allow battery fluid to come in contact with skin, eyes, fabrics, or painted surfaces. After touch-
ing a battery, never touch or rub your eyes until you have thoroughly washed your hands. If acid con-
tacts eyes, skin or clothing, immediately flush with water for 15 minutes and seek medical attention.
Failure to do this may cause personal injury or damage to clothing or the painted surfaces.

MEL040F

ELA0349D

PG-4

< BASIC INSPECTION >

[POWER SUPPLY & GROUND CIRCUIT]

BATTERY

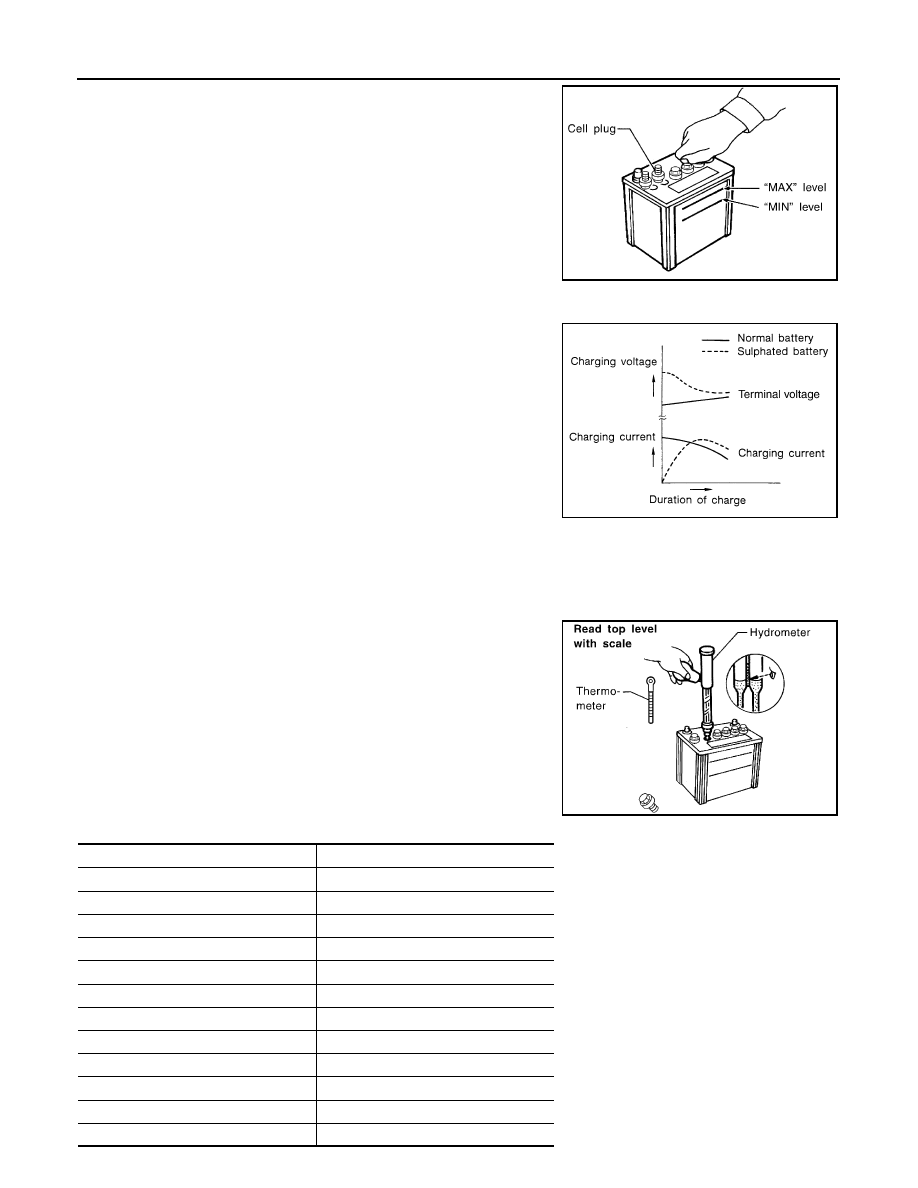

• Remove the cell plug using a suitable tool.
• Add distilled water up to the MAX level.

SULPHATION

• A battery will be completely discharged if it is left unattended

for a long time and the specific gravity will become less than
1.100. This may result in sulphation on the cell plates.

• To determine if a battery has been “sulphated”, note its volt-

age and current when charging it. As shown in the figure, less
current and higher voltage are observed in the initial stage of
charging sulphated batteries.

• A sulphated battery may sometimes be brought back into ser-

vice by means of a long, slow charge, 12 hours or more, fol-
lowed by a battery capacity test.

Specific Gravity Check

NOTE:
Check the charge condition of the battery.
Periodically check the specific gravity of the electrolyte. Keep a close check on charge condition to prevent
over-discharge.
1.

Read hydrometer and thermometer indications at eye level.

2.

Use the chart below to correct your hydrometer reading accord-
ing to electrolyte temperature.

Hydrometer Temperature Correction

MEL043F

PKIA2353E

MEL042FA

Battery electrolyte temperature [

°

C (

°

F)]

Add to specific gravity reading

71 (160)

0.032

66 (150)

0.028

60 (140)

0.024

54 (130)

0.020

49 (120)

0.016

43 (110)

0.012

38 (100)

0.008

32 (90)

0.004

27 (80)

0

21 (70)

0.004

16 (60)

0.008

10 (50)

0.012
