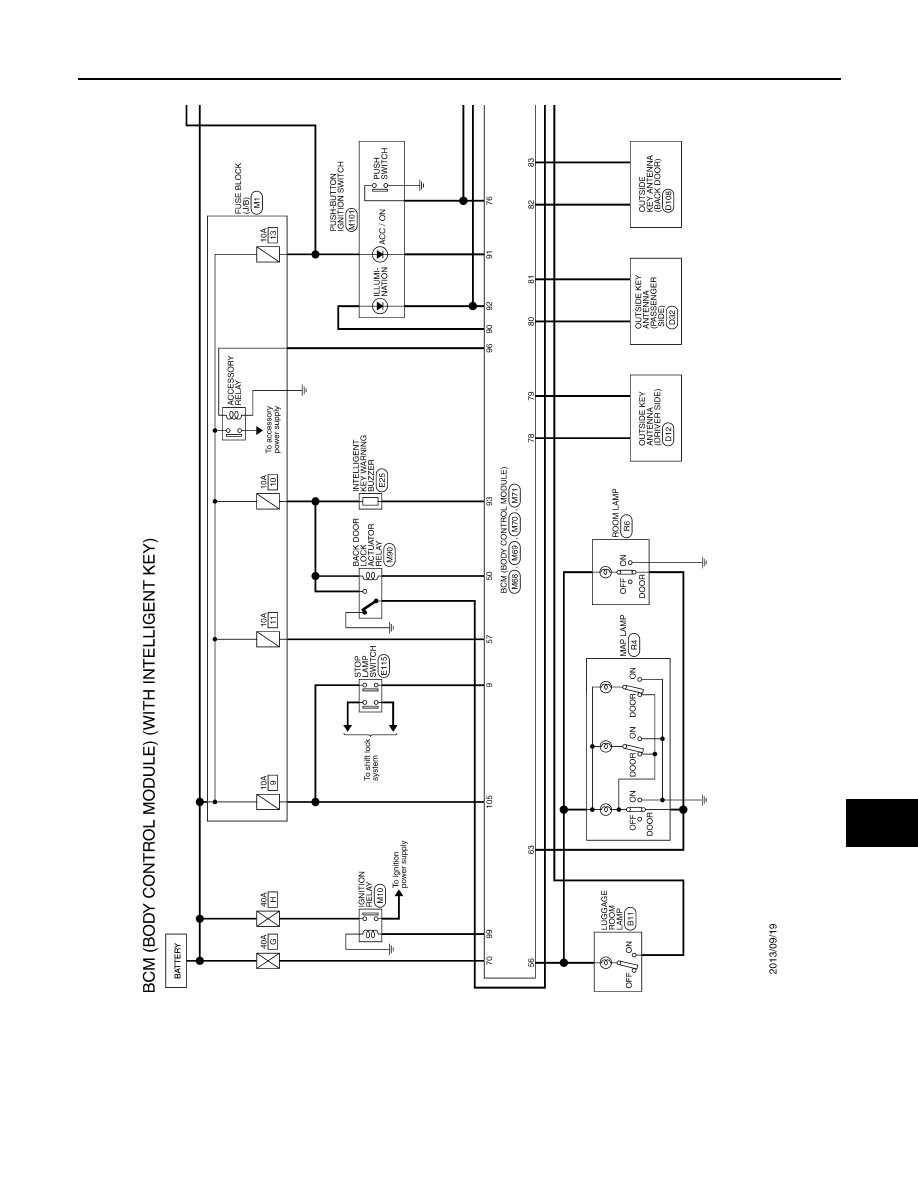

Wiring Diagram - BCM -

INFOID:0000000010269405

JRMWE7712GB

PCS-126

< ECU DIAGNOSIS INFORMATION >

[POWER DISTRIBUTION SYSTEM]

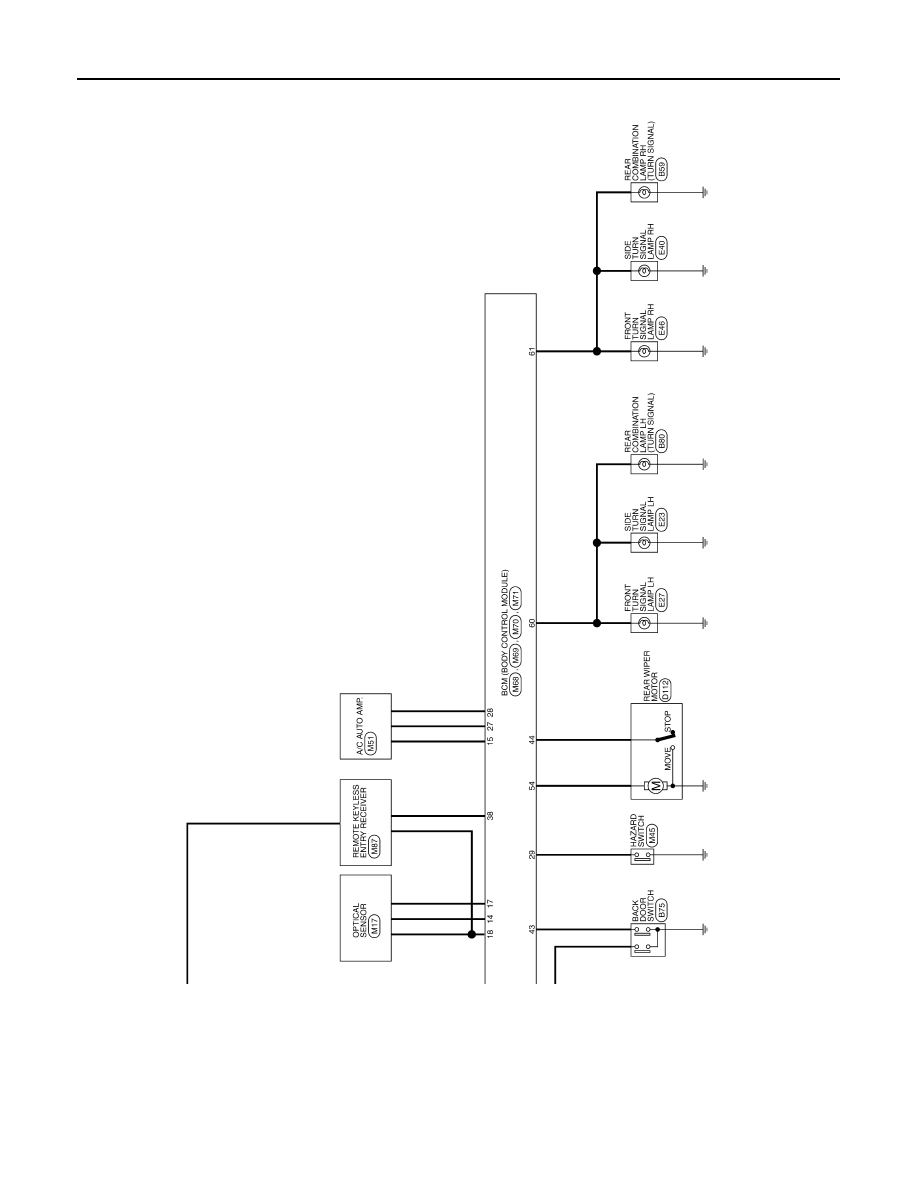

BCM (BODY CONTROL MODULE)

JRMWE7713GB

PCS

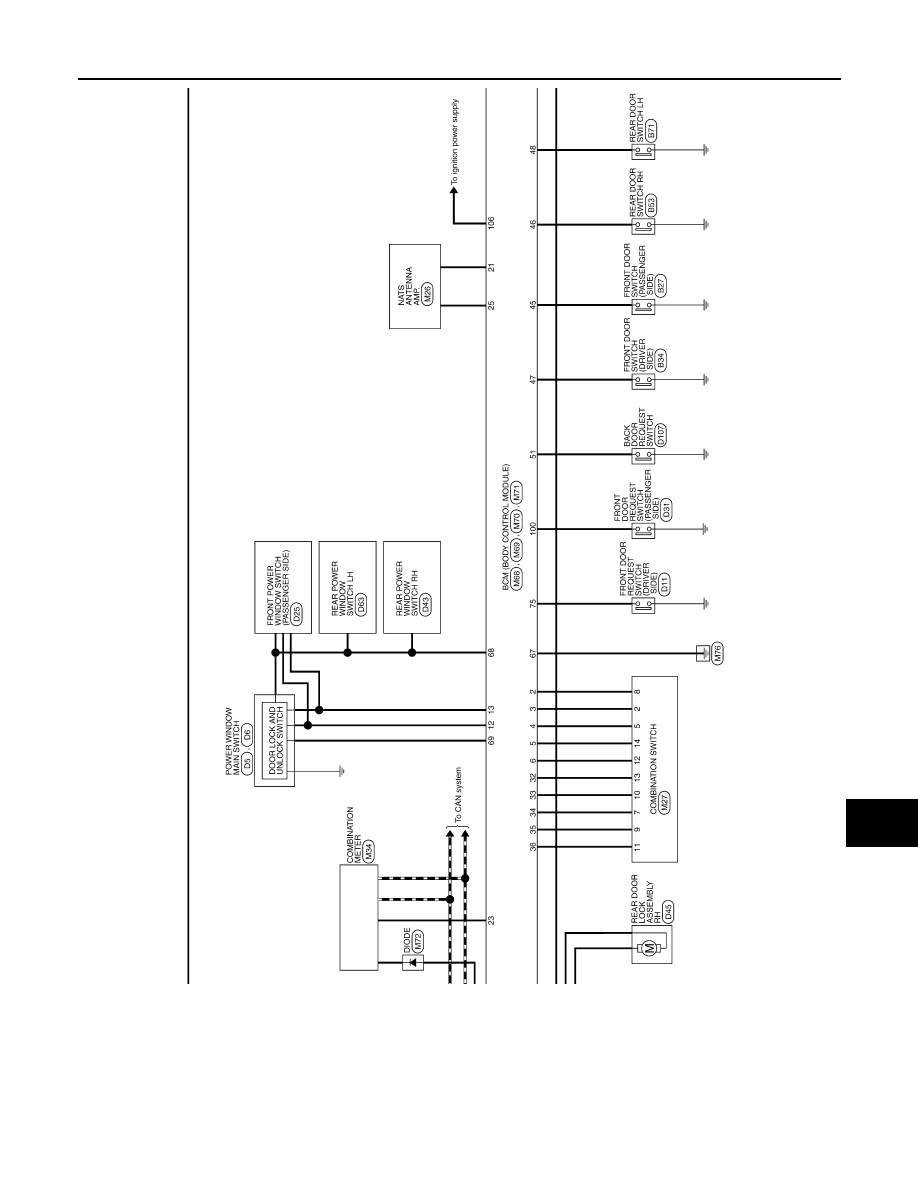

BCM (BODY CONTROL MODULE)

PCS-127

< ECU DIAGNOSIS INFORMATION >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWE7714GB

PCS-128

< ECU DIAGNOSIS INFORMATION >

[POWER DISTRIBUTION SYSTEM]

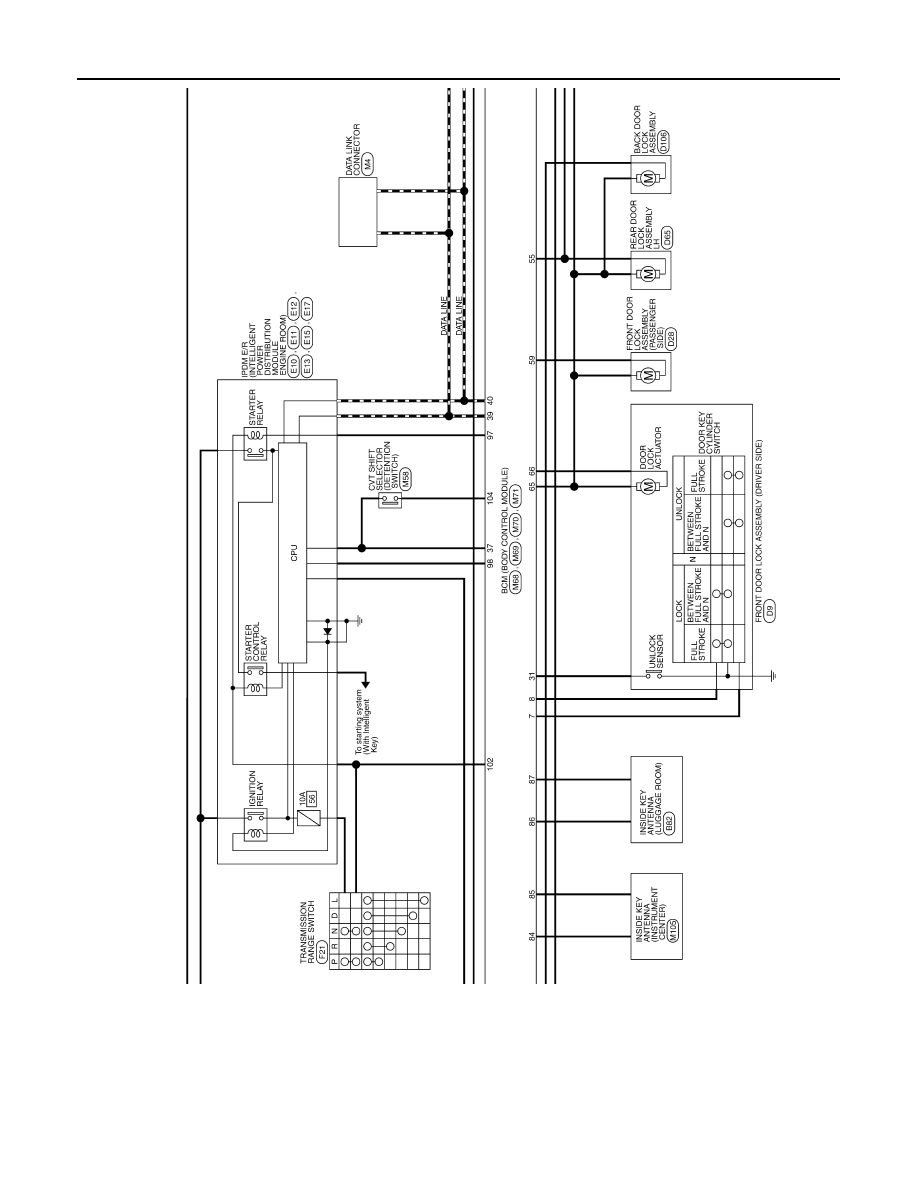

BCM (BODY CONTROL MODULE)

JRMWE7715GB
