PCS
PUSH-BUTTON IGNITION SWITCH POSITION INDICATOR
PCS-97
< DTC/CIRCUIT DIAGNOSIS >
[POWER DISTRIBUTION SYSTEM]
C
D
E
F
G
H
I
J
K
L
B
A
O
P
N

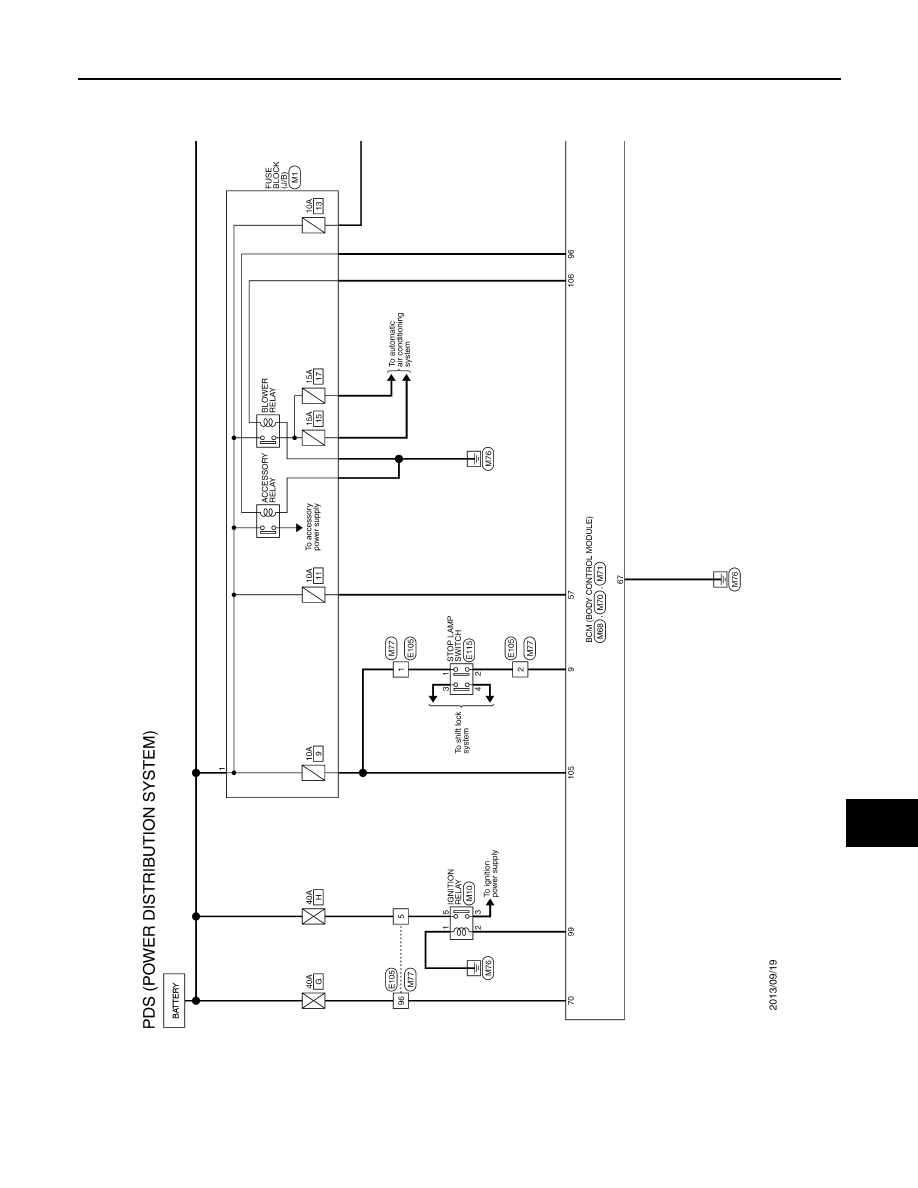

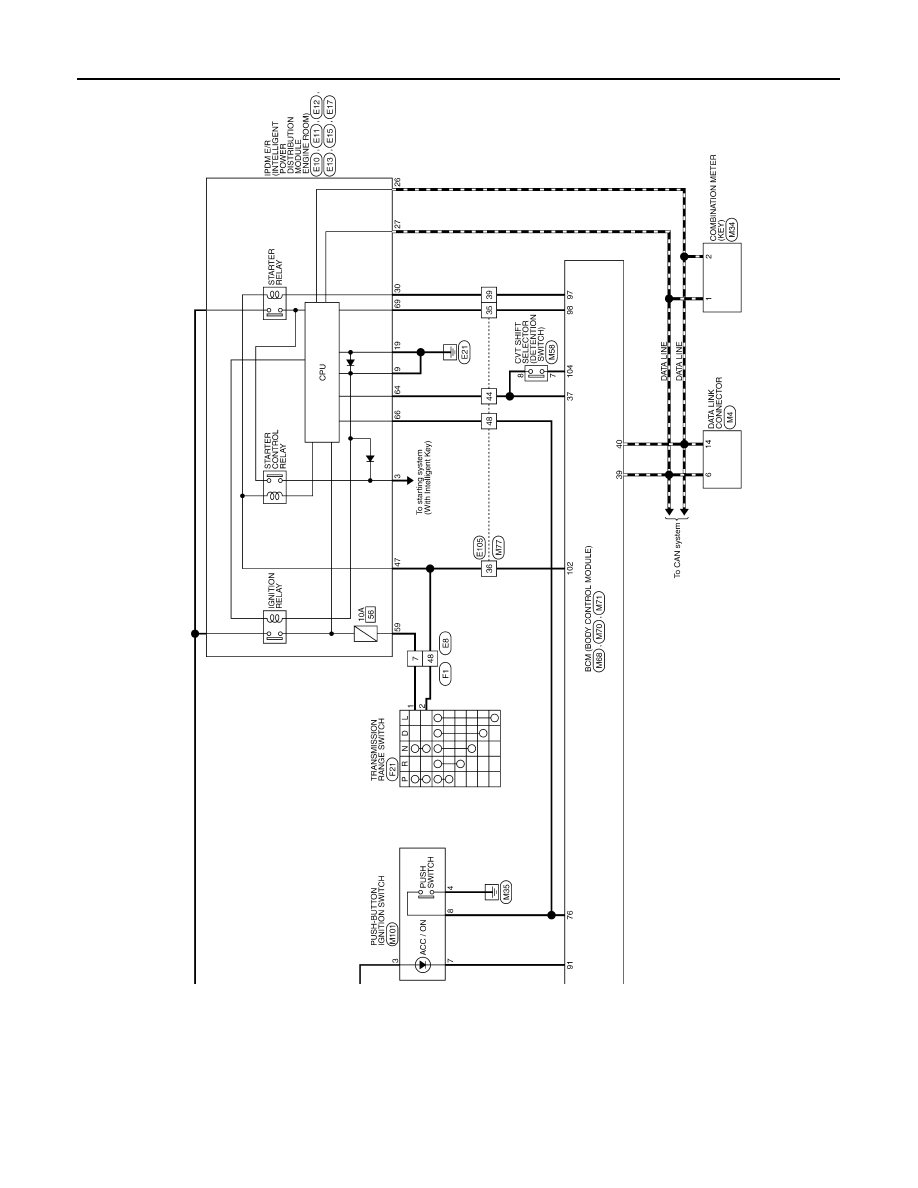

PUSH-BUTTON IGNITION SWITCH POSITION INDICATOR
Description
INFOID:0000000009945080
Push-button ignition switch changes the power supply position.
BCM maintains the power supply position status.
BCM changes the power supply position with the operation of the push-button ignition switch.
Component Function Check
INFOID:0000000009945081
1.
CHECK FUNCTION
Check push-button ignition switch (“PUSH SWITCH INDICATOR”) in Active Test Mode with CONSULT.
Is the inspection result normal?
YES
>> INSPECTION END
NO
>> Refer to
Diagnosis Procedure
INFOID:0000000009945082
1.
CHECK PUSH-BUTTON IGNITION SWITCH INPUT SIGNAL
1.
Turn ignition switch OFF.
2.
Disconnect push-button ignition switch connector.
3.
Check voltage between push-button ignition switch harness connector and ground.
Is the inspection normal?
YES
>> GO TO 2.
NO-1
>> Check 10 A fuse [No.13, located in fuse block (J/B)].
NO-2
>> Check harness for open or short between push-button ignition switch and fuse.
2.
CHECK BCM INPUT
1.
Connect push-button ignition switch connector.
2.
Disconnect BCM connector.
3.
Check voltage between BCM connector and ground.
Is the inspection normal?
YES
>> Replace BCM. Refer to
BCS-88, "Removal and Installation"
NO
>> GO TO 3.
3.
CHECK PUSH-BUTTON IGNITION SWITCH CIRCUIT
1.
Disconnect push-button ignition switch connector.
2.
Check continuity between BCM harness connector and push-button ignition switch harness connector.
Test item
Description
PUSH SWITCH INDICATOR
ON
Position indicator
Illuminates
OFF
Does not illuminate
(+)
(–)
Voltage (V)
(Approx.)
Push-button ignition switch
Connector
Terminal
M101
3
Ground
Battery voltage
(+)
(–)
Voltage (V)
(Approx.)
BCM
Connector
Terminal
M71
91
Ground
Battery voltage
