PCS

POWER SUPPLY AND GROUND CIRCUIT

PCS-49

< DTC/CIRCUIT DIAGNOSIS >

[IPDM E/R (WITHOUT I-KEY)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

POWER SUPPLY AND GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000009945035

1.

CHECK FUSES AND FUSIBLE LINK

Check that the following IPDM E/R fuses or fusible links are not blown.

Is the fuse fusing?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit if a fuse or fusible link is

blown.

NO

>> GO TO 2.

2.

CHECK POWER SUPPLY CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect IPDM E/R connector.

3.

Check voltage between IPDM E/R harness connector and the ground.

Is the measurement value normal?

YES

>> GO TO 3.

NO

>> Repair the harness or connector.

3.

CHECK IGNITION POWER SUPPLY CIRCUIT

1.

Turn the ignition switch ON.

2.

Check voltage between IPDM E/R harness connector and the ground.

Is the measurement value normal?

YES

>> GO TO 4.

NO

>> Repair the harness or connector.

4.

CHECK GROUND CIRCUIT

1.

Turn the ignition switch OFF.

2.

Check continuity between IPDM E/R harness connectors and the ground.

Signal name

Fuses and fusible link No.

Battery power supply

C

D

J

Terminals

Voltage

(Approx.)

(+)

(

−

)

IPDM E/R

Connector

Terminal

Ground

E9

1

Battery voltage

2

E10

8

Terminals

Voltage

(Approx.)

(+)

(

−

)

IPDM E/R

Ground

Connector

Terminal

E12

18

Battery voltage

PCS-50

< DTC/CIRCUIT DIAGNOSIS >

[IPDM E/R (WITHOUT I-KEY)]

POWER SUPPLY AND GROUND CIRCUIT

Does continuity exist?

YES

>> INSPECTION END

NO

>> Repair the harness or connector.

IPDM E/R

Ground

Continuity

Connector

Terminal

E11

9

Existed

E12

19

PCS

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-51

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R (WITHOUT I-KEY)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ECU DIAGNOSIS INFORMATION

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

Reference Value

INFOID:0000000009945036

VALUES ON THE DIAGNOSIS TOOL

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Monitor Item

Condition

Value/Status

MOTOR FAN REQ

Engine idle speed

Changes depending on engine
coolant temperature, air conditioner
operation status, vehicle speed,
etc.

1/2/3/4

AC COMP REQ

Engine running

A/C switch OFF

Off

A/C switch ON
(Compressor is operating)

On

TAIL&CLR REQ

Lighting switch OFF

Off

Lighting switch 1ST, 2ND, HI or AUTO (Light is illuminated)

On

HL LO REQ

Lighting switch OFF

Off

Lighting switch 2ND, HI or AUTO (Light is illuminated)

On

HL HI REQ

Lighting switch OFF

Off

Lighting switch HI

On

FR FOG REQ

Lighting switch 2ND or
AUTO (Light is illuminated)

Front fog lamp switch OFF

Off

Front fog lamp switch ON

On

FR WIP REQ

Ignition switch ON

Front wiper switch OFF

Stop

Front wiper switch INT

1LOW

Front wiper switch LO

Low

Front wiper switch HI

Hi

WIP AUTO STOP

Ignition switch ON

Front wiper stop position

STOP P

Any position other than front wiper
stop position

ACT P

WIP PROT

Ignition switch ON

Front wiper operates normally

Off

Front wiper stops at fail-safe opera-
tion

BLOCK

IGN RLY

Ignition switch OFF or ACC

Off

Ignition switch ON

On

INTER/NP SW

Ignition switch ON

Selector lever in any position other
than P or N (CVT models)

Off

Selector lever in P or N position
(CVT models)

On

ST RLY -REQ

Ignition switch OFF or ACC

Off

Ignition switch ON

On

DTRL REQ

NOTE:
The item is indicated, but not monitored.

Off

OIL P SW

Ignition switch OFF, ACC or engine running

Open

Ignition switch ON

Close

PCS-52

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R (WITHOUT I-KEY)]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

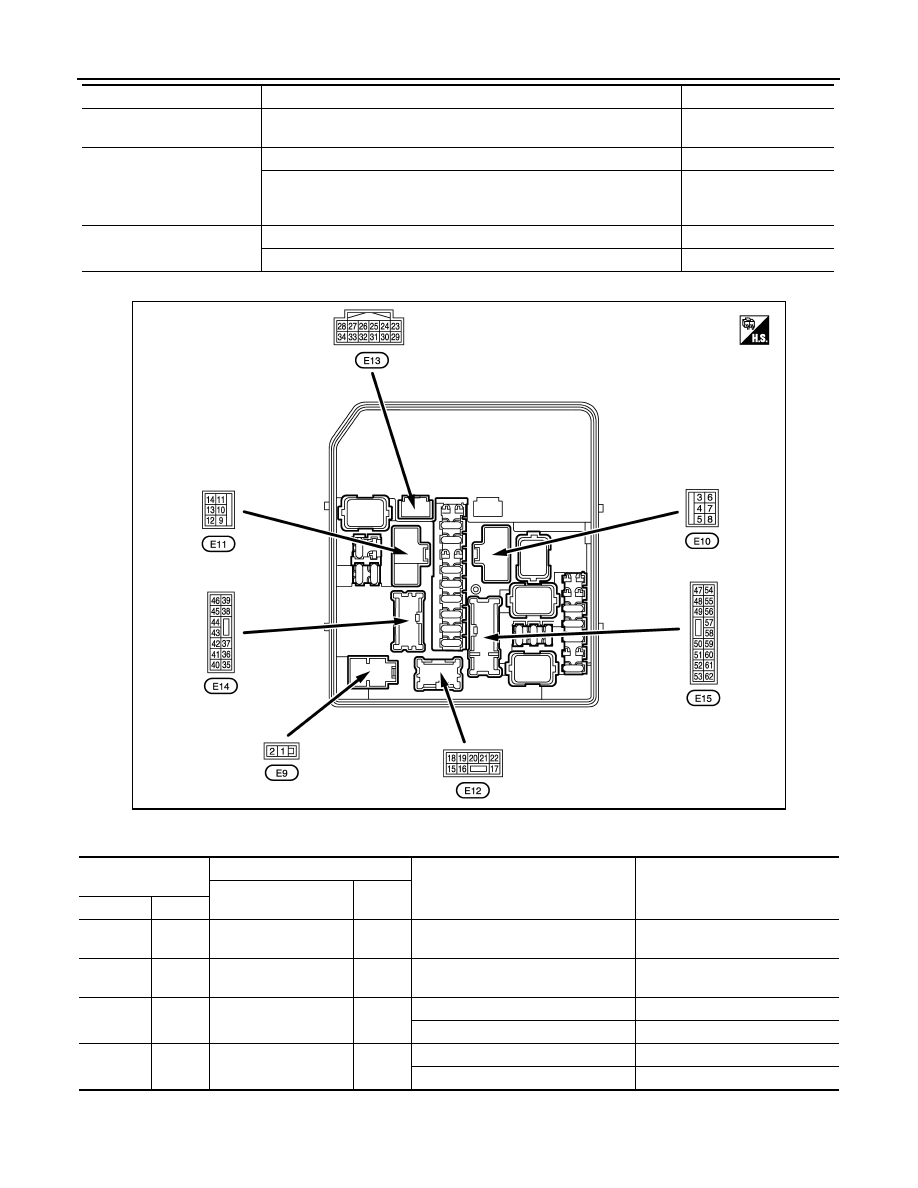

TERMINAL LAYOUT

PHYSICAL VALUES

HOOD SW

NOTE:
The item is indicated, but not monitored.

Off

THFT HRN REQ

Not operation

Off

• Panic alarm is activated
• Horn is activated with VEHICLE SECURITY (THEFT WARNING) SYS-

TEM

On

HORN CHIRP

Not operating

Off

Door locking with key fob (horn chirp mode)

On

Monitor Item

Condition

Value/Status

JPMIA1512ZZ

Terminal NO.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

–

1

(R)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

2

(G)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

3

(BR)

Ground

Starter motor

Output

Ignition switch ON

0 V

At engine cranking

Battery voltage

5

(LG)

Ground

Cooling fan relay-1
power supply

Output

Cooling fan OFF

0 V

Cooling fan operated

Battery voltage
