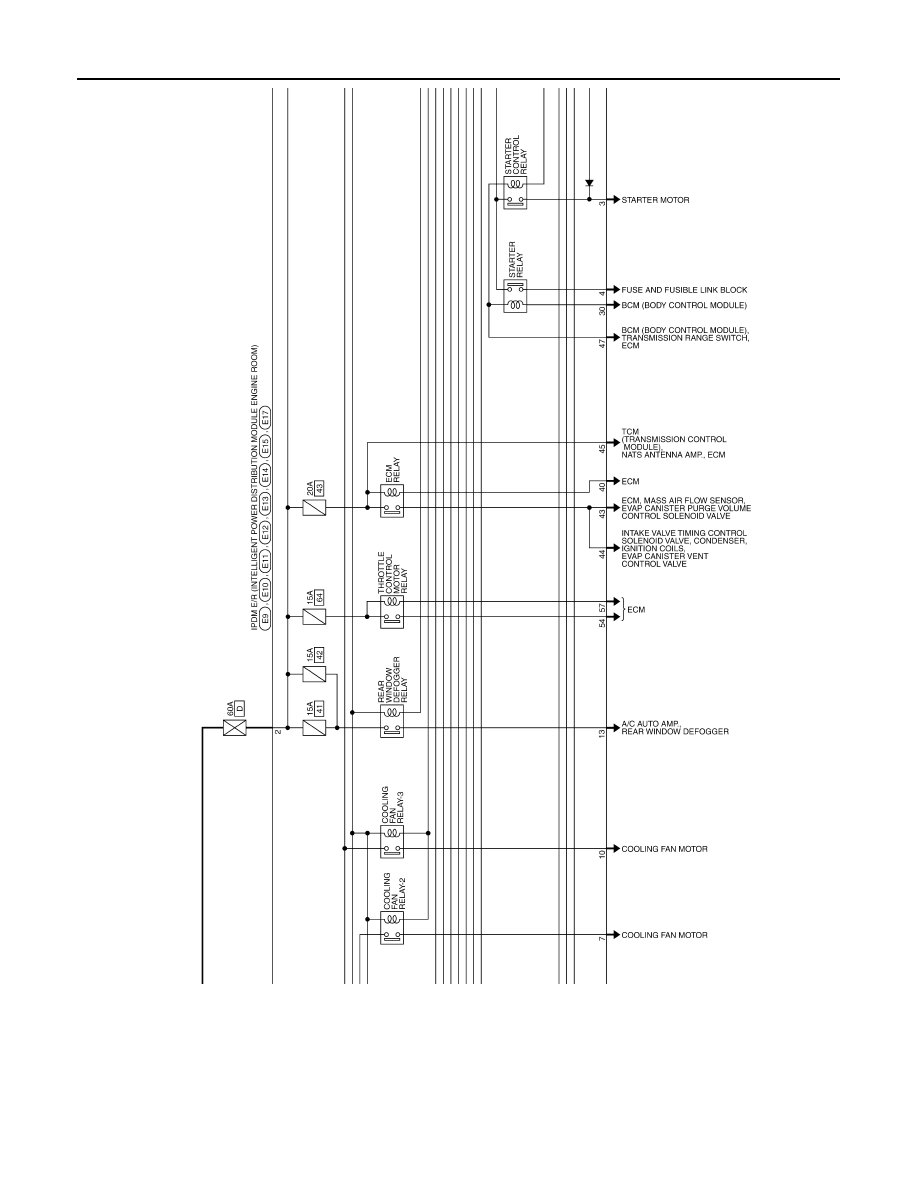

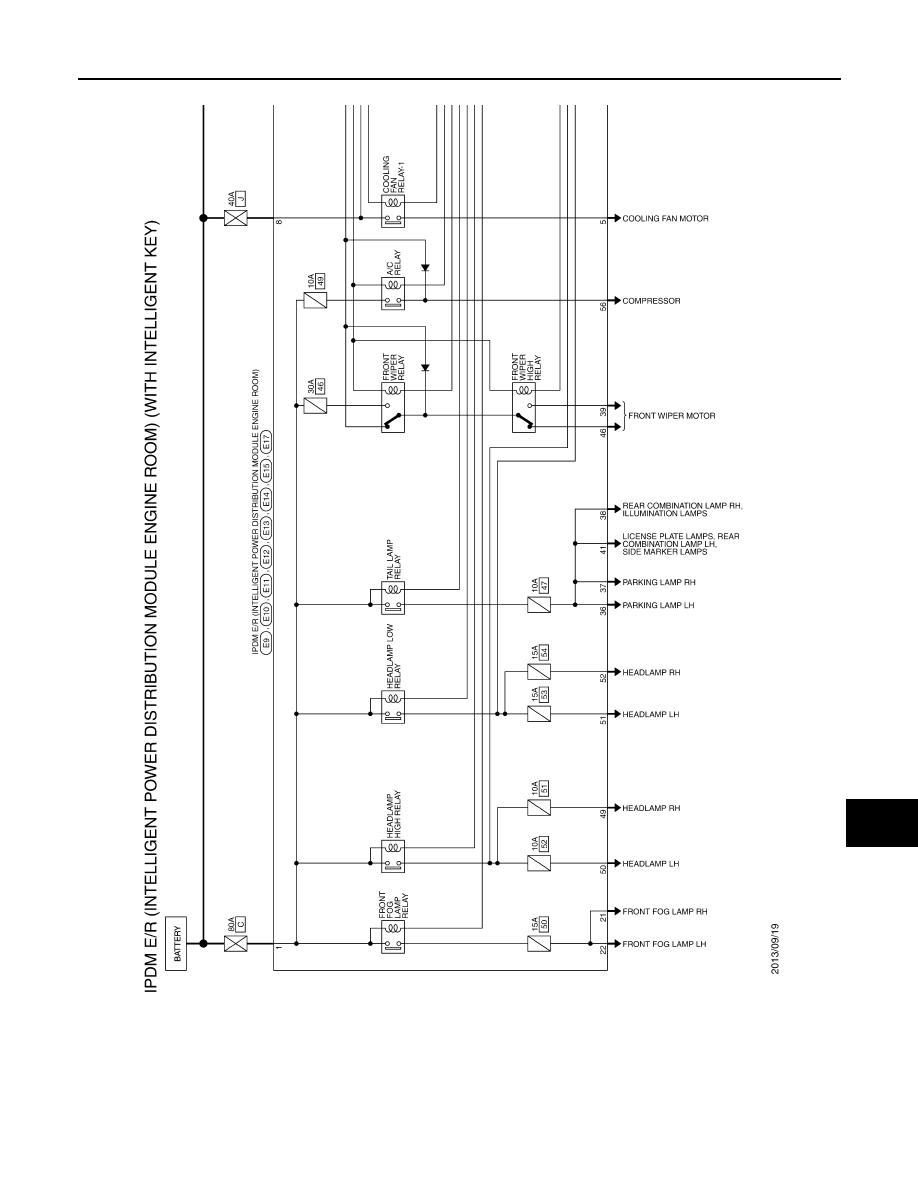

PCS IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) PCS-25 < ECU DIAGNOSIS INFORMATION > [IPDM E/R (WITH I-KEY)] C D E F G H I J K L B A O P N 36 (O) Ground Parking lamp (LH) Output Ignition Lighting switch OFF 0 V Lighting switch 1ST Battery voltage 37 (V) Ground Parking lamp (RH) Output Ignition Lighting switch OFF 0 V Lighting switch 1ST Battery voltage 38 (G) Ground Tail lamp (RH) & illumi- Output Ignition Lighting switch OFF 0 V Lighting switch 1ST Battery voltage 39 (V) Ground Front wiper HI Output Ignition Front wiper switch OFF 0 V Front wiper switch HI Battery voltage 40 (R) Ground ECM relay control Output Ignition switch OFF Battery voltage • Ignition switch ON (For a few seconds after turning ig- 0 - 1.5 V 41 (SB) Ground Tail lamp (LH) & license Output Ignition Lighting switch OFF 0 V Lighting switch 1ST Battery voltage 43 (G) Ground ECM relay power sup- Output Ignition switch OFF 0 V • Ignition switch ON (For a few seconds after turning ig- Battery voltage 44 (P) Ground ECM relay power sup- Output Ignition switch OFF 0 V • Ignition switch ON (For a few seconds after turning ig- Battery voltage 45 (Y) Ground TCM power supply Output Ignition switch OFF Battery voltage 46 (O) Ground Front wiper LO Output Ignition Front wiper switch OFF 0 V Front wiper switch LO Battery voltage 47 (BR) Ground Transmission range switch *1 Input Select lever in any position other than 0 V Select lever P or N (Ignition switch Battery voltage Clutch interlock switch *2 Release the clutch pedal 0 V Depress the clutch pedal Battery voltage 49 (W) Ground Headlamp HI (RH) Output Ignition Lighting switch OFF 0 V • Lighting switch HI Battery voltage 50 (GR) Ground Headlamp HI (LH) Output Ignition Lighting switch OFF 0 V • Lighting switch HI Battery voltage Terminal NO. (Wire color) Description Condition Value (Approx.) Signal name Input/ Output + – |
