INSIDE MIRROR

MIR-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

REMOVAL AND INSTALLATION

INSIDE MIRROR

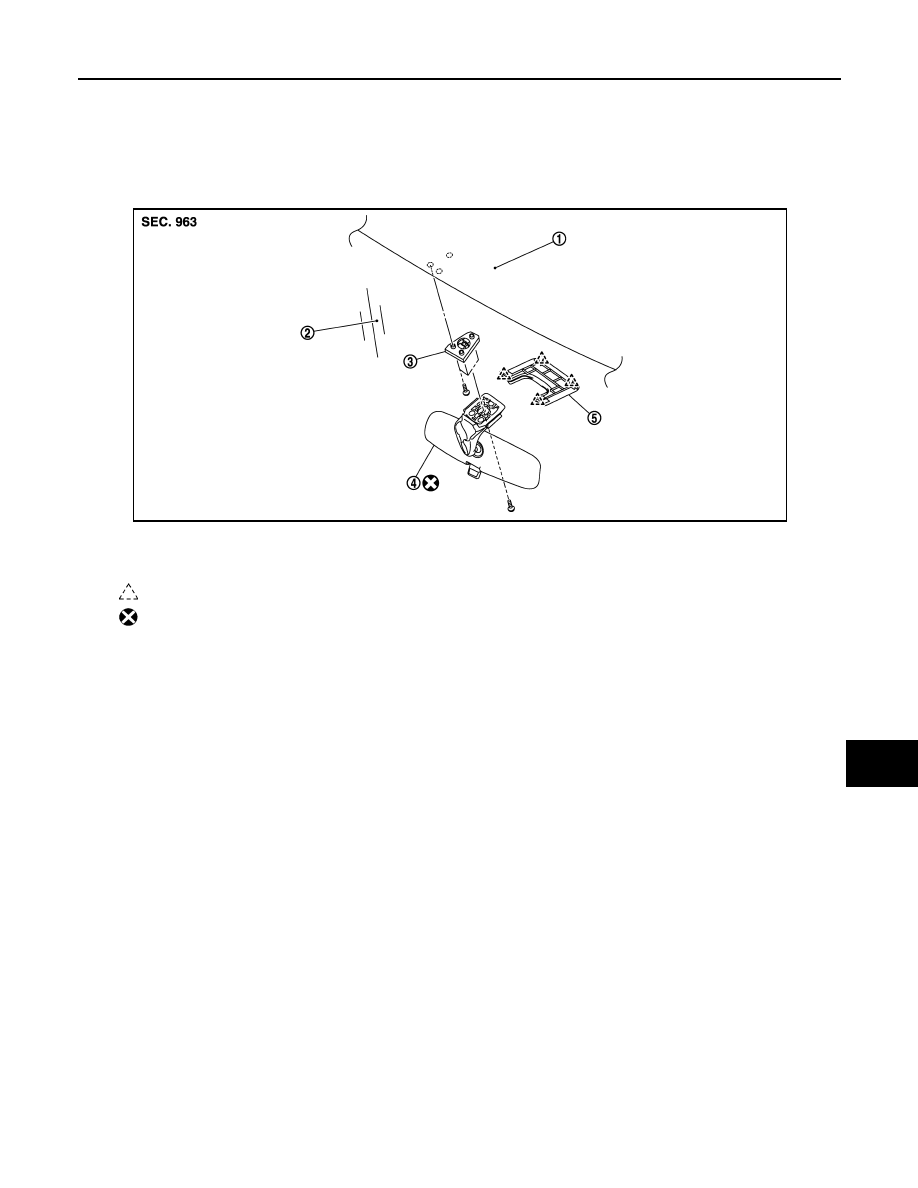

Exploded View

INFOID:0000000009946009

Removal and Installation

INFOID:0000000009946010

CAUTION:

Never reuse the inside mirror disassembled from mirror base.

REMOVAL

1.

Remove inside mirror cover.

2.

Disconnect harness connector from inside mirror.

3.

Remove inside mirror mounting bolt, and remove inside mirror.

4.

Remove mirror base mounting bolts, and remove mirror base.

INSTALLATION

Install in the reverse order of removal.

1.

Roof panel

2.

Windshield glass

3.

Mirror base

4.

Inside mirror

5.

Inside mirror cover

: Pawl

: Always replace after every disassembly.

JMLIA0326ZZ

MIR-16

< REMOVAL AND INSTALLATION >

OUTSIDE MIRROR

OUTSIDE MIRROR

DOOR MIRROR ASSEMBLY

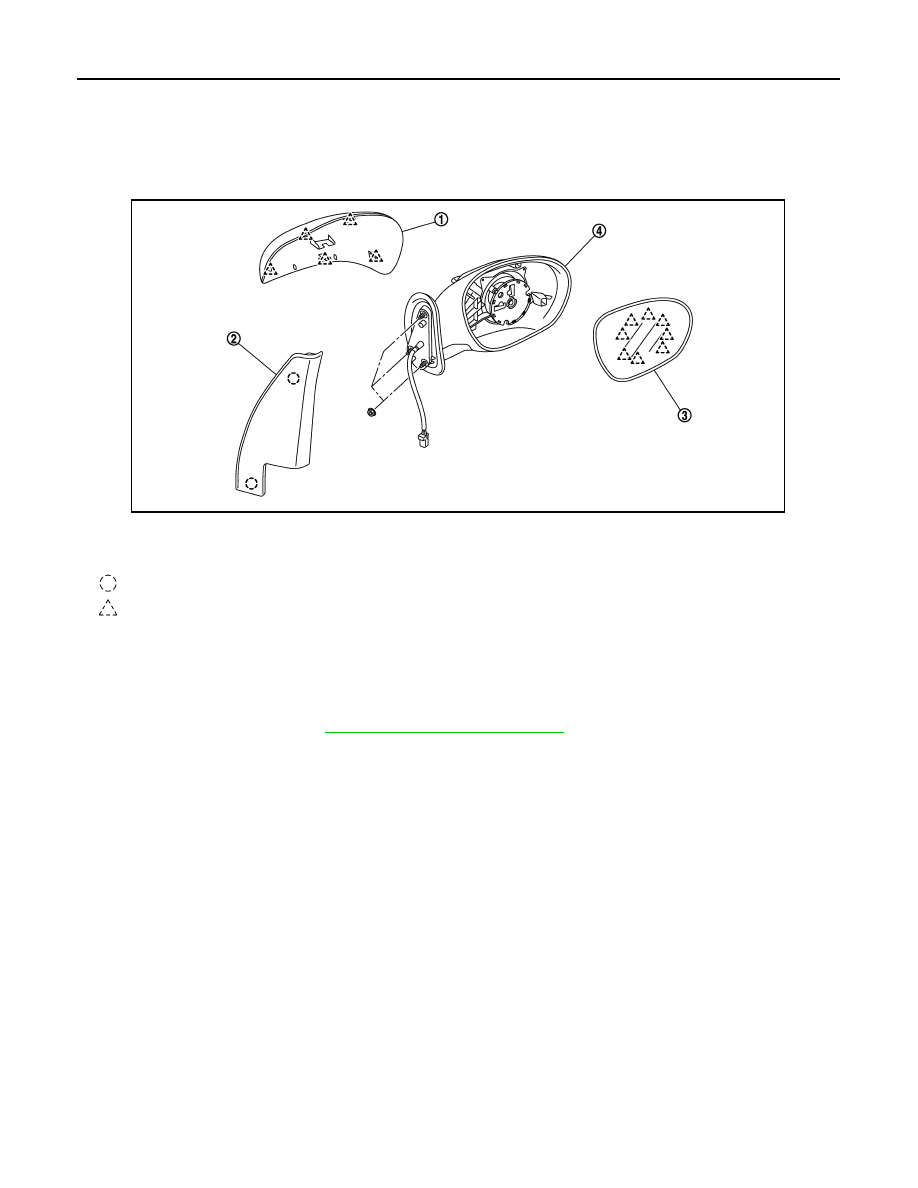

DOOR MIRROR ASSEMBLY : Exploded View

INFOID:0000000009946011

DOOR MIRROR ASSEMBLY : Removal and Installation

INFOID:0000000009946012

REMOVAL

1.

Remove door mirror corner cover.

2.

Remove door finisher. Refer to

INT-12, "Removal and Installation"

.

3.

Disconnect door mirror harness connector.

4.

Remove door mirror mounting nuts, and remove door mirror assembly.

INSTALLATION

Install in the reverse order of removal.

GLASS MIRROR

1.

Door mirror cover

2.

Door mirror corner cover

3.

Glass mirror

4.

Door mirror assembly

   : Clip

: Pawl

JMLIA0328ZZ

OUTSIDE MIRROR

MIR-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

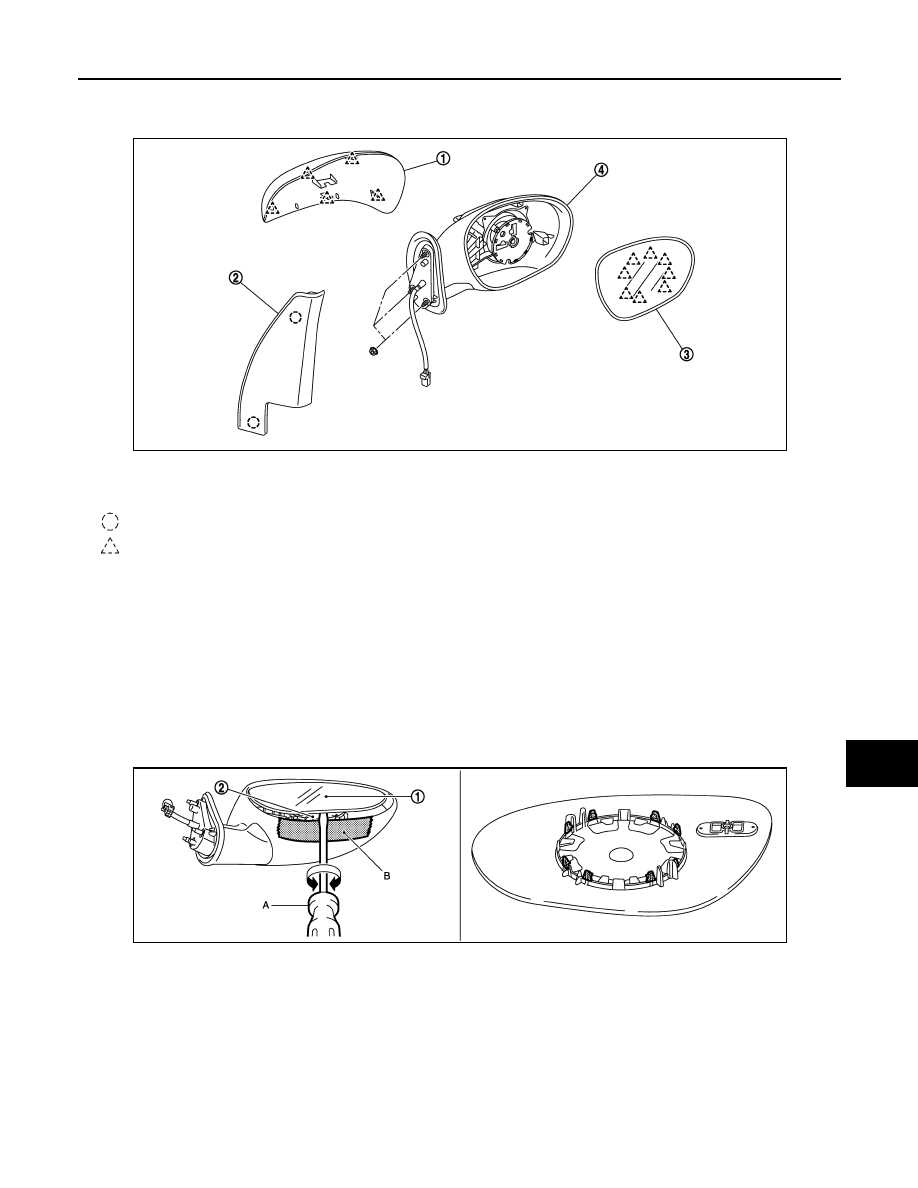

GLASS MIRROR : Exploded View

INFOID:0000000009946013

GLASS MIRROR : Disassembly and Assembly

INFOID:0000000009946014

DISASSEMBLY

1.

Place the glass mirror upward.

2.

Put a strip of protective tape (B) on housing assembly.

3.

Insert a small flat-bladed screwdriver (A) into the recess at lower side between glass mirror (1) and actua-
tor (2), and push up pawls to remove glass mirror lower side.
NOTE:
Insert a small flat-bladed screwdriver into recesses, and push up while rotating (twisting) to make work
easier.

4.

Insert a small flat-bladed screwdriver at LH/RH side between glass mirror and actuator, and push up
pawls to remove glass mirror LH/RH side.
NOTE:
Insert a small flat-bladed screwdriver into recesses, and push up while rotating (twisting) to make work
easier.

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION:

After installation, visually check that pawls are securely engaged.

DOOR MIRROR COVER

1.

Door mirror cover

2.

Door mirror corner cover

3.

Glass mirror

4.

Door mirror assembly

   : Clip

: Pawl

JMLIA0328ZZ

JMLIA0327ZZ

MIR-18

< REMOVAL AND INSTALLATION >

OUTSIDE MIRROR

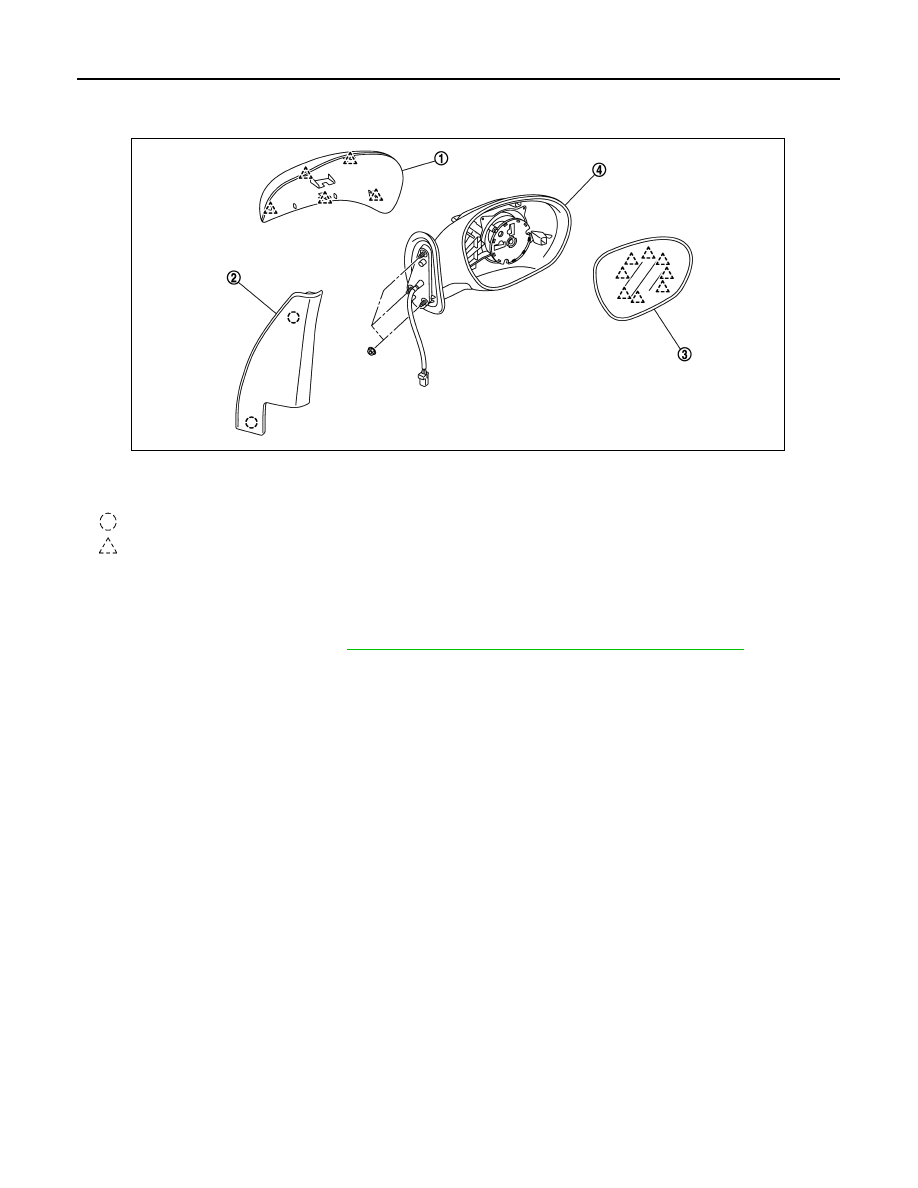

DOOR MIRROR COVER : Exploded View

INFOID:0000000009946015

DOOR MIRROR COVER : Disassembly and Assembly

INFOID:0000000009946016

DISASSEMBLY

1.

Remove the glass mirror. Refer to

MIR-17, "GLASS MIRROR : Disassembly and Assembly"

.

2.

Remove the pawls, and disassemble the door mirror cover from the mirror assembly.

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION:

After installation, visually check that pawls are securely engaged.

1.

Door mirror cover

2.

Door mirror corner cover

3.

Glass mirror

4.

Door mirror assembly

: Clip

: Pawl

JMLIA0328ZZ
