INL-108

< REMOVAL AND INSTALLATION >

MAP LAMP

1.

Remove the map lamp.

2.

Remove the lens.

3.

Remove the bulb.

ROOM LAMP

INL-109

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ROOM LAMP

Exploded View

INFOID:0000000009950958

Removal and Installation

INFOID:0000000009950959

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Insert any appropriate tool into the gap between the lens. And then remove the lens.

2.

Remove room lamp housing mounting screw. And then remove the room lamp bulb housing.

3.

Disconnect the connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000009950960

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

ROOM LAMP BULB

1.

Insert any appropriate tool into the gap between the lens. And then remove the lens.

2.

Remove the bulb.

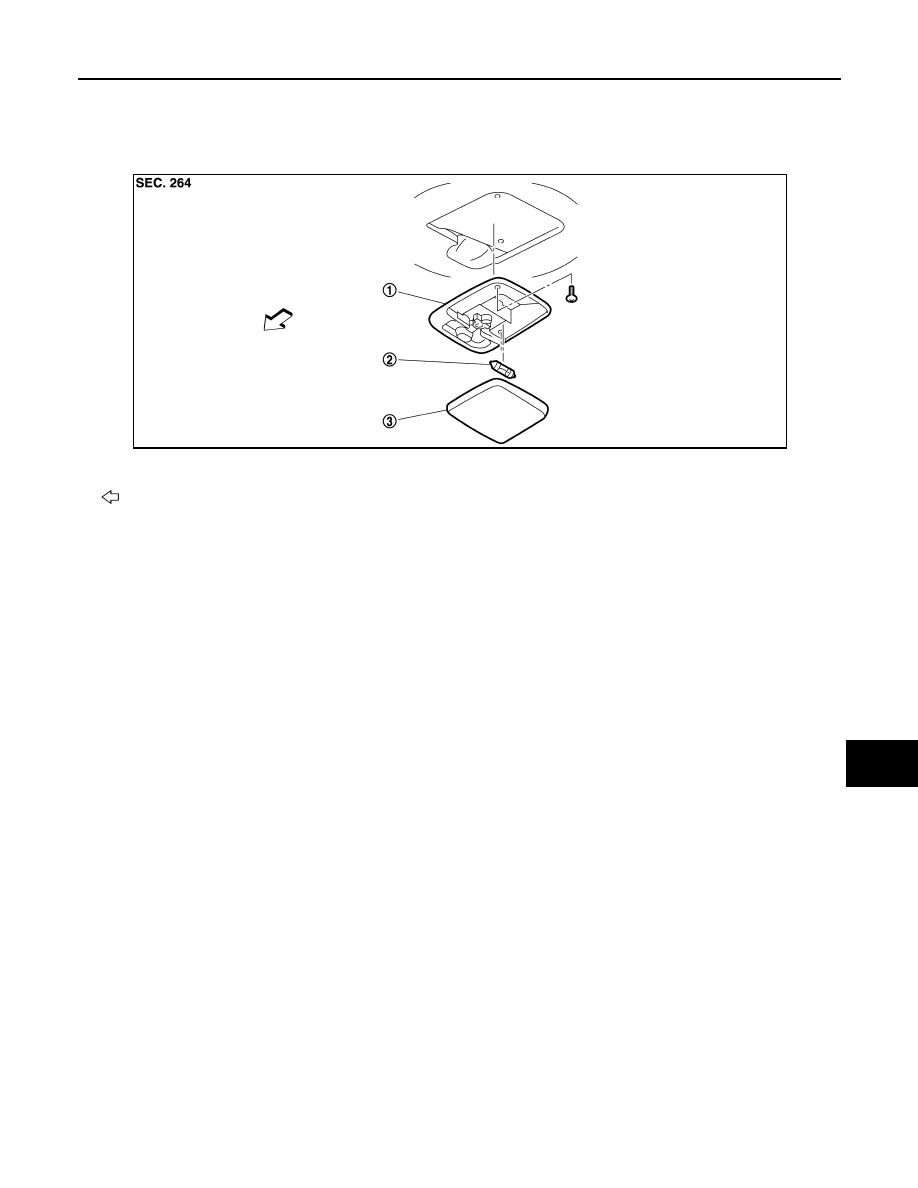

1.

Room lamp bulb housing

2.

Bulb

3.

Lens

: Vehicle front

JPLIA1646ZZ

INL-110

< REMOVAL AND INSTALLATION >

LUGGAGE ROOM LAMP

LUGGAGE ROOM LAMP

Exploded View

INFOID:0000000009950961

Removal and Installation

INFOID:0000000009950962

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Insert any appropriate tool into the gap between the lens. Remove the lens.

2.

Push the pawl and then remove the luggage room lamp.

3.

Disconnect the connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000009950963

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LUGGAGE ROOM LAMP BULB

1.

Remove the luggage room lamp.

2.

Remove the lens.

3.

Remove the bulb.

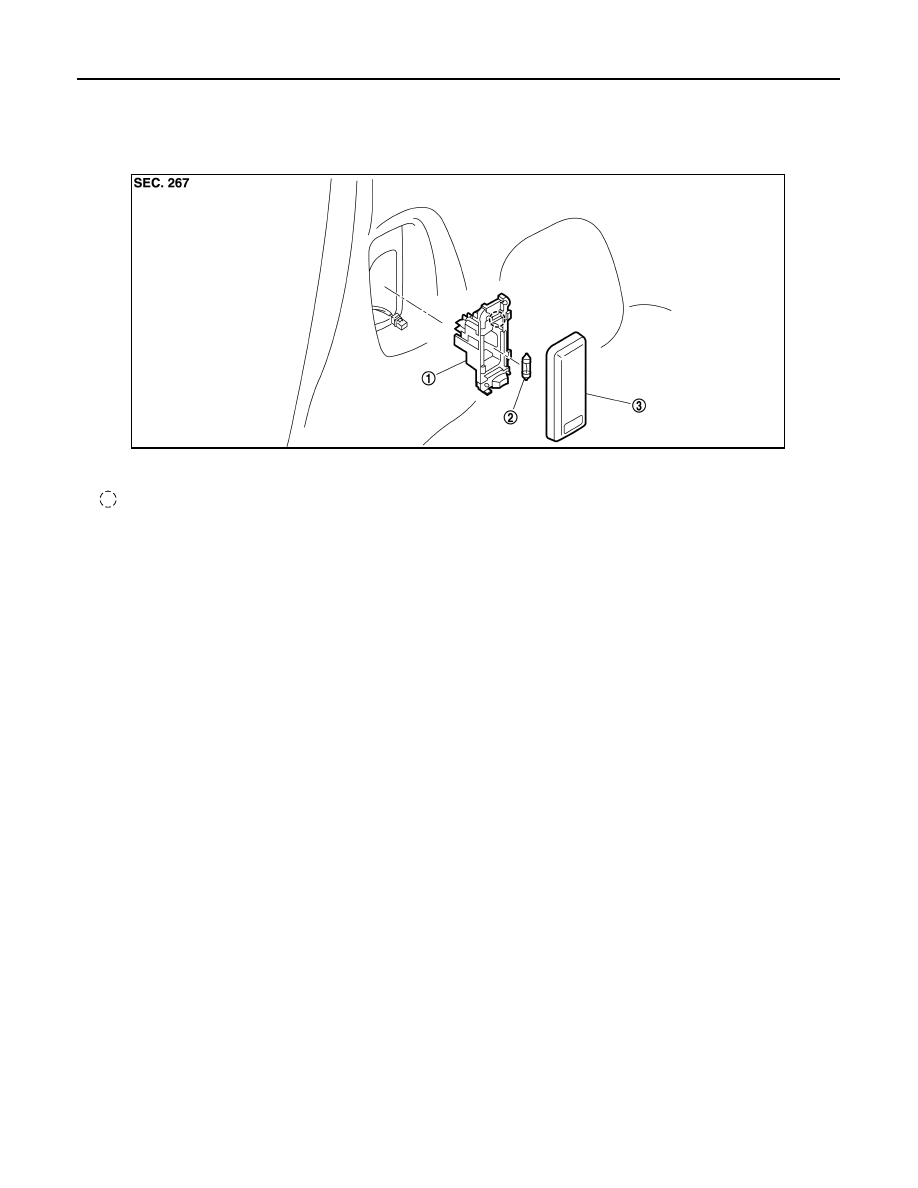

1.

Luggage room lamp housing

2.

Bulb

3.

lens

:Pawl

JPLIA1647ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

INL-111

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000009950964

*:Only with Intelligent Key

Item

Type

Wattage (W)

Map lamp

W5W

5

Room lamp

—

10

Luggage room lamp

—

5

Push-button ignition switch illumination*

LED

—
