Nissan Cube. Manual - part 557





HAC-66

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONING]

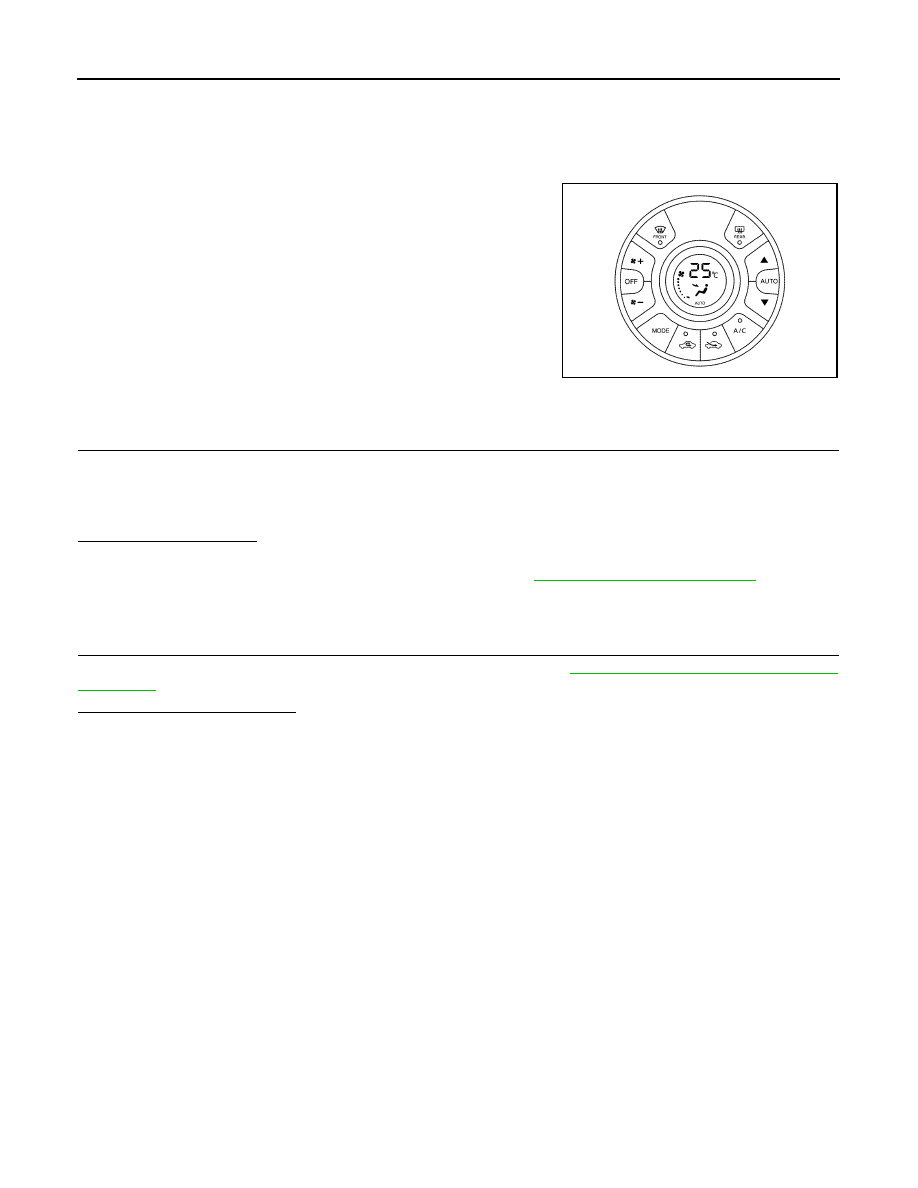

A/C AUTO AMP.

A/C AUTO AMP.

Description

INFOID:0000000009951013

A/C AUTO AMP. (AIR CONDITIONER AUTOMATIC AMPLIFIER)

• The A/C auto amp. has a built-in microcomputer which processes

information sent from various sensors needed for air conditioner
operation.

• The air mix door motor, mode door motor, intake door motor,

blower motor and the compressor are then controlled.

• The A/C auto amp. is unitized with control mechanism. Signal from

various switches are directly entered into A/C auto amp.

• Self-diagnosis functions are also built into A/C auto amp. to pro-

vide quick check of malfunctions in the auto air conditioner system.

Component Function Check

INFOID:0000000009951014

1.

CHECK OPERATION

1.

Confirm that “AUTO” is indicated on the display by operating the AUTO switch.

2.

Operate the temperature control switch. Check that the fan speed or discharge air changes (the discharge
air temperature or fan speed varies depending on the ambient temperature, in-vehicle temperature, and
set temperature).

Does it operate normally?

YES

>> INSPECTION END

NO

>> Perform the diagnosis for the A/C auto amp. Refer to

HAC-66, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009951015

1.

CHECK A/C AUTO AMP. POWER SUPPLY CIRCUIT AND GROUND CIRCUIT

Check A/C auto amp. power supply circuit and ground circuit. Refer to

HAC-64, "A/C AUTO AMP. : Diagnosis

Procedure"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair or replace parts depending on the inspection results.

JPIIA1743ZZ

A/C AUTO AMP.

HAC-67

< ECU DIAGNOSIS INFORMATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

ECU DIAGNOSIS INFORMATION

A/C AUTO AMP.

Reference Value

INFOID:0000000009951016

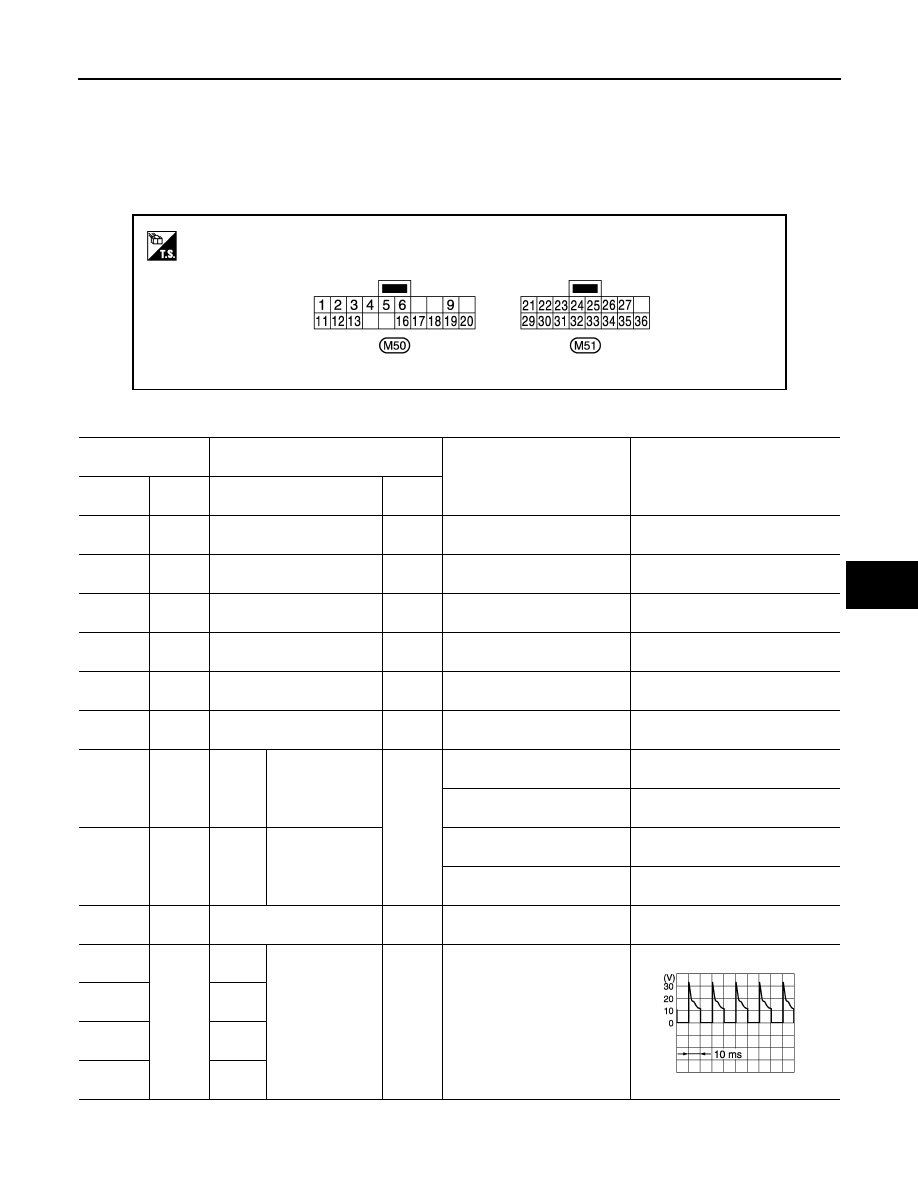

TERMINAL LAYOUT

PHYSICAL VALUES

JPIIA1672ZZ

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

Signal name

Input/

Output

2

(R)

Ground

A/C auto amp. connecting
recognition signal

Output

Ignition switch ON

5 V

3

(R)

Ground

Intake door motor PBR pow-
er supply

Output

Ignition switch ON

5 V

4

(LG)

Ground

Battery power supply

Ignition switch OFF

Battery voltage

5

(O)

Ground

IGN power supply

Ignition switch ON

Battery voltage

6

(R/W)

Ground

Sensor ground

Ignition switch ON

0 V

9

(Y)

Ground

IGN2 power supply

Ignition switch ON

Battery voltage

12

(L)

Ground

FRE

Intake door motor
drive signal

Output

• Ignition switch ON
• Intake switch REC

 FRE

12 V

• Ignition switch ON
• Intake switch FRE

 REC

0 V

13

(G)

Ground

REC

Intake door motor
drive signal

• Ignition switch ON
• Intake switch REC

 FRE

0 V

• Ignition switch ON
• Intake switch FRE

 REC

12 V

16

(B)

Ground

Ground

Ignition switch ON

0 V

17

(BR)

Ground

A/MIX
drive 4

Air mix door motor
drive signal

Output

• Ignition switch ON
• Right after the temperature

control switch operation

18

(SB)

A/MIX
drive 3

19

(GR)

A/MIX
drive 2

20

(P)

A/MIX
drive 1

JPIIA1647GB

HAC-68

< ECU DIAGNOSIS INFORMATION >

[AUTOMATIC AIR CONDITIONING]

A/C AUTO AMP.

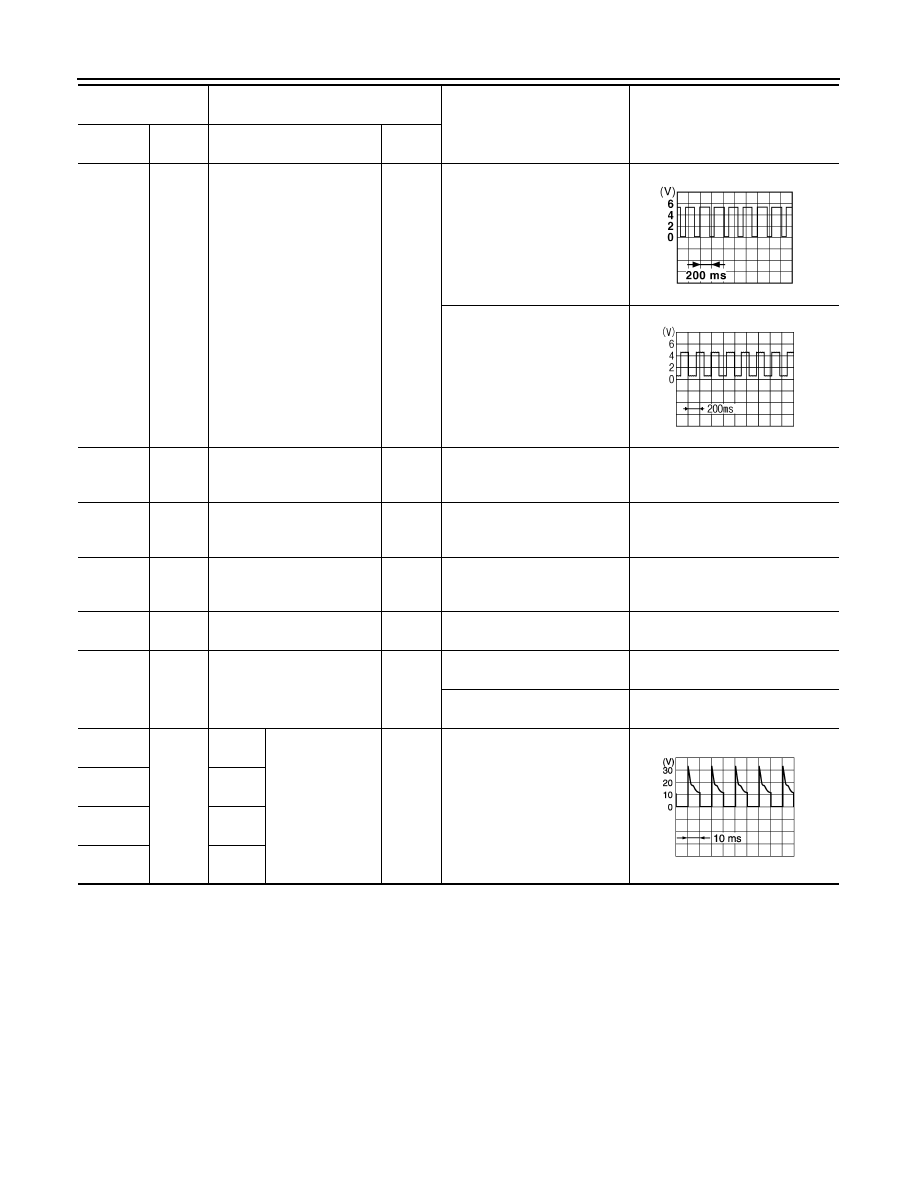

21

(BR)

Ground

Engine coolant temperature
signal

Input

• Ignition switch ON
• Engine idling [Approximately

20

°

C (68

°

F)]

• Ignition switch ON
• Engine idling [Approximately

80

°

C (176

°

F)]

22

(PU/W)

Ground

Ambient sensor signal

Input

0 – 4.8 V

Output voltage varies with ambient

temperature

23

(O)

Ground

Intake sensor signal

Input

0 – 4.8 V

Output voltage varies with intake

temperature

24

(G)

Ground

In-vehicle sensor signal

Input

0 – 4.8 V

Output voltage varies with in-vehi-

cle temperature

25

(P)

Ground

Sunload sensor signal

Input

0 – 4.8 V

Output voltage varies with sun load

26

(SB)

Ground

Intake door motor PBR feed-
back signal

Input

• Ignition switch ON
• REC position

0.5 V

• Ignition switch ON
• FRE position

4.5 V

29

(GR)

Ground

MODE
drive 4

Mode door motor
drive signal

Output

• Ignition switch ON
• Right after MODE switch op-

eration

30

(W)

MODE
drive 3

31

(Y)

MODE
drive 2

32

(V)

MODE
drive 1

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

Signal name

Input/

Output

PKID0590E

SKIB3651J

JPIIA1647GB

A/C AUTO AMP.

HAC-69

< ECU DIAGNOSIS INFORMATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

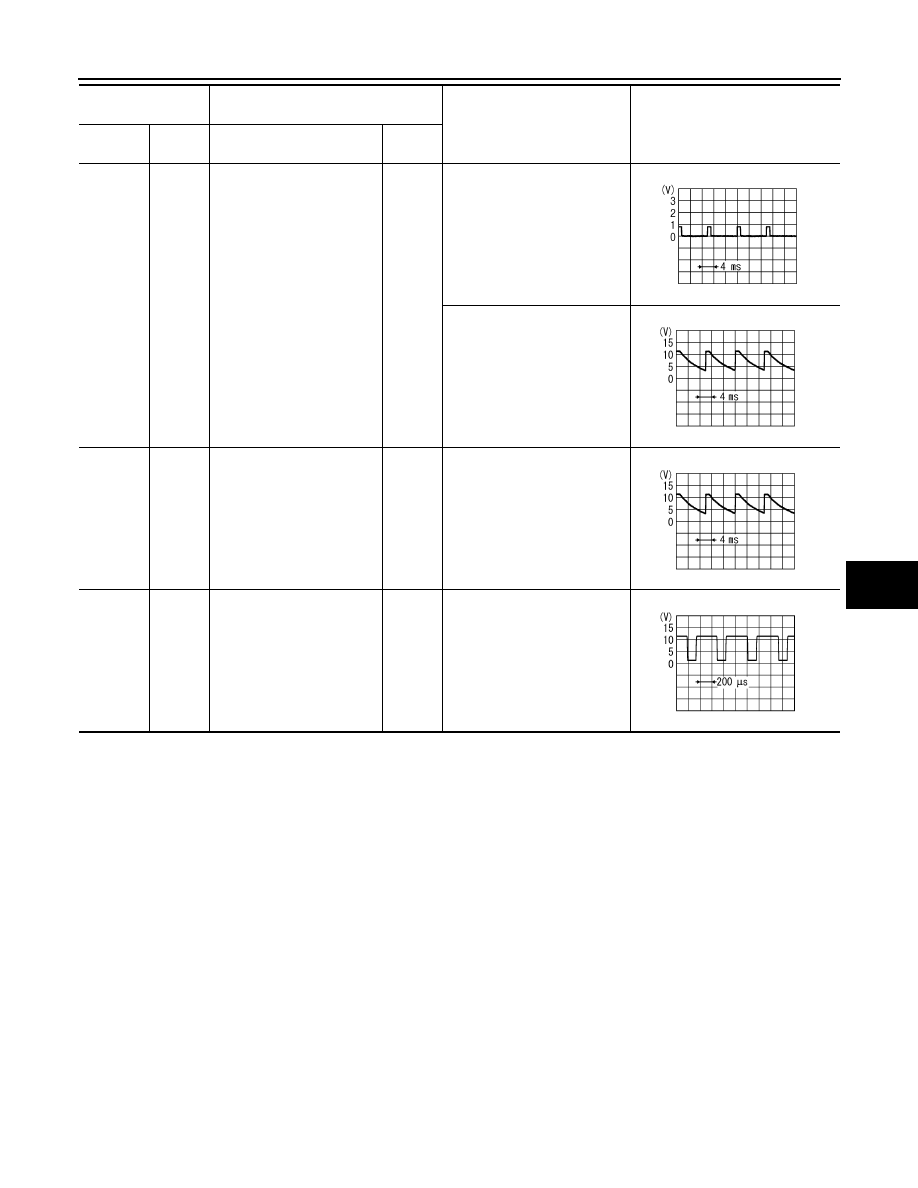

34

(Y/G)

Ground

A/C ON signal

 Output

• Ignition switch ON
• A/C switch: ON

• Ignition switch ON
• A/C switch: OFF

35

(G/W)

Ground

Blower fan ON signal

 Output

• Ignition switch ON
• Fan speed: 1st speed (man-

ual)

36

(GR/R)

Ground

Power transistor control sig-
nal

 Output

• Ignition switch ON
• Fan speed: 1st speed (man-

ual)

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

Signal name

Input/

Output

ZJIA1036J

SJIA1425J

SJIA1425J

ZJIA0863J
