HAC-10

< BASIC INSPECTION >

[AUTOMATIC AIR CONDITIONING]

AUXILIARY MECHANISM

AUXILIARY MECHANISM

Temperature Setting Trimmer

INFOID:0000000009950967

DESCRIPTION

If the temperature felt by the customer is different than the air flow temperature controlled by the temperature
setting, the A/C auto amp. control temperature can be adjusted to compensate for the temperature setting.

OPERATING PROCEDURES

1.

Begin self-diagnosis STEP 5 mode. Refer to

HAC-26, "Diagnosis Description"

.

2.

Press fan control switch (up: +) to enter the set temperature setting trimmer mode from STEP 5, and then
display shows “0

°

C (0

°

F)”.

3.

The indication temperature will be changed by 1

°

C (1

°

F) in range of

−

3

°

C (

−

6

°

F) to +3

°

C (+6

°

F) by press-

ing the temperature control switch each time.

USA models

Canada models

NOTE:
• When

−

3

°

C (

−

6

°

F) is corrected on the temperature setting set as 25

°

C (75

°

F), the temperature controlled by

A/C auto amp. is 25

°

C (75

°

F)

−

 3

°

C (6

°

F) = 22.0

°

C (69

°

F) and the temperature becomes lower than the tem-

perature setting.

• When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10

V or less, the setting of the difference between the set temperature and control temperature may be can-
celled.

Temperature control switch operation

Display

Correction (

°

F)

 6 time pressing

6

+6

 5 time pressing

5

+5

 4 time pressing

4

+4

 3 time pressing

3

+3

 2 time pressing

2

+2

 1 time pressing

1

+1

Initial status

0

0

 1 time pressing

AUTO 1

−

1

 2 time pressing

AUTO 2

−

2

 3 time pressing

AUTO 3

−

3

 4 time pressing

AUTO 4

−

4

 5 time pressing

AUTO 5

−

5

 6 time pressing

AUTO 6

−

6

Temperature control switch operation

Display

Correction (

°

C)

 3 time pressing

3

+3

 2 time pressing

2

+2

 1 time pressing

1

+1

Initial status

0

0

 1 time pressing

AUTO 1

−

1

 2 time pressing

AUTO 2

−

2

 3 time pressing

AUTO 3

−

3

AUXILIARY MECHANISM

HAC-11

< BASIC INSPECTION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Inlet Port Memory Function

INFOID:0000000009950968

DESCRIPTION

• Inlet port setting can be memorized when ignition switch is turned OFF.
• Inlet port setting can be selected from FRE (fresh air intake), REC (recirculation), or “Do not perform the

memory” when ignition switch is turned ON.

OPERATING PROCEDURES

1.

Begin self-diagnosis STEP 5 mode. Refer to

HAC-26, "Diagnosis Description"

.

2.

Press fan control switch (up: +) two times to change the mode to the temperature setting trimmer from
self-diagnosis STEP 5, and then the display shows “70”.

3.

The setting of inlet port memory function can be selected from “70” to “73” by pressing the FRE switch.

*: Initial status

NOTE:

• When FRE switch is pressed four times, display shows "70" again.

• When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10 V or less, the setting

of the inlet port memory function may be cancelled.

FRE switch operation

Display

Memory function

Manual REC

Manual FRE

—

70

*

Shall be memorized

Shall not be memorized

1 time pressing

71

Shall not be memorized

Shall not be memorized

2 time pressing

72

Shall be memorized

Shall be memorized

3 time pressing

73

Shall not be memorized

Shall be memorized

HAC-12

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONING]

COMPRESSOR CONTROL FUNCTION

SYSTEM DESCRIPTION

COMPRESSOR CONTROL FUNCTION

Description

INFOID:0000000009950969

PRINCIPLE OF OPERATION

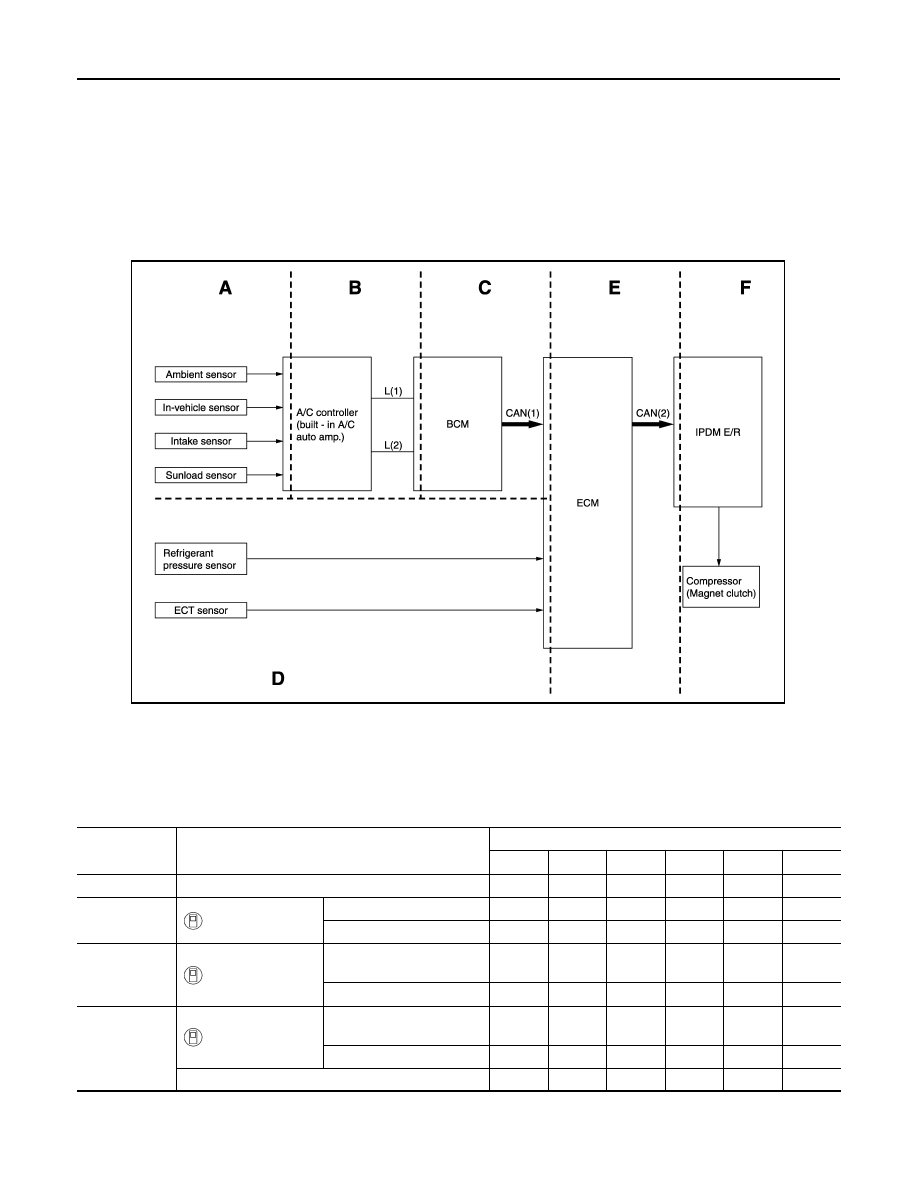

Functional Circuit Diagram

Functional Initial Inspection Chart

×

: Applicable

L (1)

: Fan ON signal

CAN (1)

: A/C ON switch signal
: Blower fan ON signal

L (2)

: A/C switch signal

CAN (2)

: A/C compressor request signal

JPIIA1651GB

Control unit

Diagnosis item

Location

A

B

C

D

E

F

A/C auto amp.

On board self-diagnosis

×

—

—

—

—

—

BCM

“BCM-AIR COND”

Self-diagnosis

—

—

×

—

—

—

Data monitor

—

×

—

—

—

—

ECM

 “ENGINE”

Self-diagnosis
(CAN communication line)

—

—

—

—

×

—

Data monitor

—

—

×

×

—

—

IPDM E/R

 “IPDM E/R”

Self-diagnosis
(CAN communication line)

—

—

—

—

—

×

Data monitor

—

—

—

—

×

—

Auto active test

—

—

—

—

—

×

COMPRESSOR CONTROL FUNCTION

HAC-13

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

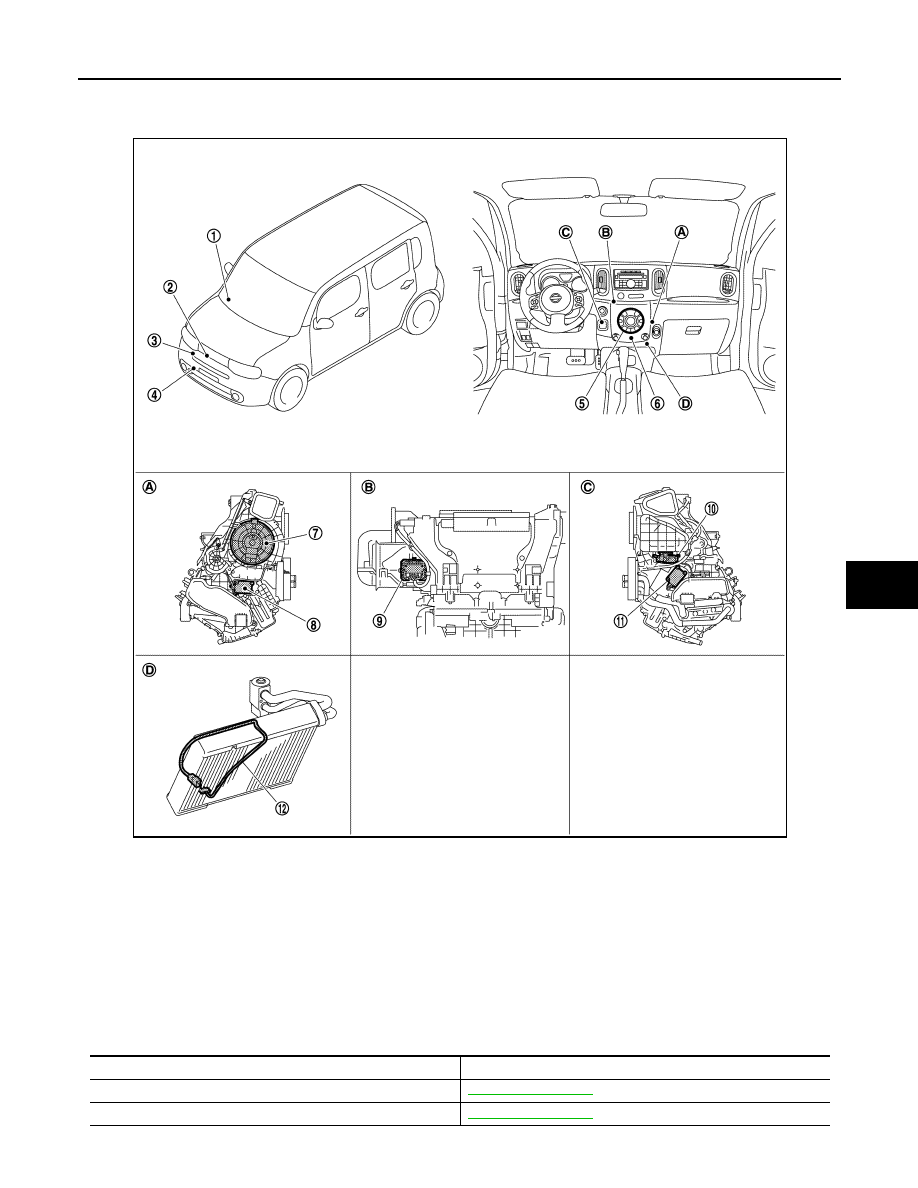

Component Parts Location

INFOID:0000000009950970

Component Description

INFOID:0000000009950971

1.

Sunload sensor

2.

Ambient sensor

3.

Magnet clutch

4.

Refrigerant pressure sensor

5.

A/C control (A/C auto amp.)

6.

In-vehicle sensor

7.

Blower motor

8.

Mode door motor

9.

Power transistor

10.

Intake door motor

11.

Air mix door motor

12.

Intake sensor

A.

Located in the right side of A/C
unit assembly

B.

Located in the back of A/C unit
assembly

C.

Located in left side of A/C unit
assembly

D.

Located on the evaporator

JPIIA1719ZZ

Component

Description

Sunload sensor

HAC-41, "Description"

Ambient sensor

HAC-33, "Description"
