GI-12

< HOW TO USE THIS MANUAL >

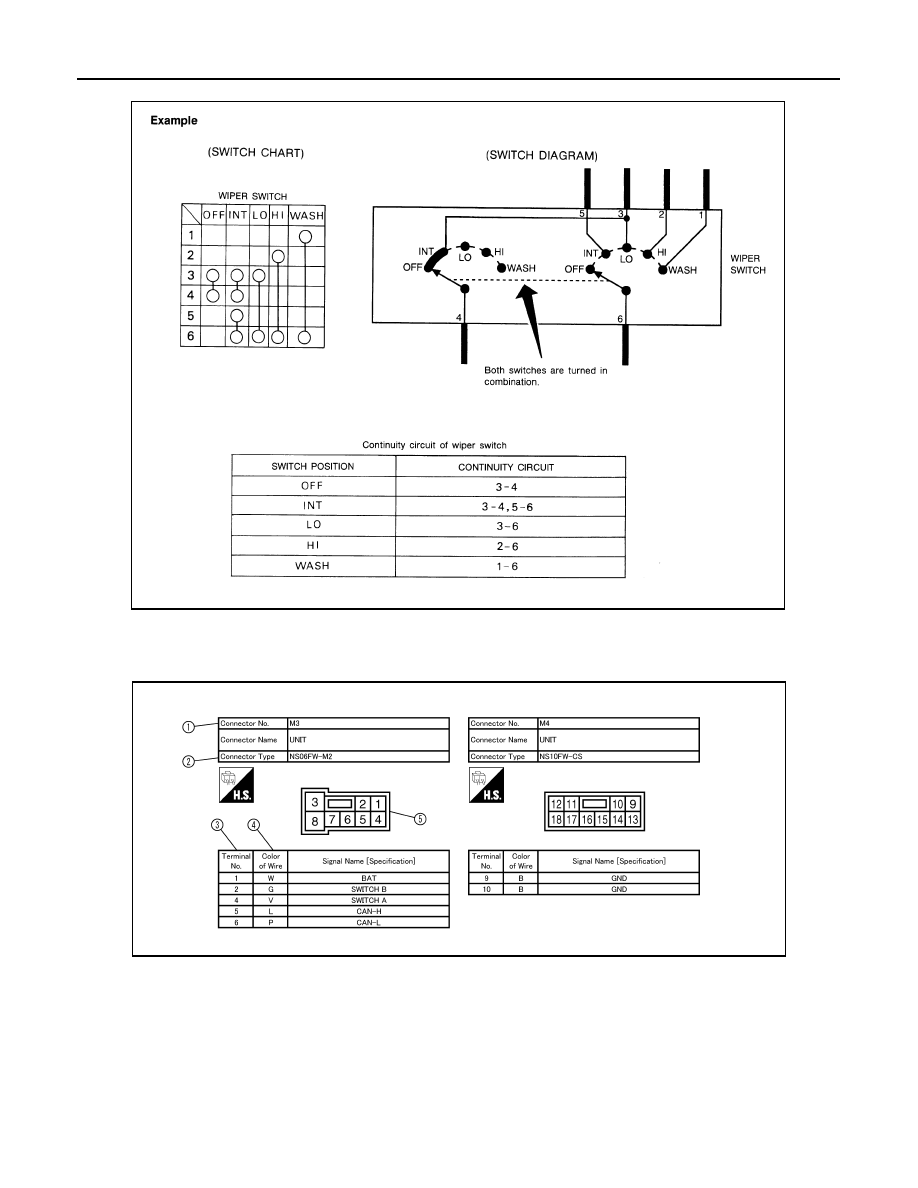

HOW TO READ WIRING DIAGRAMS

• The switch diagram is used in wiring diagrams.

Connector Information

INFOID:0000000010076491

HOW TO USE CONNECTOR INFORMATION

JSAIA0017GB

JCAWA0152GB

HOW TO READ WIRING DIAGRAMS

GI-13

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

Description

Number

Item

Description

1

Connector number

• Alphabetic characters show to which harness the connector is placed.
• Numeric characters show the identification number of connectors.

2

Connector type

1: Connector model
2: Cavity
3: Male (M) and female (F) terminals
4: Connector color
5: Special type

3

Terminal number

• This means the terminal number of a connector.

4

Wire  color

• This shows a code for the color of the wire.

B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
LG = Light Green
BG or BE = Beige
LA = Lavender

BR = Brown
OR or O = Orange
P = Pink
PU or V (Violet) = Purple
GY or GR = Gray
SB = Sky Blue
CH = Dark Brown
DG = Dark Green

• When the wire color is striped, the base color is given first, followed by the stripe color as

shown below:
Example: L/W = Blue with White Stripe

5

Connector

• This means the connector information.
• This unit-side is described by the connector symbols.

JPMIA0113GB

GI-14

< HOW TO USE THIS MANUAL >

ABBREVIATIONS

ABBREVIATIONS

Abbreviation List

INFOID:0000000009947034

The following ABBREVIATIONS are used:

A

B

C

D

ABBREVIATION

DESCRIPTION

A/C

Air conditioner

A/C

Air conditioning

A/F sensor

Air fuel ratio sensor

A/T

Automatic transaxle/transmission

ABS

Anti-lock braking system

ACCS

Advance climate control system

ACL

Air cleaner

AP

Accelerator pedal

APP

Accelerator pedal position

ATF

Automatic transmission fluid

AV

Audio visual

AWD

All wheel drive

ABBREVIATION

DESCRIPTION

BARO

Barometric pressure

BCI

Back-up collision intervention

BCM

Body control module

BLSD

Brake limited slip differential

BPP

Brake pedal position

BSW

Blind spot warning

ABBREVIATION

DESCRIPTION

CKP

Crankshaft position

CL

Closed loop

CMP

Camshaft position

CPP

Clutch pedal position

CTP

Closed throttle position

CVT

Continuously variable transaxle/transmission

ABBREVIATION

DESCRIPTION

D

1

Drive range first gear

D

2

Drive range second gear

D

3

Drive range third gear

D

4

Drive range fourth gear

DCA

Distance control assist

DDS

Downhill drive support

DFI

Direct fuel injection system

DLC

Data link connector

DTC

Diagnostic trouble code

ABBREVIATIONS

GI-15

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

E

F

G

H

ABBREVIATION

DESCRIPTION

E/T

Exhaust temperature

EBD

Electric brake force distribution

EC

Engine control

ECL

Engine coolant level

ECM

Engine control module

ECT

Engine coolant temperature

ECV

Electrical control valve

EEPROM

Electrically erasable programmable read only memory

EFT

Engine fuel temperature

EGR

Exhaust gas recirculation

EGRT

Exhaust gas recirculation temperature

EGT

Exhaust gas temperature

EOP

Engine oil pressure

EP

Exhaust pressure

EPR

Exhaust pressure regulator

EPS

Electronically controlled power steering

ESP

Electronic stability program system

EVAP canister

Evaporative emission canister

EVSE

Electric vehicle supply equipment

EXC

Exhaust control

ABBREVIATION

DESCRIPTION

FC

Fan control

FCW

Forward collision warning

FEB

Forward emergency braking

FIC

Fuel injector control

FP

Fuel pump

FR

Front

FRP

Fuel rail pressure

FRT

Fuel rail temperature

FTP

Fuel tank pressure

FTT

Fuel tank temperature

ABBREVIATION

DESCRIPTION

GND

Ground

GPS

Global positioning system

GST

Generic scan tool

ABBREVIATION

DESCRIPTION

HBMC

Hydraulic body-motion control system

HDD

Hard disk drive

HO2S

Heated oxygen sensor

HOC

Heated oxidation catalyst

HPCM

Hybrid power train control module
