IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

JRMWE7725GB

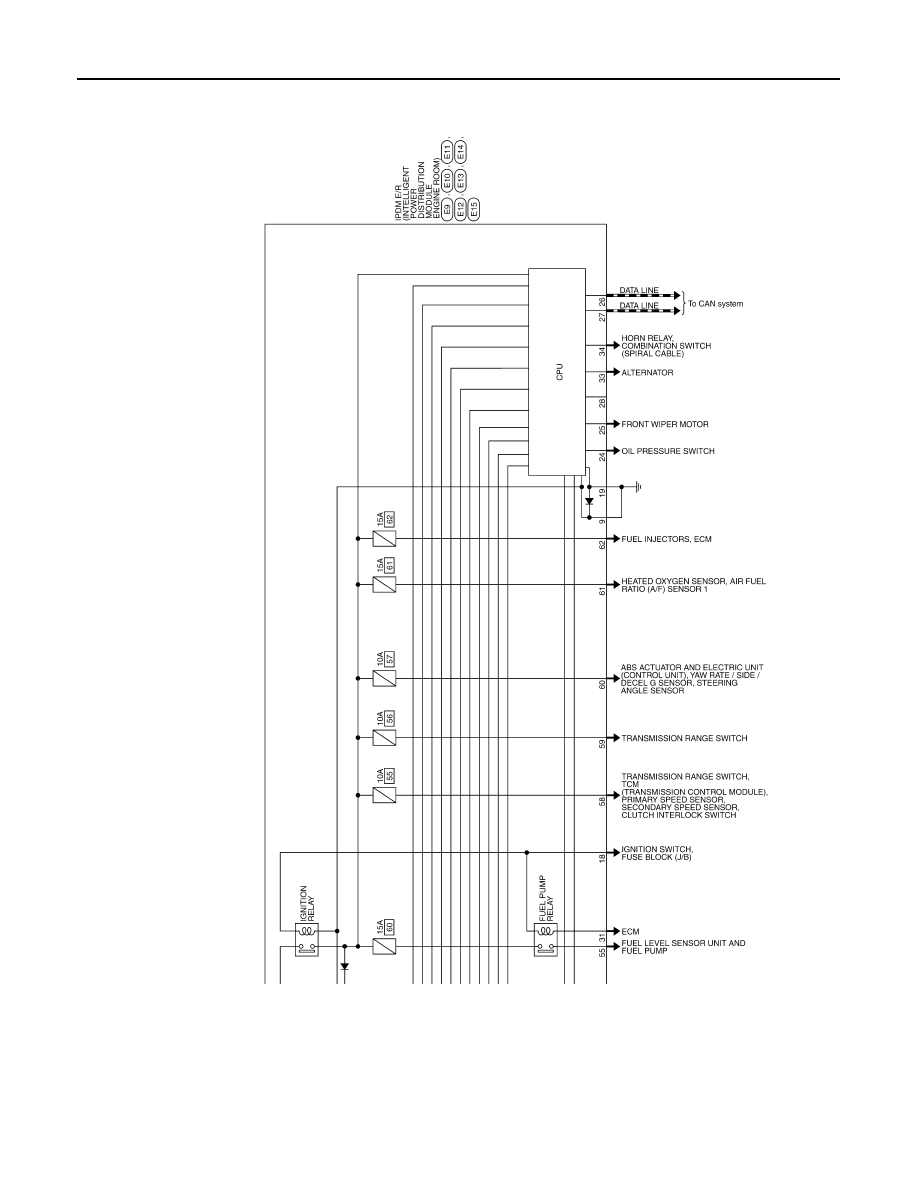

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

EXL-175

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

WITHOUT INTELLIGENT KEY : Fail-Safe

INFOID:0000000010249373

CAN COMMUNICATION CONTROL

When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN
communication recovers normally, it also returns to normal control.

If No CAN Communication Is Available With ECM

JRMWE7836GB

EXL-176

< ECU DIAGNOSIS INFORMATION >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

If No CAN Communication Is Available With BCM

IGNITION RELAY MALFUNCTION DETECTION FUNCTION

• IPDM E/R monitors the voltage at the contact circuit of the ignition relay inside and ignition switch status

from BCM via CAN communication.

• IPDM E/R judges the ignition relay error if the voltage differs between the contact circuit and the ignition

switch status from BCM via CAN communication.

• If the ignition relay cannot turn OFF due to contact seizure, it activates the tail lamp relay for 10 minutes to

alert the user to the ignition relay malfunction when the ignition switch is turned OFF.

FRONT WIPER CONTROL

IPDM E/R detects front wiper stop position by a front wiper stop position signal.
When a front wiper stop position signal is in the conditions listed below, IPDM E/R stops power supply to wiper
after repeating a front wiper 10 seconds activation and 20 seconds stop five times.

Control part

Fail-safe operation

Cooling fan

• The cooling fan relay-1, the cooling fan relay-2 and the cooling fan relay-3 turn ON

when the ignition switch is turned ON (Cooling fan HI operation)

• The cooling fan relay-1, the cooling fan relay-2 and the cooling fan relay-3 turn OFF

when the ignition switch is turned OFF

A/C compressor

A/C relay OFF

Alternator

Outputs the power generation command signal (PWM signal) 0%

Control part

Fail-safe operation

Headlamp

• Turns ON the headlamp low relay when the ignition switch is turned ON
• Turns OFF the headlamp low relay when the ignition switch is turned OFF
• Headlamp high relay OFF

• Parking  lamps
• Side marker lamps
• License plate lamps
• Illuminations
• Tail lamps

• Turns ON the tail lamp relay when the ignition switch is turned ON
• Turns OFF the tail lamp relay when the ignition switch is turned OFF

Front wiper

• The status just before activation of fail-safe control is maintained until the ignition

switch is turned OFF while the front wiper is operating at LO or HI speed.

• The wiper is operated at LO speed until the ignition switch is turned OFF if the fail-

safe control is activated while the front wiper is set in the INT mode and the front wiper
motor is operating.

Front fog lamps

Front fog lamp relay OFF

Rear window defogger relay

Rear window defogger relay OFF

Horn

Horn OFF

Voltage judgment

IPDM E/R judgment

Operation

Ignition relay contact side

Ignition switch status from

BCM

ON

ON

Ignition relay ON normal

OFF

OFF

Ignition relay OFF normal

ON

OFF

Ignition relay ON stuck

• Detects DTC “B2098: IGN RELAY ON”
• Turns ON the tail lamp relay for 10 min-

utes

OFF

ON

Ignition relay OFF stuck

Detects DTC “B2099: IGN RELAY OFF”

Ignition switch

Front wiper switch

Front wiper stop position signal

ON

OFF

The front wiper stop position signal (stop
position) cannot be input for 10 seconds.

ON

The front wiper stop position signal does
not change for 10 seconds.

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

EXL-177

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

NOTE:
This operation status can be confirmed on the IPDM E/R “Data Monitor” that displays “BLOCK” for the item
“WIP PROT” while the wiper is stopped.

WITHOUT INTELLIGENT KEY : DTC Index

INFOID:0000000010249374

NOTE:
• The details of time display are as follows.
- CRNT: A malfunction is detected now.
- PAST: A malfunction was detected in the past.
• IGN counter is displayed on FFD (Freeze Frame data).
- The number is 0 when is detected now.
- The number increases like 1

 2 ··· 38

 39 after returning to the normal condition whenever IGN OFF

ON.

- The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.

×

: Applicable

CONSULT display

Fail-safe

Refer to

No DTC is detected.
further testing
may be required.

U1000: CAN COMM CIRCUIT

×

PCS-15

B2098: IGN RELAY ON CIRC

×

PCS-16

B2099: IGN RELAY OFF CIRC

PCS-47
