EXL-142

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

46

(BR)

Ground

Door lock and unlock
switch UNLOCK

Input

Door lock and
unlock switch

NEUTRAL position

1.0 - 1.5 V

UNLOCK position

0 V

47

(BR/Y)

Ground

Driver door switch

Input

Driver door
switch

OFF (When driver door
closed)

7.0 - 8.0 V

ON (When driver door
opened)

0 V

48

(W/G)

Ground

Rear LH door switch

Input

Rear LH door
switch

OFF (When rear LH door
closed)

7.0 - 8.0 V

ON (When rear LH door
opened)

0 V

50

(SB)

Ground

A/C indicator

Output

A/C indicator

OFF

12 V

ON

0 V

54

(LG)

Ground

Rear wiper

Output

Ignition switch
ON

Rear wiper switch OFF

0 V

Rear wiper switch ON

12 V

56

(L)

Ground

Interior room lamp
power supply

Output

Interior room lamp battery saver is activated.
(Cuts the interior room lamp power supply)

0 V

Interior room lamp battery saver is not acti-
vated.
(Outputs the interior room lamp power sup-
ply)

12 V

57

(Y)

Ground

Battery power sup-
ply

Input

Ignition switch OFF

Battery voltage

59

(L/B)

Ground

Driver door UN-
LOCK

Output

Driver door

UNLOCK (Actuator is acti-
vated)

12 V

Other than UNLOCK (Ac-
tuator is not activated)

0 V

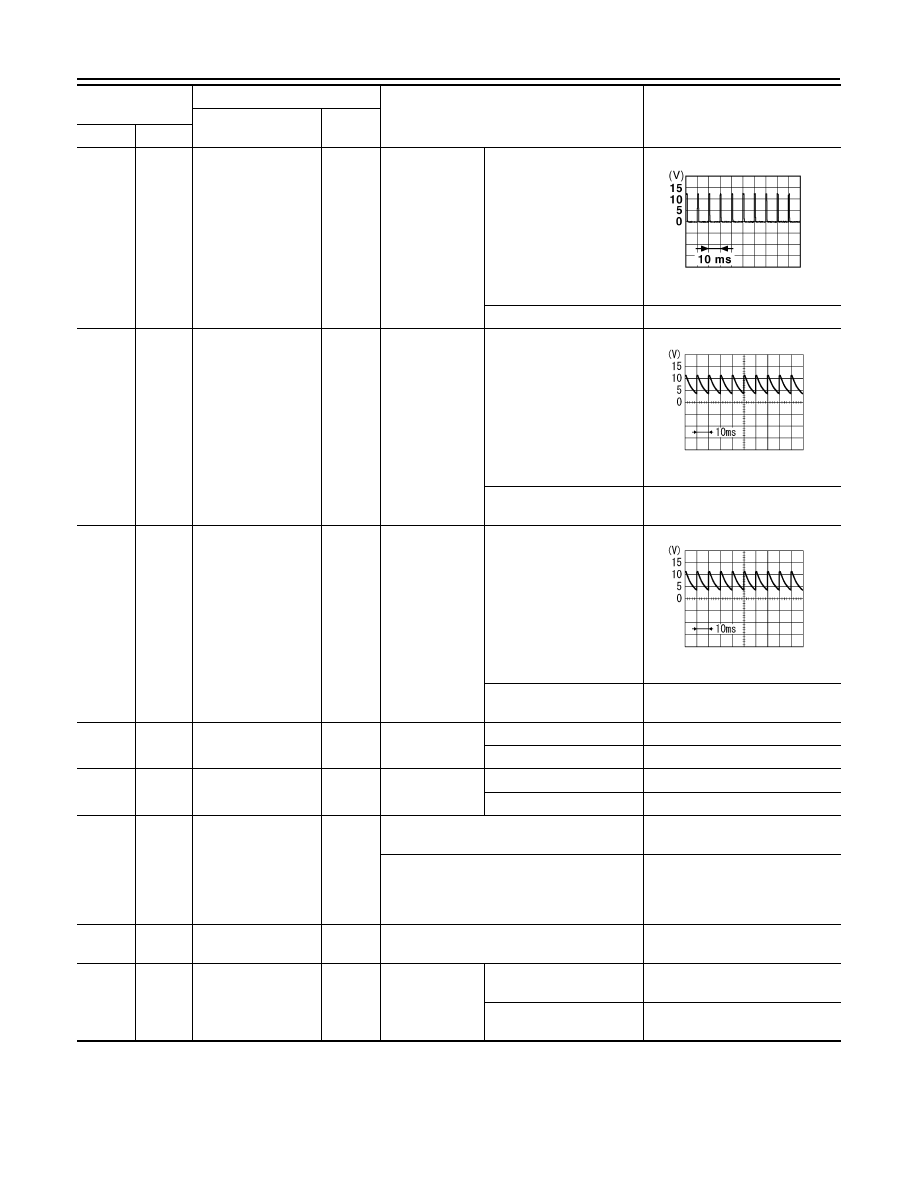

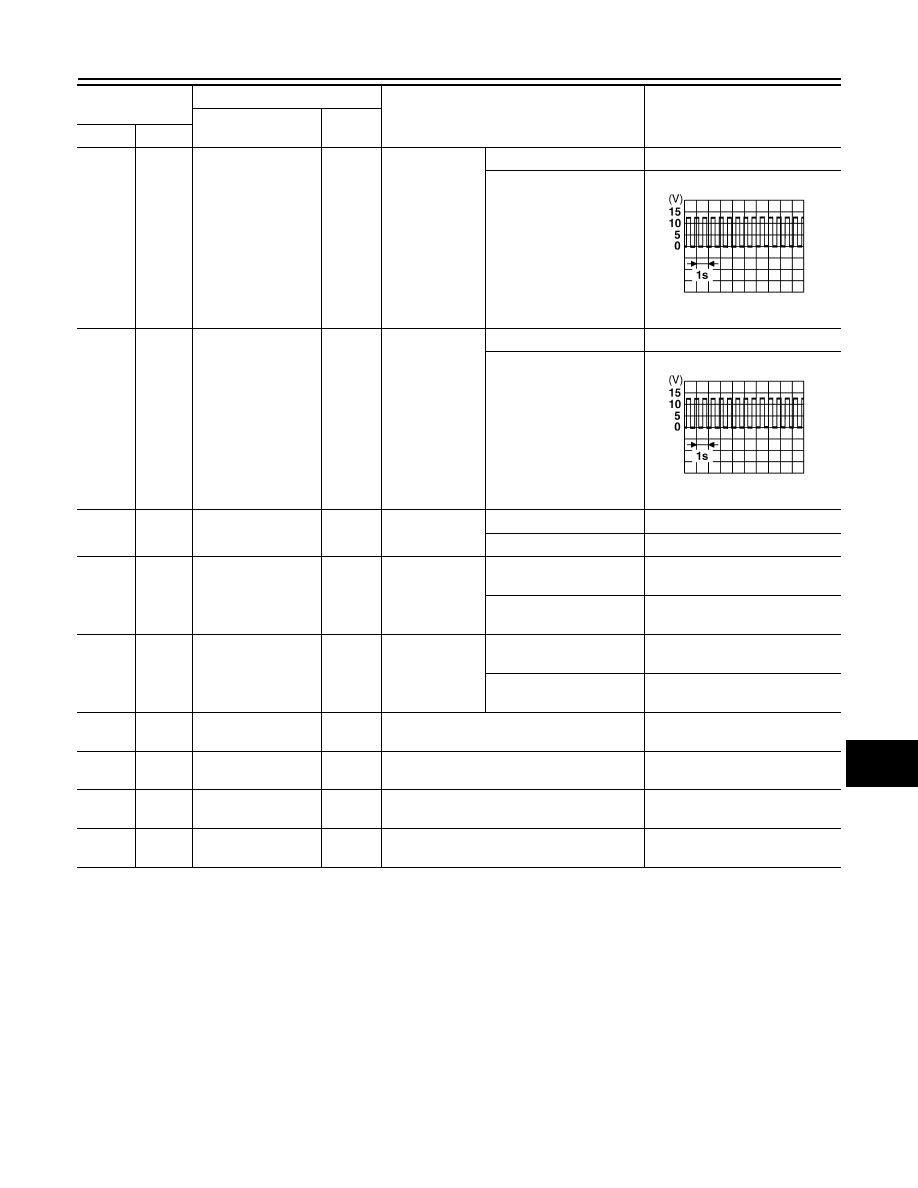

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

JPMIA0012GB

PKIB4960J

PKIB4960J

BCM (BODY CONTROL MODULE)

EXL-143

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

60

(W/B)

Ground

Turn signal LH

Output

Ignition switch
ON

Turn signal switch OFF

0 V

Turn signal switch LH

6.0 V

61

(W/L)

Ground

Turn signal RH

Output

Ignition switch
ON

Turn signal switch OFF

0 V

Turn signal switch RH

6.0 V

63

(BR)

Ground

Interior room lamp
control signal

Output

Interior room
lamp

OFF

12 V

ON

0 V

65

(V)

Ground

All doors LOCK

Output

All doors

LOCK (Actuator is activat-
ed)

12 V

Other than LOCK (Actua-
tor is not activated)

0 V

66

(G)

Ground

Passenger door and
rear door UNLOCK

Output

Passenger door
and rear door

UNLOCK (Actuator is acti-
vated)

12 V

Other than UNLOCK (Ac-
tuator is not activated)

0 V

67

(B)

Ground

Ground

Output

Ignition switch ON

0 V

68

(L)

Ground

P/W power supply
(IGN)

Output

Ignition switch ON

12 V

69

(P)

Ground

P/W power supply
(BAT)

Output

Ignition switch OFF

12 V

70

(Y)

Ground

Battery power sup-
ply

Input

Ignition switch OFF

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

PKIC6370E

PKIC6370E

EXL-144

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

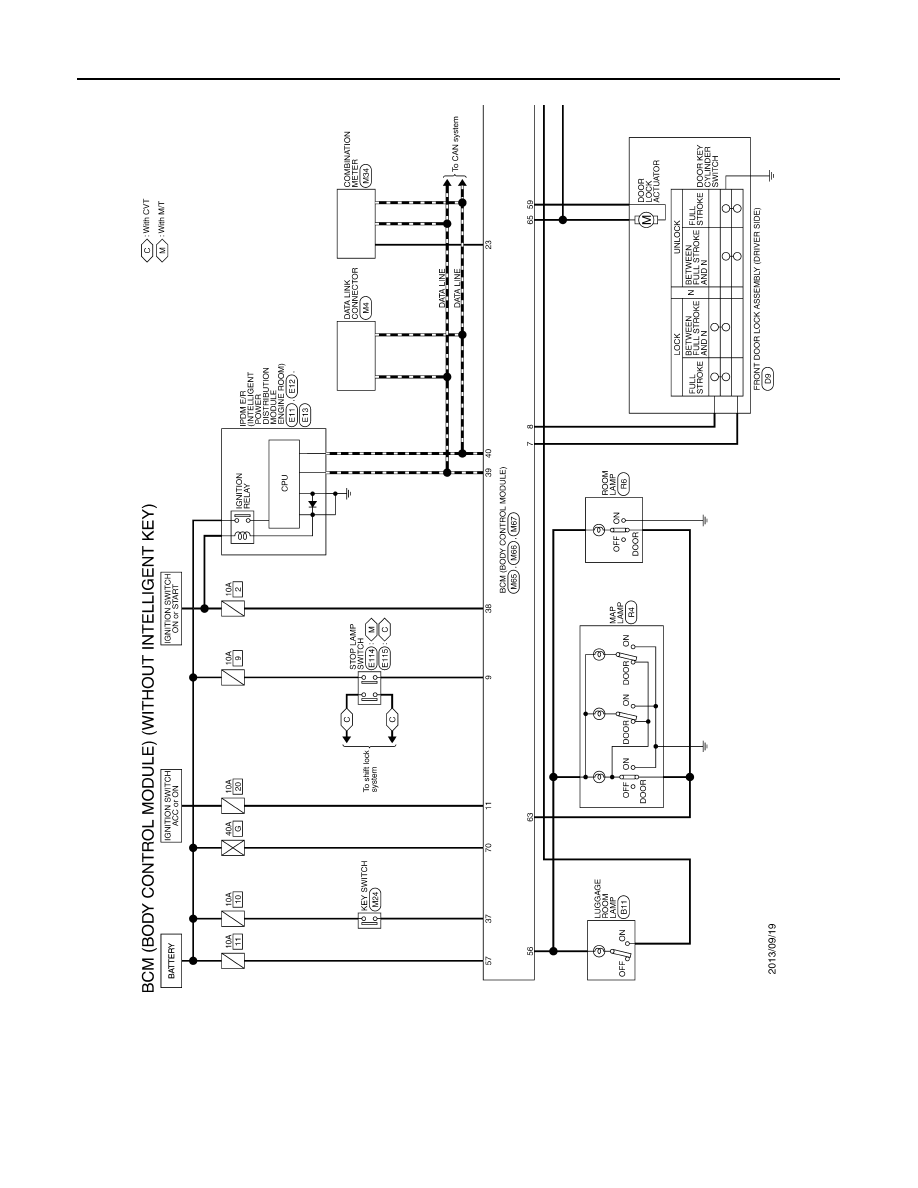

WITHOUT INTELLIGENT KEY : Wiring Diagram - BCM -

INFOID:0000000010249359

JRMWE7716GB

BCM (BODY CONTROL MODULE)

EXL-145

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

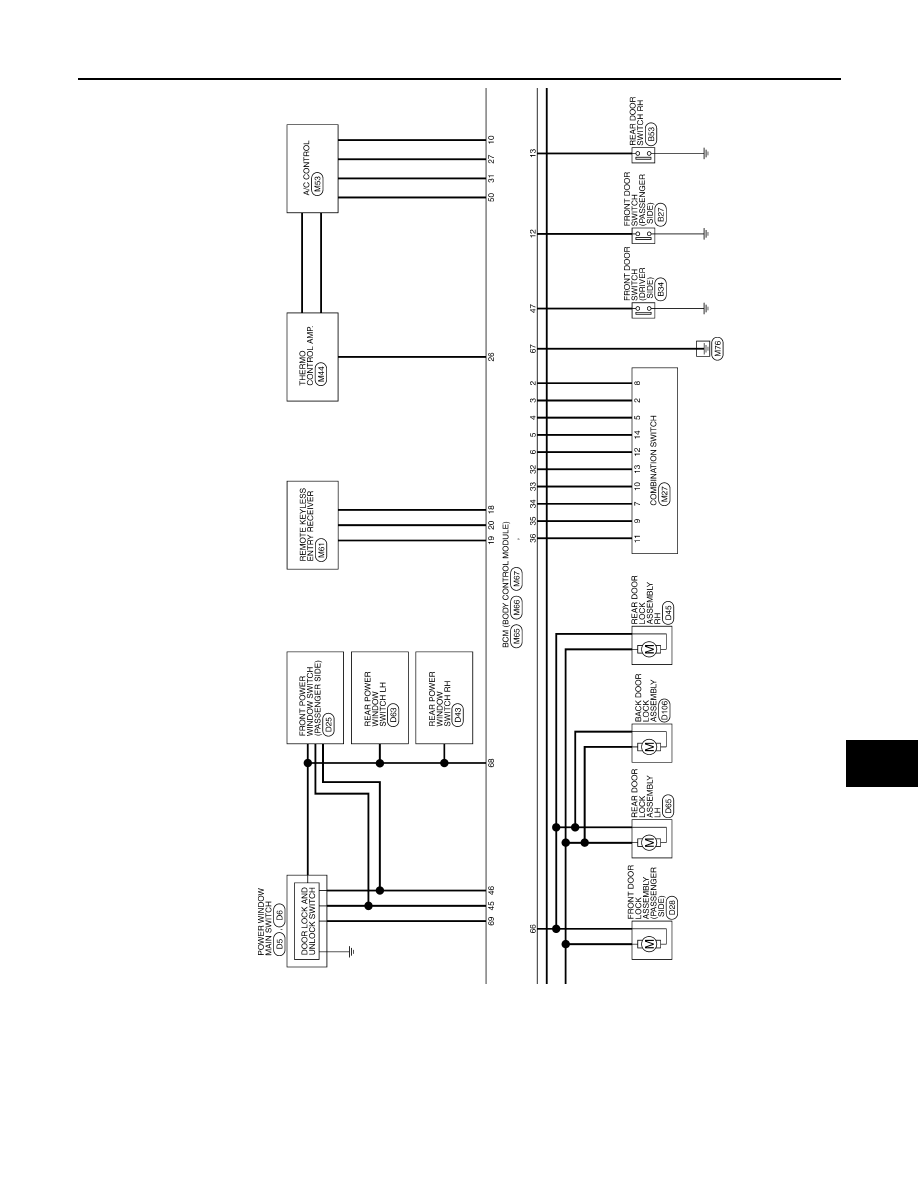

JRMWE7717GB
