Nissan Cube. Manual - part 427





EM-112

< UNIT DISASSEMBLY AND ASSEMBLY >

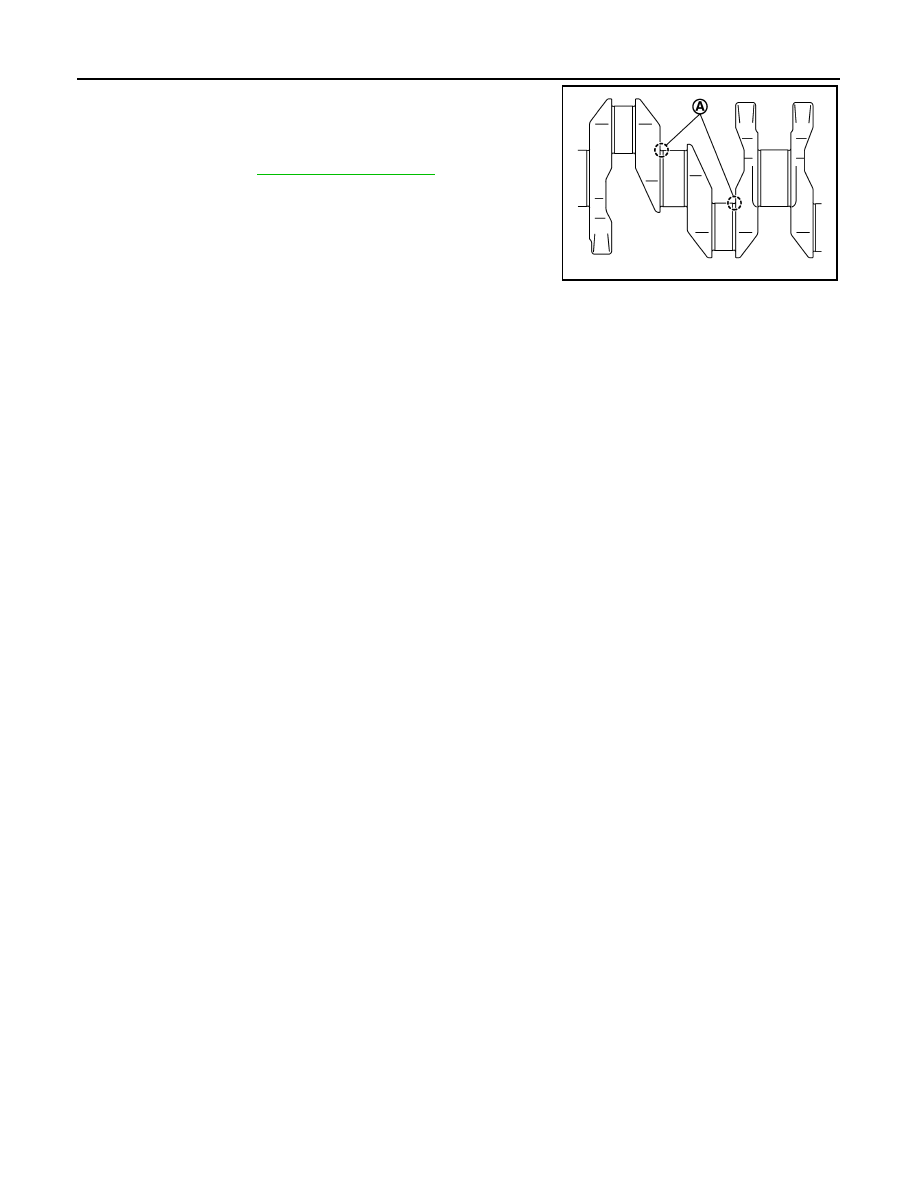

HOW TO SELECT PISTON AND BEARING

In grinding crankshaft main journal to use undersize bearings,
keep the fillet R [1.5 - 1.7 mm (0.059 - 0.067 in)] (A).

Bearing undersize table:

Refer to

EM-122, "Main Bearing"

.

PBIC3263J

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-113

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

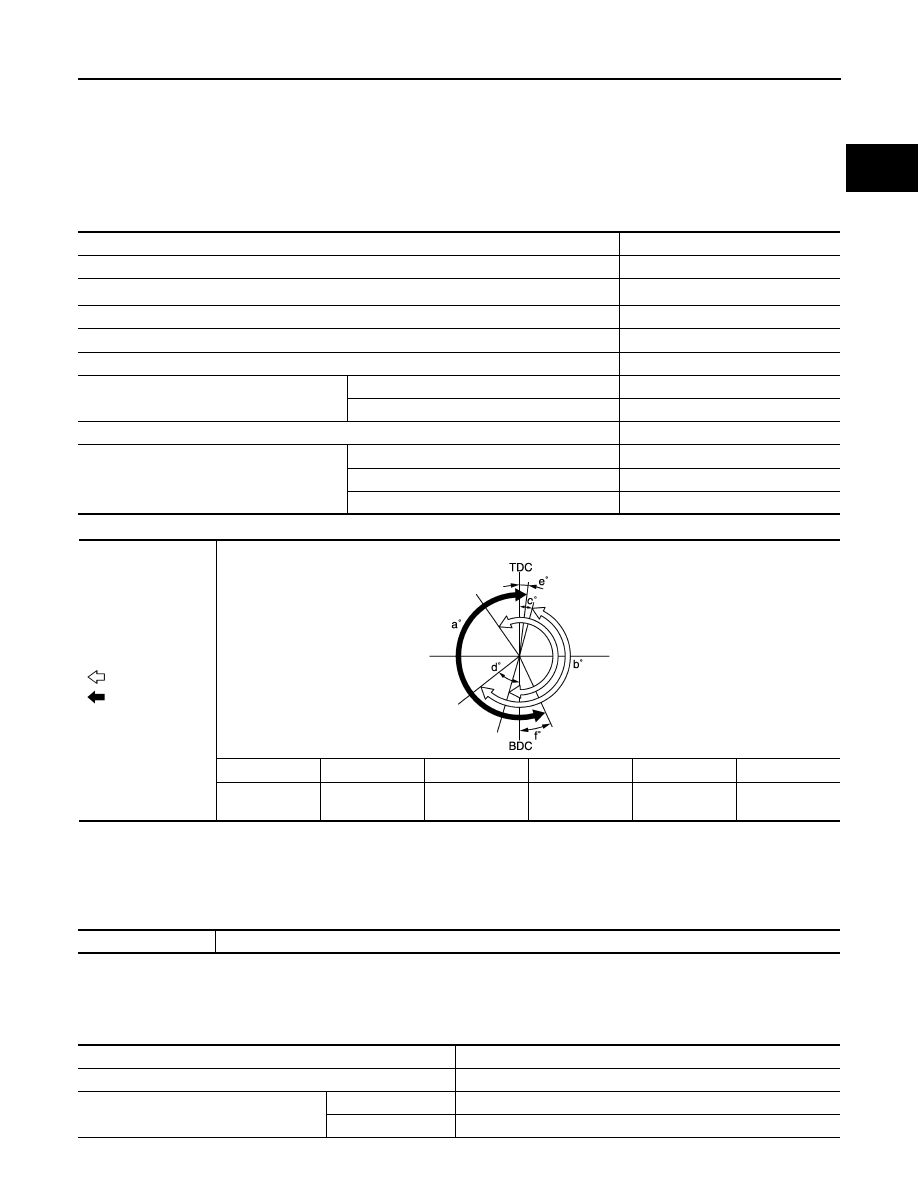

General Specification

INFOID:0000000009944974

GENERAL SPECIFICATIONS

Unit: degree

(

): Valve timing control “ON”

Drive Belt

INFOID:0000000009944975

DRIVE BELT

Spark Plug

INFOID:0000000009944976

SPARK PLUG

Unit: mm (in)

Engine type

MR18DE

Cylinder arrangement

In-line 4

Displacement    cm

3

 (cu in)

1,797 (109.65)

Bore and stroke    mm (in)

84.0

×

81.1 (3.307

×

3.193)

Valve arrangement

DOHC

Firing order

1-3-4-2

Number of piston rings

Compression

2

Oil

1

Compression ratio

9.9

Compression pressure

kPa (kg/cm

2

, psi)/250 rpm

Standard

1,500 (15.3, 217.5)

Minimum

1,200 (12.2, 174)

Differential limit between cylinders

100 (1.0, 14.5)

Valve timing

 : Intake valve

 : Exhaust valve

a

b

c

d

e

f

212

224

8 (

32)

ATDC

52 (12)

ABDC

7

25

PBIC5304E

Tension of drive belt

Belt tension is not necessary, as it is automatically adjusted by drive belt auto-tensioner.

Make

DENSO

Standard type

FXE20HR11

Gap (Nominal)

Standard

1.1 (0.043)

Limit

1.4 (0.055)

EM-114

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Exhaust Manifold

INFOID:0000000009944977

EXHAUST MANIFOLD

Unit: mm (in)

Camshaft

INFOID:0000000009944978

CAMSHAFT

Unit: mm (in)

*: Total indicator reading

VALVE LIFTER

Unit: mm (in)

VALVE CLEARANCE

Items

                                Limit

Surface distortion

Each exhaust port

0.3 (0.012)

Entire part

0.7 (0.028)

Items

Standard

Limit

Camshaft journal oil clearance

No. 1

0.045 - 0.086 (0.0018 - 0.0034)

0.15 (0.0059)

No. 2, 3, 4, 5

0.030 - 0.071 (0.0012 - 0.0028)

Camshaft bracket inner diameter

No. 1

28.000 - 28.021 (1.1024 - 1.1032)

No. 2, 3, 4, 5

25.000 - 25.021 (0.9843 - 0.9851)

Camshaft journal diameter

No. 1

27.935 - 27.955 (1.0998 - 1.1006)

No. 2, 3, 4, 5

24.950 - 24.970 (0.9823 - 0.9831)

Camshaft end play

0.075 - 0.153 (0.0030 - 0.0060)

0.24 (0.0094)

Camshaft cam height “A”

Intake

44.605 - 44.795 (1.7561 - 1.7636)

44.405 (1.7482)

Exhaust

43.175 - 43.365 (1.6998 - 1.7073)

42.975 (1.6919)

Camshaft runout [TIR*]

Less than 0.02 (0.0008)

0.05 (0.0020)

Camshaft sprocket runout [TIR*]

0.15 (0.0059)

SEM671

Items

Standard

Valve lifter outer diameter

Intake

33.977 - 33.987 (1.3377 - 1.3381)

Exhaust

29.977 - 29.987 (1.1802 - 1.1806)

Valve lifter hole diameter

Intake

34.000 - 34.021 (1.3386 - 1.3394)

Exhaust

30.000 - 30.021 (1.1811 - 1.1819)

Valve lifter clearance

0.013 - 0.044 (0.0005 - 0.0017)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-115

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Unit: mm (in)

*: Approximately 80

°

C (176

°

F)

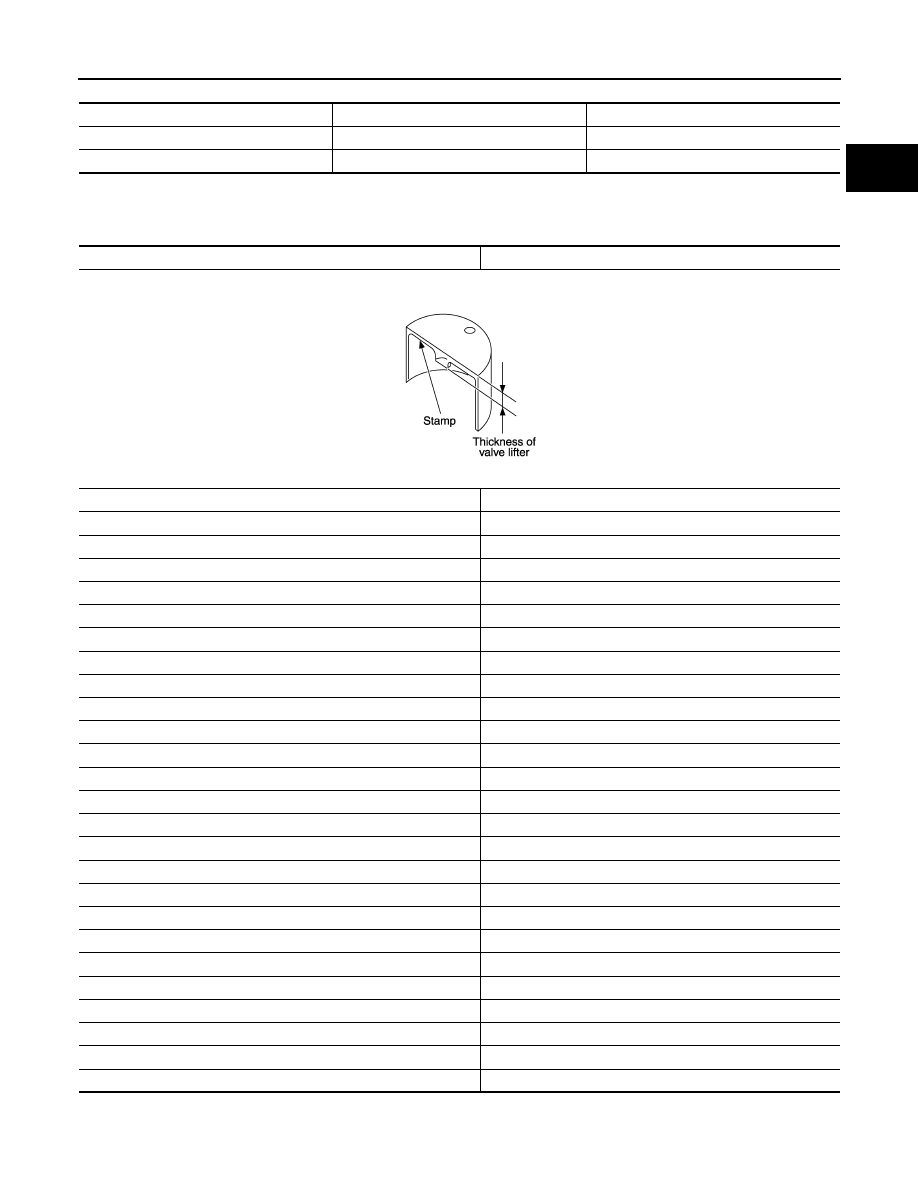

AVAILABLE VALVE LIFTER

Unit: mm (in)

Items

Cold

Hot* (reference data)

Intake

0.26 - 0.34 (0.010 - 0.013)

0.304 - 0.416 (0.012 - 0.016)

Exhaust

0.29 - 0.37 (0.011 - 0.015)

0.308 - 0.432 (0.012 - 0.017)

Identification mark

Thickness

300

3.00 (0.1181)

302

3.02 (0.1189)

304

3.04 (0.1197)

306

3.06 (0.1205)

308

3.08 (0.1213)

310

3.10 (0.1220)

312

3.12 (0.1228)

314

3.14 (0.1236)

316

3.16 (0.1244)

318

3.18 (0.1252)

320

3.20 (0.1260)

322

3.22 (0.1268)

324

3.24 (0.1276)

326

3.26 (0.1283)

328

3.28 (0.1291)

330

3.30 (0.1299)

332

3.32 (0.1307)

334

3.34 (0.1315)

336

3.36 (0.1323)

338

3.38 (0.1331)

340

3.40 (0.1339)

342

3.42 (0.1346)

344

3.44 (0.1354)

346

3.46 (0.1362)

348

3.48 (0.1370)

350

3.50 (0.1378)

KBIA0119E
