EM-12

< PREPARATION >

PREPARATION

(

)

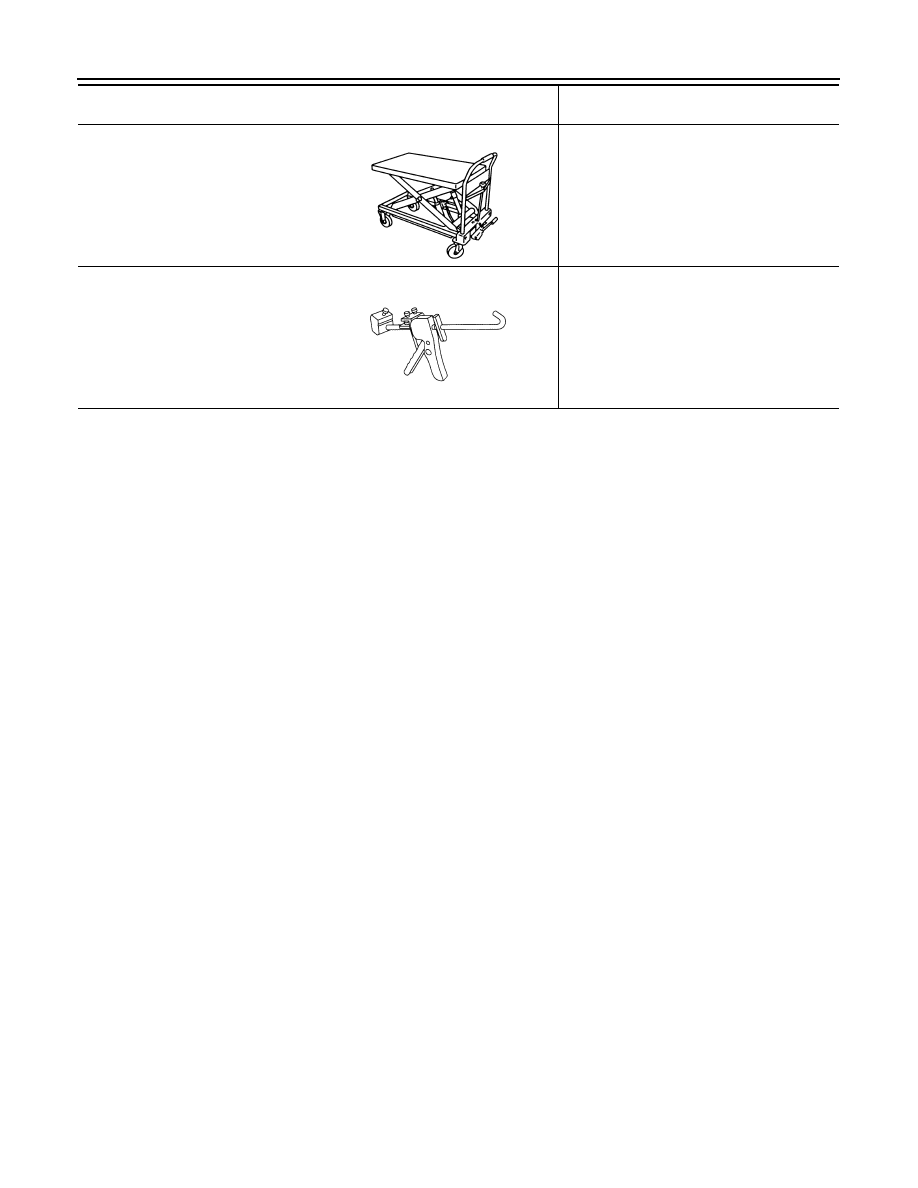

Manual lift table caddy

Removing and installing engine

(

)

Tube presser

Pressing the tube of liquid gasket

(Kent-Moore No.)
Tool name

Description

ZZA1210D

S-NT052

DRIVE BELT

EM-13

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

PERIODIC MAINTENANCE

DRIVE BELT

Exploded View

INFOID:0000000009944915

Checking

INFOID:0000000009944916

WARNING:

Perform this step when engine is stopped.

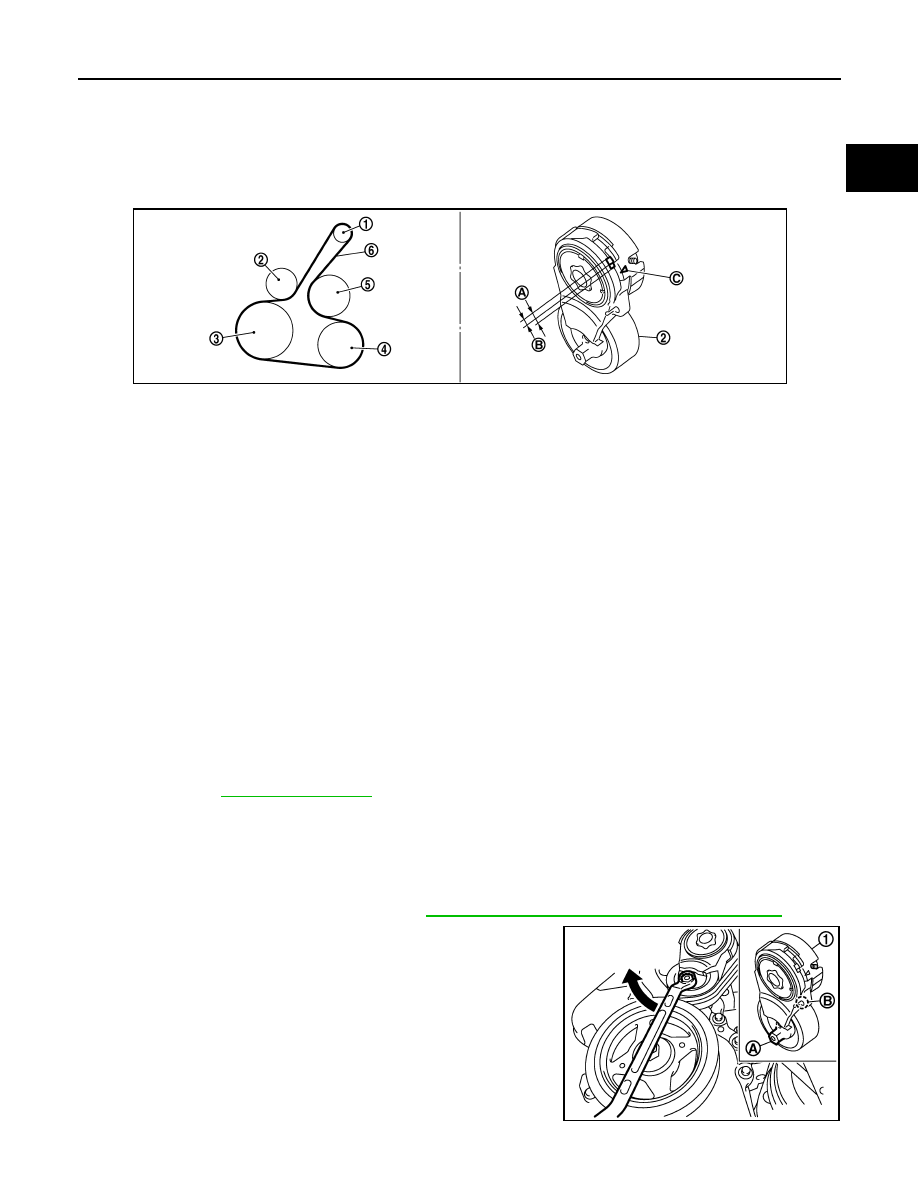

• Check that the indicator (C) (notch on fixed side) of drive belt auto-tensioner is within the possible use range

(A) in the figure.
NOTE:
• Check the drive belt auto-tensioner indication when the engine is cold.
• When new drive belt is installed, the indicator (notch on fixed side) should be within the range (B) in the fig-

ure.

• Visually check entire drive belt for wear, damage or cracks.
• If the indicator (notch on fixed side) is out of the possible use range or belt is damaged, replace drive belt.

Tension Adjustment

INFOID:0000000009944917

Removal and Installation

INFOID:0000000009944918

REMOVAL

1.

Remove front wheel and tire (RH).

2.

Remove front fender protector (RH). Refer to

EXT-21, "FENDER PROTECTOR : Exploded View"

.

3.

Hold the hexagonal part (A) of drive belt auto-tensioner (1) with
a wrench securely. Then move the wrench handle in the direc-
tion of arrow (loosening direction of tensioner).

CAUTION:

Avoid placing hand in a location where pinching may occur
if the holding tool accidentally comes off.

4.

Insert a rod approximately 6 mm (0.24 in) in diameter such as
short-length screwdriver into the hole (B) of the retaining boss to
fix drive belt auto-tensioner.
• Keep drive belt auto-tensioner pulley arm locked after drive

belt is removed.

5.

Remove drive belt.

1.

Alternator

2.

Drive belt auto-tensioner

3.

Crankshaft pulley

4.

A/C compressor (models with A/C)
Idler pulley (models without A/C)

5.

Water pump

6.

Drive belt

A.

Possible use range

B.

Range when new drive belt is in-
stalled

C.

Indicator

PBIC3137J

Refer to

EM-113, "Drive Belt"

.

PBIC3936E

EM-14

< PERIODIC MAINTENANCE >

DRIVE BELT

INSTALLATION

1.

Install drive belt.

CAUTION:

• Confirm drive belt is completely set to pulleys.
• Check for engine oil, working fluid and engine coolant are not adhered to drive belt and each

pulley groove.

2.

Release drive belt auto-tensioner, and apply tension to drive belt.

3.

Turn crankshaft pulley clockwise several times to equalize tension between each pulley.

4.

Confirm tension of drive belt at indicator (notch on fixed side) is within the possible use range. Refer to

EM-13, "Exploded View"

.

AIR CLEANER FILTER

EM-15

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

AIR CLEANER FILTER

Removal and Installation

INFOID:0000000009944919

REMOVAL

1.

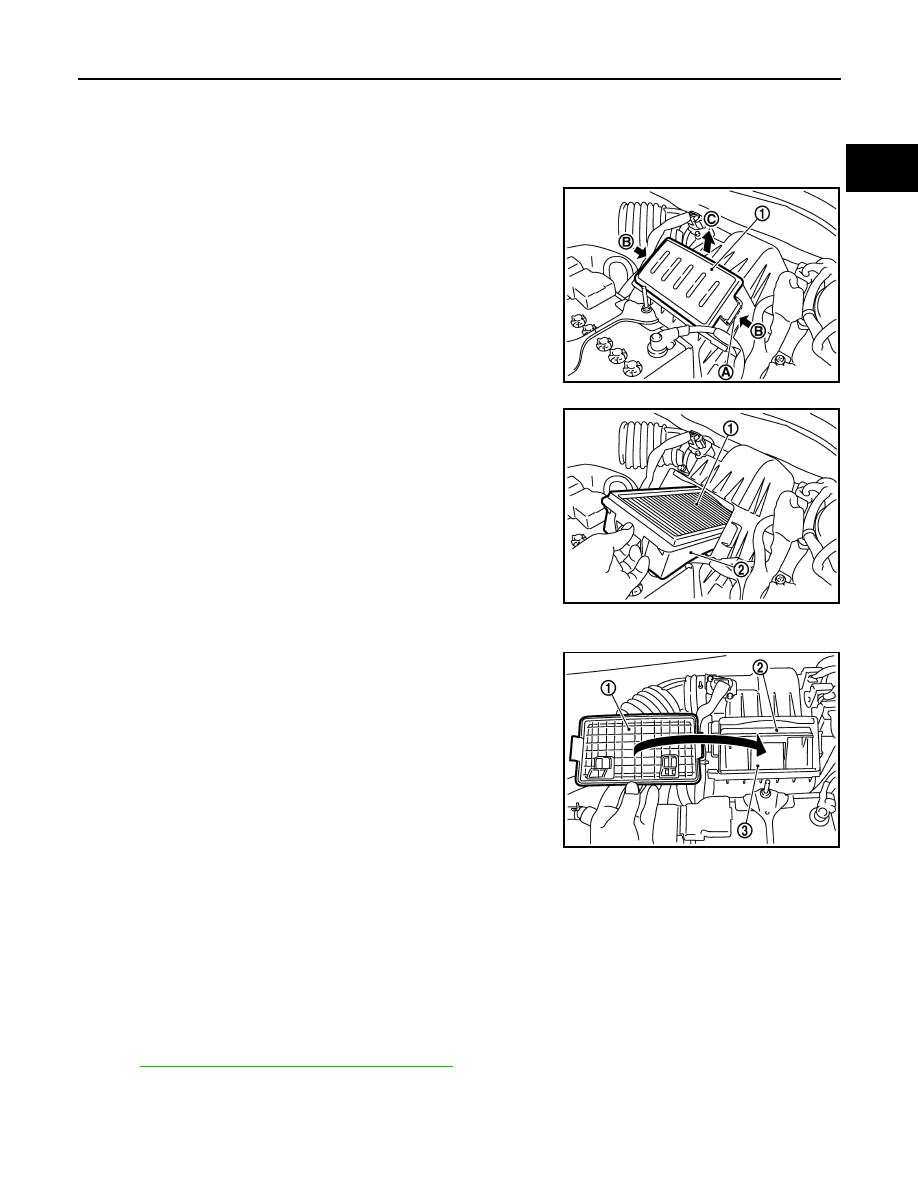

Push the tabs (A) of both ends of the air cleaner cover (1) into
the inside (B).

2.

Pull up the air cleaner cover forward (C) and remove it.

3.

Remove the air cleaner filter (1) and holder (2) assembly from
the air cleaner case.

4.

Remove the air cleaner filter from the holder.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Install the air cleaner cover (1) in the direction as shown in the fig-

ure.

Inspection (Viscous Paper Type)

INFOID:0000000010208825

INSPECTION AFTER REMOVAL

Examine with eyes that there is no stain, clogging, or damage on air cleaner element.
• Remove dusts (such as dead leafs) on air cleaner element surface and inside cleaner case.
• If clogging or damage is observed, replace the air cleaner element.

CAUTION:

Never clean the viscous paper type air cleaner element by blowing as there is a risk of deterioration of
its performance

MAINTENANCE INTERVAL

Refer to

MA-6, "Introduction of Periodic Maintenance"

.

PBIC3557J

PBIC3558J

2

: Air cleaner filter

3

:  Holder

PBIC3559J
