EC-258

< DTC/CIRCUIT DIAGNOSIS >

[MR18DE]

P0441 EVAP CONTROL SYSTEM

7.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Refer to

EC-263, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Replace EVAP canister purge volume control solenoid valve.

8.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR

1.

Disconnect EVAP control system pressure sensor harness connector.

2.

Check connectors for water.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Replace EVAP control system pressure sensor.

9.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR FUNCTION

Refer to

EC-280, "DTC Logic"

 for DTC P0452,

EC-285, "DTC Logic"

 for DTC P0453.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Replace EVAP control system pressure sensor.

10.

CHECK RUBBER TUBE FOR CLOGGING

1.

Disconnect rubber tube connected to EVAP canister vent control valve.

2.

Check the rubber tube for clogging.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Clean the rubber tube using an air blower.

11.

CHECK DRAIN FILTER

Refer to

EC-259, "Component Inspection (Drain filter)"

.

Is the inspection result normal?

YES

>> GO TO 12.

NO

>> Replace drain filter.

12.

CHECK EVAP CANISTER VENT CONTROL VALVE

Refer to

EC-270, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 13.

NO

>> Replace EVAP canister vent control valve.

13.

CHECK EVAP PURGE LINE

Inspect EVAP purge line (pipe and rubber tube). Check for evidence of leaks.
Refer to

EC-480, "Inspection"

.

Is the inspection result normal?

YES

>> GO TO 14.

NO

>> Replace it.

14.

CLEAN EVAP PURGE LINE

Clean EVAP purge line (pipe and rubber tube) using air blower.

>> GO TO 15.

15.

CHECK INTERMITTENT INCIDENT

Refer to

GI-40, "Intermittent Incident"

.

Water should not exist.

P0441 EVAP CONTROL SYSTEM

EC-259

< DTC/CIRCUIT DIAGNOSIS >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

>> INSPECTION END

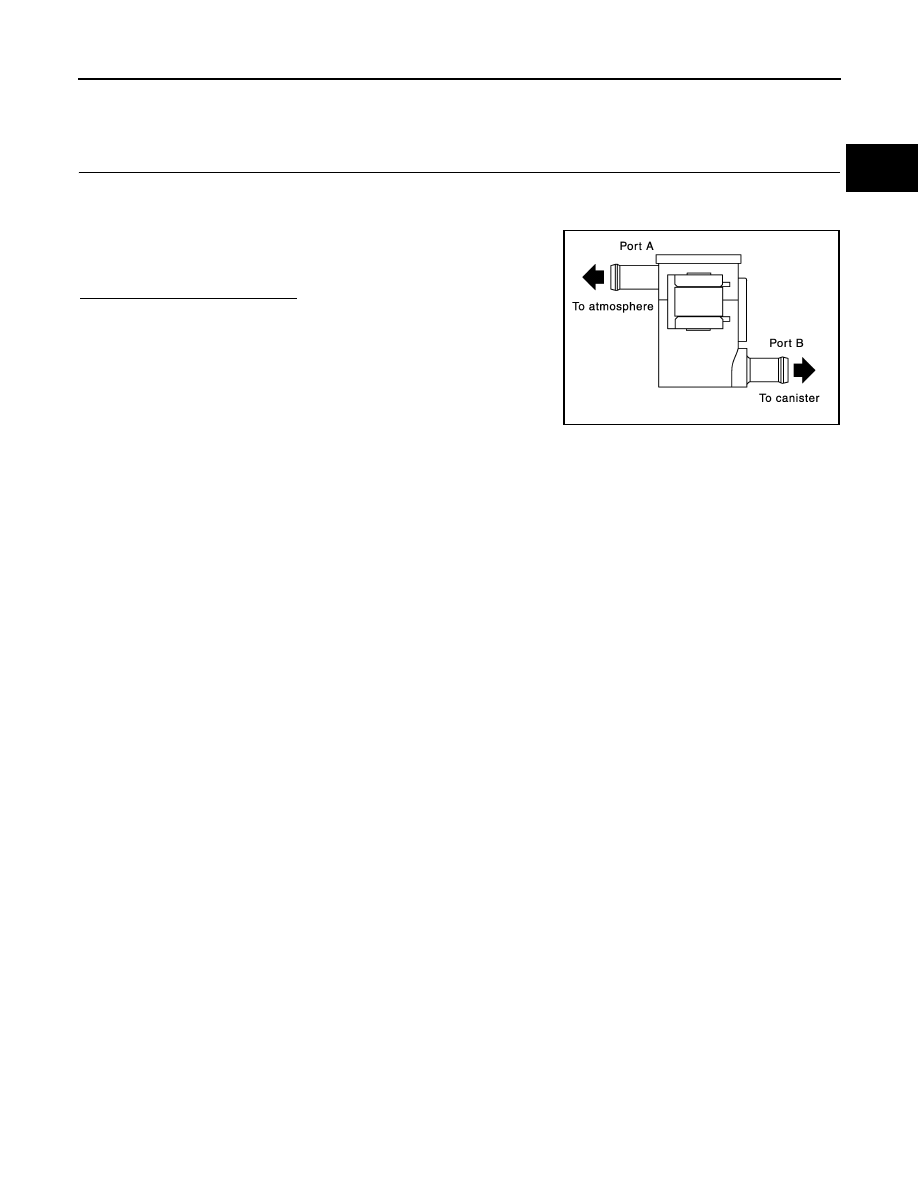

Component Inspection (Drain filter)

INFOID:0000000009947372

1.

CHECK DRAIN FILTER

1.

Check visually for insect nests in the drain filter air inlet.

2.

Check visually for cracks or flaws in the appearance.

3.

Check visually for cracks or flaws in the hose.

4.

Blow air into port A and check that it flows freely out of port B.

5.

Block port B.

6.

Blow air into port A and check that there is no leakage.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace drain filter.

PBIB3641E

EC-260

< DTC/CIRCUIT DIAGNOSIS >

[MR18DE]

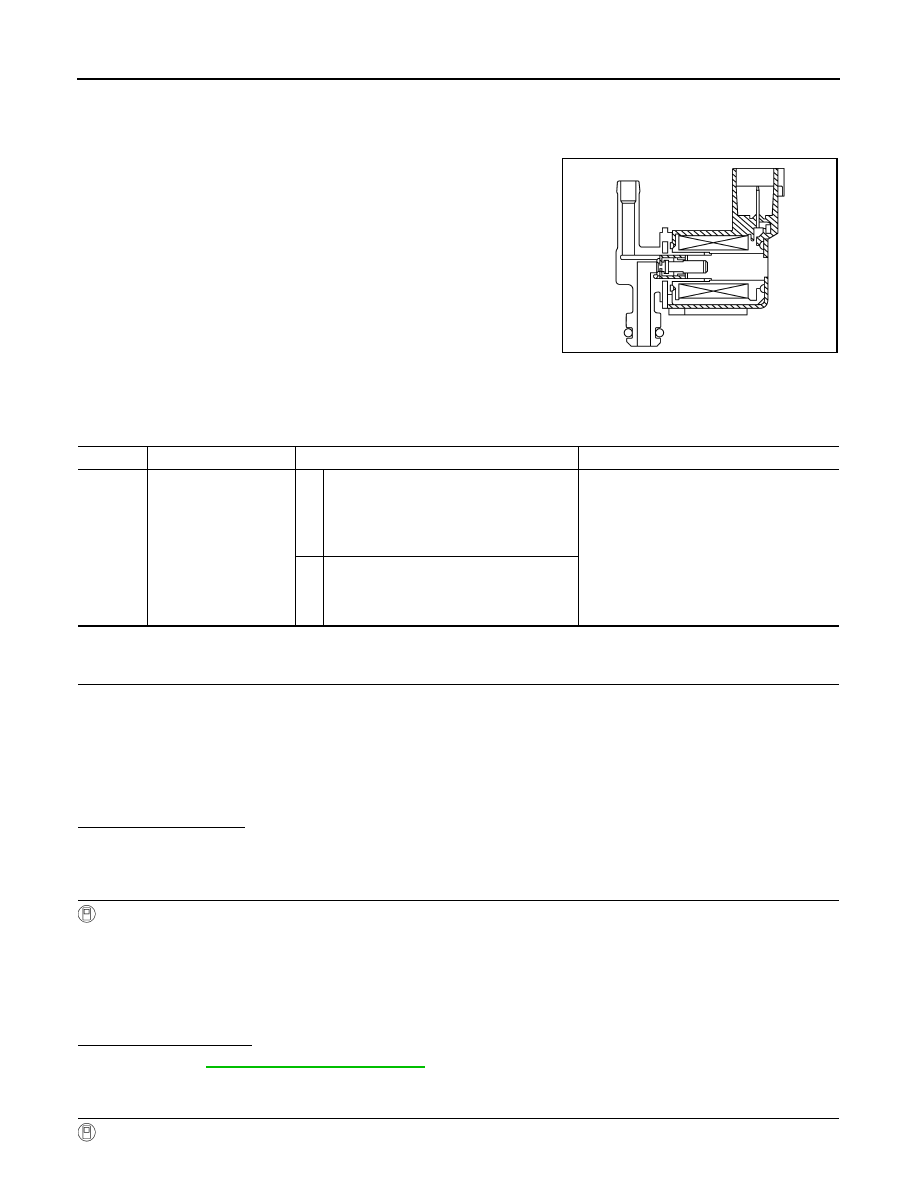

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Description

INFOID:0000000009947373

The EVAP canister purge volume control solenoid valve is used to
control the flow rate of fuel vapor from the EVAP canister. The EVAP
canister purge volume control solenoid valve is moved by ON/OFF
pulses from the ECM. The longer the ON pulse, the greater the
amount of fuel vapor that will flow through the valve.

DTC Logic

INFOID:0000000009947374

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
• Perform DTC CONFIRMATION PROCEDURE when the fuel is between 1/4 and 3/4 full, and vehicle is

placed on flat level surface.

• Always perform test at a temperature of 5 to 60

°

C (41 to 140

°

F).

• Cool the vehicle so that engine coolant temperature becomes same level as ambient temperature.

Do you have CONSULT

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

PERFORM DTC CONFIRMATION PROCEDURE A

With CONSULT

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT.

3.

Check that the following condition are met.
FUEL T/TMP SE: 0 - 35

°

C (32 - 95

°

F)

4.

Start engine and wait at least 60 seconds.

5.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-261, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE B

With CONSULT

PBIA9215J

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0443

EVAP canister purge
volume control solenoid
valve

A

The canister purge flow is detected during
the vehicle is stopped while the engine is
running, even when EVAP canister purge
volume control solenoid valve is completely
closed.

• EVAP control system pressure sensor
• EVAP canister purge volume control sole-

noid valve
(The valve is stuck open.)

• EVAP canister vent control valve
• EVAP canister
• Hoses

(Hoses are connected incorrectly or
clogged.)

B

The canister purge flow is detected during
the specified driving conditions, even when
EVAP canister purge volume control sole-
noid valve is completely closed.

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

EC-261

< DTC/CIRCUIT DIAGNOSIS >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Turn ignition switch ON.

4.

Select “PURG VOL CN/V P1444” of “EVAPORATIVE SYSTEM” in “DTC WORK SUPPORT” mode with
CONSULT.

5.

Touch “START”.

6.

Start engine and let it idle until “TESTING” on CONSULT changes to “COMPLETED”. (It will take approxi-
mately 10 seconds.)
If “TESTING” is not displayed after 5 minutes, retry from step 2.

7.

Touch “SELF-DIAG RESULT”.

Which is displayed on CONSULT?

OK

>> INSPECTION END

NG

>> Go to

EC-261, "Diagnosis Procedure"

.

4.

PERFORM DTC CONFIRMATION PROCEDURE A

With GST

1.

Turn ignition switch ON.

2.

Check the voltage between ECM harness connector and ground.

3.

Start engine and wait at least 60 seconds.

4.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-261, "Diagnosis Procedure"

.

NO

>> GO TO 5.

5.

PERFORM DTC CONFIRMATION PROCEDURE

With GST

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Start engine and let it idle for at least 20 seconds.

4.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-261, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009947375

1.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect EVAP canister purge volume control solenoid valve harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between EVAP canister purge volume control solenoid valve harness connector and
ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

ECM

Ground

Voltage (V)

Connector

Terminal

F8

43

(Fuel tank temperature sensor signal)

Ground

3.1 - 4.0

EVAP canister purge volume control

solenoid valve

Ground

Voltage

Connector

Terminal

F32

1

Ground

Battery voltage
