AIR CONDITIONING CUT CONTROL

1.

Refrigerant pressure sensor

2.

Cooling fan motor

Vehicle front

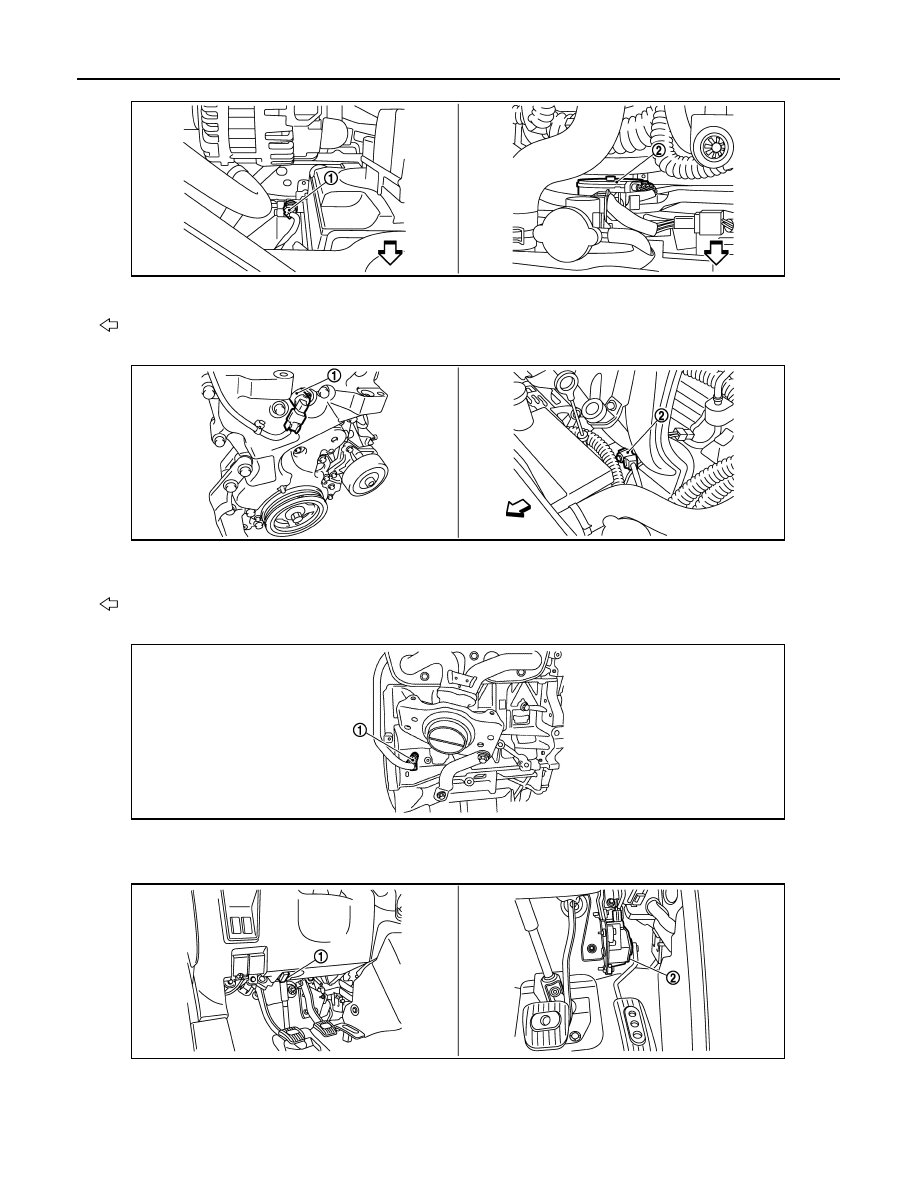

1.

Intake valve timing control solenoid
valve

2.

Knock sensor

Vehicle front

1.

Crankshaft position sensor (POS)

1.

Data link connector

2.

Accelerator pedal position sensor

JMBIA2303ZZ

JMBIA2304ZZ

JMBIA2305ZZ

JMBIA2306ZZ

AIR CONDITIONING CUT CONTROL

EC-63

< SYSTEM DESCRIPTION >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

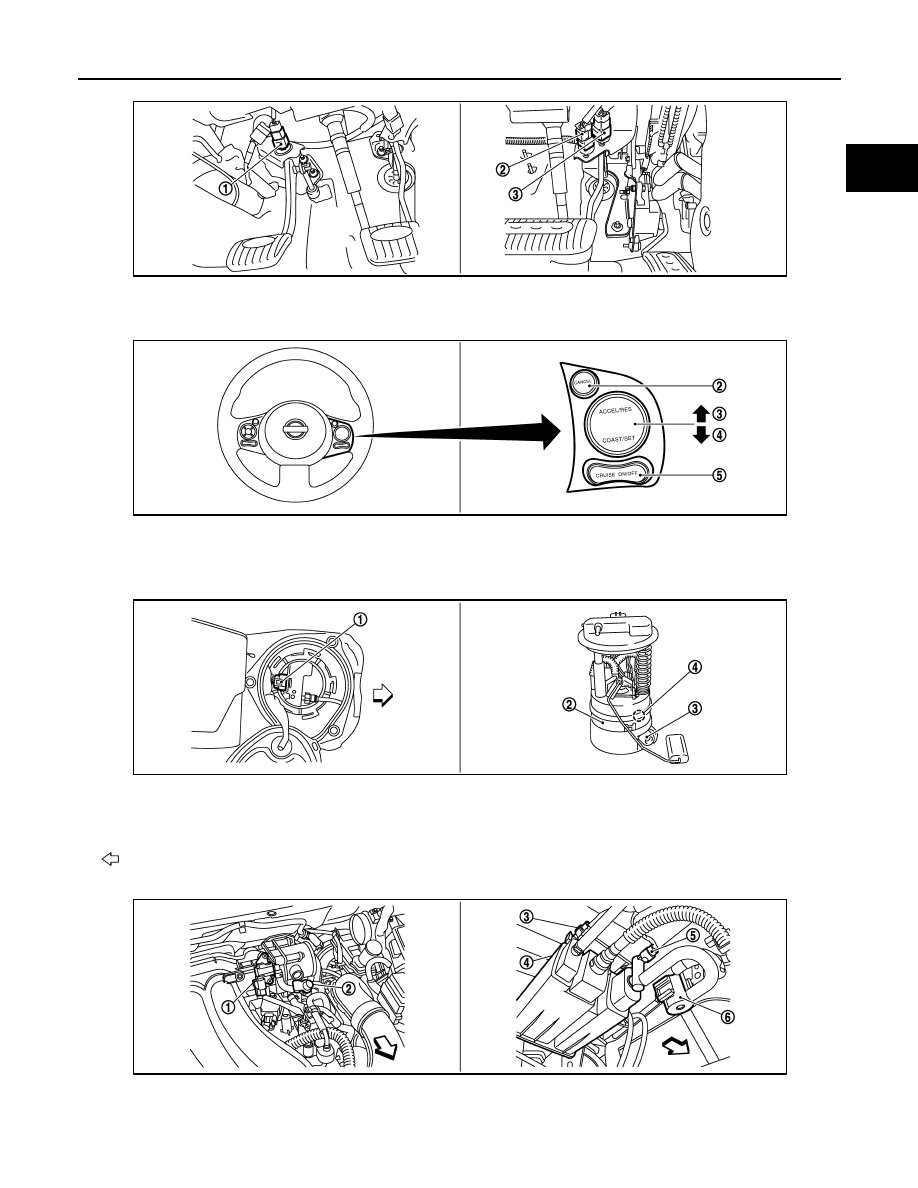

1.

ASCD clutch switch

2.

ASCD brake switch

3.

Stop lamp switch

1.

ASCD steering switch

2.

CANCEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COST switch

5.

MAIN switch

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump 3.

Fuel pressure regulator

4.

Fuel tank temperature sensor

Vehicle front

1.

EVAP canister purge volume control
solenoid valve

2.

EVAP service port

3.

EVAP control system pressure sen-
sor

JMBIA2307ZZ

JMBIA2308ZZ

JMBIA2309ZZ

JMBIA2310ZZ

EC-64

< SYSTEM DESCRIPTION >

[MR18DE]

AIR CONDITIONING CUT CONTROL

Component Description

INFOID:0000000009947209

4.

EVAP canister

5.

EVAP canister vent control valve

6.

Drain filter

Vehicle front

Component

Reference

Accelerator pedal position sensor

EC-383, "Description"

Camshaft position sensor (PHASE)

EC-245, "Description"

Crankshaft position sensor (POS)

EC-241, "Description"

Engine coolant temperature sensor

EC-163, "Description"

Refrigerant pressure sensor

EC-425, "Description"

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

EC-65

< SYSTEM DESCRIPTION >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

System Diagram

INFOID:0000000009947210

System Description

INFOID:0000000009947211

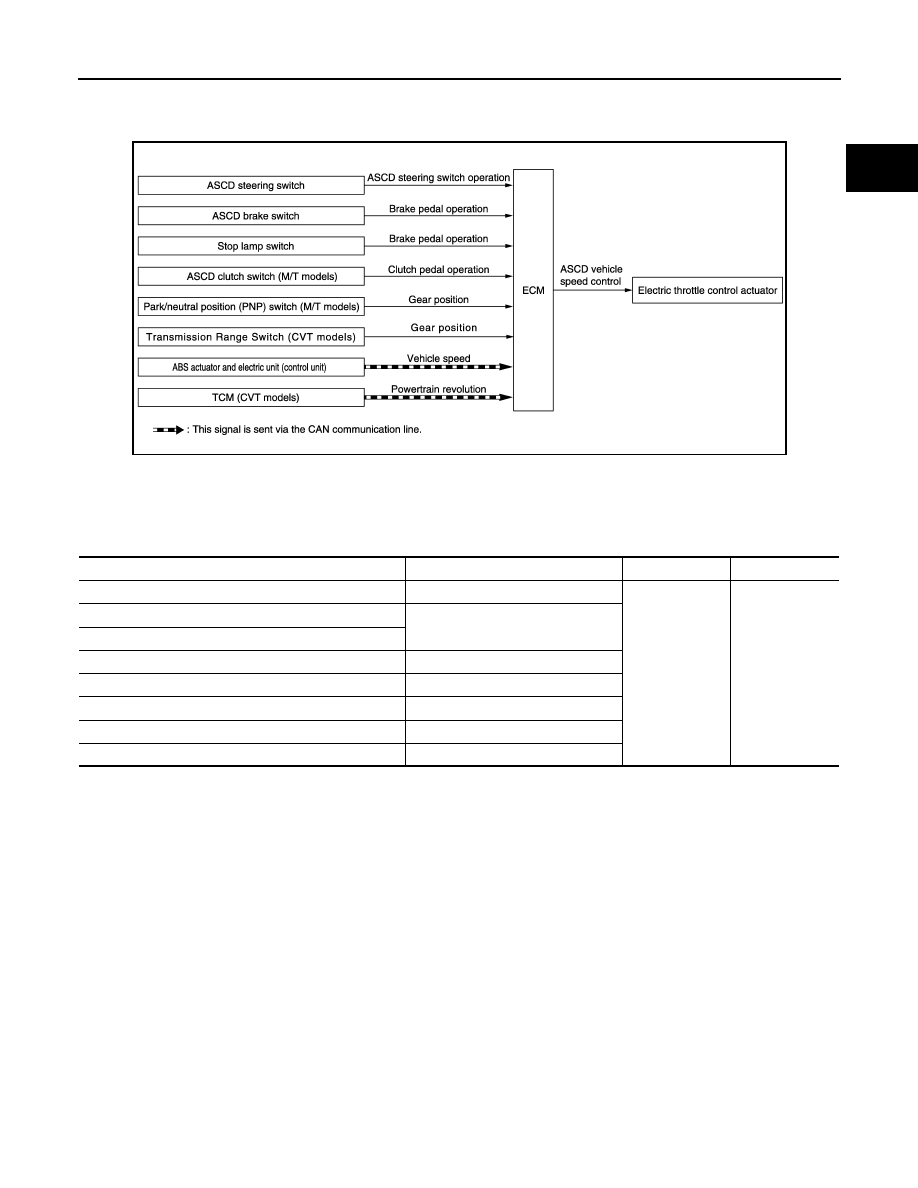

INPUT/OUTPUT SIGNAL CHART

*: This signal is sent to the ECM via the CAN communication line.

BASIC ASCD SYSTEM

Refer to Owner's Manual for ASCD operating instructions.
Automatic Speed Control Device (ASCD) allows a driver to keep vehicle at predetermined constant speed
without depressing accelerator pedal. Driver can set vehicle speed in advance between approximately 40 km/
h (25 MPH) and 144 km/h (89 MPH).
ECM controls throttle angle of electric throttle control actuator to regulate engine speed.
Operation status of ASCD is indicated by CRUISE lamp and SET lamp in combination meter. If any malfunc-
tion occurs in the ASCD system, it automatically deactivates control.
NOTE:
Always drive vehicle in a safe manner according to traffic conditions and obey all traffic laws.

SET OPERATION

Press MAIN switch. (The CRUISE lamp in combination meter illuminates.)
When vehicle speed reaches a desired speed between approximately 40 km/h (25 MPH) and 144 km/h (89
MPH), press SET/COAST switch.

ACCELERATE OPERATION

If the RESUME/ACCELERATE switch is pressed during cruise control driving, increase the vehicle speed until
the switch is released or vehicle speed reaches maximum speed controlled by the system.
And then ASCD will maintain the new set speed.

JMBIA2933GB

Sensor

Input signal to ECM

ECM function

Actuator

ASCD steering switch

ASCD steering switch operation

ASCD vehicle
speed control

Electric throttle
control
actuator

ASCD brake switch

Brake pedal operation

Stop lamp switch

ASCD clutch switch (M/T models)

Clutch pedal operation

Park/neutral position (PNP) switch (M/T models)

Gear position

Transmission range switch (CVT models)

Gear position

ABS actuator and electric unit (control unit)

Vehicle speed*

TCM (M/T models)

Powertrain revolution*
