Nissan Cube. Manual - part 284

EC-22

< BASIC INSPECTION >

[MR18DE]

INSPECTION AND ADJUSTMENT

• Erroneous idle.

>> INSPECTION END

MIXTURE RATIO SELF-LEARNING VALUE CLEAR

MIXTURE RATIO SELF-LEARNING VALUE CLEAR : Description

INFOID:0000000009947186

This describes how to erase the mixture ratio self-learning value. For the actual procedure, follow the instruc-
tions in “Diagnosis Procedure”.

MIXTURE RATIO SELF-LEARNING VALUE CLEAR : Special Repair Requirement

INFOID:0000000009947187

1.

START

With CONSULT

1.

Start engine and warm it up to normal operating temperature.

2.

Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CONSULT.

3.

Clear mixture ratio self-learning value by touching “CLEAR”.

With GST

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF.

3.

Disconnect mass air flow sensor harness connector.

4.

Restart engine and let it idle for at least 5 seconds.

5.

Stop engine and reconnect mass air flow sensor harness connector.

6.

Select Service $03 with GST. Make sure DTC P0102 is detected.

7.

Select Service $04 with GST to erase the DTC P0102.

>> END

HOW TO SET SRT CODE

EC-23

< BASIC INSPECTION >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

HOW TO SET SRT CODE

Description

INFOID:0000000009947188

OUTLINE

In order to set all SRTs, the self-diagnoses as in the “SRT ITEM” table must have been performed at least
once. Each diagnosis may require actual driving for a long period of time under various conditions.

SRT ITEM

The table below shows required self-diagnostic items to set the SRT to “CMPLT”.

*1: Though displayed on the CONSULT screen, “HO2S HTR” is not SRT item.
*2: If completion of several SRTs is required, perform driving patterns (DTC confirmation procedure), one by
one based on the priority for models with CONSULT.

SRT SERVICE PROCEDURE

SRT item

*1

(CONSULT indication)

Performance

Priority

*2

Required self-diagnostic items to set the SRT to “CMPLT”

Corresponding

DTC No.

CATALYST

1

Three way catalyst function

P0420

EVAP SYSTEM

1

EVAP control system purge flow monitoring

P0441

1

EVAP control system

P0456

HO2S

1

Air fuel ratio (A/F) sensor 1

P0133

Heated oxygen sensor 2

P0137

Heated oxygen sensor 2

P0138

Heated oxygen sensor 2

P0139

EGR/VVT SYSTEM

2

Intake value timing control function

P0011

EC-24

< BASIC INSPECTION >

[MR18DE]

HOW TO SET SRT CODE

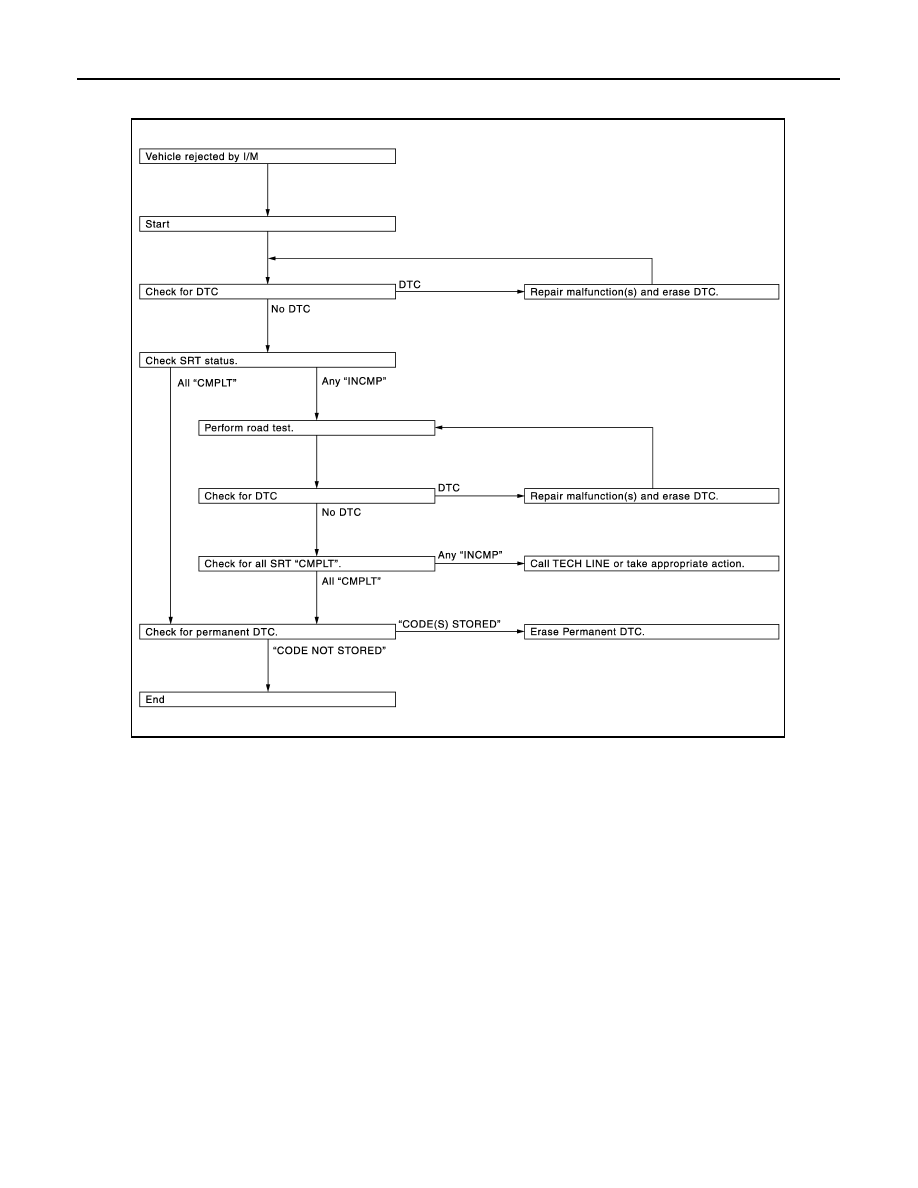

If a vehicle has failed the state emissions inspection due to one or more SRT items indicating “INCMP”, review
the flowchart diagnostic sequence, referring to the following flowchart.

SRT Set Driving Pattern

INFOID:0000000009947189

CAUTION:

JSBIA0400GB

HOW TO SET SRT CODE

EC-25

< BASIC INSPECTION >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Always drive the vehicle in safe manner according to traffic conditions and obey all traffic laws.

*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then release the accelerator pedal
and keep it released for more than 10 seconds. Depress the accelerator pedal until vehicle speed is 90 km/h
(56 MPH) again.
*2: Checking the vehicle speed with GST is advised.
• The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driving

habits, etc.

• “Zone A” is the fastest time where required for the diagnosis under normal conditions*. If the diagnosis is not

completed within “Zone A”, the diagnosis can still be performed within “Zone B”.

JPBIA5320GB
