BCM (BODY CONTROL MODULE)

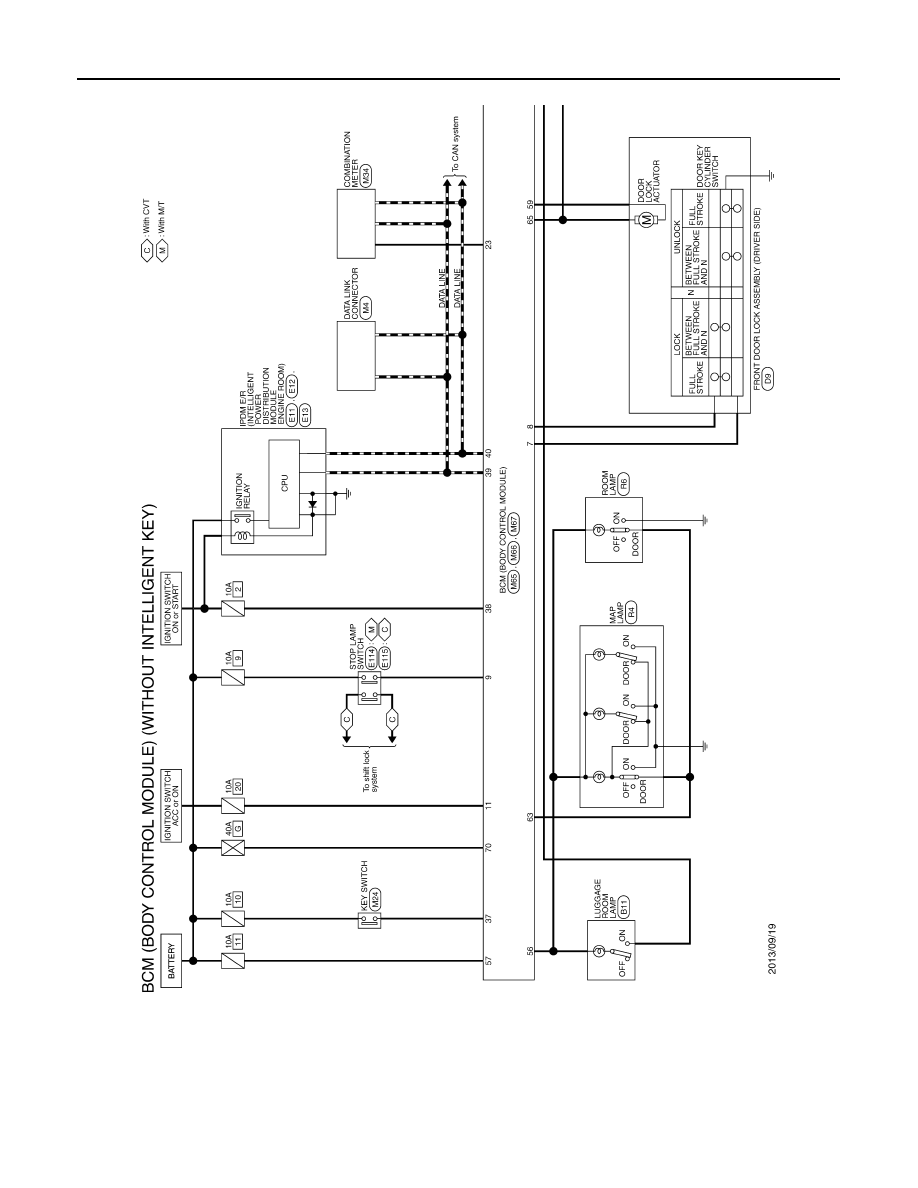

Wiring Diagram - BCM -

INFOID:0000000010254841

JRMWE7716GB

BCM (BODY CONTROL MODULE)

DLK-303

< ECU DIAGNOSIS INFORMATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JRMWE7717GB

DLK-304

< ECU DIAGNOSIS INFORMATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

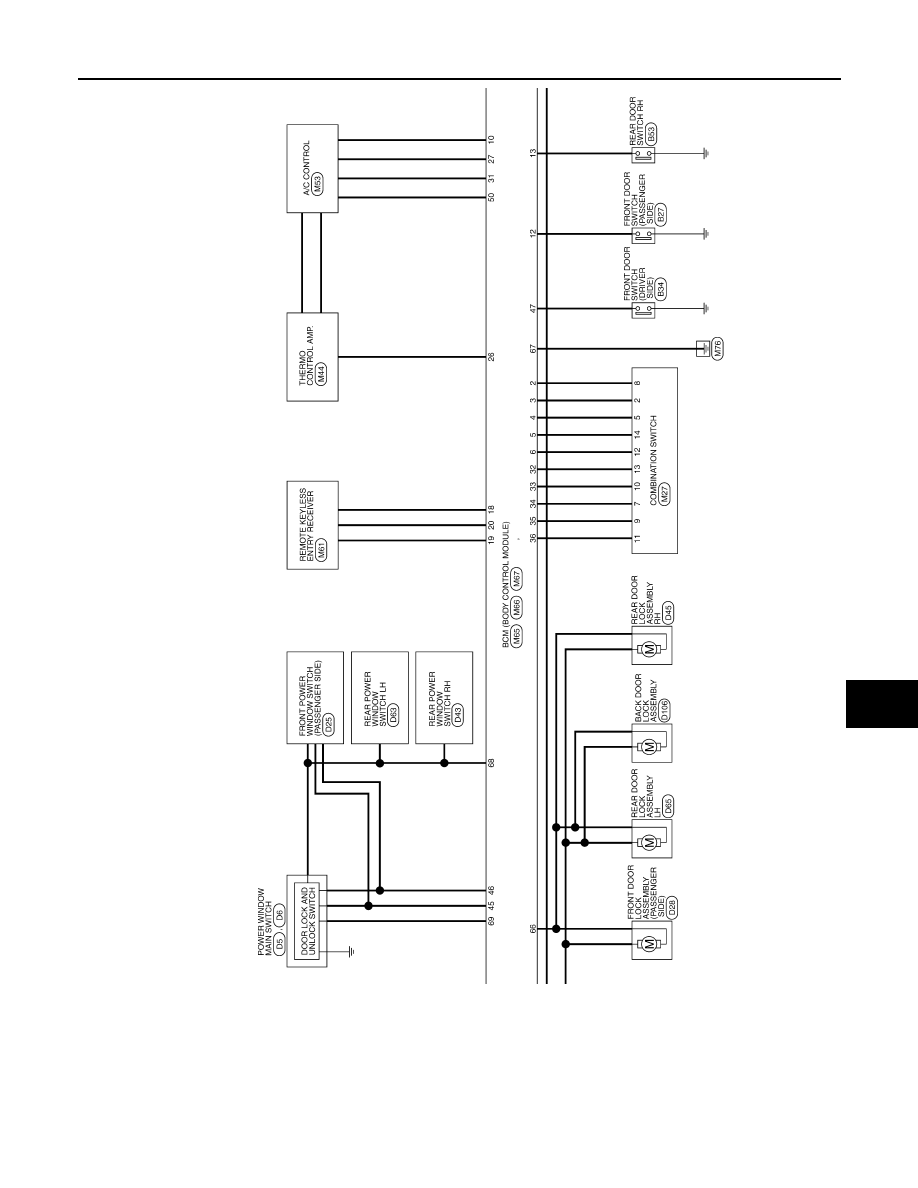

BCM (BODY CONTROL MODULE)

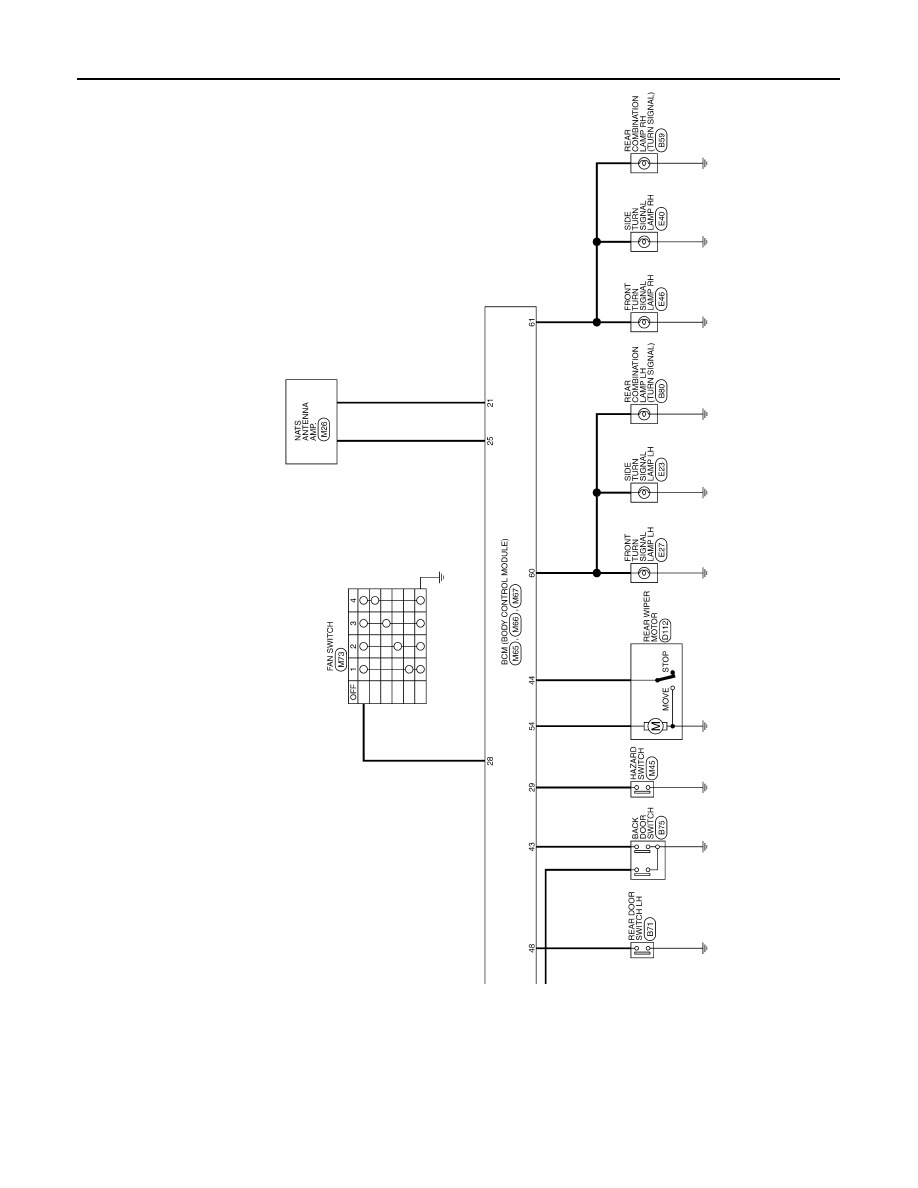

JRMWE7718GB

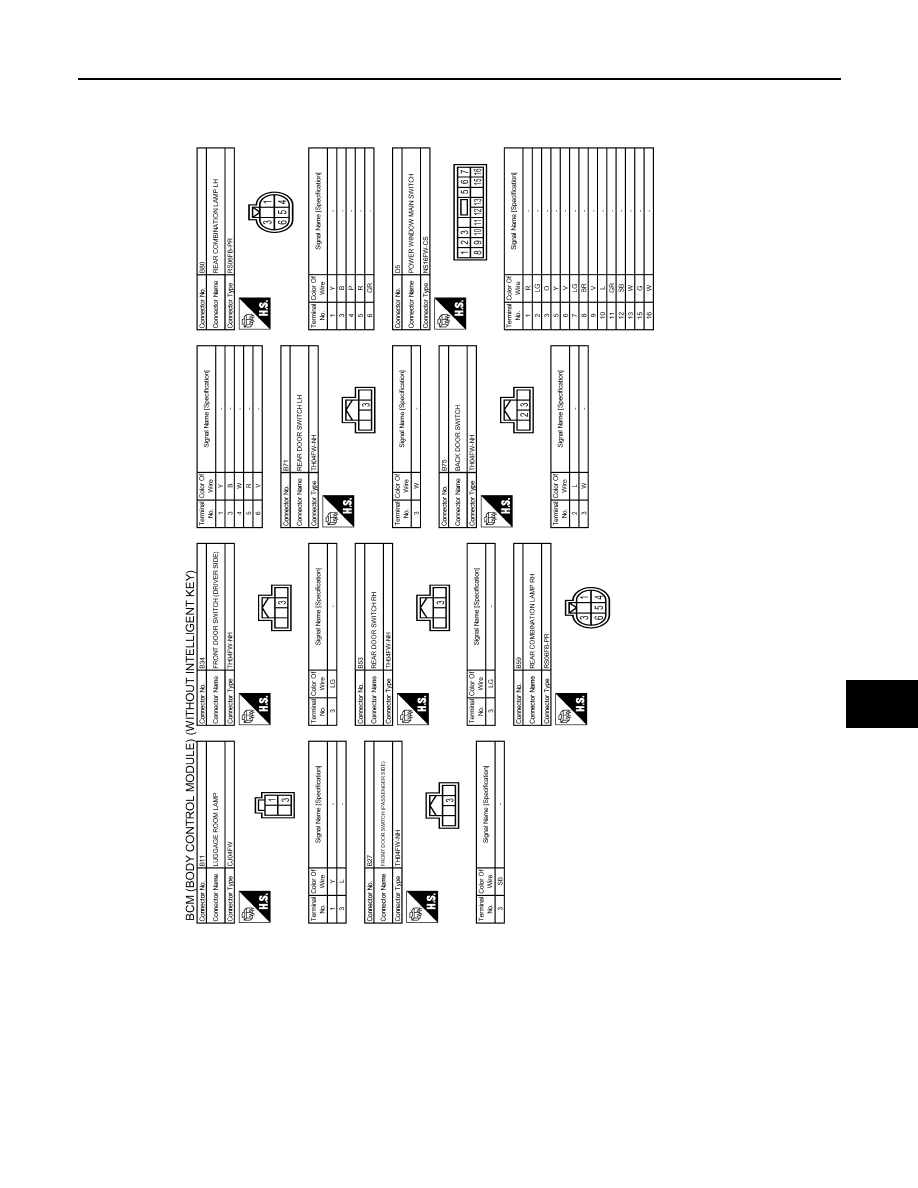

BCM (BODY CONTROL MODULE)

DLK-305

< ECU DIAGNOSIS INFORMATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JRMWE7826GB
