DLK-86

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

BUZZER (COMBINATION METER)

BUZZER (COMBINATION METER)

Description

INFOID:0000000009950536

Performs operation method guide and warning with buzzer.

Component Function Check

INFOID:0000000009950537

1.

CHECK FUNCTION

1.

Use CONSULT to perform Active Test (“INSIDE BUZZER”).

2.

Touch “take out”, “knob”or “key” to check that it works normally.

Is the inspection result normal?

Yes

>> Buzzer (combination meter) is OK.

No

>> Refer to

DLK-86, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009950538

1.

CHECK METER BUZZER CIRCUIT

Refer to

WCS-25, "Component Function Check"

.

Is the inspection result normal?

Yes

>> GO TO 2.

No

>> Repair or replace harness.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-40, "Intermittent Incident"

.

>> INSPECTION END

KEY WARNING LAMP

DLK-87

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

KEY WARNING LAMP

Description

INFOID:0000000009950539

Performs operation method guide and warning together with buzzer.

Component Function Check

INFOID:0000000009950540

1.

CHECK FUNCTION

1.

Use CONSULT to perform Active Test (“INDICATOR”).

2.

Touch “KEY IND” or “KEY ON” to check that it works normally.

Is the inspection result normal?

YES

>> Key warning lamp is OK.

NO

>> Refer to

DLK-87, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009950541

1.

CHECK KEY WARNING LAMP

Refer to

MWI-4, "Work flow"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-40, "Intermittent Incident"

.

>> INSPECTION END

DLK-88

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

HAZARD FUNCTION

HAZARD FUNCTION

Description

INFOID:0000000009950542

Performs answer-back for each operation with number of blinks.

Component Function Check

INFOID:0000000009950543

1.

CHECK FUNCTION

1.

Use CONSULT to perform Active Test (“FLASHER”).

2.

Touch “LH” or “RH” to check that it works normally.

Is the inspection result normal?

YES

>> Hazard warning lamp circuit is OK.

NO

>> Refer to

DLK-88, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009950544

1.

CHECK HAZARD SWITCH CIRCUIT

Refer to

EXL-56, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-40, "Intermittent Incident"

.

>> INSPECTION END

POWER DOOR LOCK SYSTEM

DLK-89

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

POWER DOOR LOCK SYSTEM

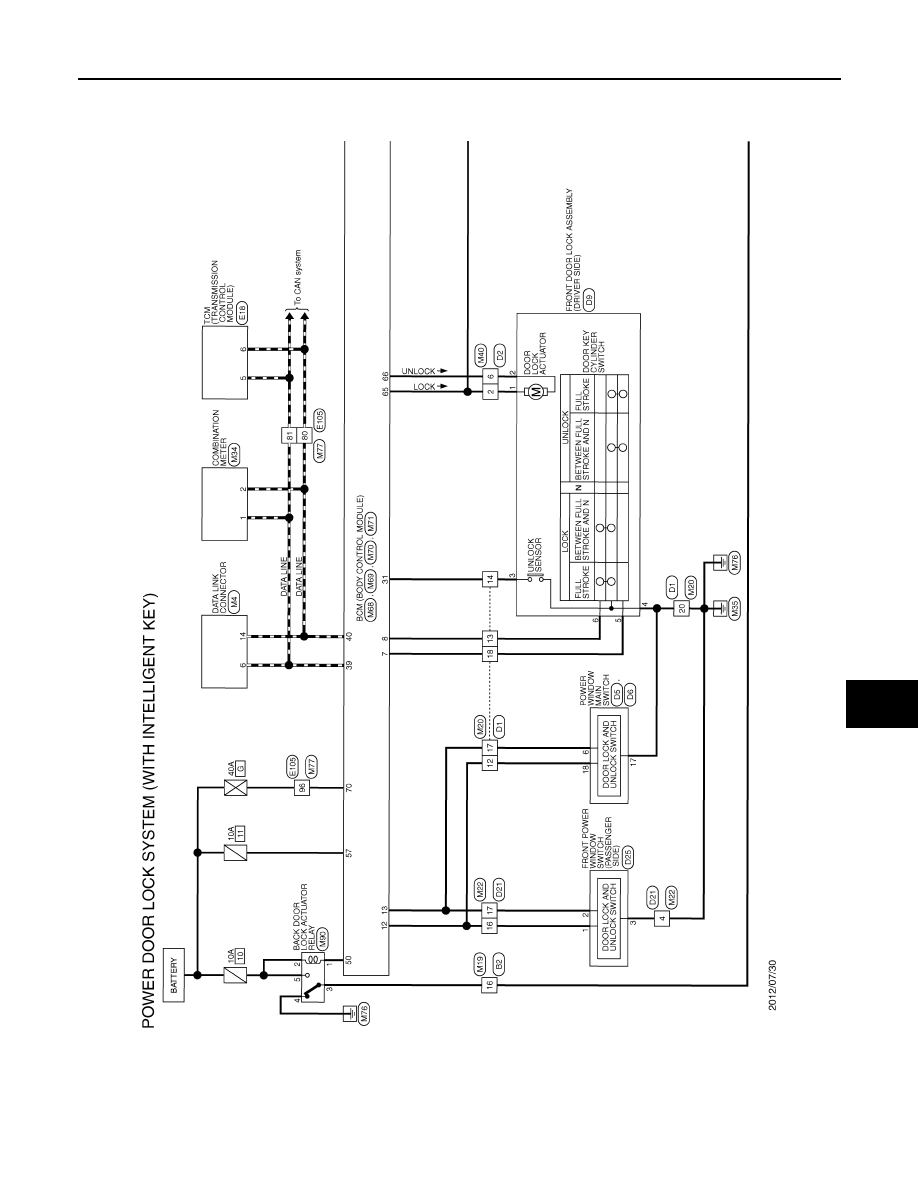

Wiring Diagram - POWER DOOR LOCK SYSTEM -

INFOID:0000000009950545

JRKWC2329GB
