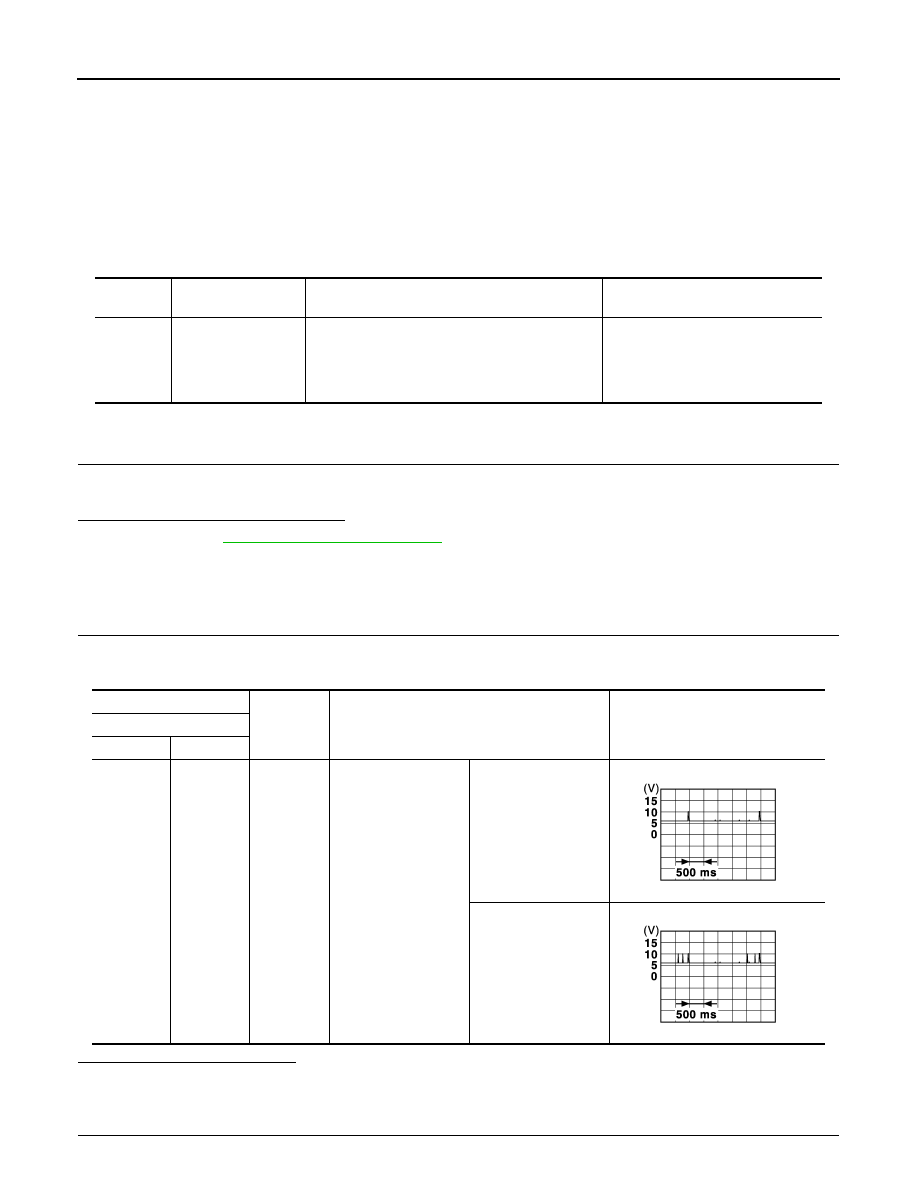

DLK-46

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2622 INSIDE ANTENNA

B2622 INSIDE ANTENNA

Description

INFOID:0000000009950466

• Detects whether Intelligent Key is inside the vehicle.
• Installed in the luggage room.

DTC Logic

INFOID:0000000009950467

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Perform inside key antenna (“INSIDE ANT DIAGNOSIS”) on “Work Support” of “INTELLIGENT KEY”.

2.

Perform “INTELLIGENT KEY” Self Diagnostic Result.

Is inside key antenna DTC detected?

YES

>> Refer to

DLK-46, "Diagnosis Procedure"

.

NO

>> Inside key antenna (luggage room) is OK.

Diagnosis Procedure

INFOID:0000000009950468

1.

CHECK INSIDE KEY ANTENNA INPUT SIGNAL 1

1.

Turn ignition switch OFF.

2.

Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK INSIDE KEY ANTENNA CIRCUIT

1.

Disconnect BCM connector and inside key antenna (luggage room) connector.

DTC

CONSULT display

description

DTC detecting condition

Possible cause

B2622

INSIDE ANTENNA

An excessive high or low voltage from inside anten-
na (luggage room) is sent to BCM

• Inside key antenna (luggage room)
• Harness or connector

[Inside key antenna (luggage
room) circuit is open or shorted]

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

Luggage
room

M71

86, 87

Ground

When Intelligent Key is in the an-
tenna detection area

When Intelligent Key is not in the
antenna detection area

JMKIA3839GB

JMKIA3838GB

B2622 INSIDE ANTENNA

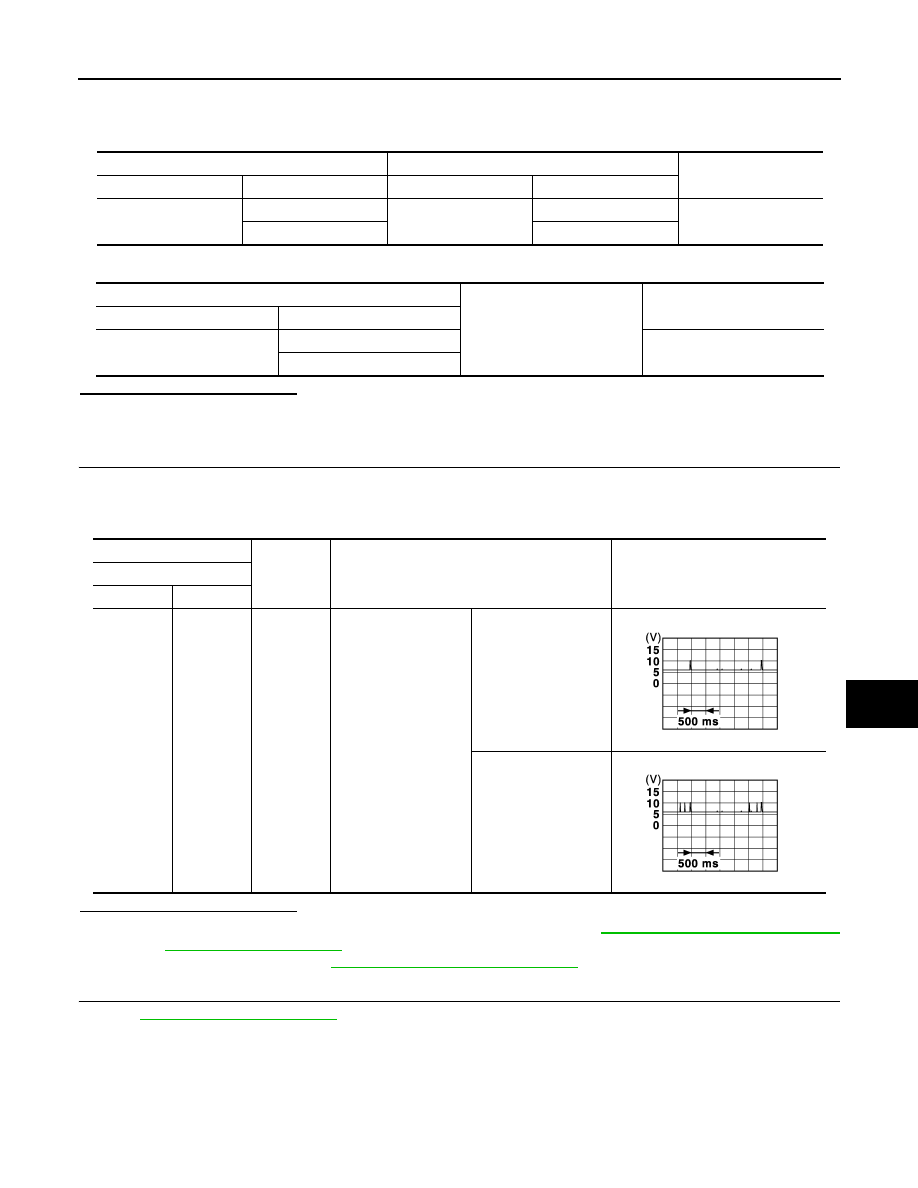

DLK-47

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

Check continuity between BCM harness connector and inside key antenna (luggage room) harness con-
nector.

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK INSIDE KEY ANTENNA INPUT SIGNAL 2

1.

Replace inside key antenna (luggage room). (New antenna or other antenna)

2.

Connect BCM connector and inside key antenna (luggage room) connector.

3.

Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace inside key antenna (luggage room). Refer to

DLK-227, "LUGGAGE ROOM : Removal

and Installation"

.

NO

>> Replace BCM. Refer to

BCS-88, "Removal and Installation"

.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-40, "Intermittent Incident"

.

>> INSPECTION END

BCM

Inside key antenna (luggage room)

Continuity

Connector

Terminal

Connector

Terminal

M71

86

B82

1

Existed

87

2

BCM

Ground

Continuity

Connector

Terminal

M71

86

Not existed

87

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

Luggage
room

M71

86, 87

Ground

When Intelligent Key is in the
antenna detection area

When Intelligent Key is not in
the antenna detection area

JMKIA3839GB

JMKIA3838GB

DLK-48

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2626 OUTSIDE ANTENNA

B2626 OUTSIDE ANTENNA

Description

INFOID:0000000009950469

• Detects whether Intelligent Key is outside the vehicle.
• Integrated in the outside handle (passenger side).

DTC Logic

INFOID:0000000009950470

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Disconnect outside key antenna (passenger side) connector.

2.

Perform “INTELLIGENT KEY” Self Diagnostic Result.

Is outside key antenna DTC detected?

YES

>> Refer to

DLK-48, "Diagnosis Procedure"

.

NO

>> Outside key antenna (passenger side) is OK.

Diagnosis Procedure

INFOID:0000000009950471

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1.

Turn ignition switch OFF.

2.

Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

DTC

CONSULT display

description

DTC detecting condition

Possible cause

B2626

OUTSIDE ANTENNA

An excessive high or low voltage from front door
right outside key antenna is sent to BCM

• Front door right outside key anten-

na

• Harness or connector

(Front door right outside key an-
tenna circuit is open or shorted)

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M71

80, 81

Ground

When the passenger
door request switch is
operated with power
switch ON

When Intelligent Key is
in the antenna detec-
tion area (The distance
between Intelligent
Key and antenna: 80
cm or less)

When Intelligent Key is
not in the antenna de-
tection area (The dis-
tance between
Intelligent Key and an-
tenna: Approx. 2 m)

JMKIA5955GB

JMKIA5954GB

B2626 OUTSIDE ANTENNA

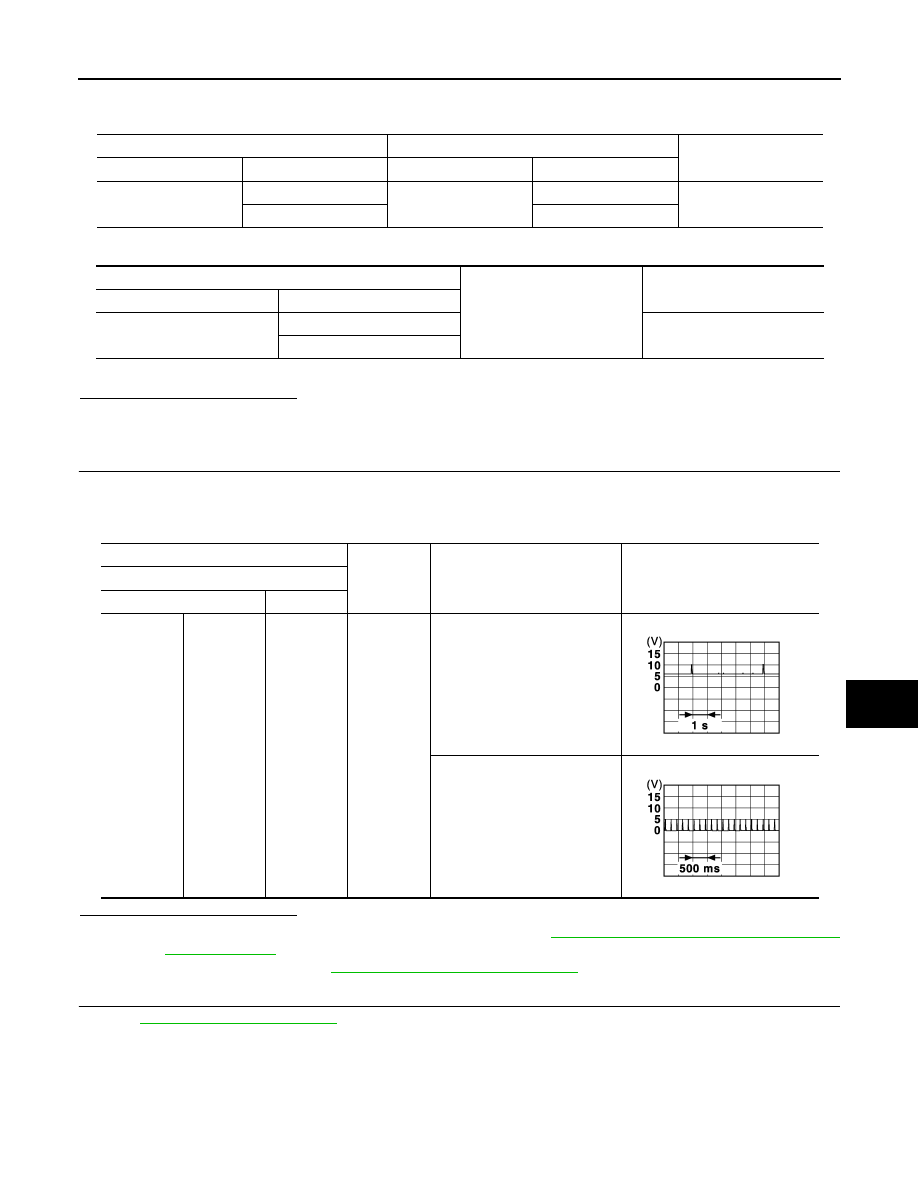

DLK-49

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

Disconnect BCM connector and outside key antenna (passenger side) connector.

2.

Check continuity between BCM harness connector and outside key antenna (passenger side) harness
connector.

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1.

Replace outside key antenna (passenger side). (New antenna or other antenna)

2.

Connect BCM connector and outside key antenna (passenger side) connector.

3.

Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace outside key antenna (passenger side). Refer to

DLK-214, "OUTSIDE HANDLE :

Removal and Installation"

.

NO

>> Replace BCM. Refer to

BCS-88, "Removal and Installation"

.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-40, "Intermittent Incident"

.

>> INSPECTION END

BCM

Outside key antenna (passenger side)

Continuity

Connector

Terminal

Connector

Terminal

M71

80

D32

1

Existed

81

2

BCM

Ground

Continuity

Connector

Terminal

M71

80

Not existed

81

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M71

80, 81

Ground

When the passenger
door request switch is
operated with power
switch ON

When Intelligent Key is
in the antenna detec-
tion area (The distance
between Intelligent
Key and antenna: 80
cm or less)

When Intelligent Key is
not in the antenna de-
tection area (The dis-
tance between
Intelligent Key and an-
tenna: Approx. 2 m)

JMKIA5955GB

JMKIA5954GB
