Nissan Cube. Manual - part 165





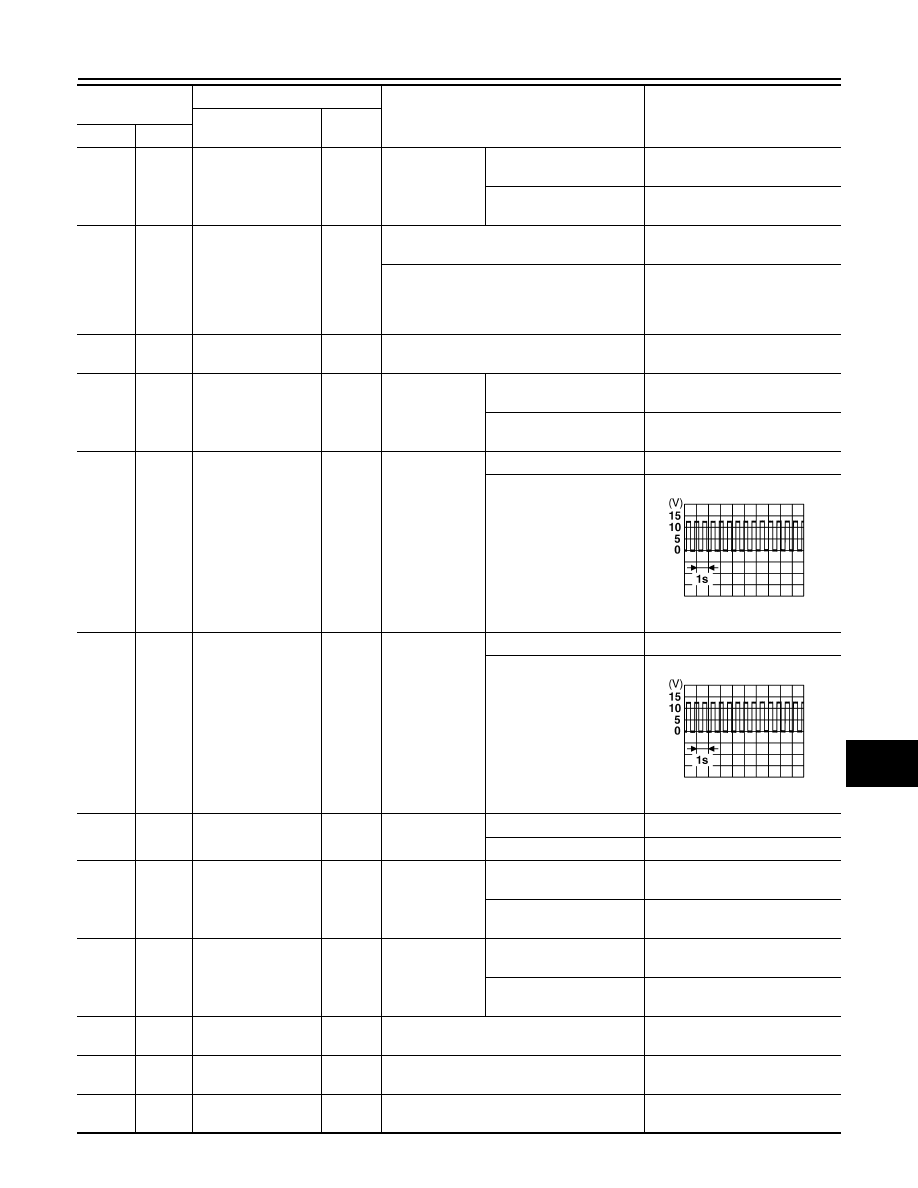

BCM (BODY CONTROL MODULE)

DEF-47

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

55

(G)

Ground

Rear door UNLOCK

Output

Rear door

UNLOCK (Actuator is acti-
vated)

12 V

Other than UNLOCK (Ac-
tuator is not activated)

0 V

56

(L)

Ground

Interior room lamp
power supply

Output

Interior room lamp battery saver is activated.
(Cuts the interior room lamp power supply)

0 V

Interior room lamp battery saver is not acti-
vated.
(Outputs the interior room lamp power sup-
ply)

12 V

57

(Y)

Ground

Battery power sup-
ply

Input

Ignition switch OFF

Battery voltage

59

(G)

Ground

Passenger door UN-
LOCK

Output

Passenger door

UNLOCK (Actuator is acti-
vated)

12 V

Other than UNLOCK (Ac-
tuator is not activated)

0 V

60

(W/B)

Ground

Turn signal LH

Output

Ignition switch
ON

Turn signal switch OFF

0 V

Turn signal switch LH

6.0 V

61

(W/L)

Ground

Turn signal RH

Output

Ignition switch
ON

Turn signal switch OFF

0 V

Turn signal switch RH

6.0 V

63

(BR)

Ground

Interior room lamp
control signal

Output

Interior room
lamp

OFF

12 V

ON

0 V

65

(V)

Ground

All doors LOCK

Output

All doors

LOCK (Actuator is activat-
ed)

12 V

Other than LOCK (Actua-
tor is not activated)

0 V

66

(L/B)

Ground

Driver door UN-
LOCK

Output

Driver door

UNLOCK (Actuator is acti-
vated)

12 V

Other than UNLOCK (Ac-
tuator is not activated)

0 V

67

(B)

Ground

Ground

Output

Ignition switch ON

0 V

68

(L)

Ground

P/W power supply
(IGN)

Output

Ignition switch ON

12 V

69

(P)

Ground

P/W power supply
(BAT)

Output

Ignition switch OFF

12 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

PKIC6370E

PKIC6370E

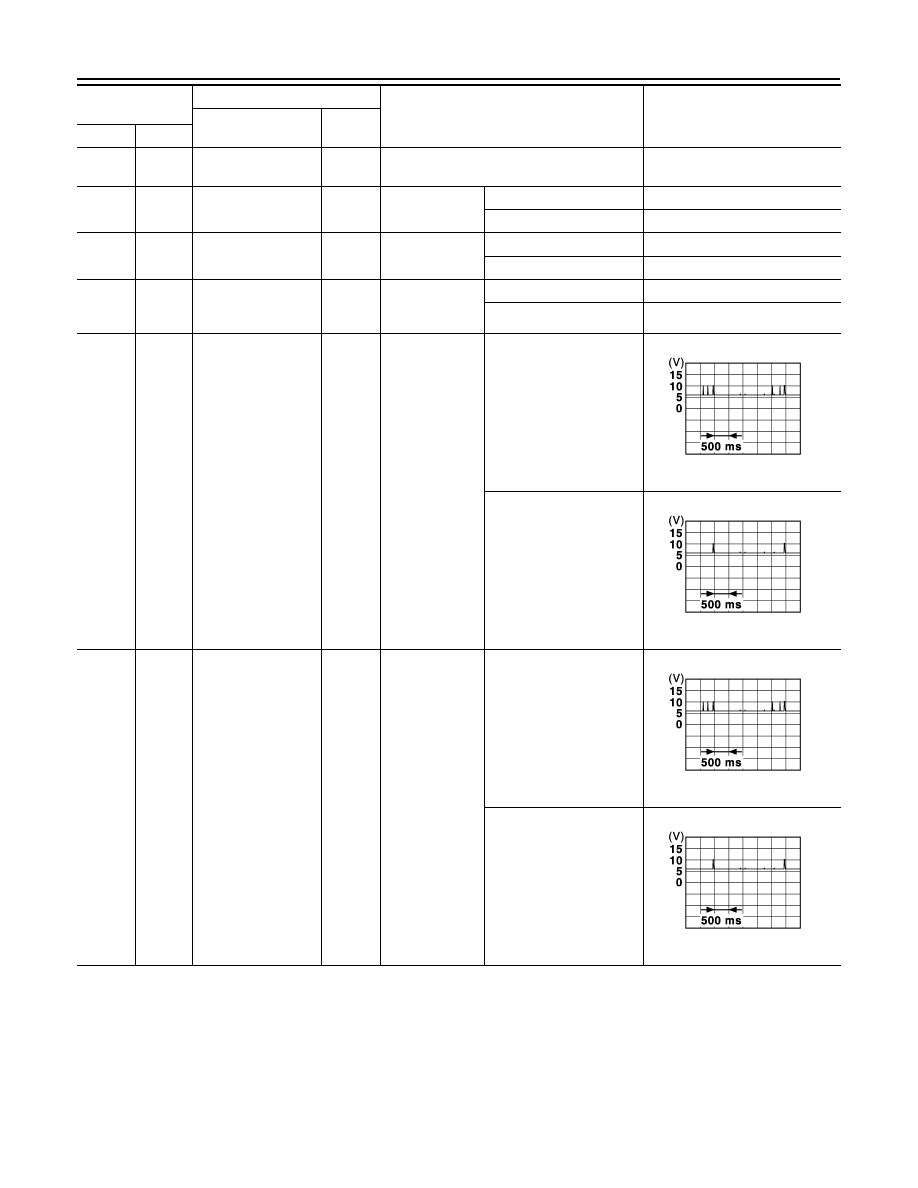

DEF-48

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

70

(Y)

Ground

Battery power sup-
ply

Input

Ignition switch OFF

Battery voltage

72

(SB)

Ground

A/C indicator

Output

A/C indicator

OFF

12 V

ON

0 V

75

(SB)

Ground

Driver door request
switch

Input

Driver door re-
quest switch

ON (Pressed)

0 V

OFF (Not pressed)

12 V

76

(L/O)

Ground

Push-button ignition
switch (push switch)

Input

Push-button ig-
nition switch
(push switch)

Pressed

0 V

Not pressed

12 V

78

(LG)

Ground

Driver door antenna
(+)

Output

When the driver
door request
switch is operat-
ed with ignition
switch ON

When Intelligent Key is
not in the antenna detec-
tion area
(The distance between In-
telligent Key and antenna:
Approx. 2 m)

When Intelligent Key is in
the antenna detection
area
(The distance between In-
telligent Key and antenna:
80 cm or less)

79

(V)

Ground

Driver door antenna
(-)

Output

When the driver
door request
switch is operat-
ed with ignition
switch ON

When Intelligent Key is
not in the antenna detec-
tion area
(The distance between In-
telligent Key and antenna:
Approx. 2 m)

When Intelligent Key is in
the antenna detection
area
(The distance between In-
telligent Key and antenna:
80 cm or less)

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JMKIA5954GB

JMKIA5955GB

JMKIA5954GB

JMKIA5955GB

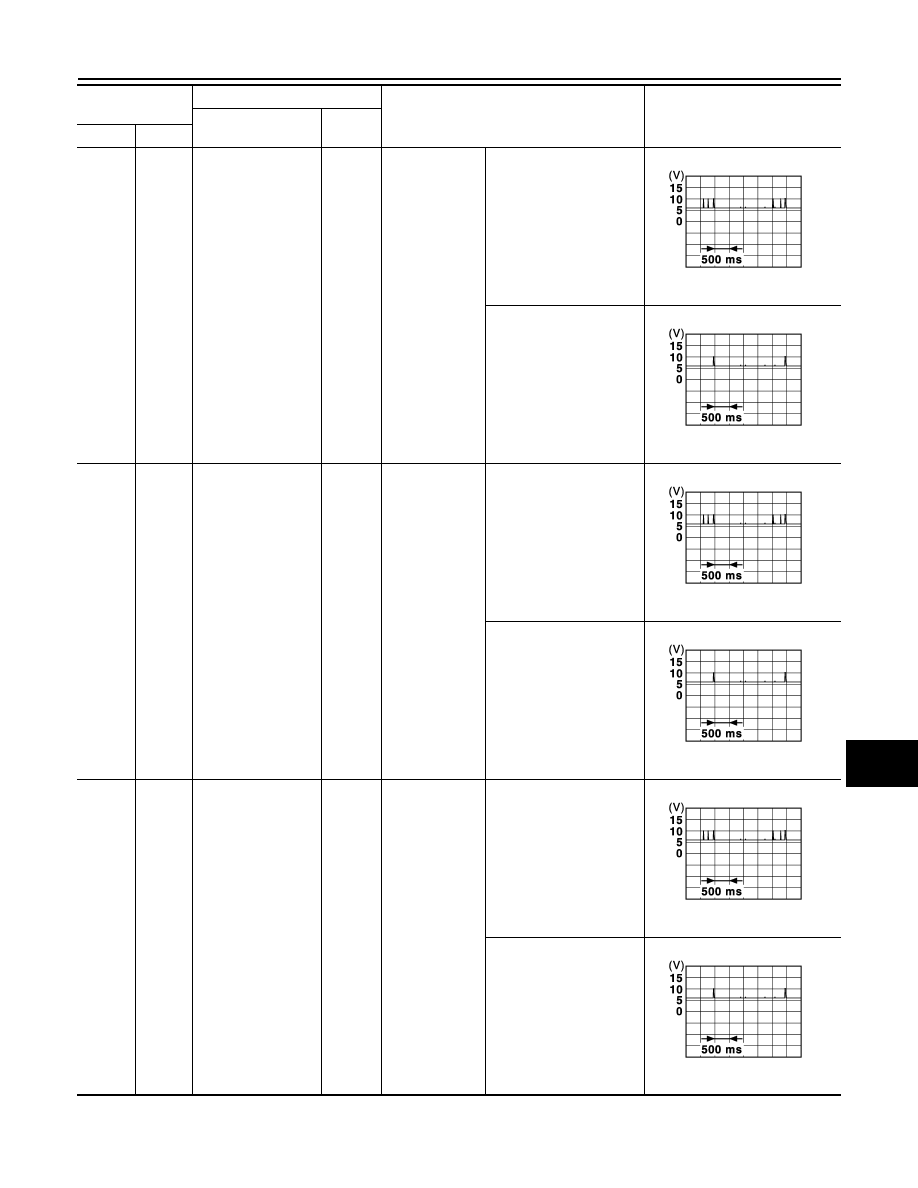

BCM (BODY CONTROL MODULE)

DEF-49

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

80

(BR/Y)

Ground

Passenger door an-
tenna (+)

Output

When the pas-
senger door re-
quest switch is
operated with
ignition switch
ON

When Intelligent Key is
not in the antenna detec-
tion area
(The distance between In-
telligent Key and antenna:
Approx. 2 m)

When Intelligent Key is in
the antenna detection
area
(The distance between In-
telligent Key and antenna:
80 cm or less)

81

(L/Y)

Ground

Passenger door an-
tenna (-)

Output

When the pas-
senger door re-
quest switch is
operated with
ignition switch
ON

When Intelligent Key is
not in the antenna detec-
tion area
(The distance between In-
telligent Key and antenna:
Approx. 2 m)

When Intelligent Key is in
the antenna detection
area
(The distance between In-
telligent Key and antenna:
80 cm or less)

82

(W/B)

Ground

Back door antenna
(+)

Output

When the back
door request
switch is operat-
ed with ignition
switch ON

When Intelligent Key is
not in the antenna detec-
tion area
(The distance between In-
telligent Key and antenna:
Approx. 2 m)

When Intelligent Key is in
the antenna detection
area
(The distance between In-
telligent Key and antenna:
80 cm or less)

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JMKIA5954GB

JMKIA5955GB

JMKIA5954GB

JMKIA5955GB

JMKIA5954GB

JMKIA5955GB

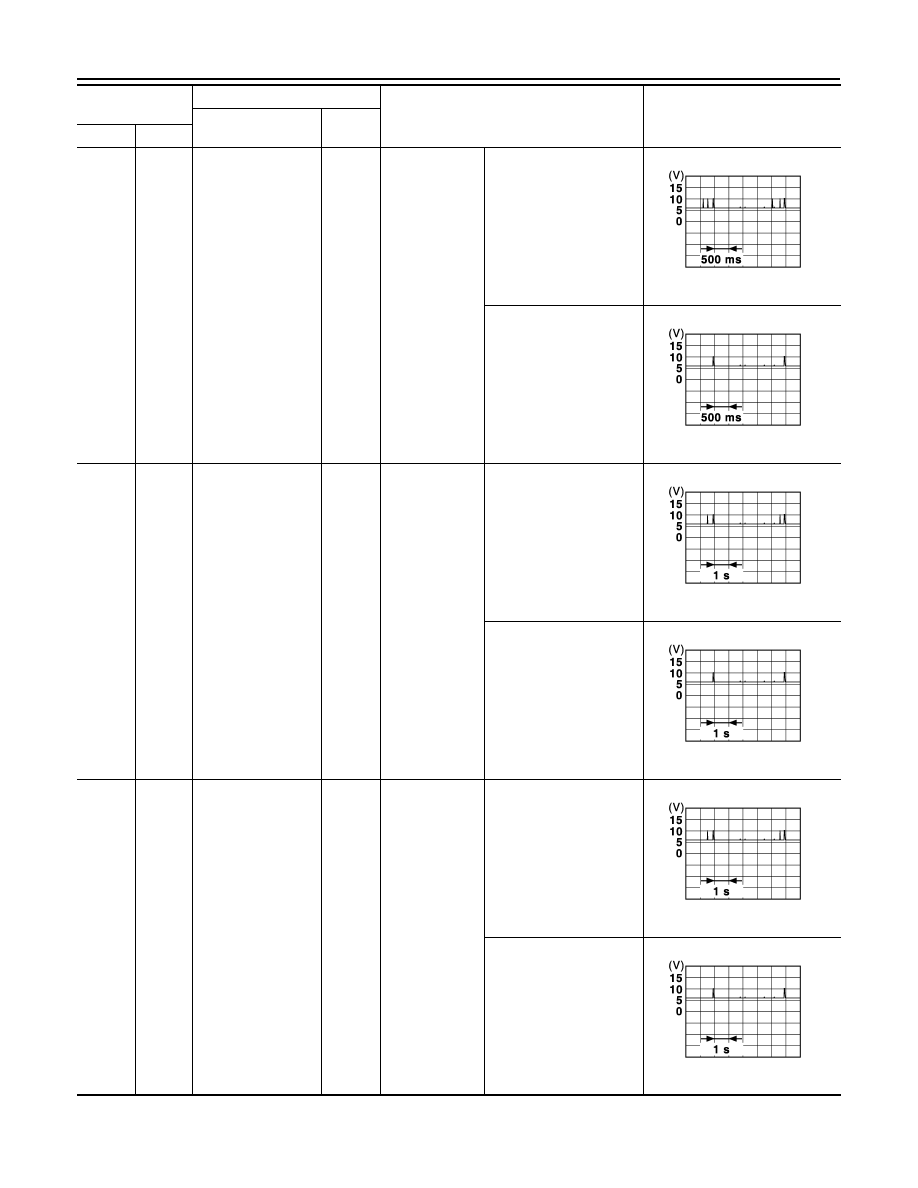

DEF-50

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

83

(B/W)

Ground

Back door antenna (-
)

Output

When the back
door request
switch is operat-
ed with ignition
switch ON

When Intelligent Key is
not in the antenna detec-
tion area
(The distance between In-
telligent Key and antenna:
Approx. 2 m)

When Intelligent Key is in
the antenna detection
area
(The distance between In-
telligent Key and antenna:
80 cm or less)

84

(Y/G)

Ground

Room antenna (+)
(Instrument center)

Output

Ignition switch
ON

When Intelligent Key is
not in the antenna detec-
tion area

When Intelligent Key is in
the antenna detection
area

85

(Y/L)

Ground

Room antenna (-)
(Instrument center)

Output

Ignition switch
ON

When Intelligent Key is
not in the antenna detec-
tion area

When Intelligent Key is in
the antenna detection
area

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JMKIA5954GB

JMKIA5955GB

JMKIA5951GB

JMKIA3839GB

JMKIA5951GB

JMKIA3839GB
