DIAGNOSIS AND REPAIR WORK FLOW

DEF-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009945420

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-
tion occurred) as much as possible when the customer brings the vehicle in.

>> GO TO 2.

2.

CHECK FOR DTC

Perform self diagnosis with CONSULT.
Is any DTC detected?

YES-1 >> BCM: Refer to

BCS-82, "DTC Index"

 (With Intelligent Key System),

BCS-150, "DTC Index"

(Without Intelligent Key System).

YES-2 >> IPDM E/R: Refer to

PCS-32, "DTC Index"

 (With Intelligent Key System),

PCS-62, "DTC Index"

(Without Intelligent Key System).

NO

>> GO TO 3.

3.

REPRODUCE THE MALFUNCTION INFORMATION

Check the malfunction on the vehicle that the customer describes.
Inspect the relation of the symptoms and the condition when the symptoms occur.

>> GO TO 4.

4.

IDENTIFY THE MALFUNCTIONING SYSTEM WITH “SYMPTOM DIAGNOSIS”

Use “Symptom diagnosis” from the symptom inspection result in step 3. Then identify where to start perform-
ing the diagnosis based on possible causes and symptoms.

>> GO TO 5.

5.

IDENTIFY MALFUNCTIONING PARTS WITH “COMPONENT DIAGNOSIS”

Perform the diagnosis with “Component diagnosis” of the applicable system.

>> GO TO 6.

6.

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the specified malfunctioning parts.

>> GO TO 7.

7.

FINAL CHECK

Check that malfunctions are not reproduced when obtaining the malfunction information from the customer,
referring to the symptom inspection result in step 3.
Are all malfunctions corrected?

YES

>> INSPECTION END

NO

>> GO TO 4.

DEF-4

< SYSTEM DESCRIPTION >

REAR WINDOW DEFOGGER SYSTEM

SYSTEM DESCRIPTION

REAR WINDOW DEFOGGER SYSTEM

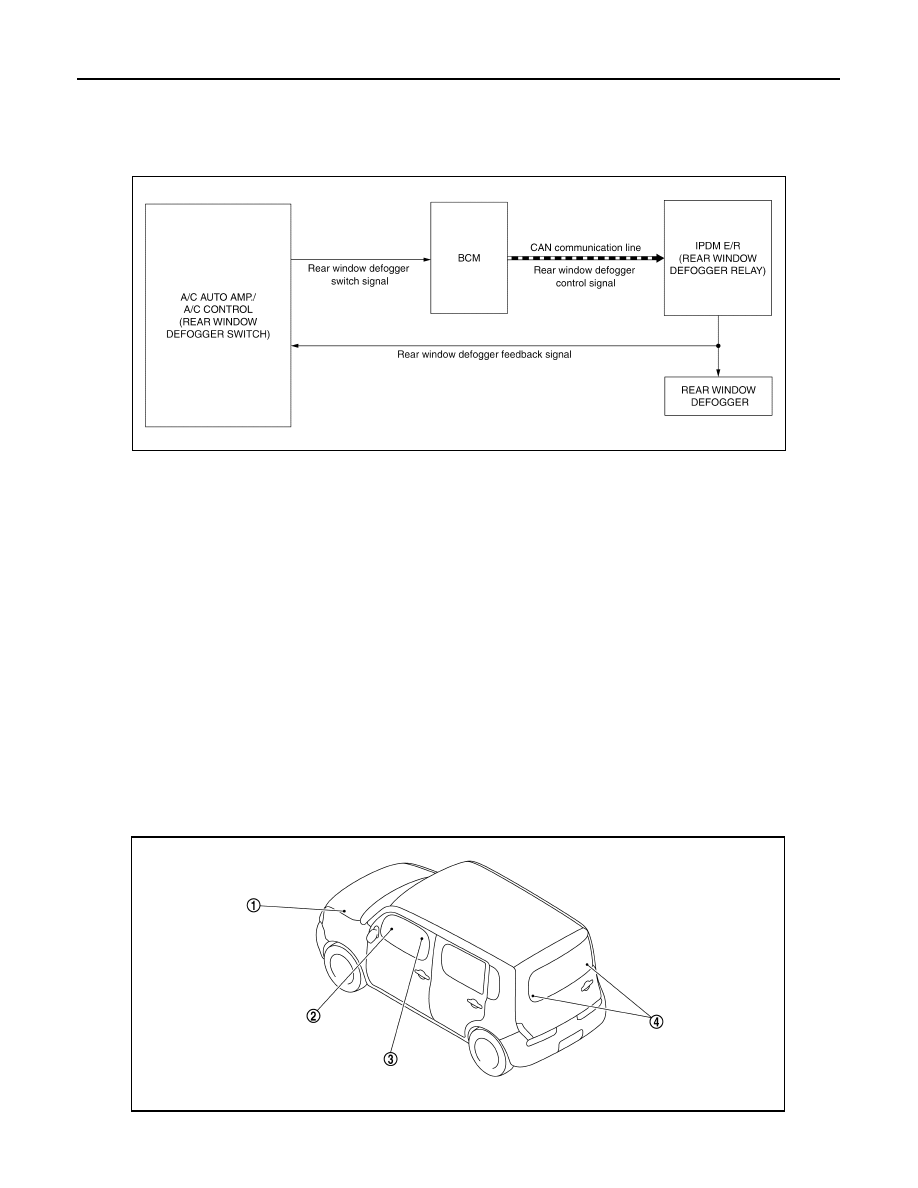

System Diagram

INFOID:0000000009945421

System Description

INFOID:0000000009945422

OPERATION DESCRIPTION

• BCM detects that the rear window defogger switch turns ON while the ignition switch is ON, and then trans-

mits the rear window defogger control signal to IPDM E/R via CAN communication for approximately 15 min-
utes.

• IPDM E/R turns rear window defogger relay ON when it receives the rear window defogger control signal.
• The power is supplied to the rear window defogger when the rear window defogger relay turns ON.
• When rear window defogger is activated, indicator lamp on rear window defogger switch turns ON.

TIMER FUNCTION

• BCM transmits the rear window defogger control signal to IPDM E/R for approximately 15 minutes when the

rear window defogger switch is turns ON while ignition switch is ON. Then, IPDM E/R activates rear window
defogger.

• The timer is cancelled if the rear window defogger switch is pressed again during timer operation. BCM

stops the output of rear window defogger control signal. The same action occurs during timer operation if the
ignition switch is OFF.

Component Parts Location

INFOID:0000000009945423

JSLIA0323GB

JSLIA0325ZZ

REAR WINDOW DEFOGGER SYSTEM

DEF-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

*

1

: For models with auto A/C

*

2

: For models with manual A/C

Component Description

INFOID:0000000009945424

*

1

: For models with auto A/C

*

2

: For models with manual A/C

1.

IPDM E/R
Refer to

PCS-5, "Component Parts

Location"

 (with Intelligent Key Sys-

tem) or

PCS-36, "Component Parts

Location"

 (without Intelligent Key

System)

2.

BCM
Refer to

BCS-10, "Component Parts

Location"

 (with Intelligent Key Sys-

tem) or

BCS-95, "Component Parts

Location"

 (without Intelligent Key

System)

3.

• A/C auto amp.*

1

(rear window defogger switch)

• A/C  control*

2

(rear window defogger switch)

4.

Rear window defogger connector

BCM

• Transmits rear window defogger control signal to IPDM E/R via CAN communica-

tion.

• Performs the timer control of rear window defogger

Rear window defogger relay

Operates rear window defogger with IPDM E/R control

IPDM E/R

Turns rear window defogger relay ON when rear window defogger control signal is
received

• A/C auto amp.*

1

• A/C control*

2

• The rear window defogger switch is installed
• Turns the indicator lamp ON when detecting the operation of rear window defog-

ger

Rear window defogger

Heats the heating wire with the power supply from the rear window defogger relay
to prevent the rear window from fogging up

DEF-6

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010245769

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

×

Automatic air conditioner

AIR CONDITONER

×

• Intelligent Key system
• Engine start system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

TPMS (AIR PRESSURE MONITOR)

×

×

×
