BCM (BODY CONTROL MODULE)

WW-89

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

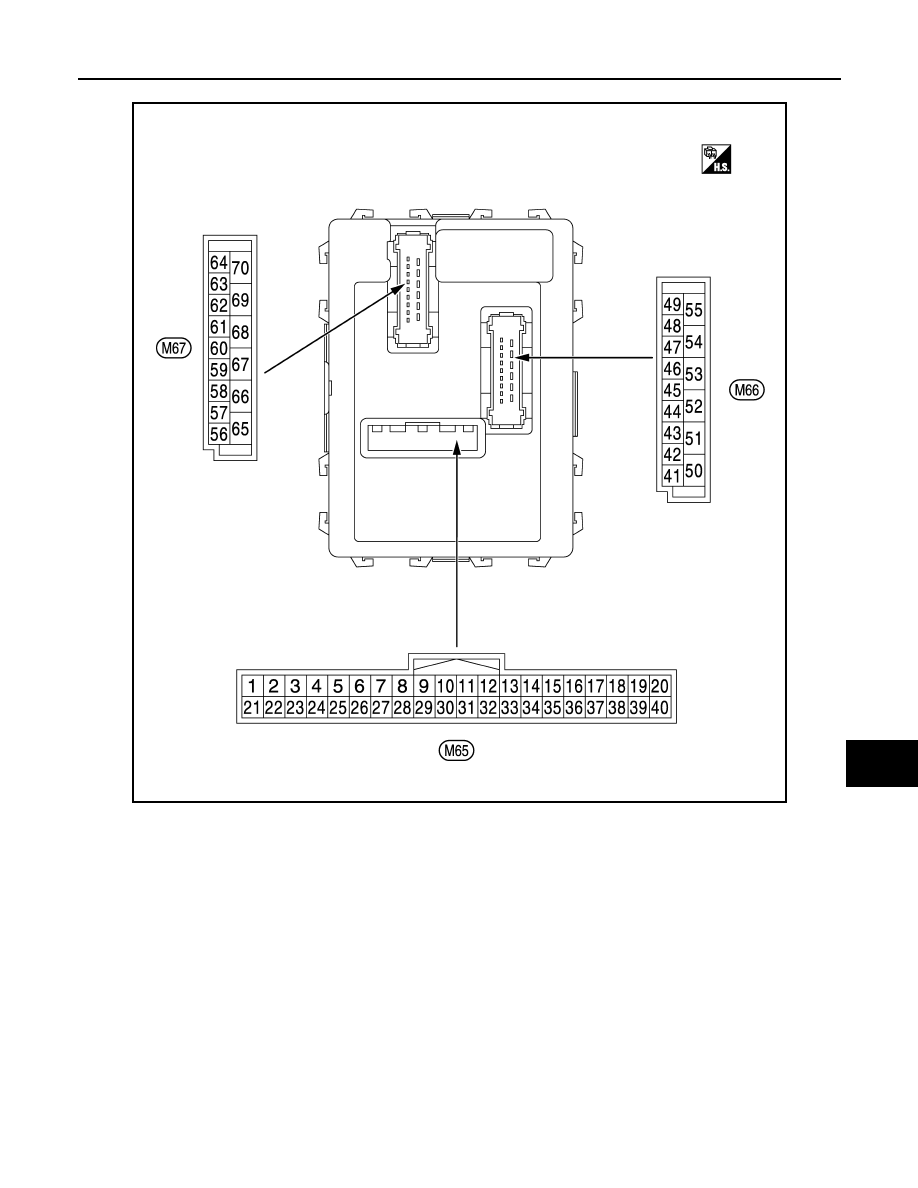

TERMINAL LAYOUT

NOTE:
• M65, M66: White
• M67: Black

PHYSICAL VALUES

JPMIA1439ZZ

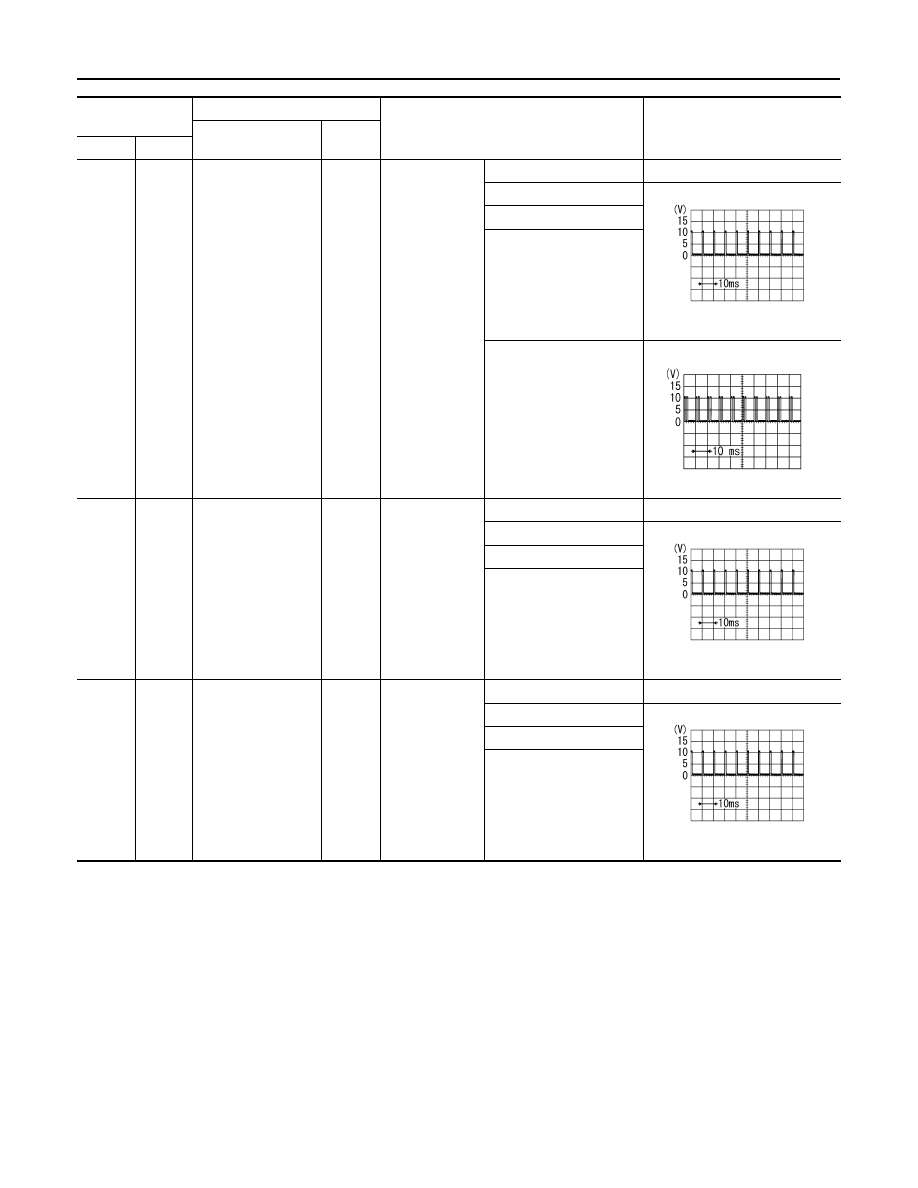

WW-90

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

2

(BR/W)

Ground

Combination switch
INPUT 5

Input

Combination
switch
(Wiper intermit-
tent dial 4)

All switch OFF

0 V

Turn signal switch RH

1.0 V

Lighting switch HI

Lighting switch 1ST

Lighting switch 2ND

2.0 V

3

(GR)

Ground

Combination switch
INPUT 4

Input

Combination
switch
(Wiper intermit-
tent dial 4)

All switch OFF

0 V

Turn signal switch LH

1.0 V

Lighting switch PASS

Lighting switch 2ND

4

(L/Y)

Ground

Combination switch
INPUT 3

Input

Combination
switch
(Wiper intermit-
tent dial 4)

All switch OFF

0 V

Front wiper switch LO

1.0 V

Front wiper switch MIST

Front wiper switch INT

PKIB4958J

JPMIA0342JP

PKIB4958J

PKIB4958J

BCM (BODY CONTROL MODULE)

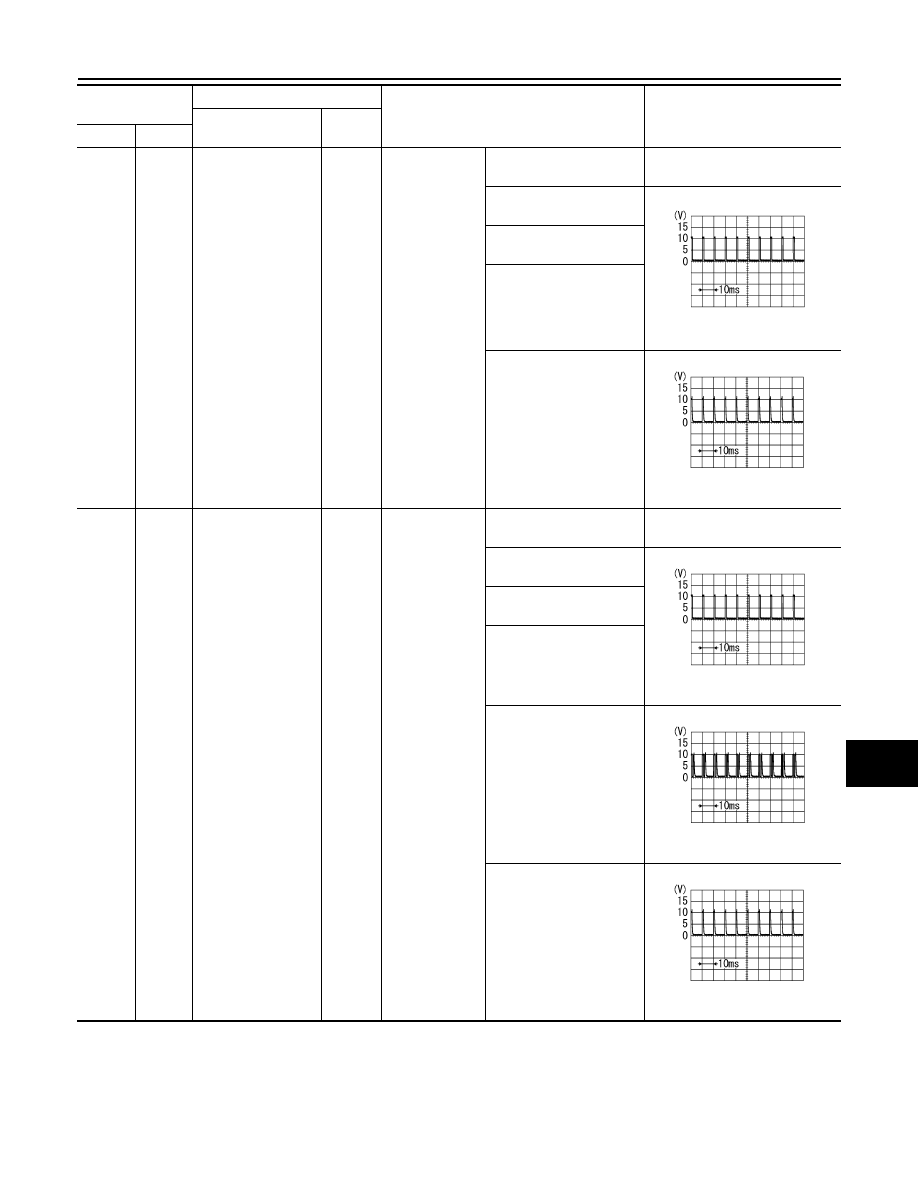

WW-91

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

5

(G)

Ground

Combination switch
INPUT 2

Input

Combination
switch

All switch OFF
(Wiper intermittent dial 4)

0 V

Front washer switch
(Wiper intermittent dial 4)

1.0 V

Rear washer switch ON
(Wiper intermittent dial 4)

Any of the condition below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 5
• Wiper intermittent dial 6

Rear wiper switch ON
(Wiper intermittent dial 4)

0.8 V

6

(L/R)

Ground

Combination switch
INPUT 1

Input

Combination
switch

All switch OFF
(Wiper intermittent dial 4)

0 V

Front wiper switch HI
(Wiper intermittent dial 4)

1.0 V

Rear wiper switch INT
(Wiper intermittent dial 4)

Wiper intermittent dial 3
(All switch OFF)

Any of the condition below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 2

1.9 V

Any of the condition below
with all switch OFF
• Wiper intermittent dial 6
• Wiper intermittent dial 7

0.8 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

PKIB4958J

PKIB4956J

PKIB4958J

PKIB4952J

PKIB4956J

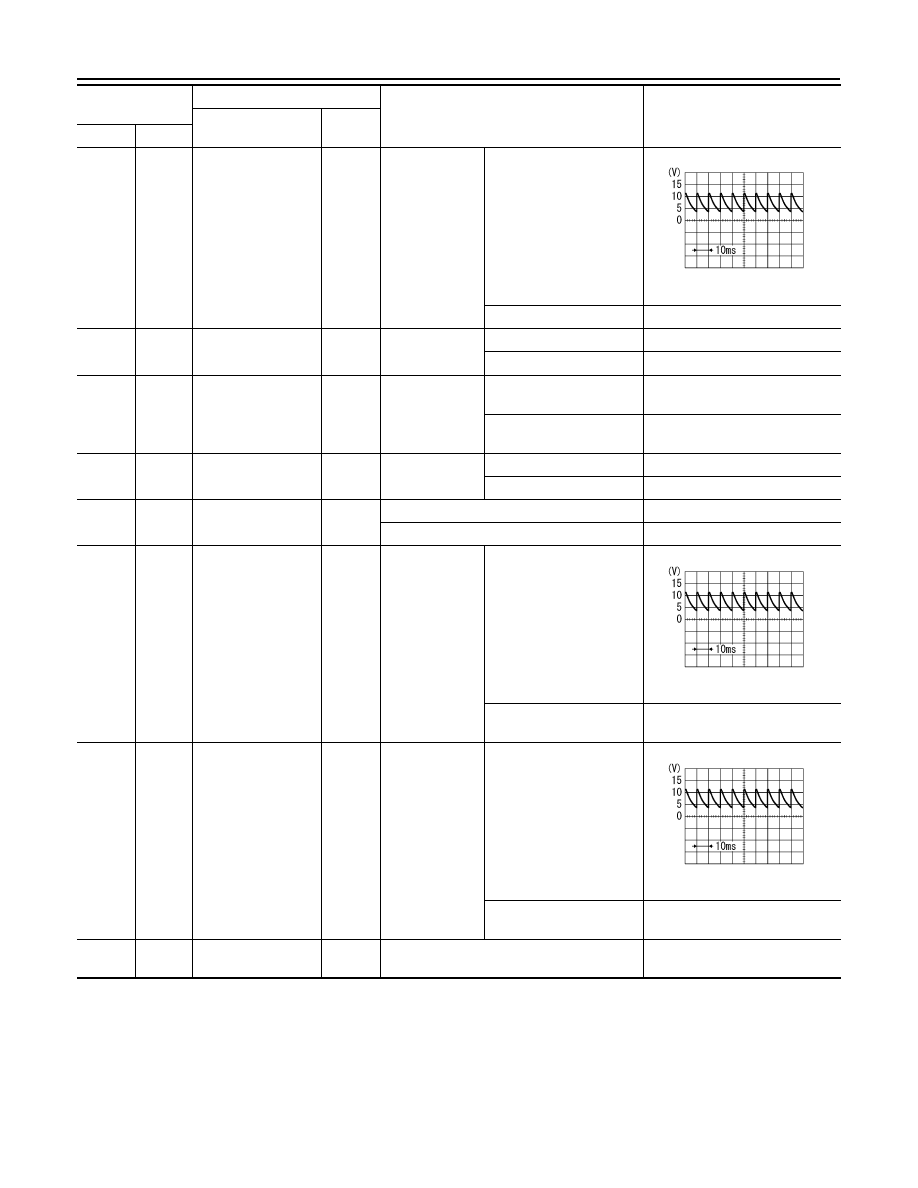

WW-92

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

7

(W/R)

Ground

Door key cylinder
switch UNLOCK

Input

Door key cylin-
der switch

NEUTRAL position

7.0 - 8.0 V

UNLOCK position

0 V

8

(W/B)

Ground

Door key cylinder
switch LOCK

Input

Door key cylin-
der switch

NEUTRAL position

12 V

LOCK position

0 V

9

(R)

Ground

Stop lamp switch

Input

Stop lamp
switch

OFF (Brake pedal is not
depressed)

0 V

ON (Brake pedal is de-
pressed)

Battery voltage

10

(W/L)

Ground

Rear window defog-
ger switch

Input

Rear window
defogger switch

OFF (Not pressed)

12 V

ON (Pressed)

0 V

11

(L/Y)

Ground

Ignition switch ACC

Input

Ignition switch OFF

0 V

Ignition switch ACC or ON

Battery voltage

12

(SB)

Ground

Passenger door
switch

Input

Passenger door
switch

OFF (When passenger
door closed)

7.0 - 8.0 V

ON (When passenger
door opened)

0 V

13

(GR/L)

Ground

Rear RH door switch

Input

Rear RH door
switch

OFF (When rear RH door
closed)

7.0 - 8.0 V

ON (When rear RH door
opened)

0 V

18

(V)

Ground

Receiver ground

Input

Ignition switch ON

0 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

PKIB4960J

PKIB4960J

PKIB4960J
