DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

WW-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

*:Factory setting

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

ACTIVE TEST

Service item

Setting item

Description

WIPER SPEED
SETTING

On

With vehicle speed
(Front wiper intermittent time linked with the vehicle speed and wiper intermittent dial position)

Off*

Without vehicle speed
(Front wiper intermittent time linked with the wiper intermittent dial position)

Monitor Item

[Unit]

Description

IGN ON SW
[On/Off]

Ignition switch ON status judged from ignition power supply.

IGN SW CAN
[On/Off]

Ignition switch ON status received from IPDM E/R with CAN communication.

FR WIPER HI
[On/Off]

Each switch status that BCM judges from the combination switch reading function.

FR WIPER LOW
[On/Off]

FR WIPER INT
[On/Off]

FR WASHER SW
[On/Off]

INT VOLUME
[1

−

 7]

Each switch status that BCM judges from the combination switch reading function.

FR WIPER STOP
[On/Off]

Front wiper motor (stop position) status received from IPDM E/R with CAN communication.

VEHICLE SPEED
[km/h]

The value of the vehicle speed signal received from combination meter with CAN communication.

RR WIPER ON
[On/Off]

Each switch status that BCM judges from the combination switch reading function.

RR WIPER INT
[On/Off]

RR WASHER SW
[On/Off]

REVERSE SW CAN
[On/Off]

NOTE:
The item is indicated, but not monitored.

RAIN SENSOR
[On/Off]

Test item

Operation

Description

FR WIPER

Hi

Transmits the front wiper request signal (HI) to IPDM E/R with CAN communication to
operate the front wiper HI operation.

Lo

Transmits the front wiper request signal (LO) to IPDM E/R with CAN communication to
operate the front wiper LO operation.

INT

Transmits the front wiper request signal (INT) to IPDM E/R with CAN communication to
operate the front wiper INT operation.

Off

Stops transmitting the front wiper request signal to stop the front wiper operation.

WW-18

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

RR WIPER

On

Outputs the voltage to operate the rear wiper motor.

Off

Stops the voltage to stop.

Test item

Operation

Description

DIAGNOSIS SYSTEM (IPDM E/R) (WITH INTELLIGENT KEY SYSTEM)

WW-19

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

DIAGNOSIS SYSTEM (IPDM E/R) (WITH INTELLIGENT KEY SYSTEM)

Diagnosis Description

INFOID:0000000010262834

AUTO ACTIVE TEST

Description

In auto active test mode, the IPDM E/R sends a drive signal to the following systems to check their operation.
• Oil pressure warning lamp
• Rear window defogger
• Front wiper (LO, HI)
• Parking lamps
• Side marker lamp
• License plate lamps
• Tail lamps
• Front fog lamps
• Headlamps (LO, HI)
• A/C compressor (magnet clutch)
• Cooling fan

Operation Procedure

1.

Close the hood and lift the wiper arms from the windshield. (Prevent windshield damage due to wiper
operation)
NOTE:
When auto active test is performed with hood opened, sprinkle water on windshield beforehand.

2.

Turn the ignition switch OFF.

3.

Turn the ignition switch ON, and within 20 seconds, press the driver door switch 10 times. Then turn the
ignition switch OFF.

CAUTION:

Close passenger door.

4.

Turn the ignition switch ON within 10 seconds. After that the horn sounds once and the auto active test
starts.

5.

The oil pressure warning lamp starts blinking when the auto active test starts.

6.

After a series of the following operations is repeated 3 times, auto active test is completed.

NOTE:
When auto active test mode has to be cancelled halfway through test, turn the ignition switch OFF.

CAUTION:

• If auto active test mode cannot be actuated, check door switch system. Refer to

DLK-55,

"Component Function Check"

.

• Do not start the engine.

Inspection in Auto Active Test Mode

When auto active test mode is actuated, the following 6 steps are repeated 3 times.

Operation
sequence

Inspection location

Operation

A

Oil pressure warning lamp

Blinks continuously during operation of auto active test

1

Rear window defogger

10 seconds

2

Front wiper

LO for 5 seconds

→

 HI for 5 seconds

3

• Parking  lamps
• Side marker lamps
• License plate lamps
• Tail lamps
• Front fog lamps

10 seconds

4

Headlamps

LO for 10 seconds

→

HI ON

⇔

 OFF 5 times

5

A/C compressor (magnet clutch)

ON

⇔

 OFF 5 times

6

Cooling fan

LO for 5 seconds

→

 HI for 5 seconds

WW-20

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (IPDM E/R) (WITH INTELLIGENT KEY SYSTEM)

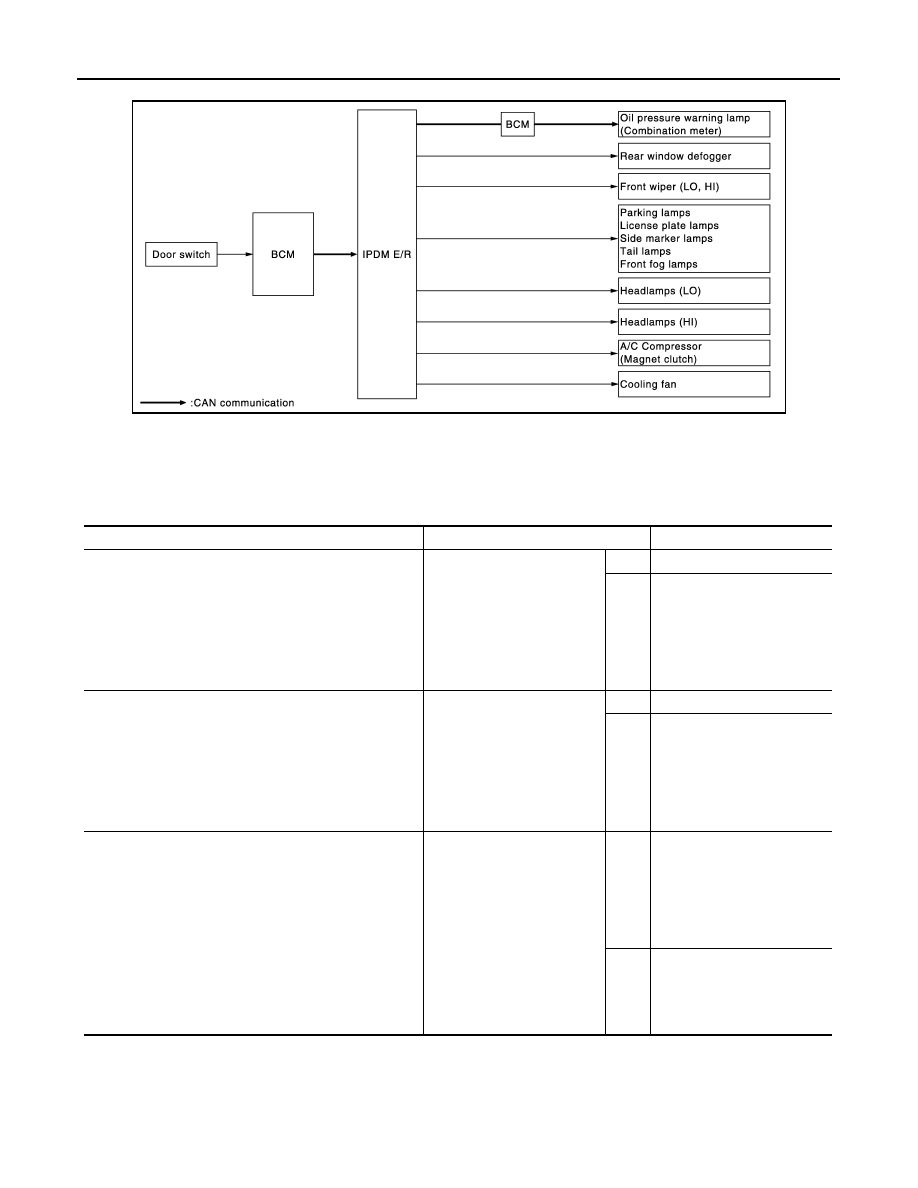

Concept of auto active test

• IPDM E/R starts the auto active test with the door switch signals transmitted by BCM via CAN communica-

tion. Therefore, the CAN communication line between IPDM E/R and BCM is considered normal if the auto
active test starts successfully.

• The auto active test facilitates troubleshooting if any systems controlled by IPDM E/R cannot be operated.

Diagnosis chart in auto active test mode

JPMIA1486GB

Symptom

Inspection contents

Possible cause

Rear window defogger does not operate

Perform auto active test.
Does the rear window defog-
ger operate?

YES

BCM signal input circuit

NO

• Rear window defogger
• Rear window defogger

ground circuit

• Harness or connector be-

tween IPDM E/R and rear
window defogger

• IPDM  E/R

Any of the following components do not operate

• Parking lamps
• Side marker lamps
• License plate lamps
• Tail  lamps
• Front  fog  lamps
• Headlamps (HI, LO)
• Front wiper (HI, LO)

Perform auto active test.
Does the applicable system
operate?

YES

BCM signal input circuit

NO

• Lamp or motor
• Lamp or motor ground cir-

cuit

• Harness or connector be-

tween IPDM E/R and appli-
cable system

• IPDM  E/R

A/C compressor does not operate

Perform auto active test.
Does the magnet clutch oper-
ate?

YES

• A/C amp. signal input circuit
• CAN communication signal

between A/C amp. and
ECM

• CAN communication signal

between ECM and IPDM E/
R

NO

• Magnet clutch
• Harness or connector be-

tween IPDM E/R and mag-
net clutch

• IPDM  E/R
