Nissan Cube. Manual - part 1041





WW-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

WW

A

B

WW

N

O

P

CONTENTS

WIPER & WASHER

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORK FLOW  .........

3

Work Flow  .................................................................

3

SYSTEM DESCRIPTION  ..............................

6

FRONT WIPER AND WASHER SYSTEM  ..........

6

System Diagram ........................................................

6

System Description  ...................................................

6

Component Parts Location ........................................

9

Component Description ............................................

9

REAR WIPER AND WASHER SYSTEM  ...........

10

System Diagram ......................................................

10

System Description  .................................................

10

Component Parts Location ......................................

12

Component Description ..........................................

12

DIAGNOSIS SYSTEM (BCM) (WITH INTELLI-
GENT KEY SYSTEM) .........................................

13

COMMON ITEM  .........................................................

13

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) .....................................................

13

WIPER .......................................................................

14

WIPER : CONSULT Function (BCM - WIPER)  .......

14

DIAGNOSIS SYSTEM (BCM) (WITHOUT IN-
TELLIGENT KEY SYSTEM) ...............................

16

COMMON ITEM  .........................................................

16

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) .....................................................

16

WIPER .......................................................................

16

WIPER : CONSULT Function (BCM - WIPER)  .......

16

DIAGNOSIS SYSTEM (IPDM E/R) (WITH IN-
TELLIGENT KEY SYSTEM) ...............................

19

Diagnosis Description  .............................................

19

CONSULT Function (IPDM E/R)  .............................

21

DIAGNOSIS SYSTEM (IPDM E/R) (WITHOUT
INTELLIGENT KEY SYSTEM) ..........................

24

Diagnosis Description ..............................................

24

CONSULT Function (IPDM E/R)  .............................

26

DTC/CIRCUIT DIAGNOSIS  .........................

28

WIPER AND WASHER FUSE ...........................

28

Description ...............................................................

28

Diagnosis Procedure  ...............................................

28

FRONT WIPER MOTOR LO CIRCUIT ..............

29

Component Function Check  ....................................

29

Diagnosis Procedure  ...............................................

29

FRONT WIPER MOTOR HI CIRCUIT  ...............

31

Component Function Check  ....................................

31

Diagnosis Procedure  ...............................................

31

FRONT WIPER STOP POSITION SIGNAL
CIRCUIT ............................................................

33

Component Function Check  ....................................

33

Diagnosis Procedure  ...............................................

33

FRONT WIPER MOTOR GROUND CIRCUIT ...

35

Diagnosis Procedure  ...............................................

35

WASHER SWITCH ............................................

36

Description ...............................................................

36

Component Inspection .............................................

36

REAR WIPER MOTOR CIRCUIT ......................

37

Component Function Check  ....................................

37

Diagnosis Procedure  ...............................................

37

REAR WIPER STOP POSITION SIGNAL CIR-
CUIT ..................................................................

39

Component Function Check  ....................................

39

Diagnosis Procedure  ...............................................

39

FRONT WIPER AND WASHER SYSTEM  ........

41

WW-2

Wiring Diagram - FRONT WIPER AND WASHER
SYSTEM - ..............................................................
.

41

REAR WIPER AND WASHER SYSTEM  ...........

45

Wiring Diagram - REAR WIPER AND WASHER
SYSTEM - ..............................................................
.

45

ECU DIAGNOSIS INFORMATION ..............

50

BCM (BODY CONTROL MODULE)  ..................

50

WITH INTELLIGENT KEY .........................................

50

WITH INTELLIGENT KEY : Reference Value  ........

50

WITH INTELLIGENT KEY : Wiring Diagram -
BCM -  ....................................................................
.

70

WITH INTELLIGENT KEY : Fail-safe .....................

81

WITH INTELLIGENT KEY :
DTC Inspection Priority Chart .............................
.

82

WITH INTELLIGENT KEY : DTC Index  .................

83

WITHOUT INTELLIGENT KEY  .................................

85

WITHOUT INTELLIGENT KEY : Reference Value ...

85

WITHOUT INTELLIGENT KEY : Wiring Diagram -
BCM -  ....................................................................
.

99

WITHOUT INTELLIGENT KEY : Fail-safe .............

107

WITHOUT INTELLIGENT KEY :
DTC Inspection Priority Chart .............................

108

WITHOUT INTELLIGENT KEY : DTC Index .........

108

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  ...............

110

WITH INTELLIGENT KEY ........................................

110

WITH INTELLIGENT KEY : Reference Value  .......

110

WITH INTELLIGENT KEY : Wiring Diagram —
IPDM E/R —  ..........................................................

116

WITH INTELLIGENT KEY : Fail-Safe ....................

119

WITH INTELLIGENT KEY : DTC Index  ................

121

WITHOUT INTELLIGENT KEY  ................................

121

WITHOUT INTELLIGENT KEY : Reference Value ..

121

WITHOUT INTELLIGENT KEY : Wiring Diagram
— IPDM E/R —  .....................................................

127

WITHOUT INTELLIGENT KEY : Fail-Safe  ............

130

WITHOUT INTELLIGENT KEY : DTC Index .........

132

SYMPTOM DIAGNOSIS  ............................

133

WIPER AND WASHER SYSTEM SYMPTOMS

.

133

Symptom Table  .....................................................

133

NORMAL OPERATING CONDITION  ..............

136

Description .............................................................

136

FRONT WIPER DOES NOT OPERATE  ..........

137

Description .............................................................

137

Diagnosis Procedure .............................................

137

PRECAUTION ...........................................

139

PRECAUTIONS  ................................................

139

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................

139

Precaution for Procedure without Cowl Top Cover .

139

Precautions for Removing of Battery Terminal  .....

140

REMOVAL AND INSTALLATION .............

141

WASHER TANK  ...............................................

141

Exploded View  ......................................................

141

Removal and Installation .......................................

141

WASHER PUMP ...............................................

142

Exploded View  ......................................................

142

Removal and Installation .......................................

142

WASHER LEVEL SWITCH  ..............................

143

Removal and Installation .......................................

143

FRONT WASHER NOZZLE AND TUBE  ..........

144

Exploded View  ......................................................

144

Hydraulic Layout  ...................................................

144

Removal and Installation .......................................

144

Inspection and Adjustment ....................................

145

FRONT WIPER ARM  ........................................

147

Exploded View  ......................................................

147

Removal and Installation .......................................

147

Adjustment ............................................................

147

FRONT WIPER DRIVE ASSEMBLY  ................

149

Exploded View  ......................................................

149

Removal and Installation .......................................

149

Disassembly and Assembly  ..................................

150

WIPER AND WASHER SWITCH  .....................

151

Exploded View  ......................................................

151

REAR WIPER ARM  ..........................................

152

Exploded View  ......................................................

152

Removal and Installation .......................................

152

Adjustment ............................................................

152

REAR WIPER MOTOR .....................................

154

Exploded View  ......................................................

154

Removal and Installation .......................................

154

REAR WASHER NOZZLE AND TUBE  ............

155

Hydraulic Layout  ...................................................

155

Removal and Installation .......................................

155

Inspection and Adjustment ....................................

156

DIAGNOSIS AND REPAIR WORK FLOW

WW-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

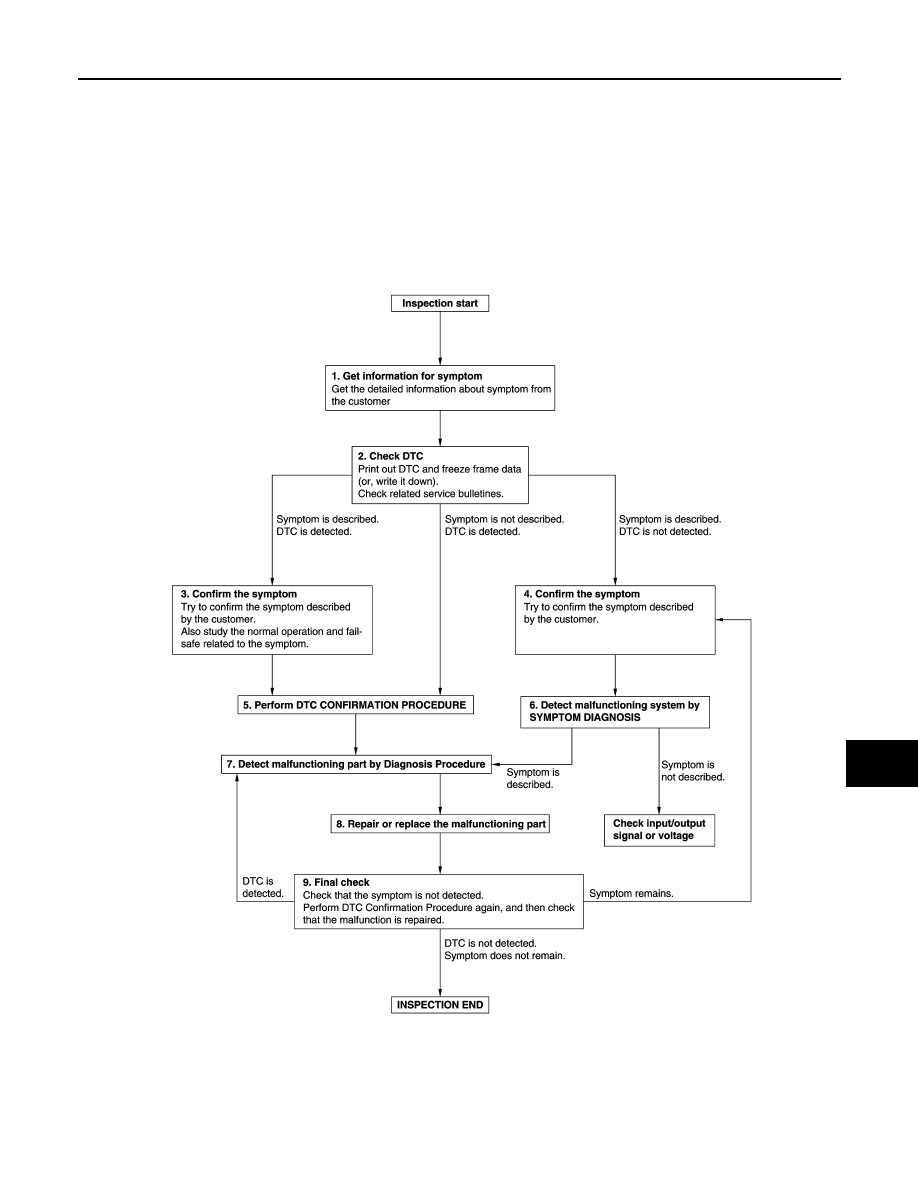

Work Flow

INFOID:0000000009945814

OVERALL SEQUENCE

DETAILED FLOW

JMKIA8652GB

WW-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

1.

GET INFORMATION FOR SYMPTOM

1.

Get detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurs).

2.

Check operation condition of the function that is malfunctioning.

>> GO TO 2.

2.

CHECK DTC

1.

Check DTC.

2.

Perform the following procedure if DTC is detected.

-

Record DTC and freeze frame data (Print them out using CONSULT.)

-

Erase DTC.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

3.

Check related service bulletins for information.

Are any symptoms described and any DTC detected?

Symptom is described, DTC is detected>>GO TO 3.
Symptom is described, DTC is not detected>>GO TO 4.
Symptom is not described, DTC is detected>>GO TO 5.

3.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.
Also study the normal operation and fail-safe related to the symptom.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the detected DTC, and then check that DTC is detected
again. At this time, always connect CONSULT to the vehicle, and check self diagnostic results in real time.
If two or more DTCs are detected, refer to following reference, and determine trouble diagnosis order.

BCM

• For models with Intelligent Key System: Refer to

BCS-81, "DTC Inspection Priority Chart"

.

• For models without Intelligent Key System: Refer to

BCS-150, "DTC Inspection Priority Chart"

.

IPDM E/R

• For models with Intelligent Key System: Refer to

PCS-32, "DTC Index"

.

• For models without Intelligent Key System: Refer to

PCS-62, "DTC Index"

.

NOTE:
• Freeze frame data is useful if the DTC is not detected.
• Perform Component Function Check if DTC CONFIRMATION PROCEDURE is not included on Service

Manual. This simplified check procedure is an effective alternative though DTC cannot be detected during
this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIR-
MATION PROCEDURE.

Is DTC detected?

YES

>> GO TO 7.

NO

>> Check according to

GI-40, "Intermittent Incident"

.

6.

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM DIAGNOSIS

Detect malfunctioning system according to SYMPTOM DIAGNOSIS based on the confirmed symptom in step
4, and determine the trouble diagnosis order based on possible causes and symptom.















Content   ..  1039  1040  1041  1042   ..
