Nissan Cube. Manual - part 1028





PRECAUTIONS

WT-3

< PRECAUTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010169641

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

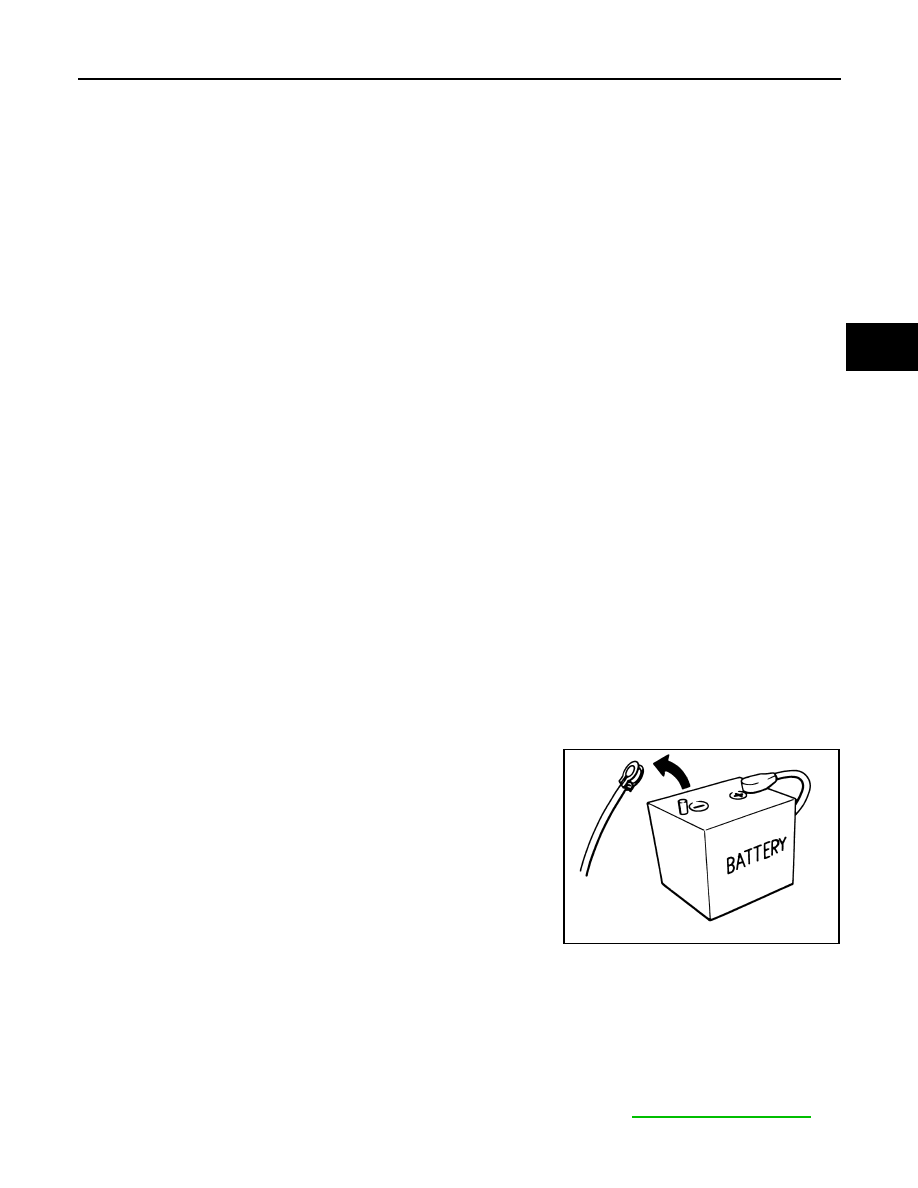

Precautions for Removing of Battery Terminal

INFOID:0000000010169645

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

Service Notice and Precautions for TPMS

INFOID:0000000009949835

• Low tire pressure warning lamp blinks for 1min, then turns ON when occurring any malfunction except low

tire pressure. Erase the self-diagnosis memories for Tire Pressure Monitoring System (TPMS), or register
the ID to turn low tire pressure warning lamp OFF. For ID registration, refer to

WT-24, "Work Procedure"

.

SEF289H

WT-4

< PRECAUTION >

PRECAUTIONS

• ID registration is required when replacing or rotating wheels, replacing tire pressure sensor or BCM. Refer to

WT-24, "Work Procedure"

.

• Replace grommet seal, valve core and valve cap of tire pressure sensor in TPMS, when replacing each tire

by reaching the wear limit. Refer to

WT-48, "WITH INTELLIGENT KEY : Exploded View"

 (With intelligent key

system),

WT-51, "WITHOUT INTELLIGENT KEY : Exploded View"

 (Without intelligent key system).

• Because the tire pressure sensor conforms to North America radio law, the following items must be

observed.

- The sensor may be used only in North America.
- It may not be used in any method other than the specified method.
- It must not be disassembled or modified.

Service Notice and Precautions for Road Wheel

INFOID:0000000009949836

• Genuine NISSAN aluminum wheel is designed for each type of vehicle. Use it on the specified vehicle only.
• Use Genuine NISSAN parts for the road wheels, valve caps and wheel nuts.
• Always use them after adjusting the wheel balance. For the balance weights, use Genuine NISSAN alumi-

num wheel weights.

• Use caution when handling the aluminum wheels, because they can be easily scratched. When removing

dirt, do not use any abrasives, a wire brush, or other items that may scratch the coating. Use a neutral deter-
gent if a detergent is needed.

• After driving on roads scattered with anti-icing salts, wash off the wheels completely.
• When installing road wheels onto the vehicle, always wipe off any dirt or foreign substances to prevent them

from being trapped between the contact surfaces of wheel.

• Never apply oil to nut and bolt threads.
• When tightening the valve cap there is a risk of damaging the valve cap if a tool is used. Tighten by hand.

PREPARATION

WT-5

< PREPARATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

PREPARATION

PREPARATION

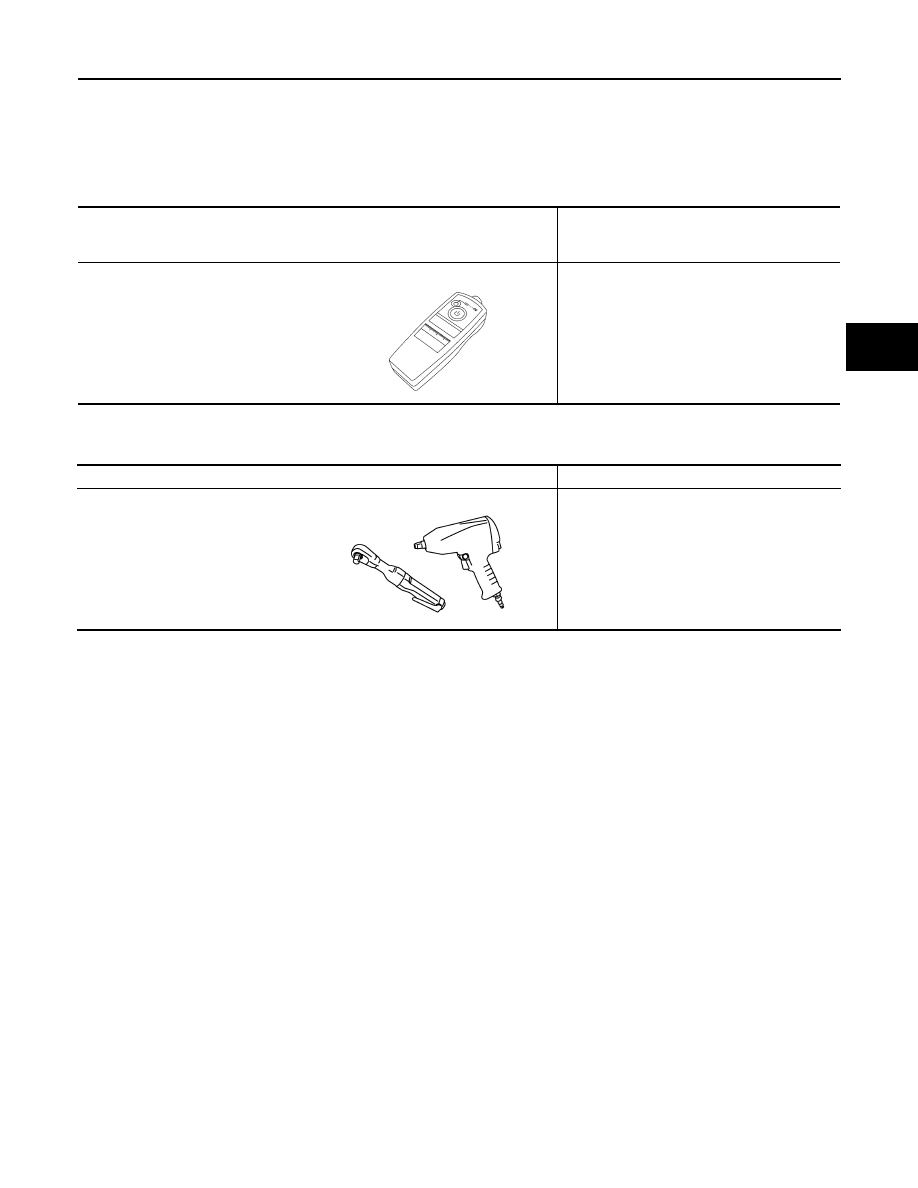

Special Service Tool

INFOID:0000000009949837

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000009949838

Tool number
(Kent-Moore No.)
Tool name

Description


(J-45295)
Tire pressure sensor activation tool

Tire pressure sensor wake-up procedure and
ID registration

SEIA0462E

Tool name

Description

Power tool

Loosening wheel nuts

PBIC0190E

WT-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

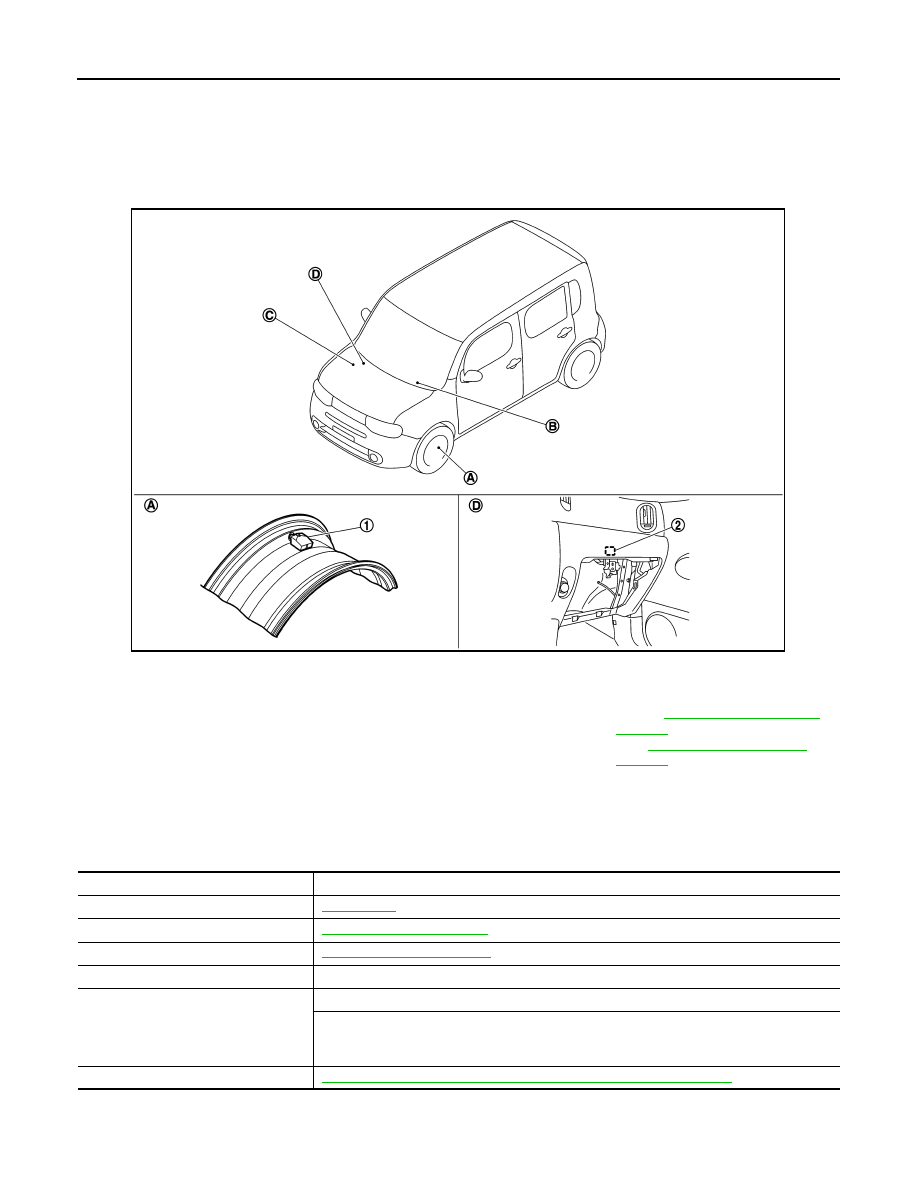

Component Parts Location

INFOID:0000000009949839

Component Description

INFOID:0000000009949840

1.

Tire pressure sensor

2.

Tire pressure receiver

A.

Wheel

B.

Low tire pressure warning lamp
(On the combination meter)

C.

BCM
Refer to

BCS-10, "Component Parts

Location"

 (With intelligent key sys-

tem),

BCS-95, "Component Parts

Location"

 (Without intelligent key

system).

D.

Glove box assembly

JSEIA0490ZZ

Component parts

Function

BCM (Body Control Module)

WT-7, "BCM"

.

Tire pressure sensor

WT-7, "Tire Pressure Sensor"

.

Tire pressure receiver

WT-7, "Tire pressure receiver"

.

Turn signal lamp

ID registration of each wheel has been completed, turn signal lamp flashes.

Combination meter

Transmits the vehicle speed signal via CAN communication to BCM.

Receives the following signals via CAN communication for BCM.
• Low tire pressure warning lamp signal
• TPMS malfunction warning lamp signal

Low tire pressure warning lamp

WT-8, "TIRE PRESSURE MONITORING SYSTEM : System Description"
