Nissan Cube. Manual - part 1025





WCS

BCM (BODY CONTROL MODULE)

WCS-103

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRMWE7829GB

WCS-104

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

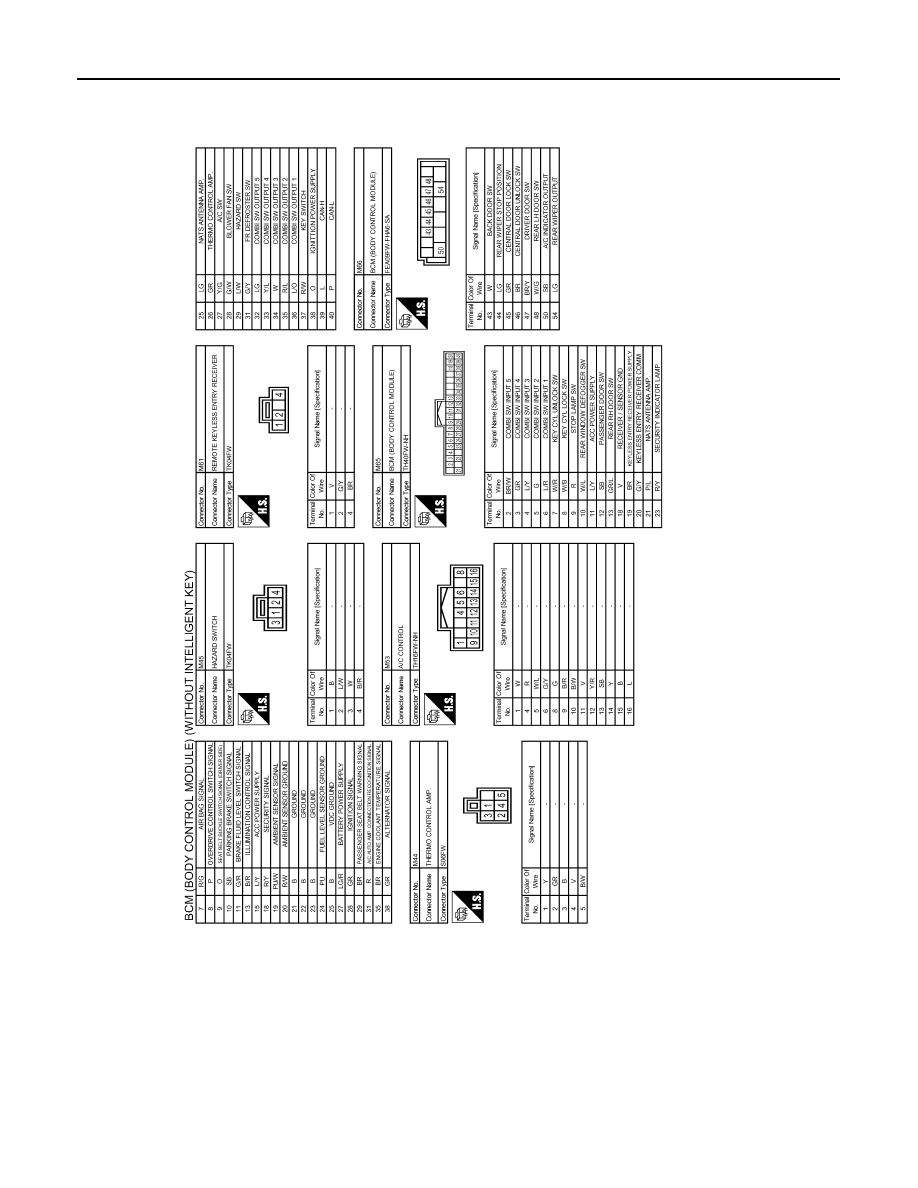

JRMWE7830GB

WCS

BCM (BODY CONTROL MODULE)

WCS-105

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WITHOUT INTELLIGENT KEY : Fail-safe

INFOID:0000000010244854

FAIL-SAFE CONTROL BY DTC

BCM performs fail-safe control when any DTC are detected.

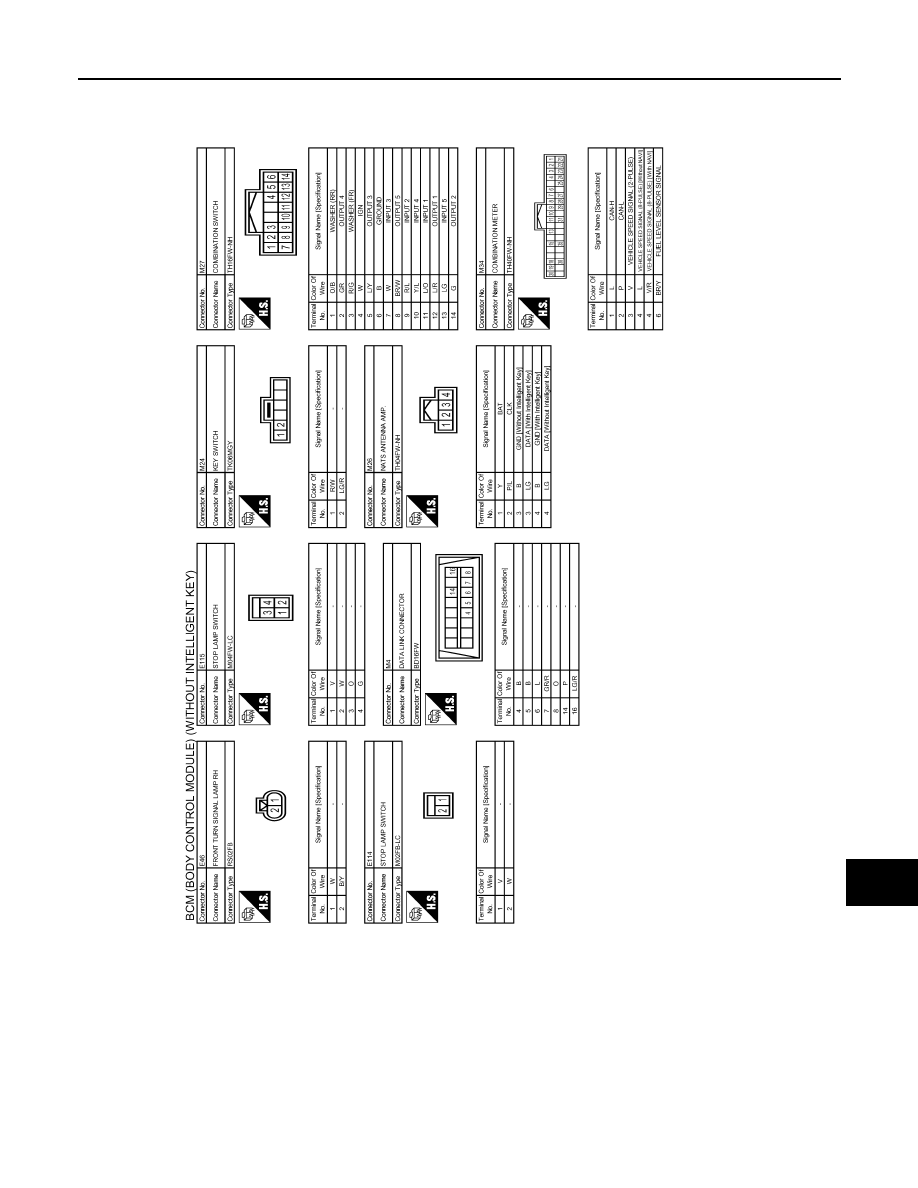

JRMWE7831GB

WCS-106

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

REAR WIPER MOTOR PROTECTION

BCM detects the rear wiper stopping position according to the rear wiper auto stop signal.
When the rear wiper auto stop signal does not change more than 5 seconds while driving the rear wiper, BCM
stops power supply to protect the rear wiper motor.

Condition of cancellation

1.

Pass more than 1 minute after the rear wiper stop.

2.

Turn rear wiper switch OFF.

3.

Operate the rear wiper switch or rear washer switch.

WITHOUT INTELLIGENT KEY : DTC Inspection Priority Chart

INFOID:0000000010244855

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.

WITHOUT INTELLIGENT KEY : DTC Index

INFOID:0000000010244856

NOTE:

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-

tion switch OFF

 ON again.

• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1

 2

 3...38

 39 after returning to the normal condition whenever ignition switch OFF

 ON. The counter

remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF

 ON after returning to the normal condition if the malfunction is detected again.

Display contents of CONSULT

Fail-safe

Cancellation

B2190: NATS ANTENNA AMP

Inhibit engine cranking

Erase DTC

B2191: DIFFERENCE OF KEY

Inhibit engine cranking

Erase DTC

B2192: ID DISCORD BCM-ECM

Inhibit engine cranking

Erase DTC

B2193: CHAIN OF BCM-ECM

Inhibit engine cranking

Erase DTC

B2195: ANTI SCANNING

Inhibit engine cranking

Ignition switch ON

 OFF

Priority

DTC

1

• U1000: CAN COMM
• U1010: CONTROL UNIT (CAN)

2

• B2190: NATS ANTENNA AMP
• B2191: DIFFERENCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM
• B2195: ANTI SCANNING

3

C1735: IGN CIRCUIT OPEN

4

• C1704: LOW PRESSURE FL
• C1705: LOW PRESSURE FR
• C1706: LOW PRESSURE RR
• C1707: LOW PRESSURE RL
• C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1716: [PRESSDATA ERR] FL
• C1717: [PRESSDATA ERR] FR
• C1718: [PRESSDATA ERR] RR
• C1719: [PRESSDATA ERR] RL
• C1729: VHCL SPEED SIG ERR
