REMOVAL AND INSTALLATION

BRAKE PEDAL

Exploded View

INFOID:0000000009949211

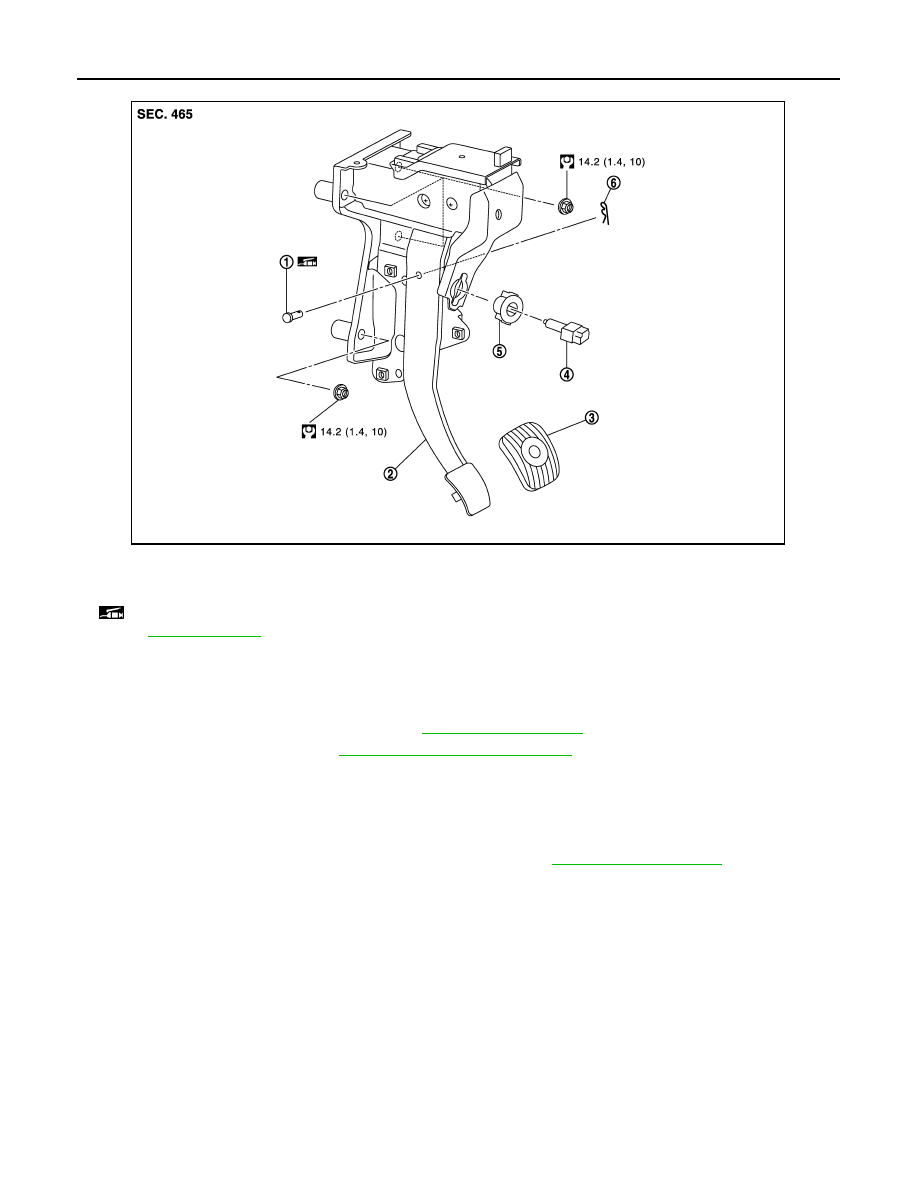

WITH ASCD

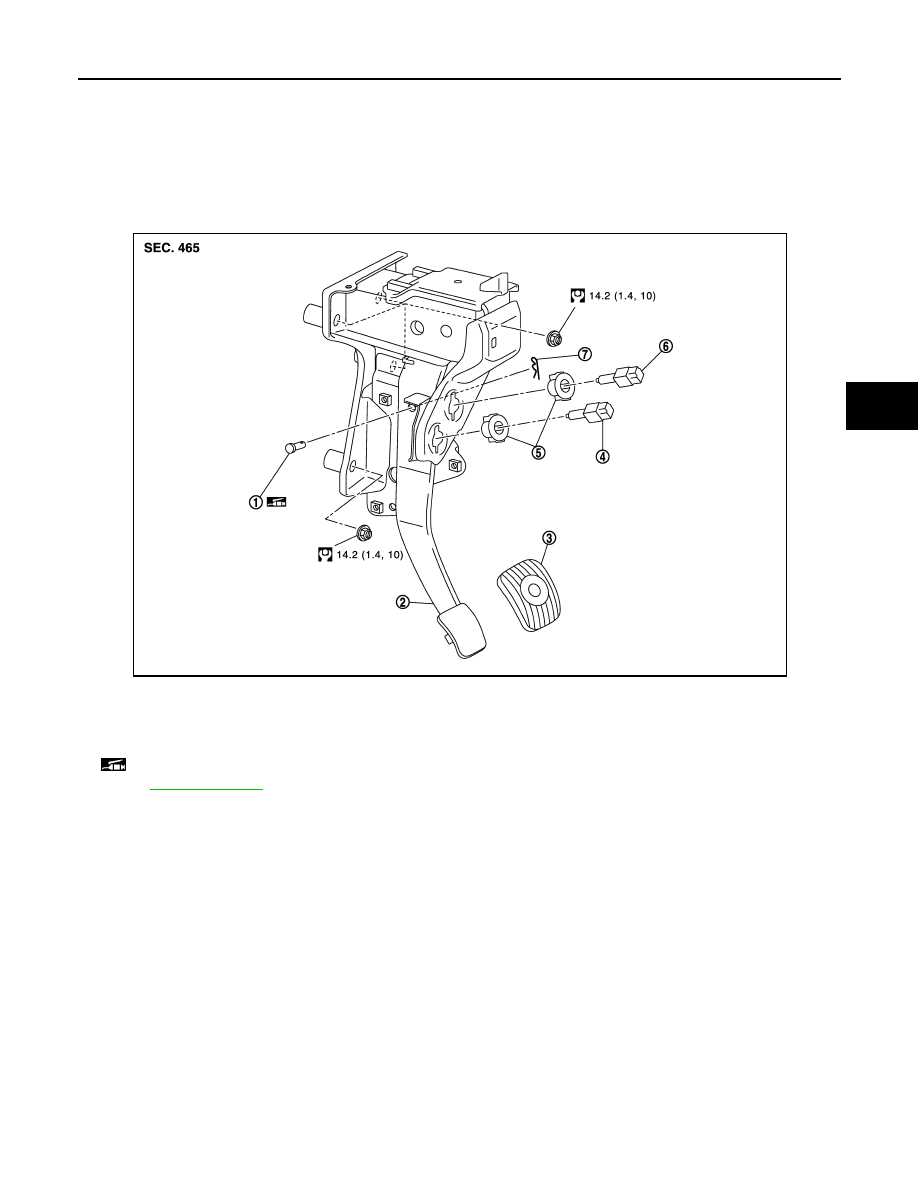

WITHOUT ASCD

1.

Clevis pin

2.

Brake pedal assembly

3.

Brake pedal pad

4.

ASCD brake switch

5.

Clip

6.

Stop lamp switch

7.

Snap pin

: Apply multi-purpose grease.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPFIA0541GB

BR-18

< REMOVAL AND INSTALLATION >

BRAKE PEDAL

Removal and Installation

INFOID:0000000009949212

REMOVAL

1.

Remove instrument lower panel LH. Refer to

IP-13, "Exploded View"

.

2.

Remove knee protector. Refer to

ST-11, "Removal and Installation"

.

3.

Disconnect the stop lamp switch and ASCD brake switch (with ASCD) harness connectors.

4.

Disconnect the accelerator pedal harness connector and clip.

5.

Remove snap pin and clevis pin from clevis.

6.

Remove the brake pedal assembly.

7.

Remove accelerator pedal from brake pedal assembly. Refer to

ACC-3, "Exploded View"

.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Apply the multi-purpose grease to the clevis pin and the mating faces. (Not necessary if grease has been

already applied)

NOTE:
The clevis pin may be inserted in either direction.

Inspection and Adjustment

INFOID:0000000009949213

INSPECTION AFTER REMOVAL

• Check for the following items and replace the brake pedal assembly if necessary.

1.

Clevis pin

2.

Brake pedal assembly

3.

Brake pedal pad

4.

Stop lamp switch

5.

Clip

6.

Snap pin

: Apply multi-purpose grease.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPFIA0540GB

BRAKE PEDAL

BR-19

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

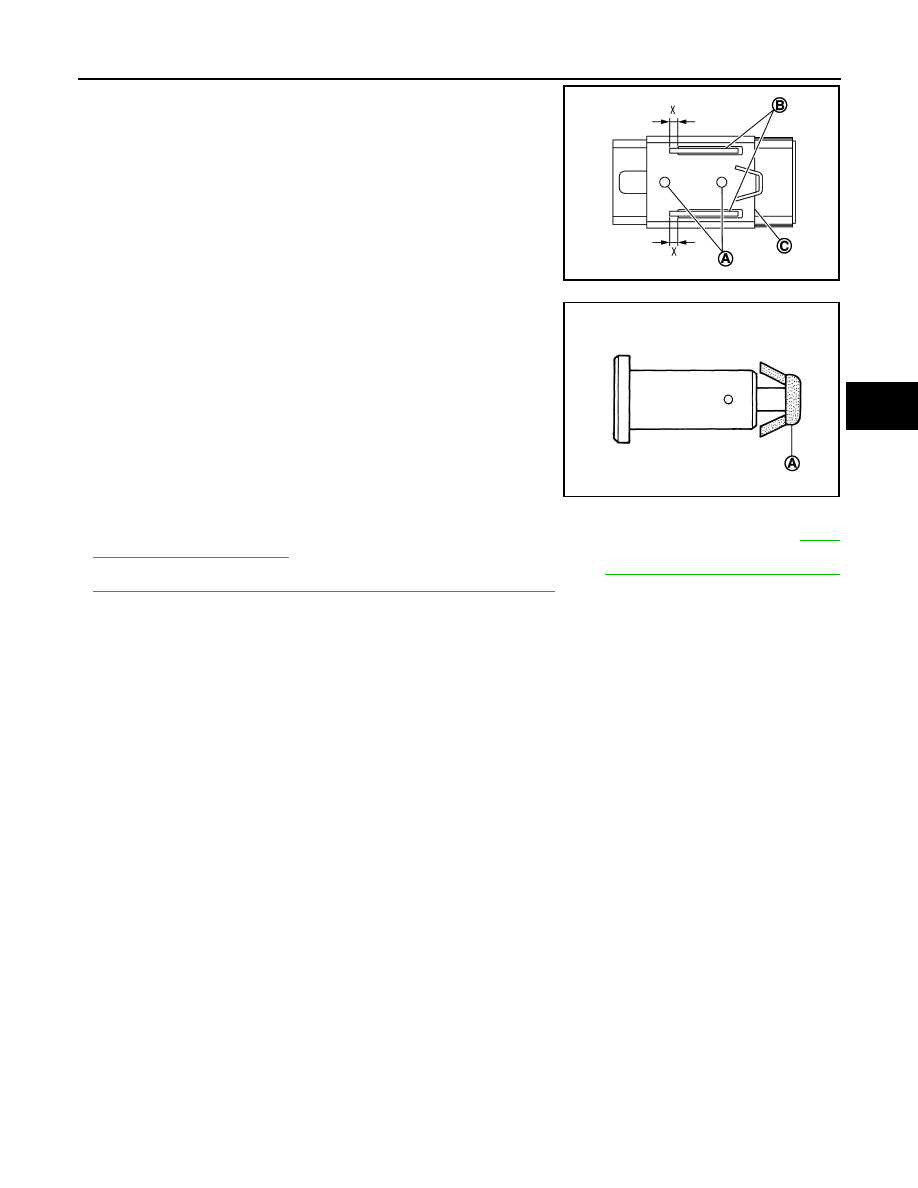

- Check the brake pedal upper rivet (made by aluminum) (A) for

deformation.

- Check the brake pedal for bend, damage, and cracks on the

welded parts.

- Check the lapping length (X) of sub-bracket (B) and slide plate (C).

• Check clevis pin and plastic stopper (A) for damage and deforma-

tion. If any is found, replace clevis pin.

ADJUSTMENT AFTER INSTALLATION

• Adjust each item of brake pedal after installing the brake pedal assembly to the vehicle. Refer to

BR-7,

"Inspection and Adjustment"

.

• Perform the release position learning of the accelerator pedal. Refer to

EC-19, "ACCELERATOR PEDAL

RELEASED POSITION LEARNING : Special Repair Requirement"

.

Standard

X

: 6.5 mm (0.256 in) or more

PFIA0755J

PFIA0756J

BR-20

< REMOVAL AND INSTALLATION >

BRAKE PIPING

BRAKE PIPING

FRONT

FRONT : Exploded View

INFOID:0000000009949214

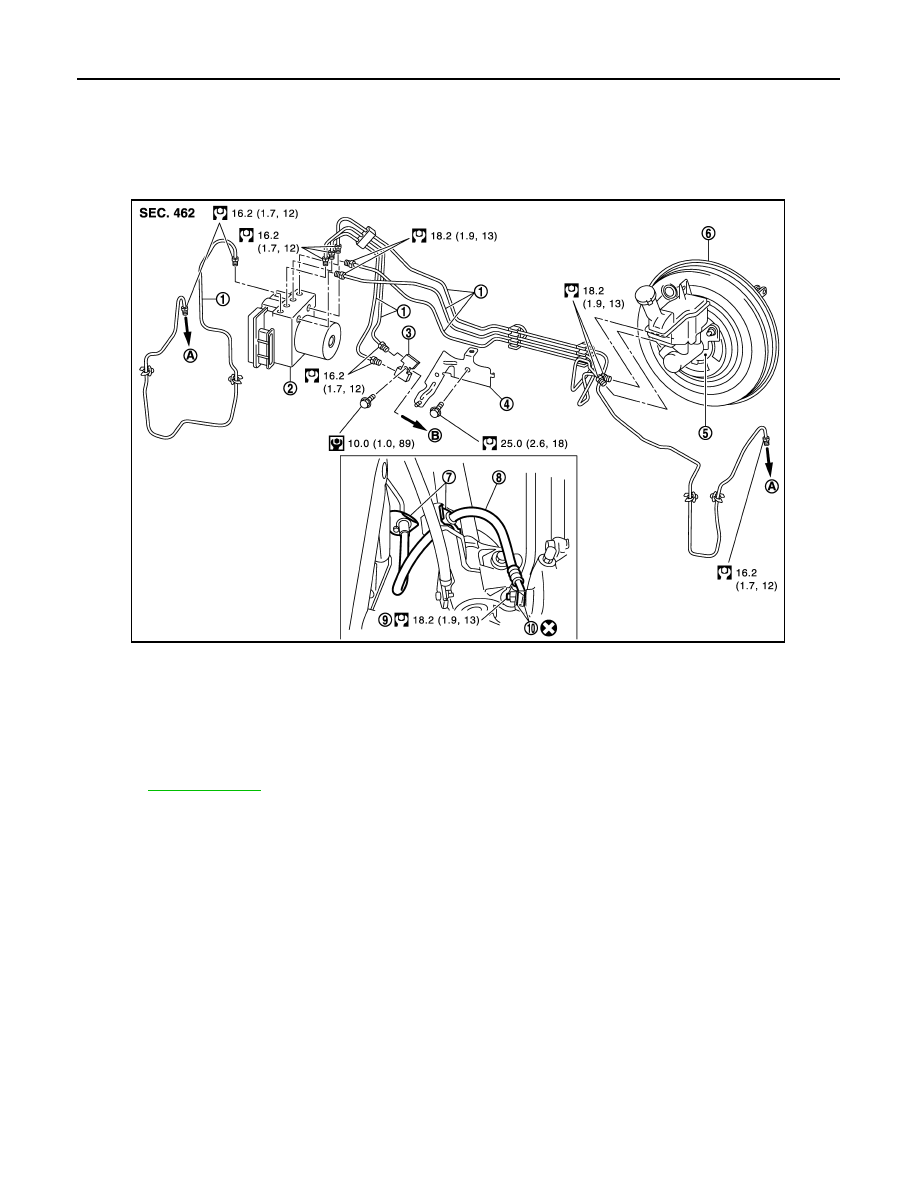

1.

Brake tube

2.

ABS actuator and electric unit (con-
trol unit)

3.

Connector

4.

Connector bracket

5.

Master cylinder

6.

Brake booster

7.

Lock plate

8.

Brake hose

9.

Union bolt

10. Copper washer

A.

To front brake hose

B.

To rear brake tube

Refer to

GI-4, "Components"

 for symbols in the figure.

JPFIA0542GB
