Nissan Cube. Manual - part 55

BCS

BCM (BODY CONTROL MODULE)

BCS-69

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

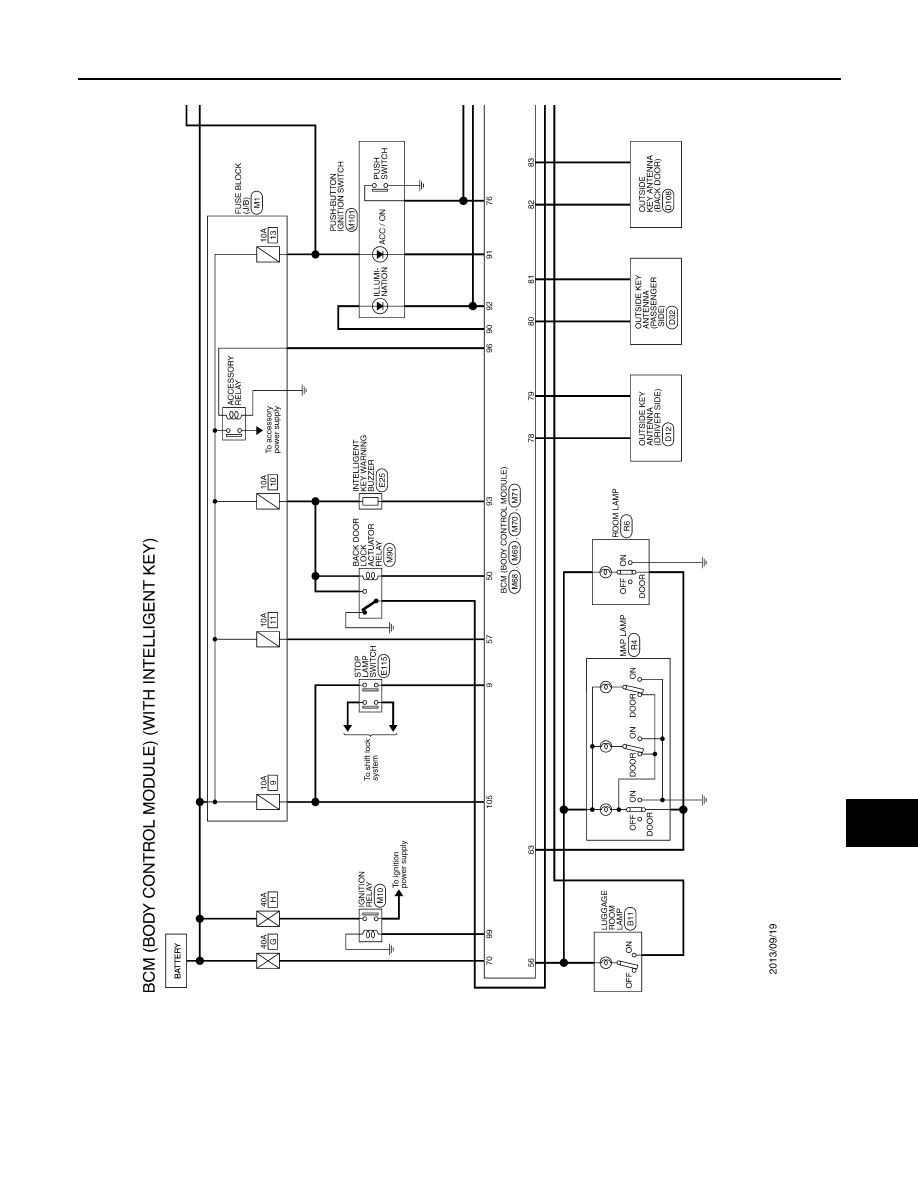

Wiring Diagram - BCM -

INFOID:0000000009949738

JRMWE7712GB

BCS-70

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

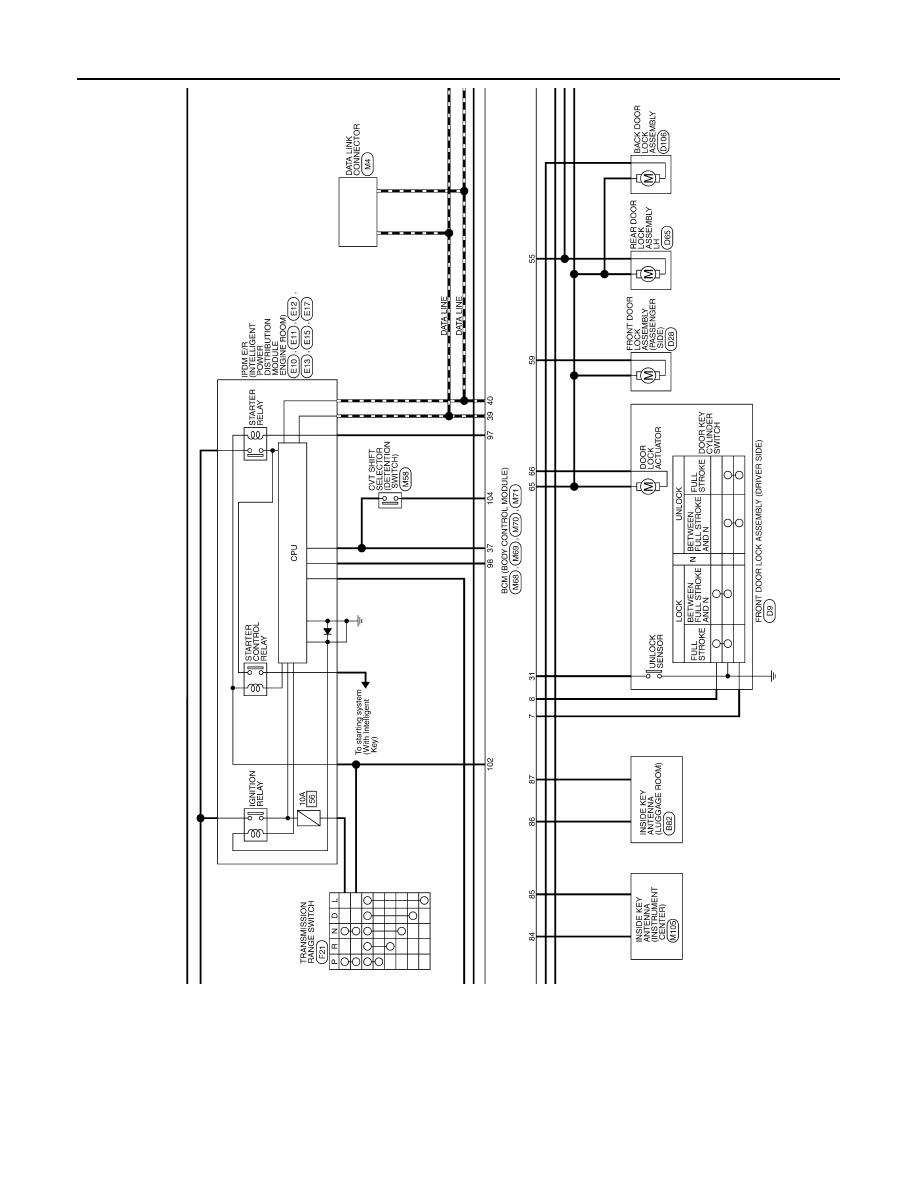

BCM (BODY CONTROL MODULE)

JRMWE7713GB

BCS

BCM (BODY CONTROL MODULE)

BCS-71

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

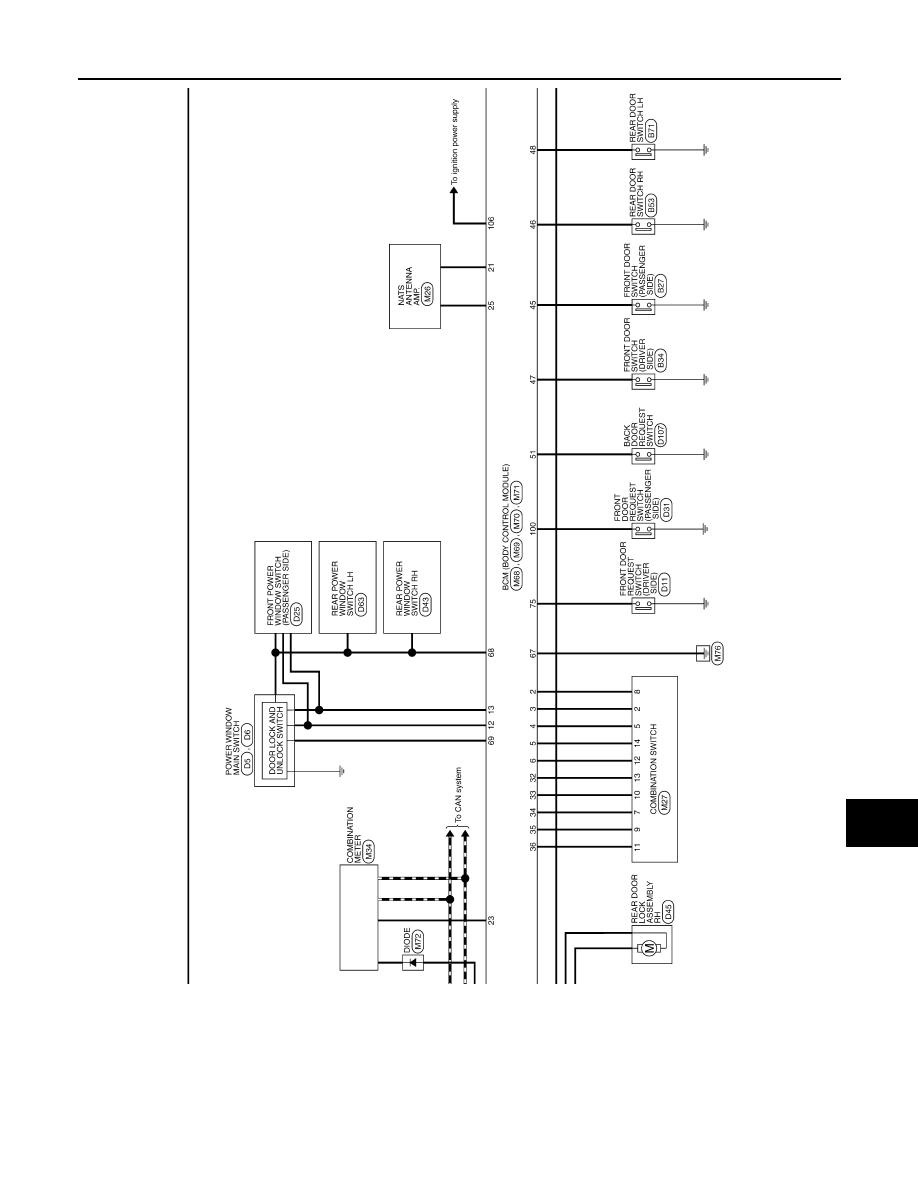

JRMWE7714GB

BCS-72

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

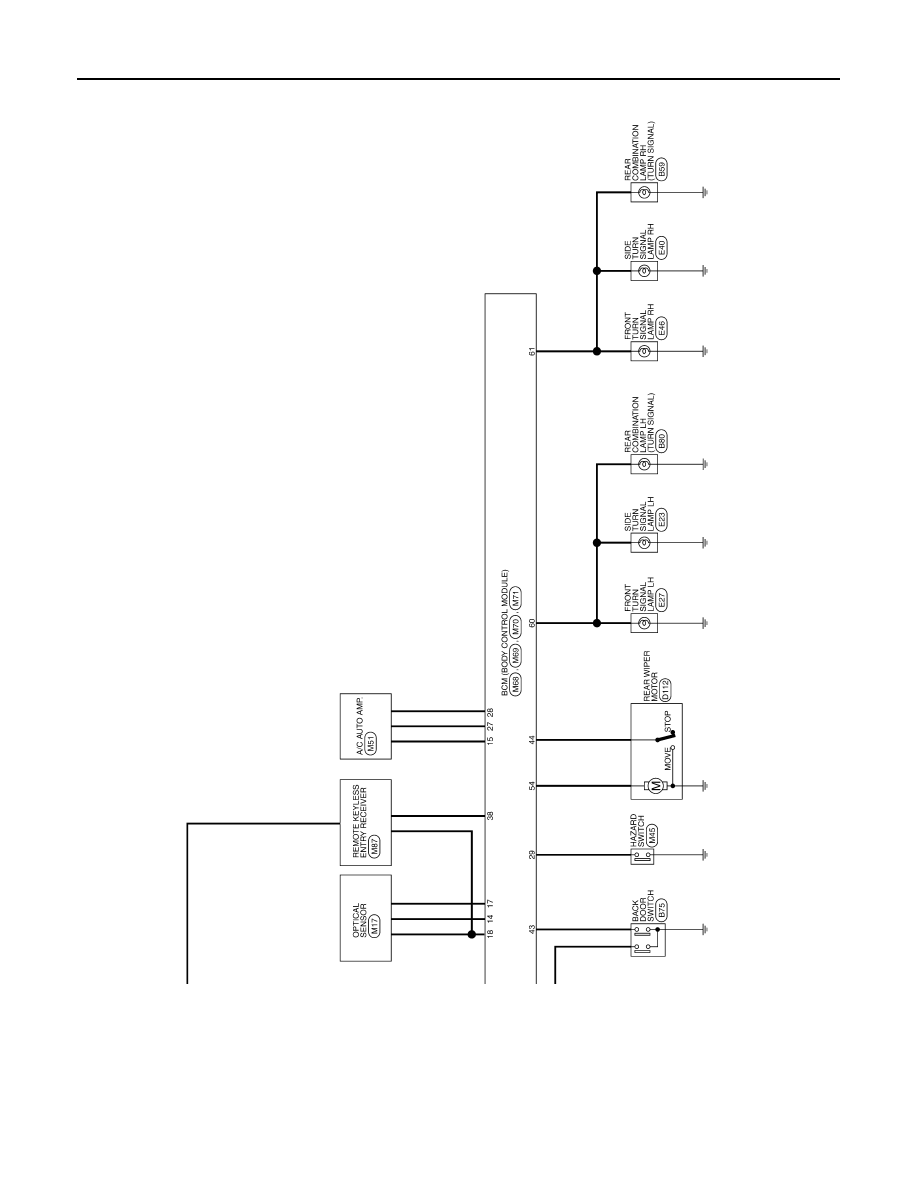

JRMWE7715GB
