Nissan Cube. Manual - part 17





AV

AUDIO UNIT

AV-61

< REMOVAL AND INSTALLATION >

[AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REMOVAL AND INSTALLATION

AUDIO UNIT

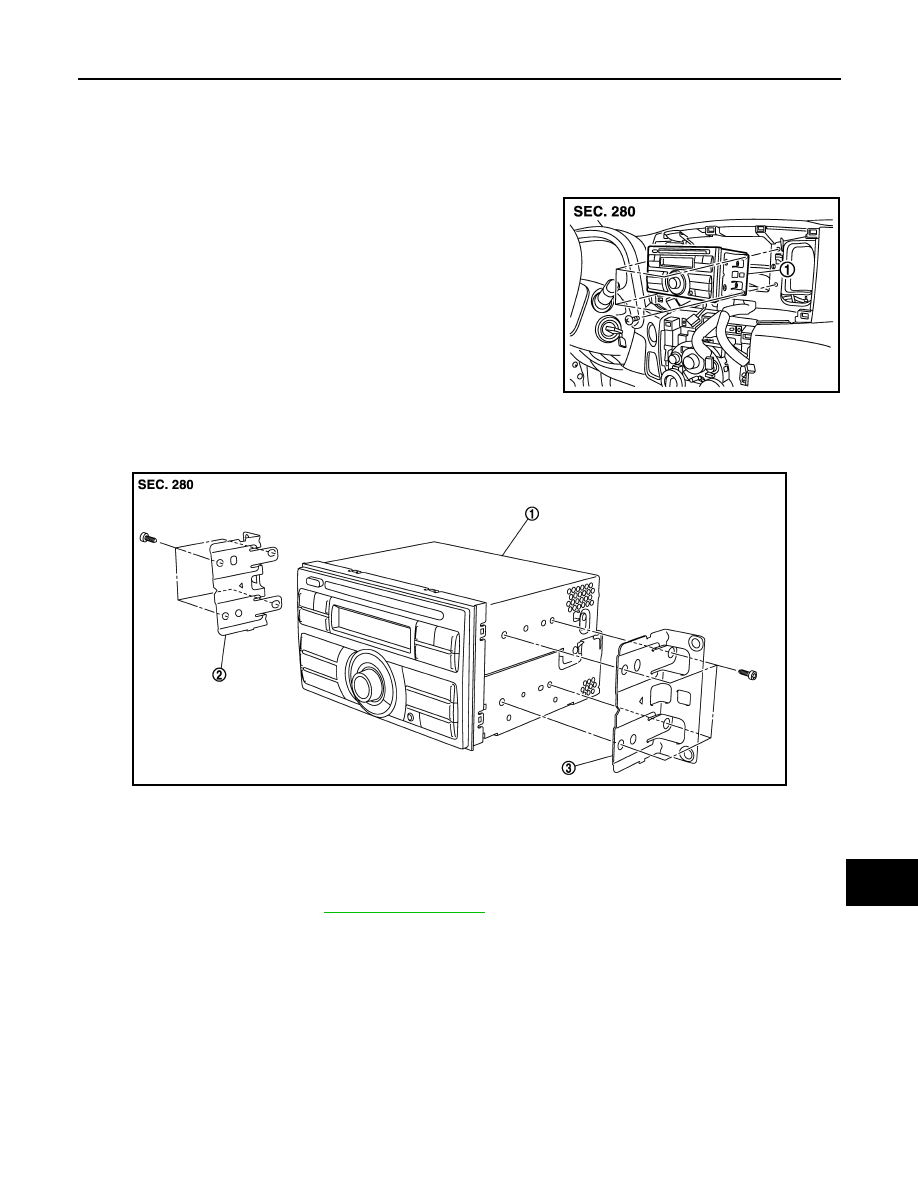

Exploded View

INFOID:0000000009949578

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000009949579

REMOVAL

1.

Remove cluster lid C. Refer to

IP-13, "Exploded View"

.

2.

Remove audio unit screws, then disconnect audio unit connector and remove audio unit.

3.

Remove bracket screws to remove audio unit.

INSTALLATION

Install in the reverse order of removal.

JPNIA1638ZZ

1.

Audio unit

JPNIA1639ZZ

1.

Audio unit

2.

Bracket LH

3.

Bracket RH

AV-62

< REMOVAL AND INSTALLATION >

[AUDIO WITHOUT NAVIGATION]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

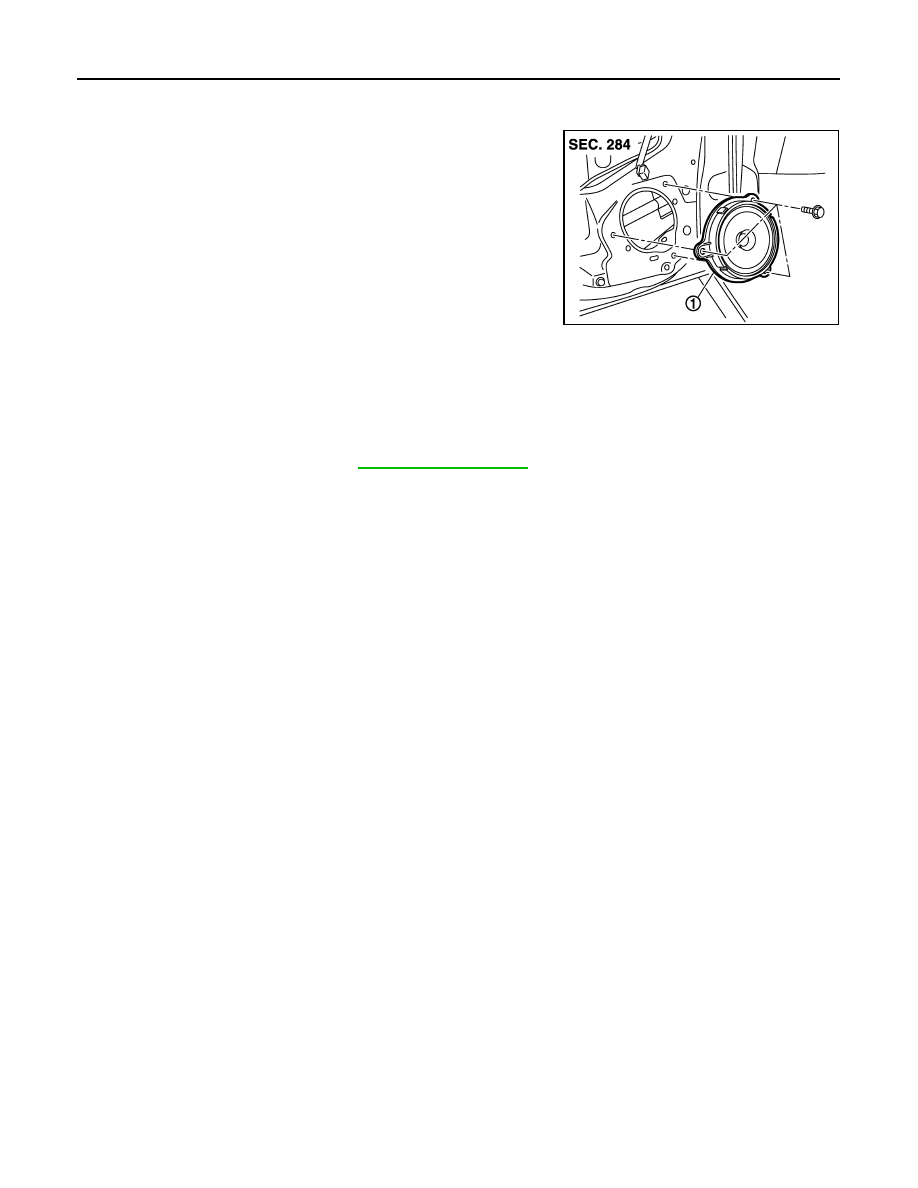

Exploded View

INFOID:0000000009949580

Removal and Installation

INFOID:0000000009949581

REMOVAL

1.

Remove front door finisher. Refer to

INT-12, "Exploded View"

.

2.

Remove front door speaker screws, then disconnect front door speaker connector and remove front door
speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA1640ZZ

1.

Front door speaker

AV

TWEETER

AV-63

< REMOVAL AND INSTALLATION >

[AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TWEETER

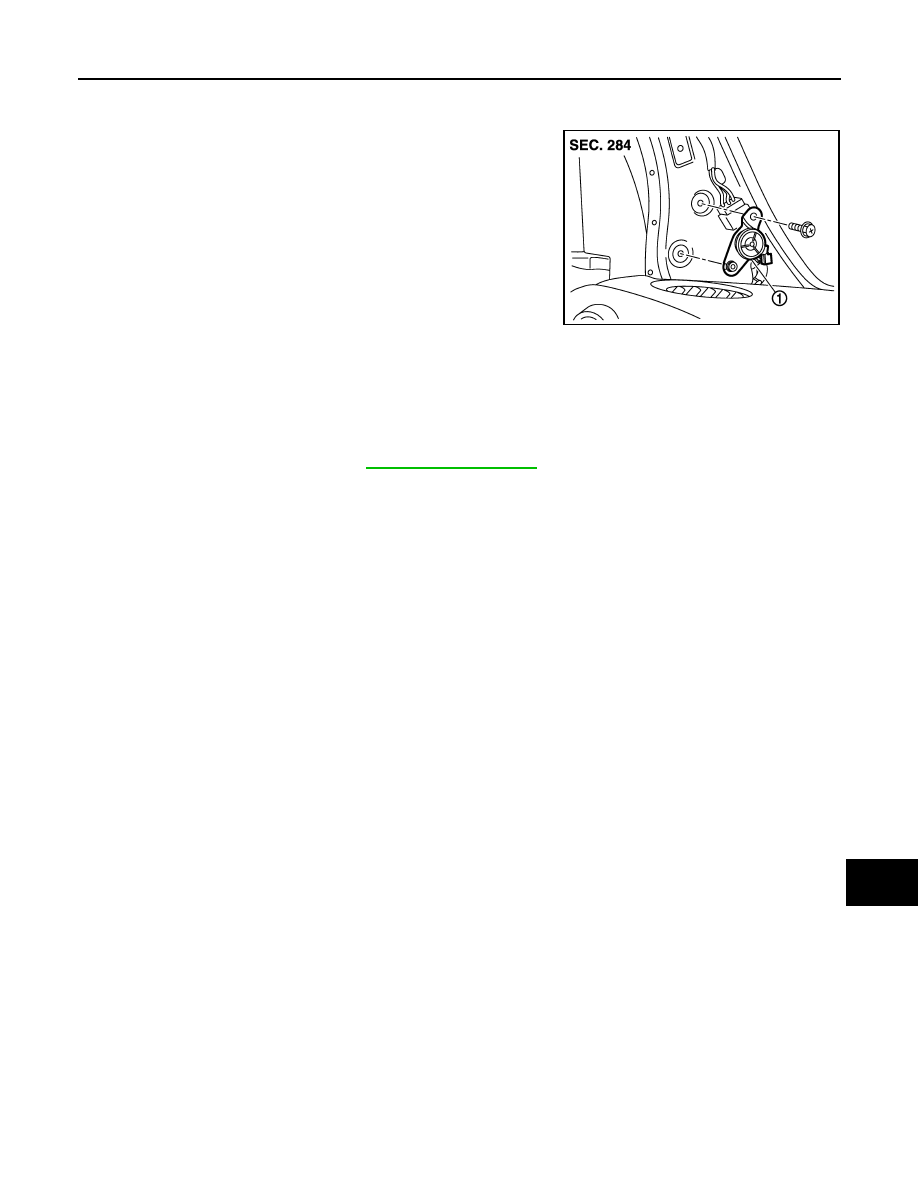

Exploded View

INFOID:0000000009949582

Removal and Installation

INFOID:0000000009949583

REMOVAL

1.

Remove front pillar garnish. Refer to

INT-16, "Exploded View"

.

2.

Remove tweeter screw and clip, then disconnect tweeter connector and remove tweeter.

INSTALLATION

Install in the reverse order of removal.

JPNIA1696ZZ

1.

Tweeter

AV-64

< REMOVAL AND INSTALLATION >

[AUDIO WITHOUT NAVIGATION]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

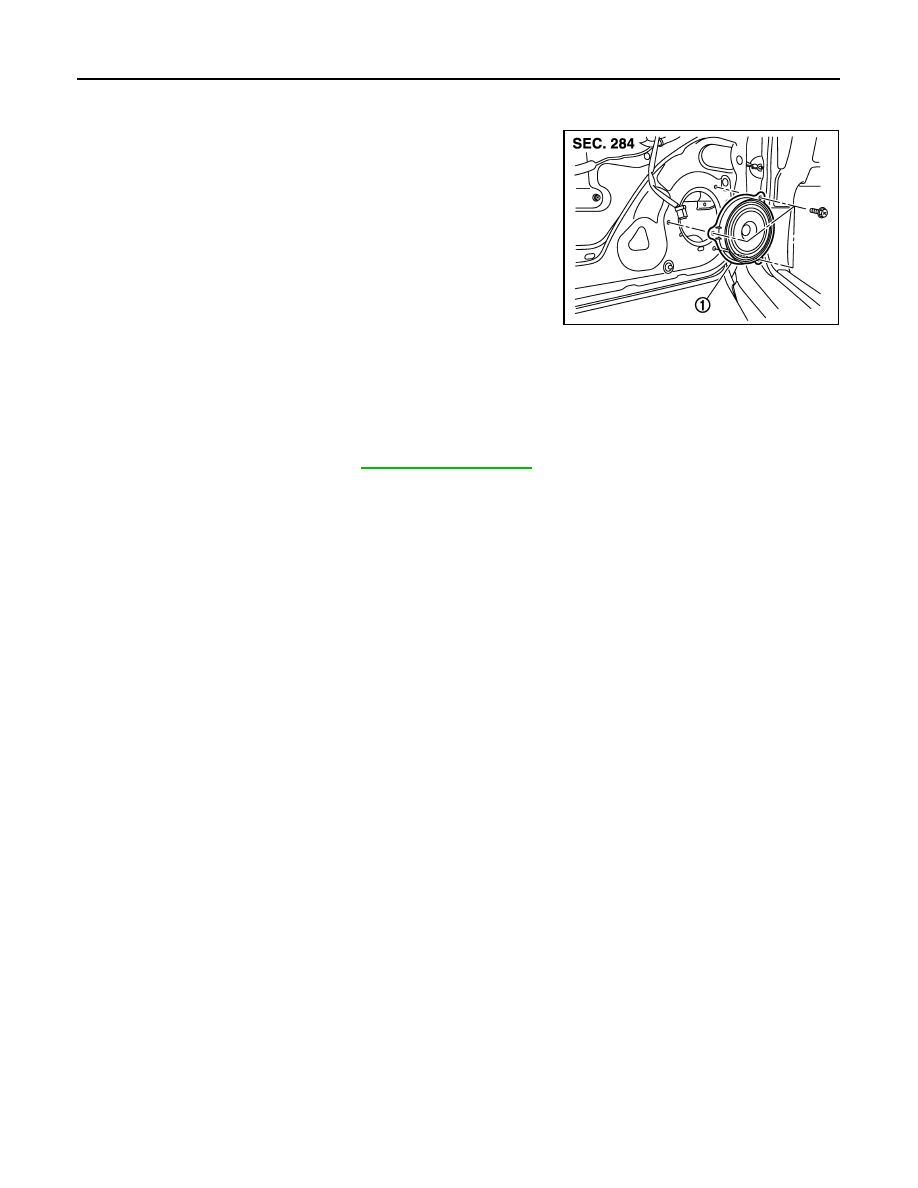

Exploded View

INFOID:0000000009949584

Removal and Installation

INFOID:0000000009949585

REMOVAL

1.

Remove rear door finisher. Refer to

INT-14, "Exploded View"

.

2.

Remove rear door speaker screws, then disconnect rear door speaker connector and remove rear door
speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA1697ZZ

1.

Rear door speaker
