REAR WIPER AND WASHER SYSTEM

WW-35

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

AALIA1485GB

WW-36

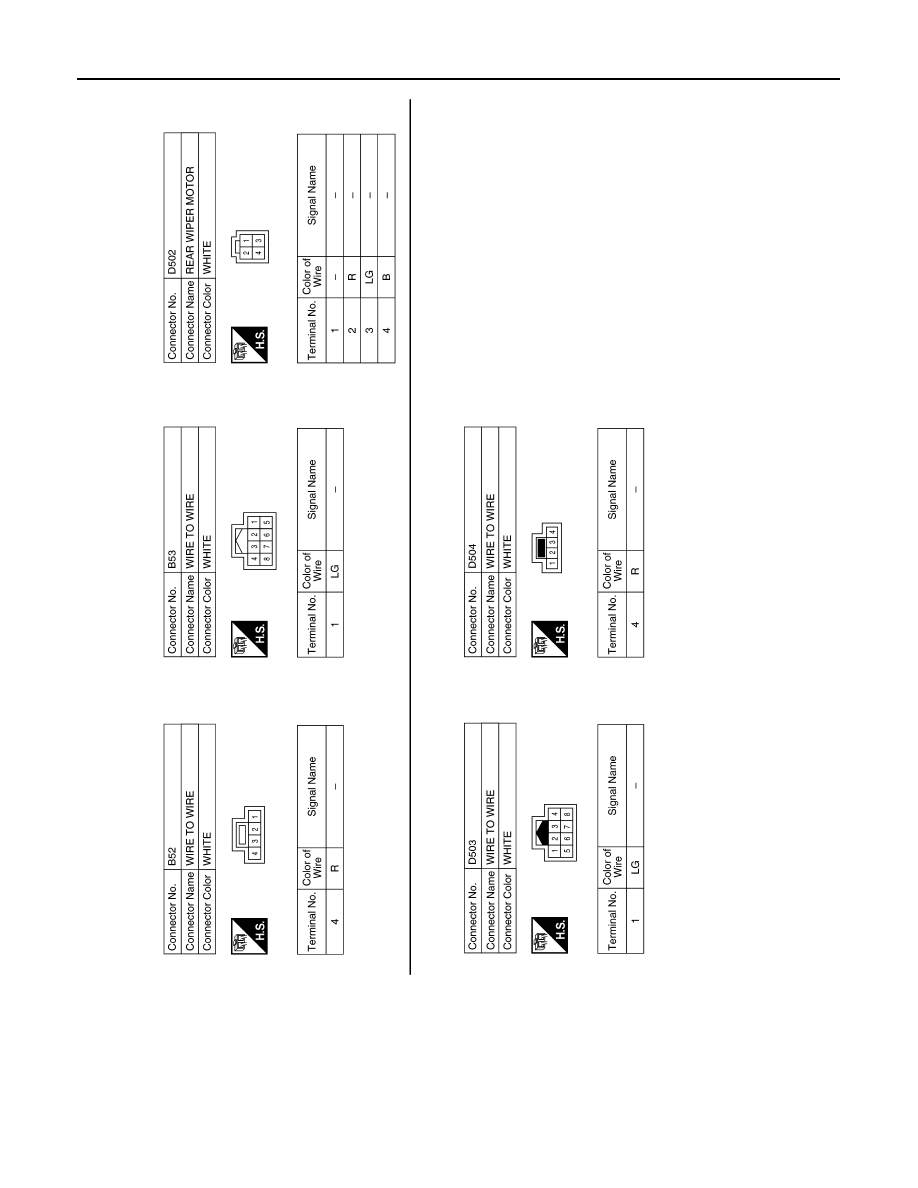

< WIRING DIAGRAM >

REAR WIPER AND WASHER SYSTEM

AALIA1486GB

DIAGNOSIS AND REPAIR WORKFLOW

WW-37

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009643022

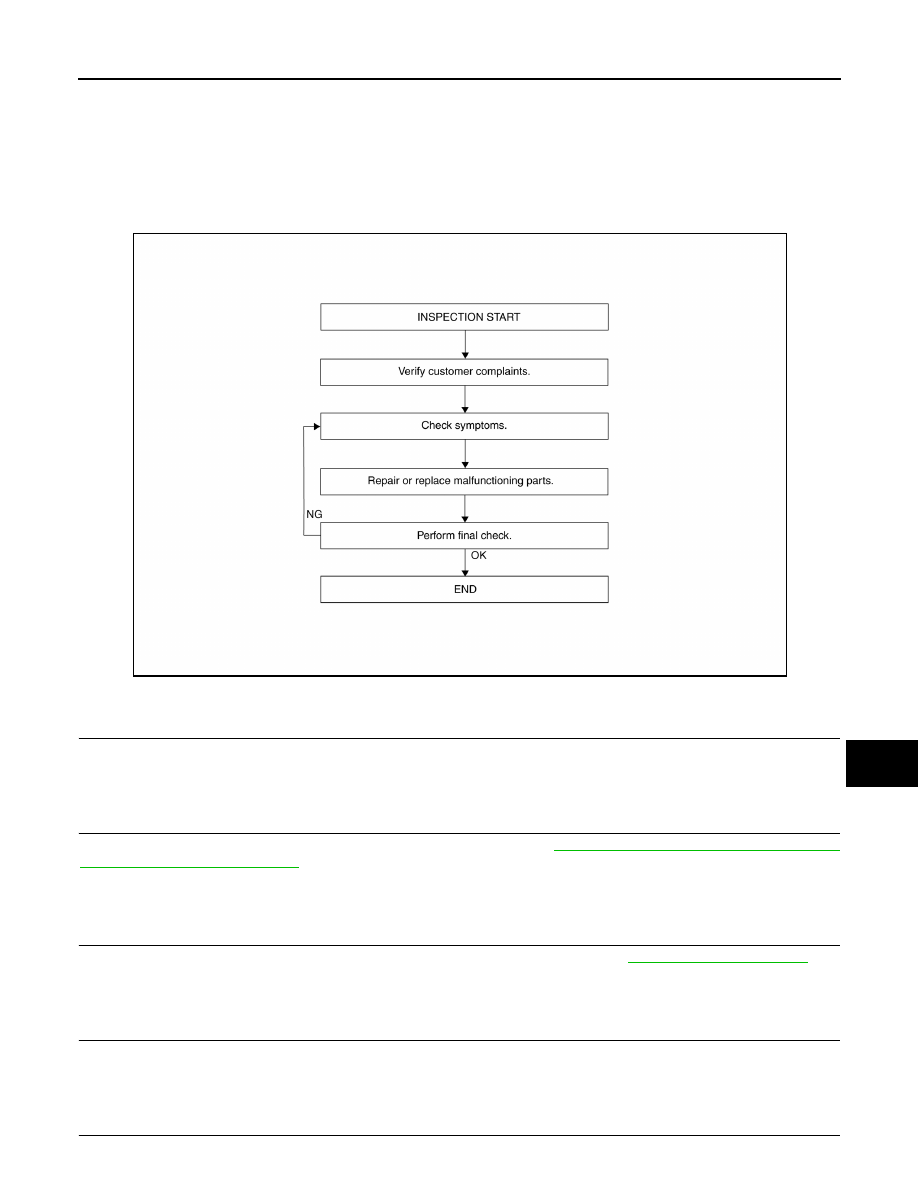

WORK FLOW

DETAILED FLOW

1.

 REVIEW CUSTOMER COMPLAINT

Review customer complaint. Try to obtain detailed information about the conditions when the symptom occurs.

>> GO TO 2

2.

 VERIFY THE SYMPTOM

Verify the symptom by performing an operational check. Refer to

WW-8, "FRONT WIPER AND WASHER

SYSTEM : System Description"

.

>> GO TO 3

3.

PERFORM TROUBLE DIAGNOSIS BY SYMPTOM

Diagnose the vehicle by performing the appropriate trouble diagnosis. Refer to

WW-54, "Symptom Table"

.

>> GO TO 4

4.

 REPAIR OR REPLACE MALFUNCTIONING PARTS

Repair or replace the specific parts.

>> GO TO 5

5.

 FINAL CHECK

AWLIA1887GB

WW-38

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

Perform a final inspection of the system.
Is the inspection result normal?

YES

>> Inspection End.

NO

>> GO TO 2.
