DIAGNOSIS SYSTEM (IPDM E/R) (WITHOUT INTELLIGENT KEY SYSTEM)
WW-23
< SYSTEM DESCRIPTION >
C
D
E
F
G
H
I
J
K
M
A
B
WW
N
O
P
ECU IDENTIFICATION
The IPDM E/R part number is displayed.
SELF DIAGNOSTIC RESULT
DATA MONITOR
ACTIVE TEST
Active Test
The IPDM E/R activates outputs to test components.
CAN Diag Support Mntr
The result of transmit/receive diagnosis of CAN communication is displayed.
Direct Diagnostic Mode
Description
Monitor Item [Unit]
Main
Signals
Description
MOTOR FAN REQ [1/2/3/4]
×
Indicates cooling fan speed signal received from ECM on CAN communication
line
AC COMP REQ [On/Off]
×
Indicates A/C compressor request signal received from ECM on CAN commu-
nication line
TAIL&CLR REQ [On/Off]
×
Indicates position light request signal received from BCM on CAN communica-
tion line
HL LO REQ [On/Off]
×
Indicates low beam request signal received from BCM on CAN communication
line
HL HI REQ [On/Off]
×
Indicates high beam request signal received from BCM on CAN communication
line
FR FOG REQ [On/Off]
×
Indicates front fog light request signal received from BCM on CAN communica-
tion line
FR WIP REQ [Stop/1LOW/Low/Hi]
×
Indicates front wiper request signal received from BCM on CAN communication
line
WIP AUTO STOP [STOP P/ACT P]
×
Indicates condition of front wiper auto stop signal
WIP PROT [Off/BLOCK]
×
Indicates condition of front wiper fail-safe operation
IGN RLY1 -REQ [On/Off]
Indicates ignition switch ON signal received from BCM on CAN communication
line
IGN RLY [On/Off]
×
Indicates condition of ignition relay
PUSH SW [On/Off]
Indicates condition of push-button ignition switch
INTER/NP SW [On/Off]
Indicates condition of CVT shift position
ST RLY CONT [On/Off]
Indicates starter relay status signal received from BCM on CAN communication
line
IHBT RLY -REQ [On/Off]
Indicates starter control relay signal received from BCM on CAN communication
line
ST/INHI RLY [Off/ ST /INHI]
Indicates condition of starter relay and starter control relay
DETENT SW [On/Off]
Indicates condition of CVT shift selector (park position switch)
DTRL REQ [Off]
Indicates daytime light request signal received from BCM on CAN communica-
tion line
THFT HRN REQ [On/Off]
Indicates theft warning horn request signal received from BCM on CAN commu-
nication line
HORN CHIRP [On/Off]
Indicates horn reminder signal received from BCM on CAN communication line
Test item
Description
HORN
This test is able to check horn operation [On].

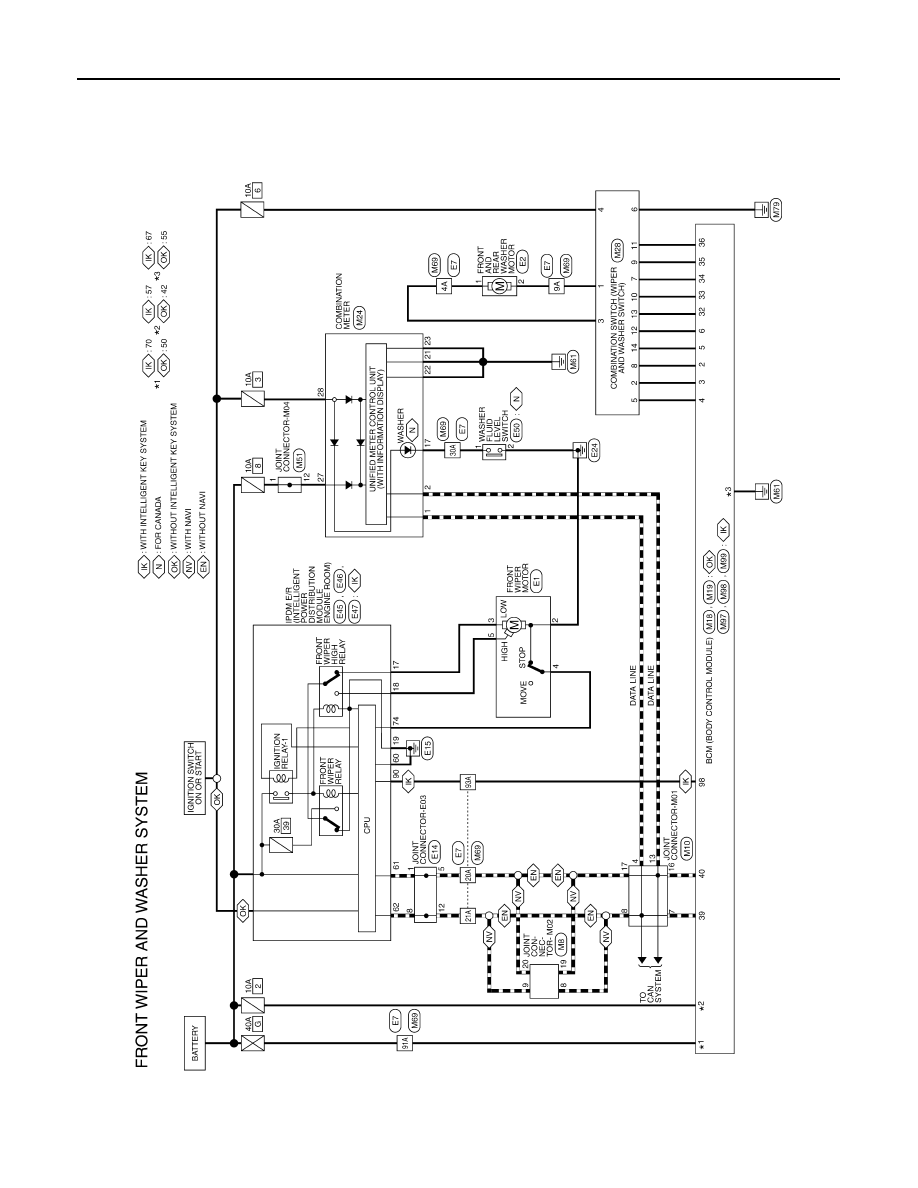

FRONT WIPER
This test is able to check wiper motor operation [Hi/Lo/Off].
MOTOR FAN
This test is able to check cooling fan operation [4/3/2/1].
EXTERNAL LAMPS
This test is able to check external lamp operation [Fog/Hi/Lo/TAIL/Off].
