BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow (With GR8-1200 NI)

INFOID:0000000009693721

STARTING SYSTEM DIAGNOSIS WITH GR8-1200 NI

To test the starting system, use the following special service tool:

• GR8-1200 NI Multitasking battery and electrical diagnostic station

NOTE:

Refer to the diagnostic station Instruction Manual for proper starting system diagnosis procedures.

STR-22

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

OVERALL SEQUENCE

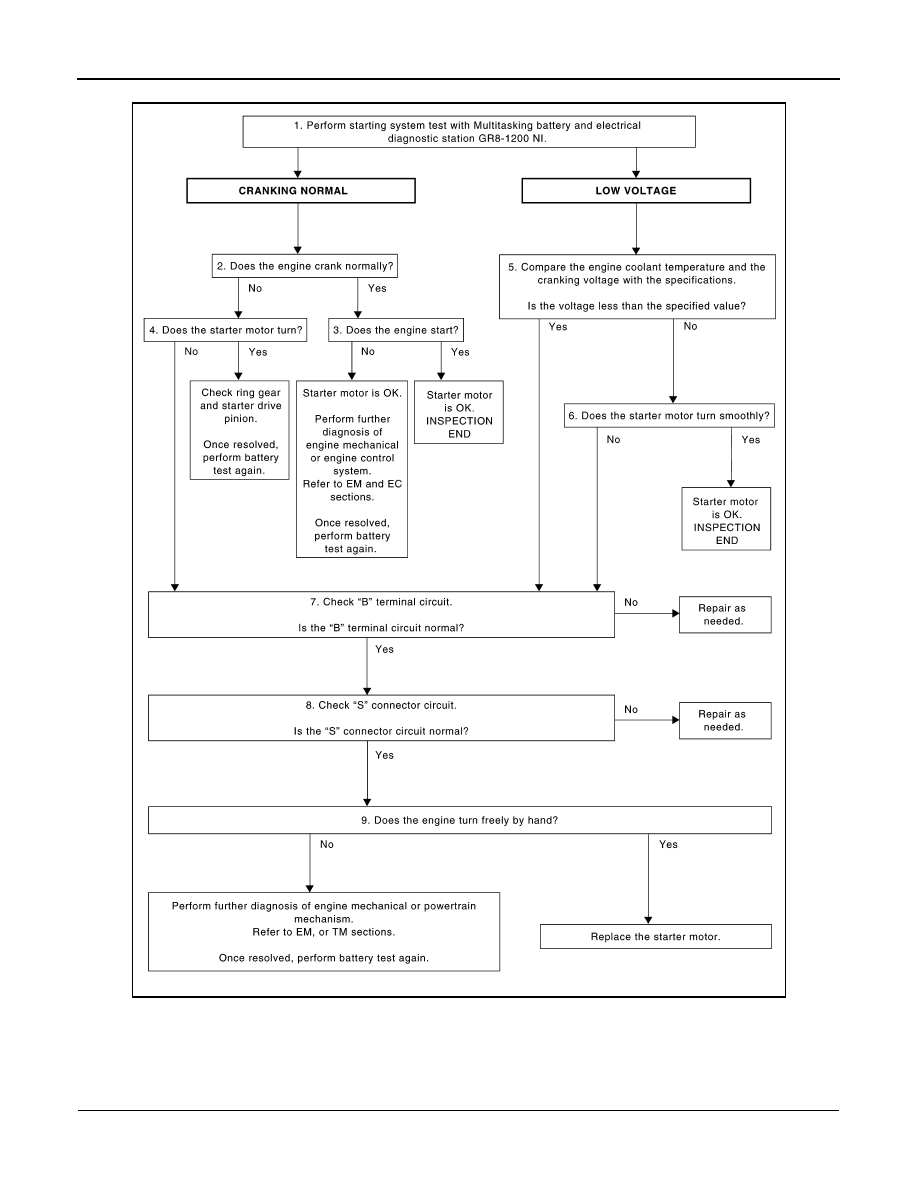

DETAILED FLOW

NOTE:

To ensure a complete and thorough diagnosis, the battery, starter motor and generator test segments must be

done as a set from start to finish.

1.

DIAGNOSIS WITH MULTITASKING BATTERY AND ELECTRICAL DIAGNOSTIC STATION GR8-1200 NI

AWBIA1200GB

DIAGNOSIS AND REPAIR WORKFLOW

STR-23

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

Perform the starting system test with Multitasking battery and electrical diagnostic station GR8-1200 NI. For

details and operating instructions, refer to diagnostic station Instruction Manual.
Test result

CRANKING NORMAL>>GO TO 2.

LOW VOLTAGE>>GO TO 5.

CHARGE BATTERY>>Perform  the  slow  battery charging procedure. (Initial rate of charge is 10A for 12

hours.) Perform battery test again. Refer to diagnostic station instruction manual.

REPLACE BATTERY>>Before replacing battery, clean the battery cable clamps and battery posts. Perform

battery test again. Refer to diagnostic station instruction manual. If second test result is

“REPLACE BATTERY”, then do so. Perform battery test again to confirm repair.

2.

CRANKING CHECK

Check that the starter motor operates properly.
Does the engine crank normally?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

ENGINE START CHECK

Check that the engine starts.
Does the engine start?

YES

>> Inspection End.

NO

>> Perform further diagnosis of engine mechanical or engine control system. Refer to EM and EC

sections. Once resolved, perform battery test again.

4.

STARTER MOTOR ACTIVATION

Check that the starter motor operates.
Does the starter motor turn?

YES

>> Check ring gear and starter motor drive pinion. Once resolved, perform battery test again.

NO

>> GO TO 7.

5.

COMPARISON BETWEEN ENGINE COOLANT AND CRANKING VOLTAGE

Compare the engine coolant temperature and verify the cranking voltage is within specifications.

Minimum Specification of Cranking Voltage Referencing Coolant Temperature

Is the voltage less than the specified value?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

STARTER OPERATION

Check the starter operation.
Does the starter motor turn smoothly?

YES

>> Inspection End.

NO

>> GO TO 7.

7.

“B” TERMINAL CIRCUIT INSPECTION

Check “B” terminal circuit. Refer to

STR-27, "Diagnosis Procedure"

.

Is “B” terminal circuit normal?

YES

>> GO TO 8.

NO

>> Repair as needed.

8.

“S” CONNECTOR CIRCUIT INSPECTION

Check “S” connector circuit. Refer to

STR-29, "Diagnosis Procedure"

.

Engine coolant temperature [

°C (°F)]

Voltage [V]

−30 to −20 (−22 to −4)

8.6

−19 to −10 (−2 to 14)

9.1

−9 to 0 (16 to 32)

9.5

More than 1 (More than 34)

9.9
