CONTENTS

STEERING SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

Service Notice or Precautions for Steering System

......

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

Commercial Service Tool  ..........................................

3

BASIC INSPECTION  ....................................

5

STEERING WHEEL .............................................

5

Inspection ..................................................................

5

SYMPTOM DIAGNOSIS  ...............................

7

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

7

NVH Troubleshooting Chart  ......................................

7

REMOVAL AND INSTALLATION ................

8

STEERING WHEEL .............................................

8

Exploded View  ..........................................................

8

Removal and Installation ...........................................

8

STEERING COLUMN ..........................................

9

Exploded View  ..........................................................

9

Removal and Installation ...........................................

9

Inspection ................................................................

10

STEERING SHAFT  ...........................................

12

Exploded View .........................................................

12

Removal and Installation  .........................................

12

Inspection ................................................................

13

STEERING GEAR AND LINKAGE  ...................

14

Exploded View .........................................................

14

Removal and Installation  .........................................

14

Inspection ................................................................

14

UNIT DISASSEMBLY AND ASSEMBLY  ....

16

STEERING GEAR AND LINKAGE  ...................

16

Exploded View .........................................................

16

Disassembly and Assembly .....................................

16

Inspection ................................................................

18

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

19

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

19

General Specifications .............................................

19

Steering Wheel Axial End Play and Play .................

19

Steering Wheel Turning Force .................................

19

Steering Angle  .........................................................

19

Steering Column Operating Range  .........................

19

Rack Stroke  .............................................................

20

Ball Joint Swing Force  .............................................

20

Ball Joint Axial End Play ..........................................

20

Inner Socket Length  ................................................

20

ST-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009541328

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Service Notice or Precautions for Steering System

INFOID:0000000009385527

• In case of removing the steering gear, make the final tightening with grounded and unloaded vehicle condi-

tion, and then check wheel alignment.

• Observe the following precautions when disassembling.

- Before disassembly, thoroughly clean the outside of the unit.

- Disassembly should be done in a clean work area. It is important to prevent the internal parts from becoming

contaminated by dirt or other foreign matter.

- For easier and proper assembly, place disassembled parts in order on a parts rack.

- Use nylon cloth or paper towels to clean the parts; common shop rags can leave lint that might interfere with

their operation.

- Do not reuse non-reusable parts.

- Before assembling, apply the specified grease to the directed parts.

PREPARATION

ST-3

< PREPARATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

PREPARATION

PREPARATION

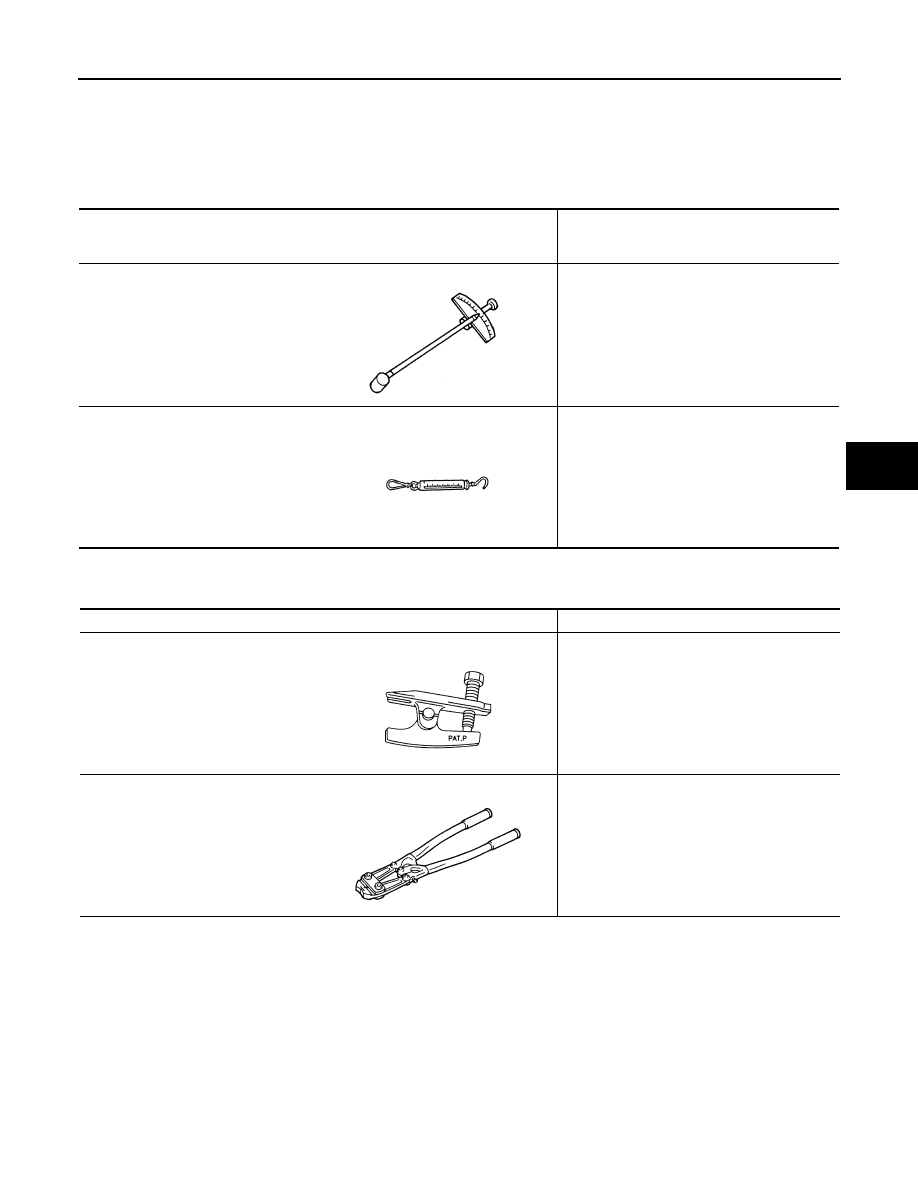

Special Service Tool

INFOID:0000000009385528

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000009385529

Tool number
(Kent-Moore No.)
Tool name

Description

ST3127S000
(J-25765-A)
Preload gauge

Inspecting steering column rotating torque,
pinion rotating torque and ball joint rotating
torque


(J-44372)
Pull gauge

Measuring steering wheel turning force or rack
sliding force

ZZA0806D

LST024

Tool name

Description

Ball joint remover

Remove steering outer socket

Boot band crimping tool

Installing boot clamp (large diameter)

S-NT146

ZZA1229D

ST-4

< PREPARATION >

PREPARATION

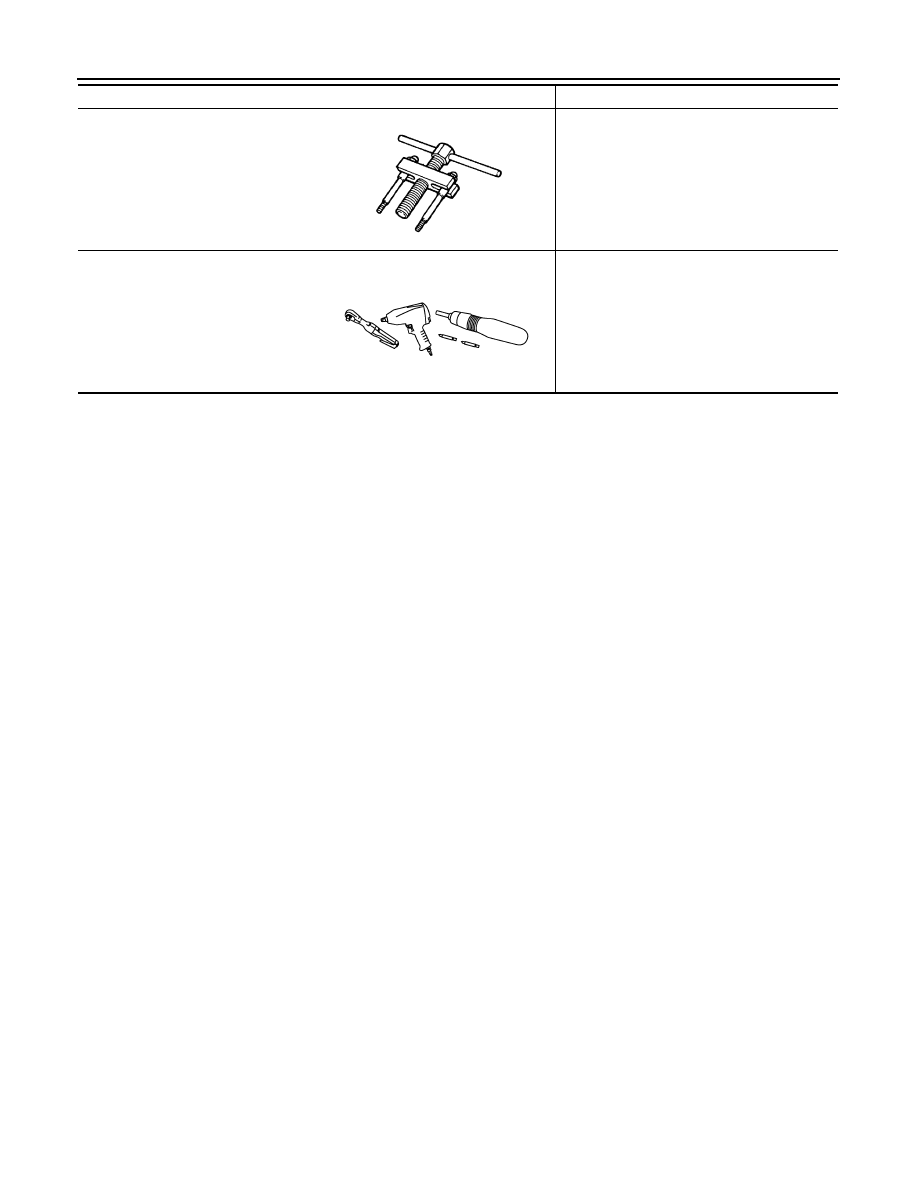

Steering wheel puller

Removing steering wheel

Power tool

Loosening nuts, screws and bolts

Tool name

Description

ZZA0819D

PIIB1407E
