VEHICLE SECURITY SYSTEM

SEC-159

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKIA1389GB

SEC-160

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

AAKIA1390GB

VEHICLE SECURITY SYSTEM

SEC-161

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKIA1391GB

SEC-162

< BASIC INSPECTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009521002

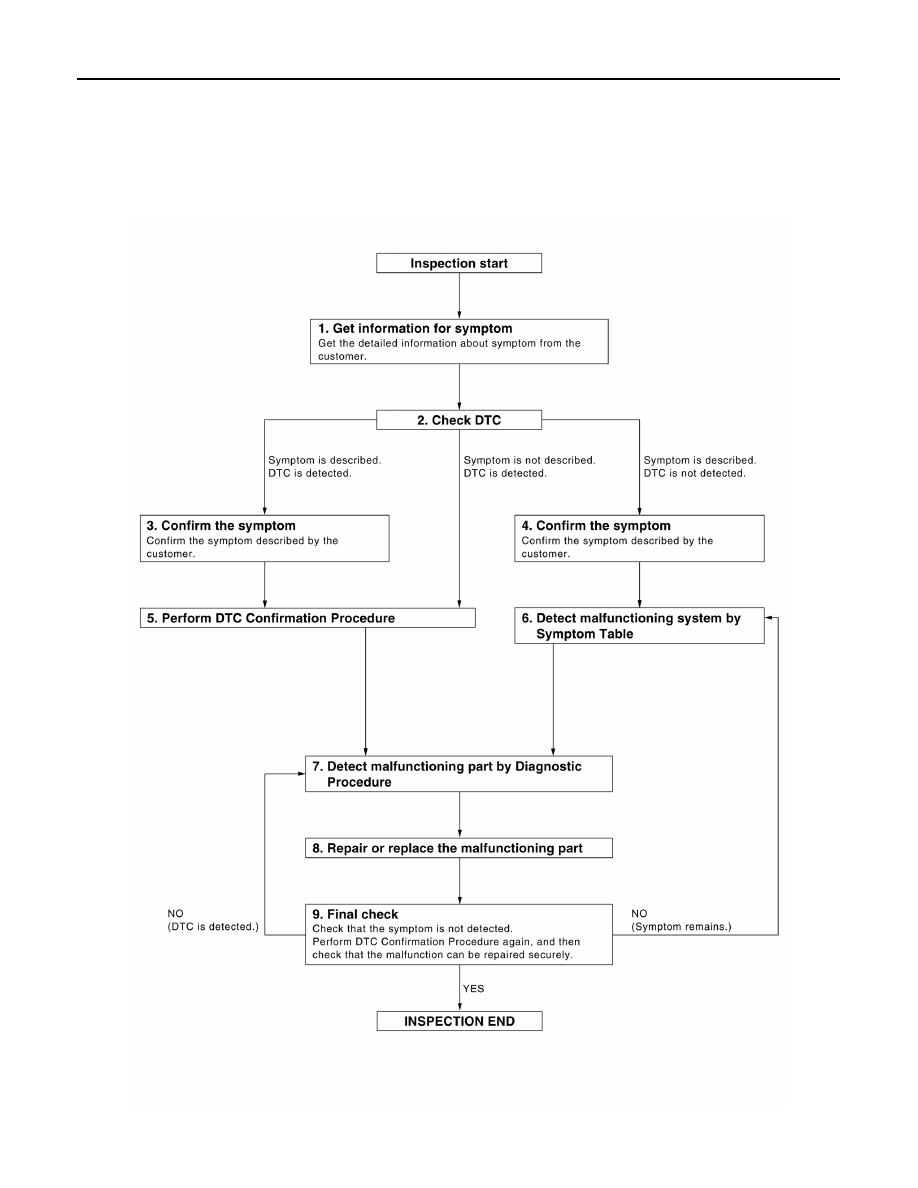

OVERALL SEQUENCE

ALKIA2308GB
