REAR SUSPENSION BEAM

RSU-13

< REMOVAL AND INSTALLATION >

RSU

REAR SUSPENSION BEAM

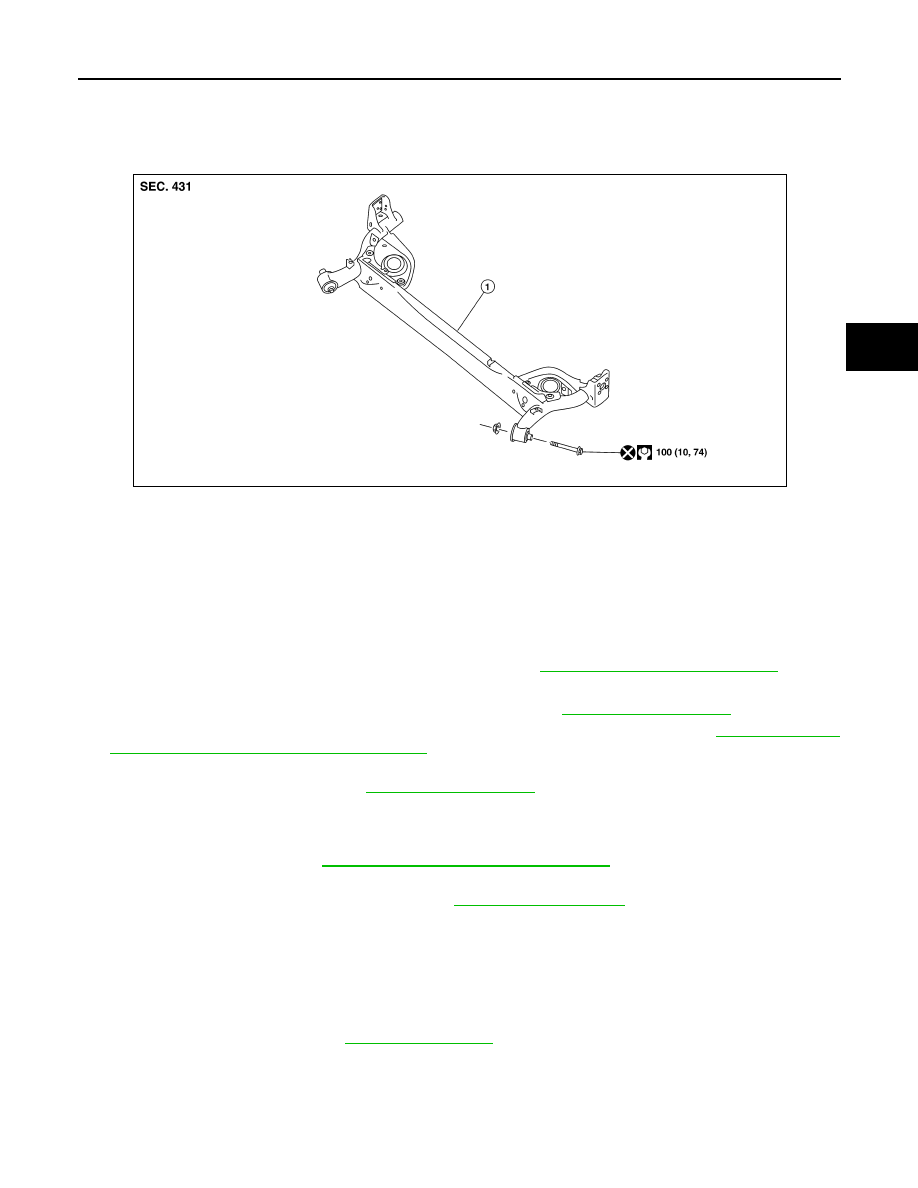

Exploded View

INFOID:0000000009499809

Removal and Installation

INFOID:0000000009499810

NOTE:

When removing components such as hoses, tubes, lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove the rear wheels and tires using power tools. Refer to

WT-45, "Removal and Installation"

2. Disconnect the brake hoses from the rear suspension beam.
3. Remove the spindles and rear drum brake components. Refer to

RAX-6, "Exploded View"

4. Remove the wheel sensors and position the wheel sensor harnesses aside. Refer to

BRC-106, "REAR

WHEEL SENSOR : Removal and Installation"

5. Disconnect the parking brake cables from the rear suspension beam and position the rear drum brake

back plates aside with wire. Refer to

RAX-6, "Exploded View"

6. Set a suitable jack under the rear suspension beam.

CAUTION:

• At this step, the jack must be set only for supporting the removal procedure. For details on jack-

ing up the vehicle, refer to

GI-28, "Garage Jack and Safety Stand"

• Do not damage the rear suspension beam with the jack.

7. Remove the lower shock absorber bolts. Refer to

RSU-8, "Exploded View"

8. Slowly lower the suitable jack. Remove the upper rubber seats, the coil springs, and the lower rubber

seats from the rear suspension beam.

CAUTION:

Make sure the rear suspension beam is stable when using the jack.

9. Remove the rear suspension beam bolts.
10. Slowly lower the suitable jack. Remove the rear suspension beam from the vehicle.
11. Inspect the components. Refer to

RSU-14, "Inspection"

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse the rear suspension beam nuts.

Rear suspension beam

AWEIA0323ZZ

RSU-14

< REMOVAL AND INSTALLATION >

REAR SUSPENSION BEAM

• Perform the final tightening of the rear suspension beam nuts and bolts under unladen conditions with the

tires on level ground.

• Adjust the parking brake. Refer to

PB-4, "Inspection and Adjustment"

• Fill the hydraulic brake system. Refer to

BR-11, "Refilling"

• Bleed the hydraulic brake system. Refer to

BR-12, "Bleeding Brake System"

• Complete the inspection. Refer to

BR-11, "Inspection"

Inspection

INFOID:0000000009499811

INSPECTION AFTER REMOVAL

Check the rear suspension beam for deformation, cracks or damage. Replace the parts if necessary.

INSPECTION AFTER INSTALLATION

1. Check the wheel sensor harness to be sure the connectors are fully seated.
2. Check the neutral position of the steering angle sensor. Refer to

BRC-53, "Work Procedure"

3. Check the wheel alignment. Refer to

RSU-6, "Inspection"

SERVICE DATA AND SPECIFICATIONS (SDS)

RSU-15

< SERVICE DATA AND SPECIFICATIONS (SDS)

RSU

SERVICE DATA AND SPECIFICATIONS (SDS)

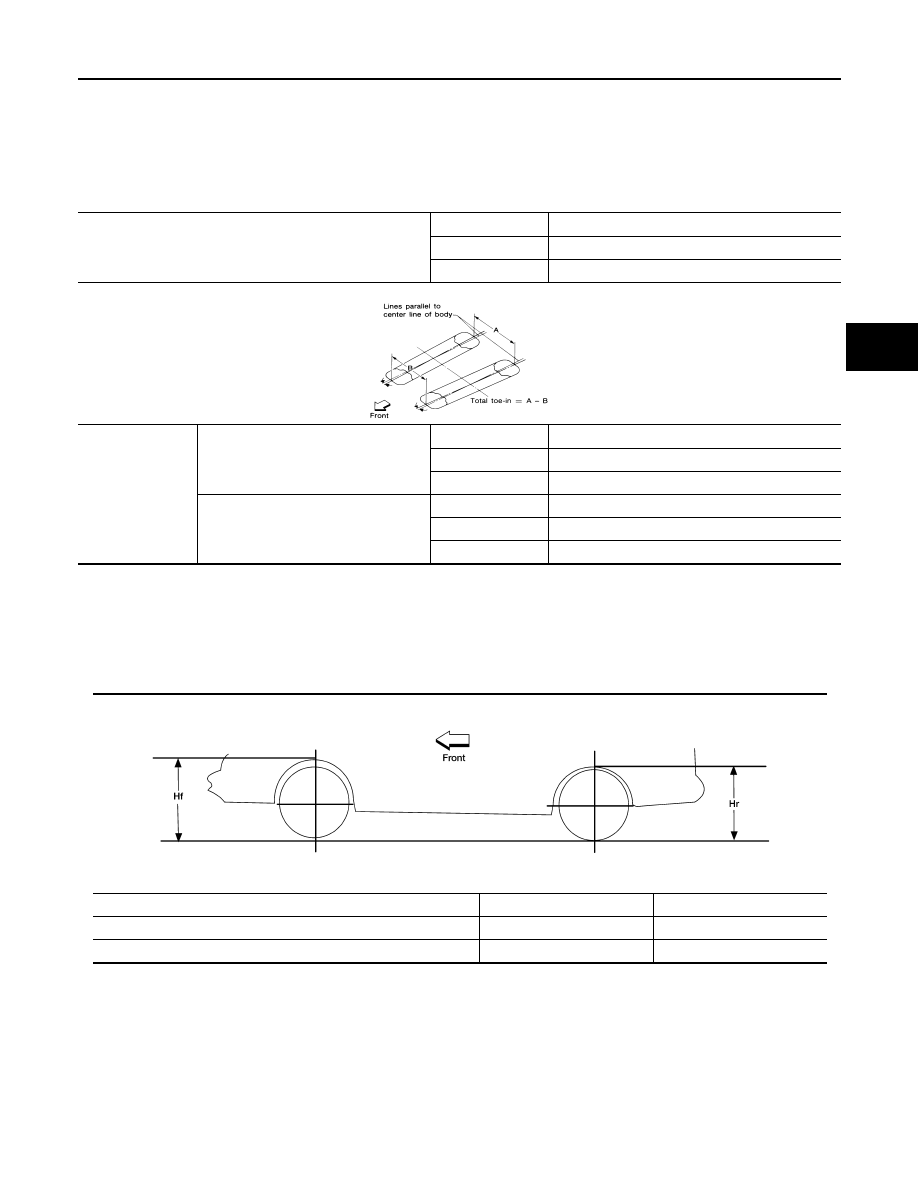

Wheel Alignment (Unladen*

)

INFOID:0000000009499812

*1: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
*2: Since an adjustment mechanism is not included, the value of the left and right wheels must be used as the standard value.

Wheelarch Height (Unladen*)

INFOID:0000000009499813

Unit: mm (in)

*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

Camber
Degree minute (Decimal degree)

Minimum

−1° 55′ (−1.92°)

Nominal

−1° 25′ (−1.42°)

Maximum

−0° 55′ (−0.92°)

Total toe-in
