POWER SUPPLY ROUTING CIRCUIT

PG-15

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AAMIA1770GB

PG-16

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY ROUTING CIRCUIT

AAMIA1771GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-17

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

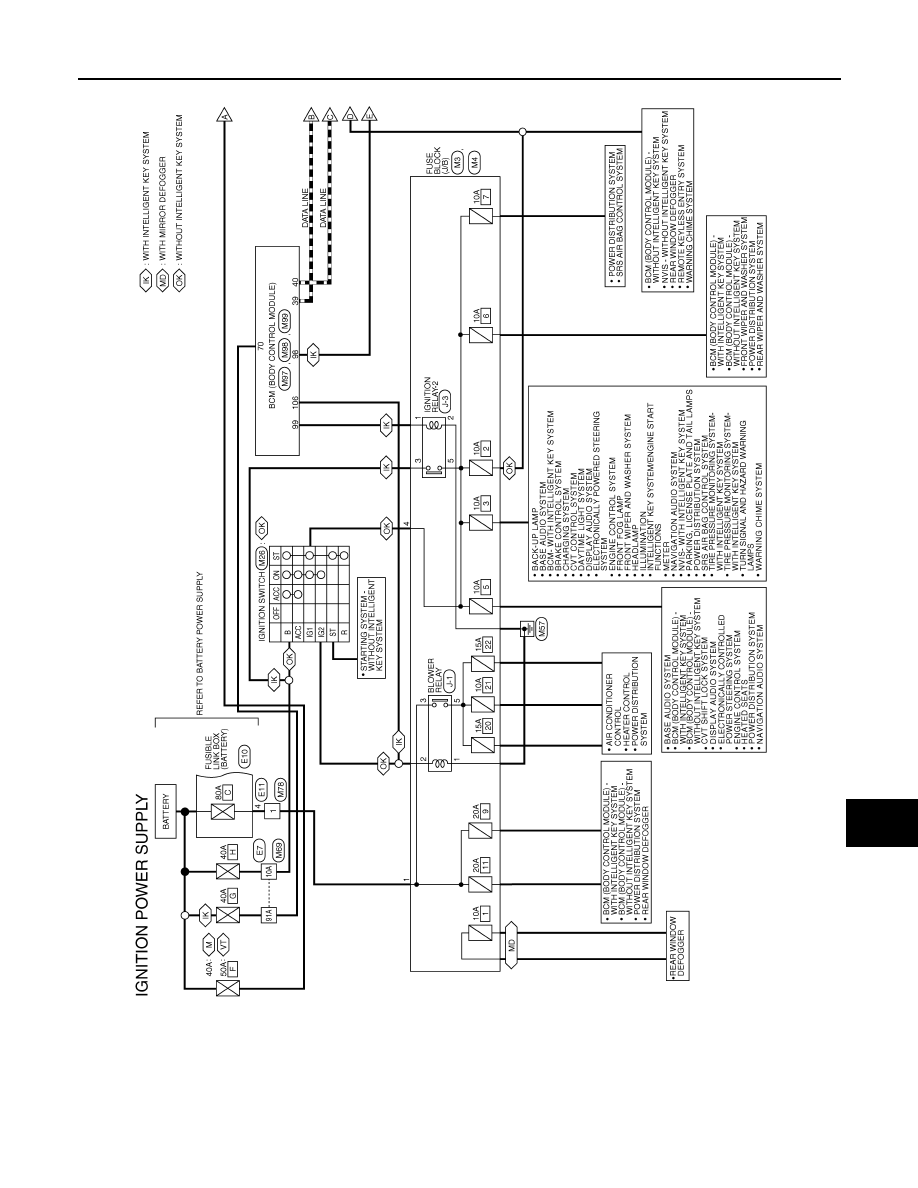

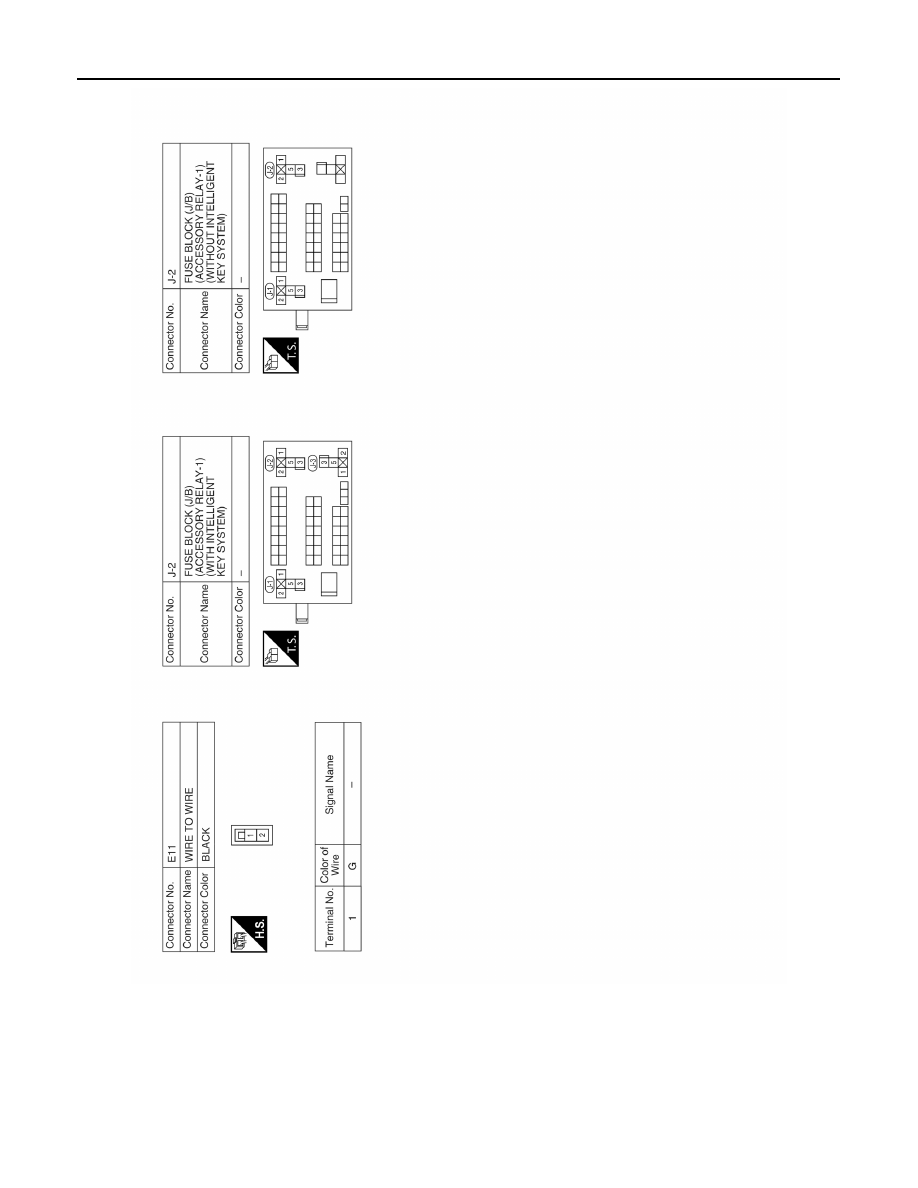

Wiring Diagram —Ignition Power Supply —

INFOID:0000000009723965

AAMWA0819GB

PG-18

< DTC/CIRCUIT DIAGNOSIS >

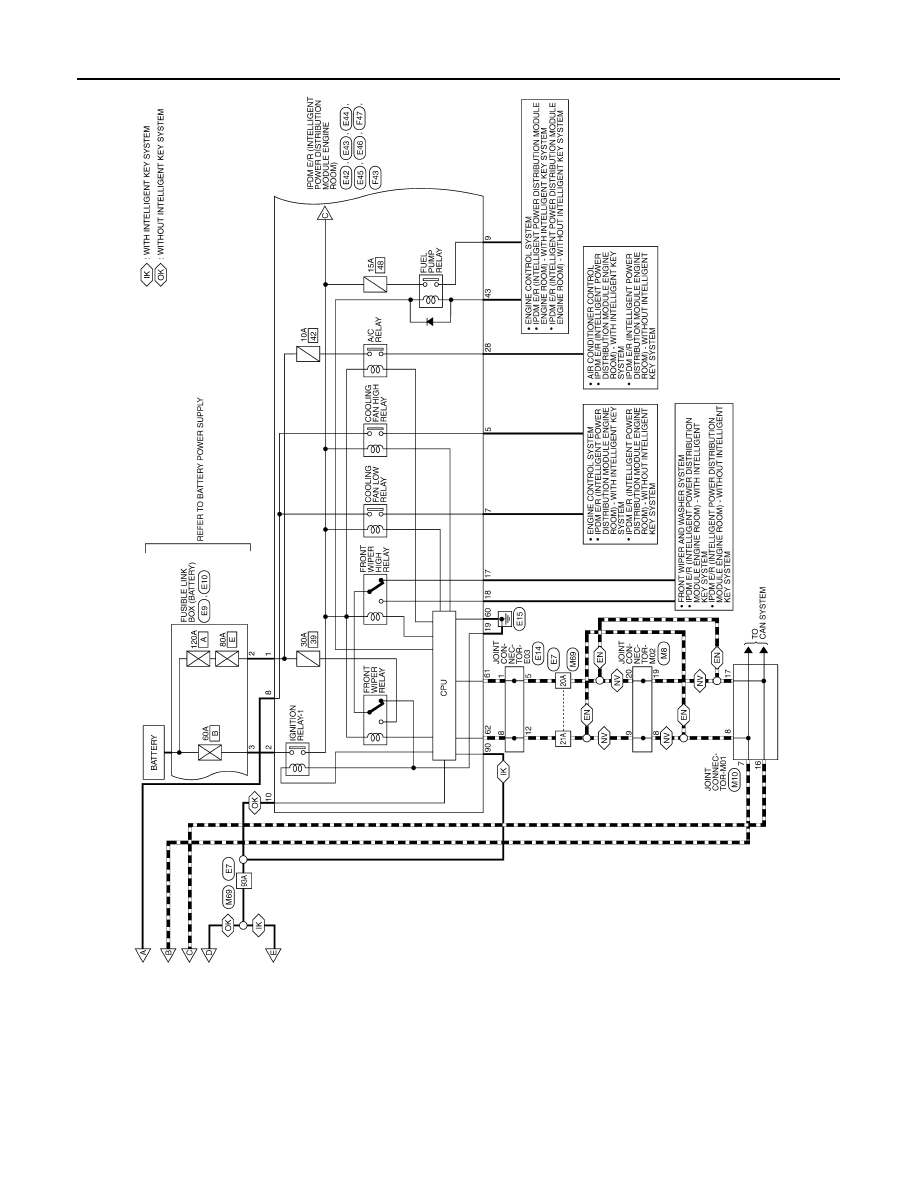

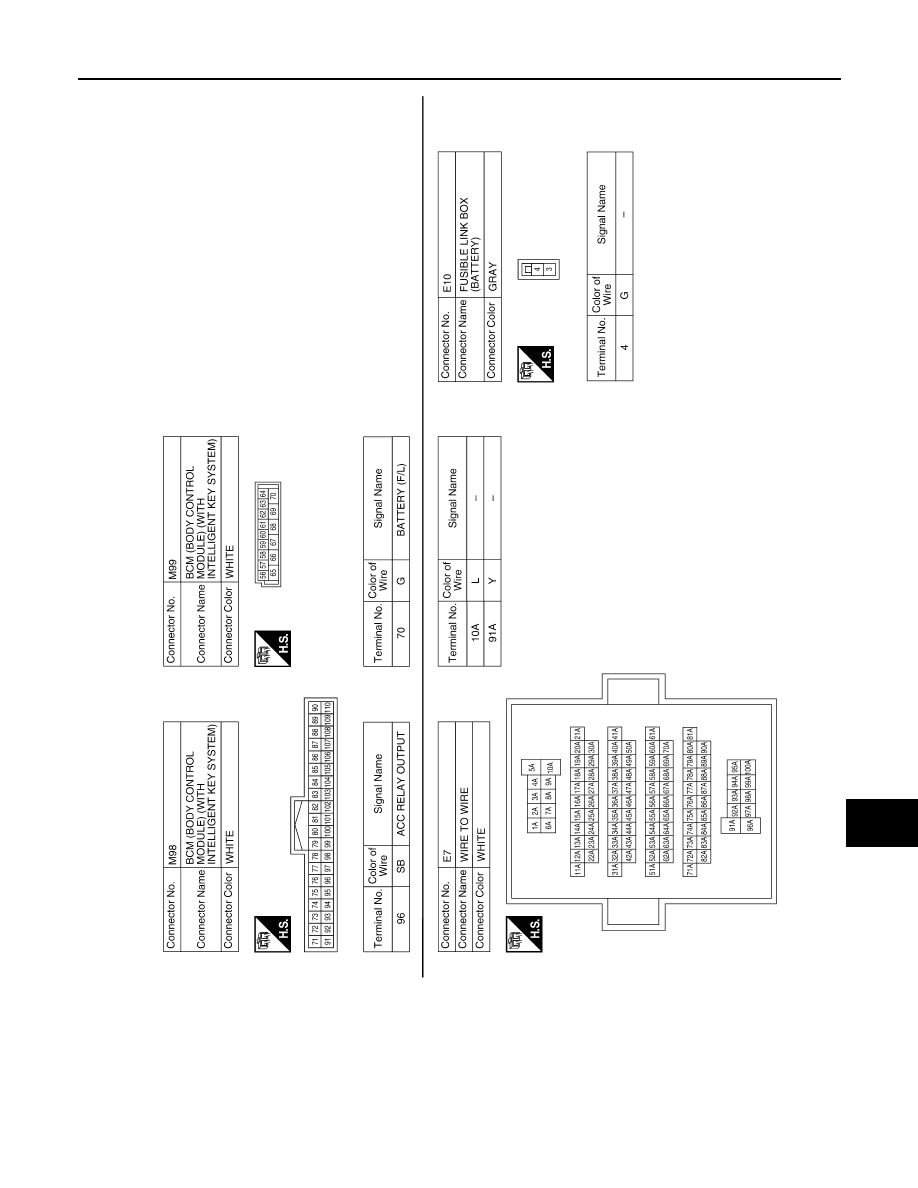

POWER SUPPLY ROUTING CIRCUIT

AAMWA0820GB
