Nissan Versa Note. Manual - part 609

PCS-46

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R (WITHOUT I-KEY)]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

7

P

Cooling fan power supply
(LOW)

Output

ON

or

START

Cooling fan OFF

0V

Cooling fan LO

Battery voltage

Cooling fan MID

4 – 8 V

Cooling fan HI

Battery voltage

8

G

Battery power supply

Input

OFF

—

Battery voltage

9

BR

Fuel pump power supply

Output

ON

RUN

Approximately 1 second after
turning the ignition switch ON

6 – 16 V

ON

Approximately 1 second after
turning the ignition switch ON

0 - 1 V

10

L

Ignition switch power
supply (ON or START)

Input

OFF

0V

ON

or

START

Battery voltage

11

G

ECM relay power supply

Output

OFF

More than a few seconds after
turning ignition switch OFF

0 – 1 V

ON

OFF

For a few seconds after turning
ignition switch OFF

6 – 16 V

13

1

LG

Starter relay coil power
supply

Input

ON

Clutch released

0 – 1 V

Clutch depressed

Battery voltage

14

L

Headlamp LOW (LH)
power supply

Output

Lighting switch OFF

0 – 1 V

Lighting switch 2ND

Battery voltage

16

P

Headlamp LOW (RH)
power supply

Output

Lighting switch OFF

0 – 1 V

Lighting switch 2ND

Battery voltage

17

LG

Front wiper motor LOW
power supply

Output

ON

Front wiper switch OFF

0 – 1 V

Front wiper switch LO

Battery voltage

18

GR

Front wiper motor HIGH
power supply

Output

ON

Front wiper switch OFF

0 – 1 V

Front wiper switch HI

Battery voltage

19

B

Ground

—

—

—

—

20

BR

ABS actuator and electric
unit (control unit) power
supply

Output

OFF

—

0V

ON

or

START

—

Battery voltage

21

1

G

Clutch interlock switch
power supply

Output

OFF

or

ACC

0 – 1 V

ON

6 – 16 V

21

2

R

Transmission range
switch power supply

Output

OFF

or

ACC

0 – 1 V

ON

6 – 16 V

22

P

Illumination power supply Output

Lighting switch OFF

0 – 1 V

Lighting switch 1ST

Battery voltage

23

R

Combination lamp power
supply

Output

Lighting switch OFF

0 – 1 V

Lighting switch 1ST

Battery voltage

24

W

Daytime light relay 1
power supply

Output

Lighting switch OFF

0 – 1 V

Lighting switch 1ST

Battery voltage

Terminal

Wire

color

Circuit

Input/

Output

Ignition

switch

Condition

Value

PCS

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-47

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R (WITHOUT I-KEY)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

25

G

Headlamp HIGH (LH)
power supply

Output

Lighting switch other than HI
and PASS

0 – 1 V

Lighting switch HI
Lighting switch PASS

Battery voltage

27

Y

Headlamp HIGH (RH)
power supply

Output

Lighting switch other than HI
and PASS

0 – 1 V

Lighting switch HI
Lighting switch PASS

Battery voltage

28

V

A/C compressor power
supply

Output

RUN

A/C switch OFF

0 – 1 V

A/C switch ON
(A/C compressor is operating)

Battery voltage

29

L/W

Throttle control motor re-
lay power supply

Output

OFF

More than a few seconds after
turning ignition switch OFF

0 – 1 V

ON

OFF

For a few seconds after turning
ignition switch OFF

6 – 16 V

32

G/W

Throttle control motor re-
lay control

Output

ON

→

OFF

0 – 1 V

↓

Battery voltage

↓

0 – 1 V

ON

0 – 1 V

34

Y

Ignition coil power supply

Output

OFF

or

ACC

0 – 1 V

ON

6 – 16 V

35

BR

NATS antenna amp pow-
er supply

Output

OFF

6 – 16 V

36

SB

Fuel injector power sup-
ply

Output

OFF

or

ACC

0 – 1 V

ON

6 – 16 V

39

L

Timing control solenoid
valve power
supply

Output

OFF

More than a few seconds after
turning ignition switch OFF

0 – 1 V

ON

OFF

For a few seconds after turning
ignition switch OFF

6 – 16 V

40

2

BR

Starter relay coil power
supply

Input

ON

Select lever in any position oth-
er than P or N

0 – 1 V

Select lever P or N

Battery voltage

43

GR

Fuel pump relay control

Output

ON

RUN

Approximately 1 second after
turning the ignition switch ON

0 – 1 V

 ON

Approximately 1 second or
more after turning the ignition
switch

6 – 16 V

47

R/W

ECM power supply

Output

OFF

More than a few seconds after
turning ignition switch OFF

0 – 1 V

ON

OFF

For a few seconds after turning
ignition switch OFF

6 – 16 V

Terminal

Wire

color

Circuit

Input/

Output

Ignition

switch

Condition

Value

PCS-48

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R (WITHOUT I-KEY)]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

1

: With M/T

2

: With CVT

Fail-Safe

INFOID:0000000009578980

CAN COMMUNICATION CONTROL

When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN

communication recovers normally, it also returns to normal control.

If No CAN Communication Is Available With ECM

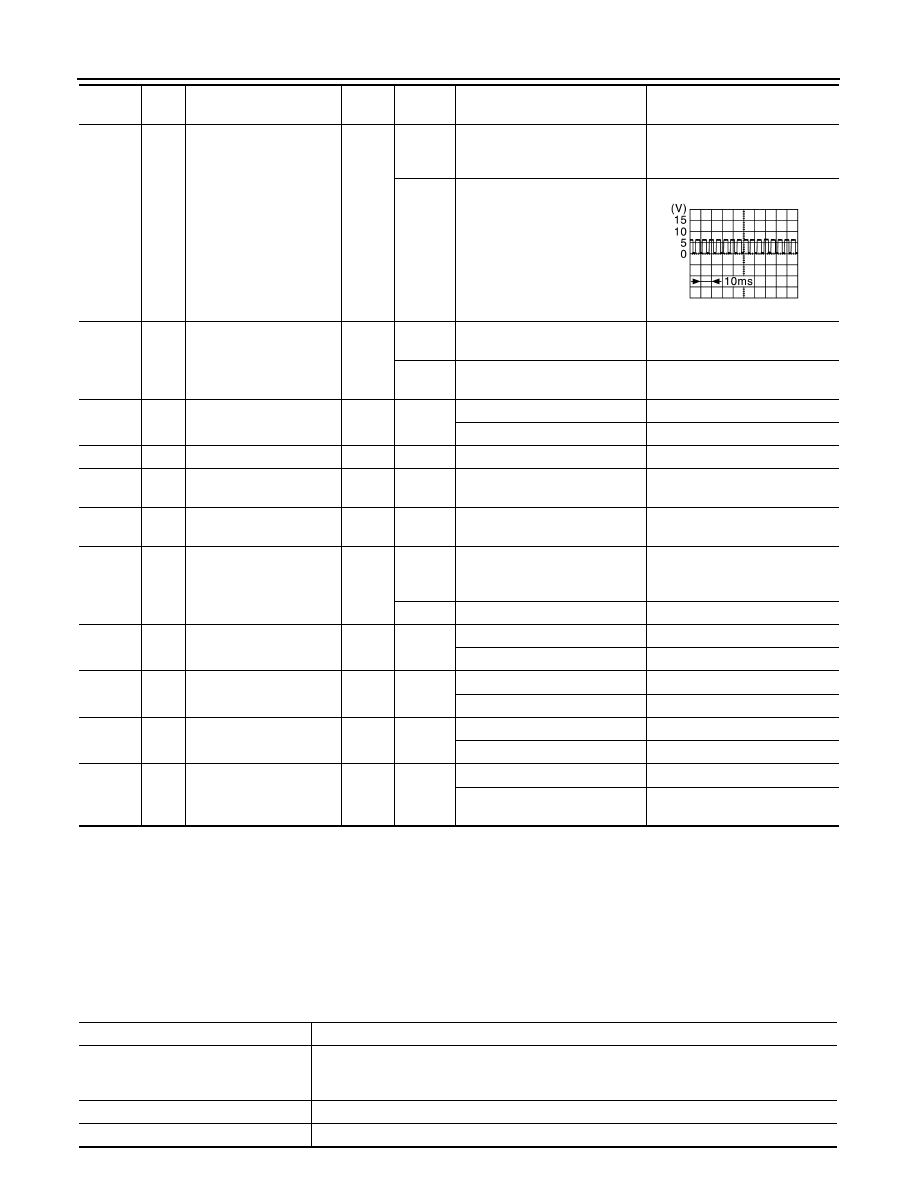

48

O

Generator C

Output

OFF

or

ACC

0 – 1 V

ON

50

P

ECM relay control

Output

OFF

More than a few seconds after
turning ignition switch OFF

0 – 1 V

ON

OFF

For a few seconds after turning
ignition switch OFF

6 – 16 V

59

Y

Cooling fan relay control

Output

Cooling fan OFF or LO operated

Battery voltage

Cooling fan MID or HI operated

0 – 1 V

60

B

Ground

—

—

—

—

61

P

CAN-L

Input/

Output

—

—

—

62

L

CAN-H

Input/

Output

—

—

—

65

BR

Cooling fan relay power
supply

Output

OFF

or

ACC

0 – 1 V

ON

Battery voltage

69

GR

Daytime light relay 1 con-
trol

Output

Battery voltage

0 – 1 V

71

W

Front fog lamp relay con-
trol

Output

Front fog lamp switch OFF

Battery voltage

Front fog lamp switch ON

0 – 1 V

73

SB

Horn relay control

Output

Horn is not activated

Battery voltage

Horn is activated

0 – 1 V

74

V

Front wiper motor stop
position

Input

ON

Front wiper stop position

0 – 1 V

Any position other than front
wiper stop position

Battery voltage

Terminal

Wire

color

Circuit

Input/

Output

Ignition

switch

Condition

Value

JMMIA0842GB

Control part

Fail-safe operation

Cooling fan

• The cooling fan relay turn ON when the ignition switch is turned ON (Cooling fan HI oper-

ation)

• The cooling fan relay turn OFF when the ignition switch is turned OFF

A/C compressor

A/C relay OFF

Generator

Outputs the power generation command signal (PWM signal) 0%

PCS

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-49

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R (WITHOUT I-KEY)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

If No CAN Communication Is Available With BCM

IGNITION RELAY MALFUNCTION DETECTION FUNCTION

• IPDM E/R monitors the voltage at the contact circuit of the ignition relay inside and ignition switch status

from BCM via CAN communication.

• IPDM E/R judges the ignition relay error if the voltage differs between the contact circuit and the ignition

switch status from BCM via CAN communication.

• If the ignition relay cannot turn OFF due to contact seizure, it activates the tail lamp relay for 10 minutes to

alert the user to the ignition relay malfunction when the ignition switch is turned OFF.

FRONT WIPER PROTECTION FUNCTION

IPDM E/R detects front wiper stop position by a front wiper stop position signal.

When a front wiper stop position signal is in the conditions listed below, IPDM E/R stops power supply to wiper

after repeating a front wiper 10 seconds activation and 20 seconds stop.

NOTE:

This operation status can be confirmed on the IPDM E/R “Data Monitor” that displays “BLOCK” for the item

“WIP PROT” while the wiper is stopped.

DTC Index

INFOID:0000000009578981

NOTE:

• The details of time display are as follows.

- CRNT: A malfunction is detected now.

- PAST: A malfunction was detected in the past.

• IGN counter is displayed on FFD (Freeze Frame data).

- The number is 0 when is detected now.

Control part

Fail-safe operation

Headlamp

• Turns ON the headlamp low relay when the ignition switch is turned ON
• Turns OFF the headlamp low relay when the ignition switch is turned OFF
• Headlamp high relay OFF

• Parking lamp
• License plate lamp
• Illumination
• Tail  lamp

• Turns ON the tail lamp relay when the ignition switch is turned ON
• Turns OFF the tail lamp relay when the ignition switch is turned OFF

Front wiper motor

• The status just before activation of fail-safe control is maintained until the ignition switch is

turned OFF while the front wiper is operating at LO or HI speed.

• The wiper is operated at LO speed until the ignition switch is turned OFF if the fail-safe

control is activated while the front wiper is set in the INT mode and the front wiper motor
is operating.

• Returns automatically wiper to stop position when ignition switch is turned ON if fail-safe

control is activated while front wiper motor is operated and wiper stop in the other position
than stop position.

Front fog lamp

Front fog lamp relay OFF

Horn

Horn OFF

Voltage judgment

IPDM E/R judgment

Operation

Ignition relay contact

side

Ignition switch status

from BCM

ON

ON

Ignition relay ON normal

—

OFF

OFF

Ignition relay OFF normal

—

ON

OFF

Ignition relay ON stuck

• Detects DTC “B2098: IGN RELAY ON”
• Turns ON the tail lamp relay for 10 minutes

OFF

ON

Ignition relay OFF stuck

Detects DTC “B2099: IGN RELAY OFF”

Ignition switch

Front wiper switch

Front wiper stop position signal

ON

OFF

The front wiper stop position signal (stop position) cannot be input for 10 seconds.

ON

The front wiper stop position signal does not change for 10 seconds.
