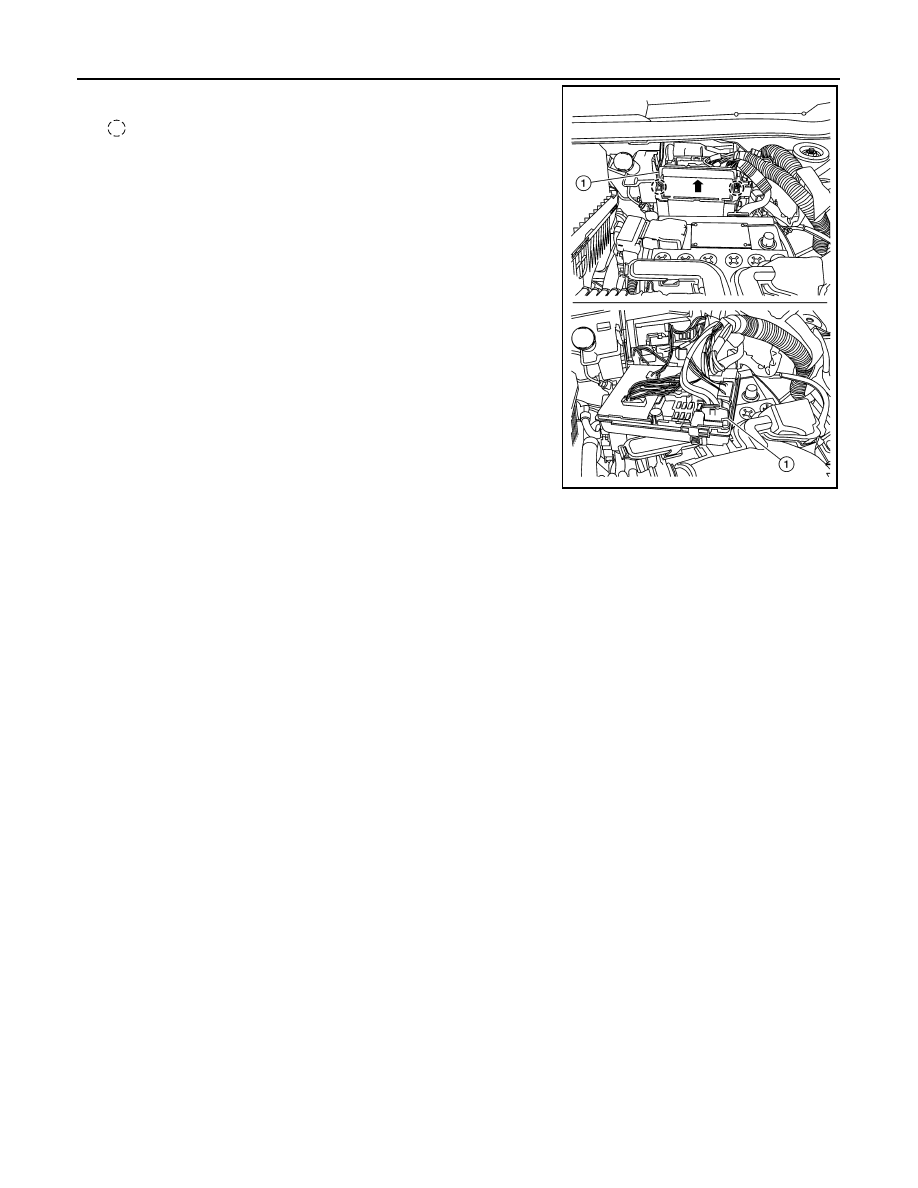

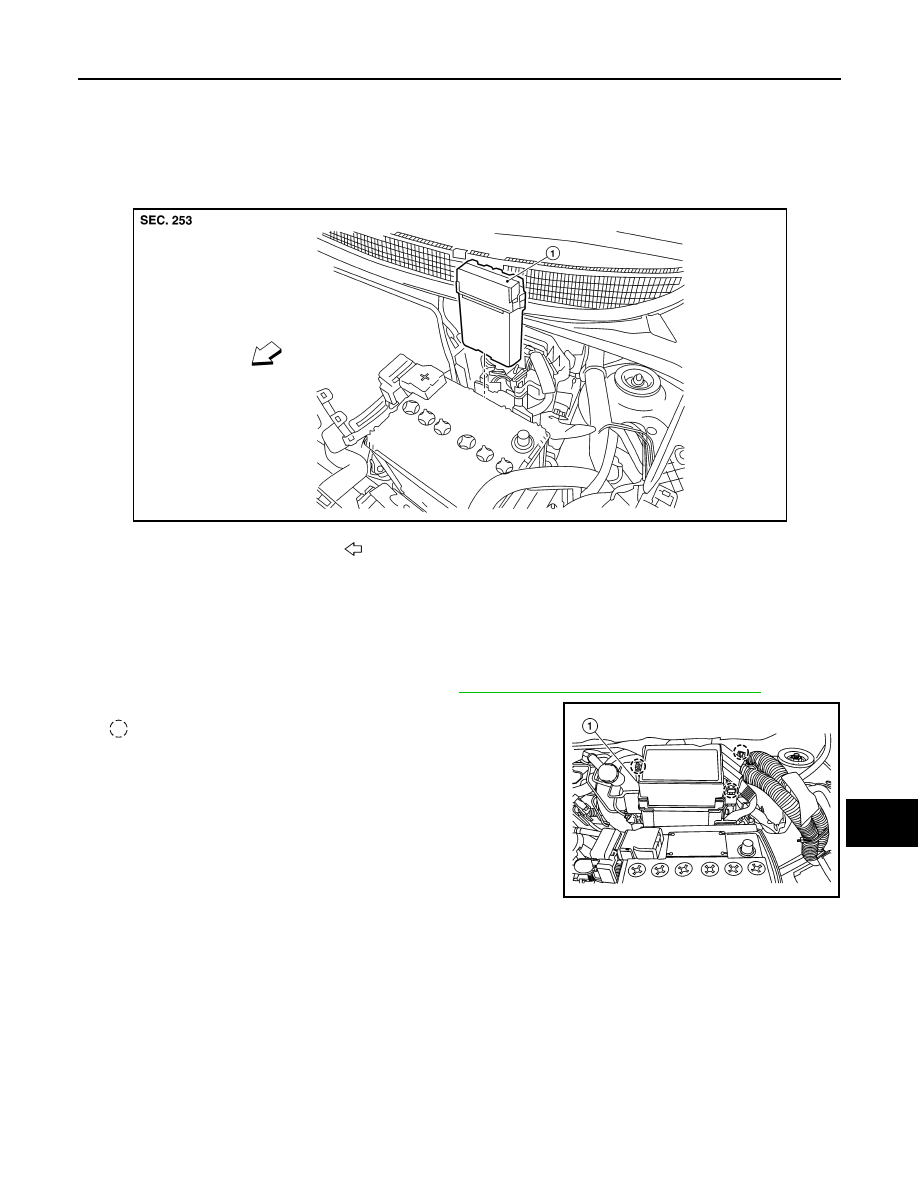

PCS-30 < DTC/CIRCUIT DIAGNOSIS > [IPDM E/R (WITH I-KEY)] POWER SUPPLY AND GROUND CIRCUIT POWER SUPPLY AND GROUND CIRCUIT Diagnosis Procedure INFOID:0000000009578969 Regarding Wiring Diagram information, refer to . 1. CHECK FUSE AND FUSIBLE LINKS Check that the following IPDM E/R fuse or fusible links are not blown. Is the fuse blown? YES >> Replace the blown fuse or fusible link after repairing the affected circuit. NO >> GO TO 2. 2. CHECK BATTERY POWER SUPPLY CIRCUIT 1. Disconnect IPDM E/R connector E42. 2. Check voltage between IPDM E/R connector E42 and ground. Is the inspection result normal? YES >> GO TO 3. NO >> Repair or replace harness or connectors. 3. CHECK GROUND CIRCUIT 1. Disconnect IPDM E/R connectors E45 and E46. 2. Check continuity between IPDM E/R connectors and ground. Is the inspection result normal? YES >> Inspection End. NO >> Repair or replace harness or connectors. Terminal No. Signal name Fuse and fusible link Nos. 1 Battery power supply A (120A), E (80A) 2 B (60A) IPDM E/R Ground Voltage (Approx.) Connector Terminal E42 1 — Battery voltage 2 IPDM E/R Ground Continuity Connector Terminal E45 19 Yes E46 60 89 |
