PCS-14

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R (WITH I-KEY)]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

ECU DIAGNOSIS INFORMATION

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

Reference Value

INFOID:0000000009578956

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

MOTOR FAN REQ

Engine idle speed

Changes depending on engine cool-
ant temperature, air conditioner op-
eration status, vehicle speed, etc.

1/2/3/4

AC COMP REQ

Engine running

A/C switch OFF

Off

A/C switch ON
(Compressor is operating)

On

TAIL&CLR REQ

Lighting switch OFF

Off

Lighting switch 1ST or 2ND

On

HL LO REQ

Lighting switch OFF

Off

Lighting switch 2ND

On

HL HI REQ

Lighting switch 2ND

Lighting switch other than HI and
PASS

Off

Lighting switch HI or PASS

On

FR FOG REQ

Lighting switch 2ND

Front fog lamp switch OFF

Off

Front fog lamp switch ON

On

FR WIP REQ

Ignition switch ON

Front wiper switch OFF

Stop

Front wiper switch INT

1LOW

Front wiper switch LO

Low

Front wiper switch HI

Hi

WIP AUTO STOP

Ignition switch ON

Front wiper stop position

STOP P

Any position other than front wiper
stop position

ACT P

WIP PROT

Ignition switch ON

Front wiper operates normally.

Off

Front wiper stops at fail-safe opera-
tion.

BLOCK

IGN RLY1 -REQ

Ignition switch OFF or ACC

Off

Ignition switch ON

On

IGN RLY

Ignition switch OFF or ACC

Off

Ignition switch ON

On

PUSH SW

Release the push-button ignition switch

Off

Press the push-button ignition switch

On

INTER/NP SW

Ignition switch ON

Selector lever in any position other
than P or N (CVT models)

Off

Release clutch pedal (M/T models)

Selector lever in P or N position
(CVT models)

On

Depress clutch pedal (M/T models)

ST RLY CONT

Ignition switch ON

Off

At engine cranking

On

PCS

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-15

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R (WITH I-KEY)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

IHBT RLY -REQ

Ignition switch ON

Off

At engine cranking

On

ST/INHI RLY

Ignition switch ON

Off

At engine cranking

INHI ON

→ ST ON

The status of starter relay or starter control relay cannot be recognized by
the battery voltage malfunction, etc. when the starter relay is ON and the
starter control relay is OFF.

UNKWN

DETENT SW

Ignition switch ON

• Press the selector button with se-

lector lever in P position.

• Selector lever in any position oth-

er than P.

Off

Release the selector button with selector lever in P position.

On

DTRL REQ

Daytime running lamps OFF

Off

Daytime running lamps ON

On

THFT HRN REQ

Not operation

Off

• Panic alarm is activated
• Theft warning alarm is activated

On

HORN CHIRP

Not operated

Off

Door locking with key fob (horn chirp mode)

On

Monitor Item

Condition

Value/Status

PCS-16

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R (WITH I-KEY)]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

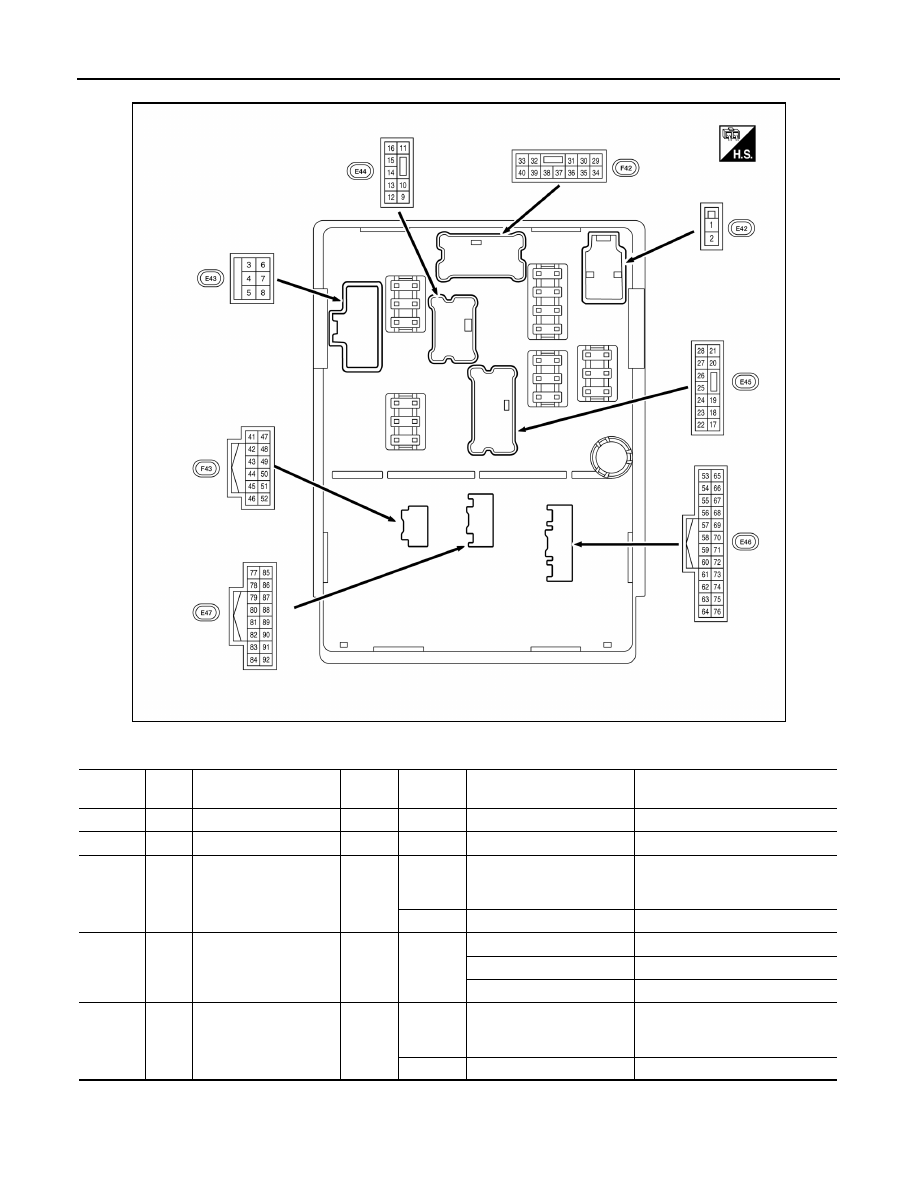

TERMINAL LAYOUT

PHYSICAL VALUES

ALMIA0600ZZ

Terminal

Wire

color

Circuit

Input/

Output

Ignition

switch

Condition

Value

1

R

Battery power supply

Input

OFF

—

Battery voltage

2

Y

Battery power supply

Input

OFF

—

Battery voltage

3

SB

Ignition switch power
supply (START)

Input

OFF

ACC

ON

—

0V

START

—

Battery voltage

5

Y

Cooling fan power sup-
ply (HIGH)

Output

ON

or

START

Cooling fan OFF

0V

Cooling fan LO

4 – 8 V

Cooling fan MID or HI

Battery voltage

6

R

Starter motor power
supply

Output

OFF

ACC

ON

—

0V

START

—

6 – 16 V

PCS

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-17

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R (WITH I-KEY)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

7

P

Cooling fan power sup-
ply (LOW)

Output

ON

or

START

Cooling fan OFF

0V

Cooling fan LO

Battery voltage

Cooling fan MID

4 – 8 V

Cooling fan HI

Battery voltage

8

G

Battery power supply

Input

OFF

—

Battery voltage

9

BR

Fuel pump power sup-
ply

Output

ON

RUN

Approximately 1 second af-
ter turning the ignition
switch ON

Battery voltage

ON

Approximately 1 second af-
ter turning the ignition
switch ON

0 - 1 V

11

G

ECM relay power supply

Output

OFF

More than a few seconds
after turning ignition switch
OFF

0 – 1 V

ON

OFF

For a few seconds after
turning ignition switch OFF

6 – 16 V

13

1

R

Starter relay coil power
supply

Input

ON

Clutch pedal depressed

0 – 1 V

Clutch pedal released

Battery voltage

14

L

Headlamp LOW (LH)
power supply

Output

Lighting switch OFF

0 – 1 V

Lighting switch 2ND

Battery voltage

15

LG

Starter relay coil power
supply

Input

0 – 1 V

Battery voltage

16

P

Headlamp LOW (RH)
power supply

Output

Lighting switch OFF

0 – 1 V

Lighting switch 2ND

Battery voltage

17

LG

Front wiper motor LOW
power supply

Output

ON

Front wiper switch OFF

0 – 1 V

Front wiper switch LO

Battery voltage

18

GR

Front wiper motor HIGH
power supply

Output

ON

Front wiper switch OFF

0 – 1 V

Front wiper switch HI

Battery voltage

19

B

Ground

—

—

—

—

20

BR

ABS actuator and elec-
tric unit (control unit)
power supply

Output

OFF

—

0V

ON

or

START

—

Battery voltage

21

R

Transmission range
switch power supply

Output

OFF

or

ACC

0 – 1 V

ON

Battery voltage

22

P

Illumination power sup-
ply

Output

Lighting switch OFF

0 – 1 V

Lighting switch 1ST

Battery voltage

23

R

Combination lamp pow-
er supply

Output

Lighting switch OFF

0 – 1 V

Lighting switch 1ST

Battery voltage

24

W

Daytime light relay 1
power supply

Output

Lighting switch OFF

0 – 1 V

Lighting switch 1ST

Battery voltage

25

G

Headlamp HIGH (LH)
power supply

Output

Lighting switch other than
HI and PASS

0 – 1 V

Lighting switch HI
Lighting switch PASS

Battery voltage

Terminal

Wire

color

Circuit

Input/

Output

Ignition

switch

Condition

Value
