INSIDE MIRROR

REMOVAL AND INSTALLATION

INSIDE MIRROR

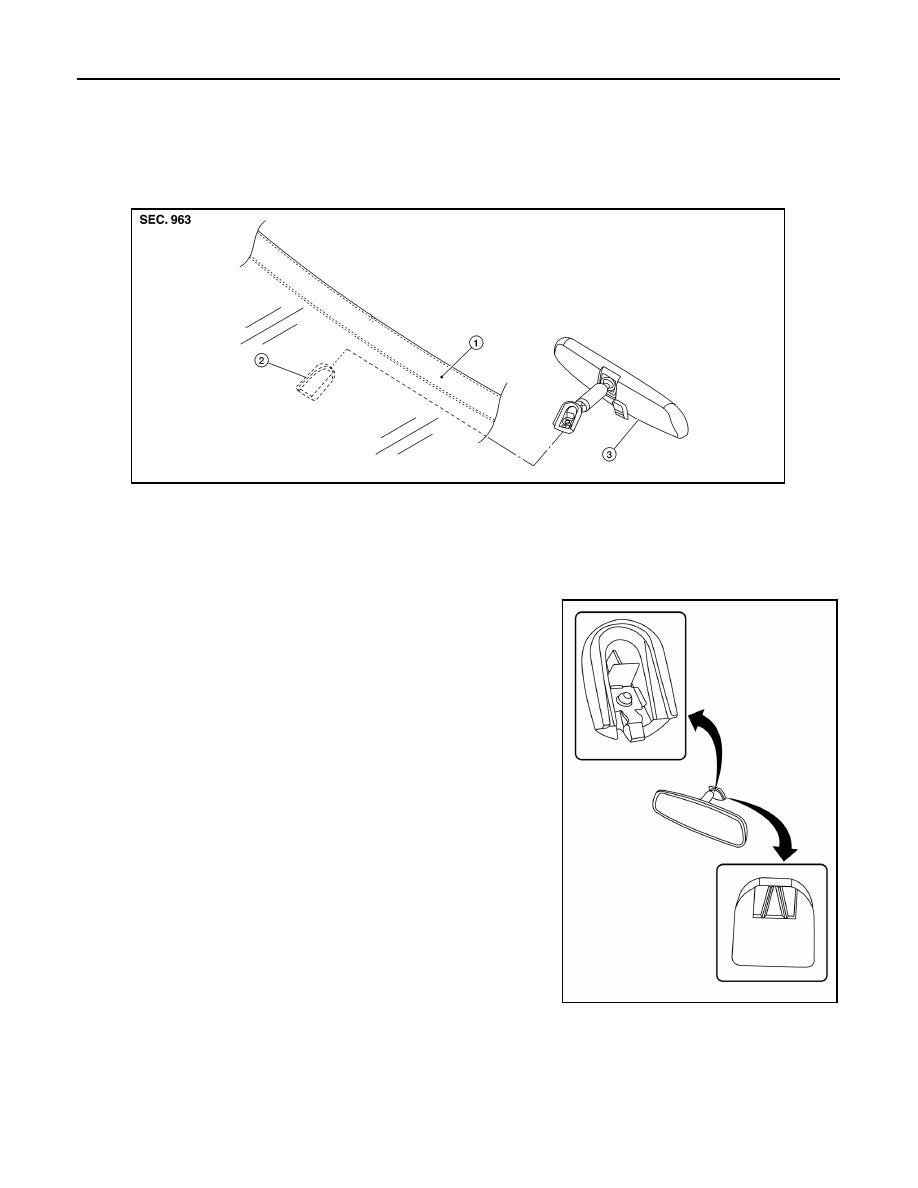

Exploded View

INFOID:0000000008968541

Removal and Installation

INFOID:0000000008968542

REMOVAL

1. Hold the inside mirror at the base and push upward, while using

a suitable tool to release the retainer and remove the inside mir-

ror.

CAUTION:

Use care when removing inside mirror to avoid damaging.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When installing the inside mirror, check that the retainer is secure on the mirror base.

1.

Windshield glass

2.

Mirror base

3.

Inside mirror

AWLIA2177ZZ

ALLIA1034ZZ

DOOR MIRROR

MIR-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR

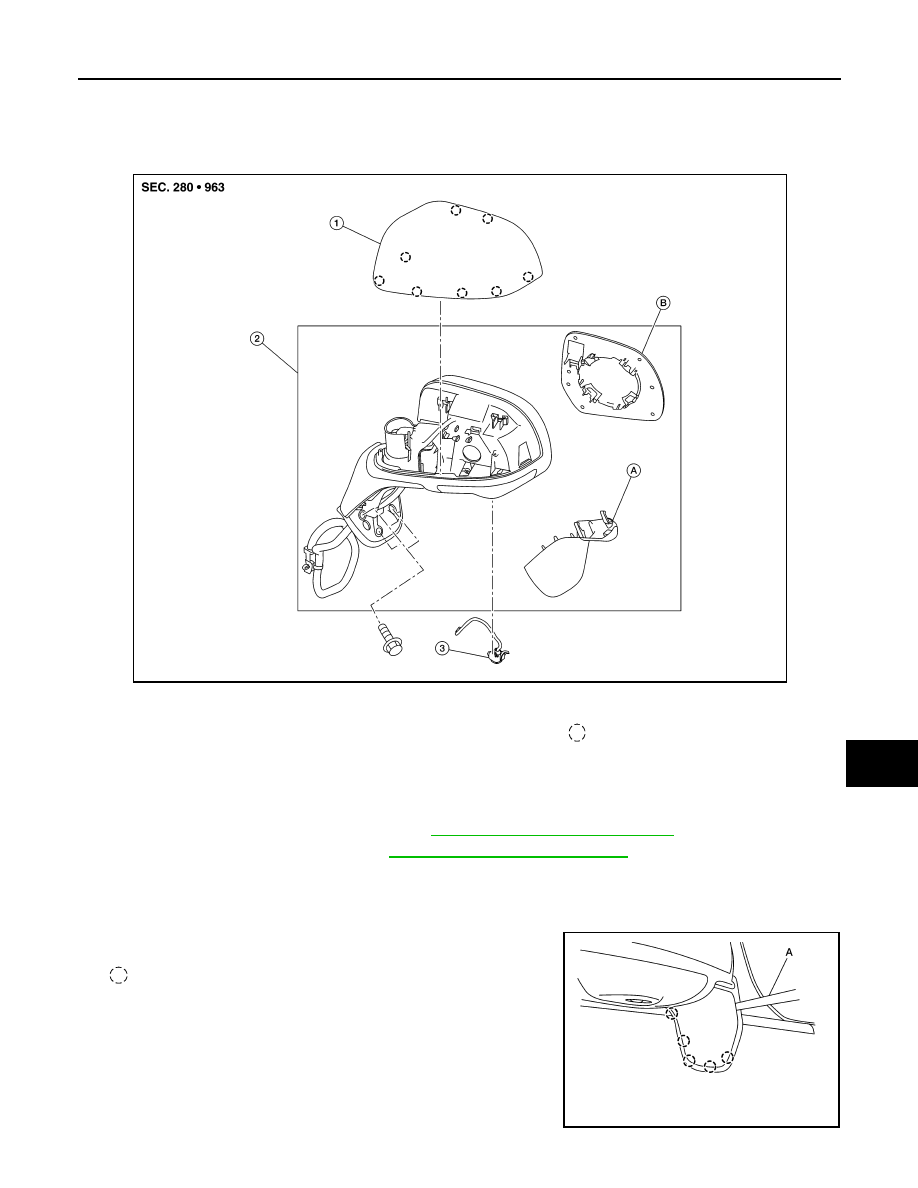

Exploded View

INFOID:0000000008968543

Removal and Installation

INFOID:0000000008968544

REMOVAL

1. Remove the door mirror rear finisher. Refer to

MIR-17, "Removal and Installation"

.

2. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

3. Release door mirror harness connector clip from inside door and disconnect harness connector.
4. Partially remove the vapor barrier.
5. Remove door mirror inner bolt.
6. Release door mirror base finisher pawls using a suitable tool (A)

and remove.

: Pawl

1.

Door mirror rear finisher

2.

Door mirror

3.

Side camera (if equipped)

A.

Door mirror base finisher

B.

Door mirror glass

Pawl

AWLIA2160ZZ

AWLIA2183ZZ

MIR-16

< REMOVAL AND INSTALLATION >

DOOR MIRROR

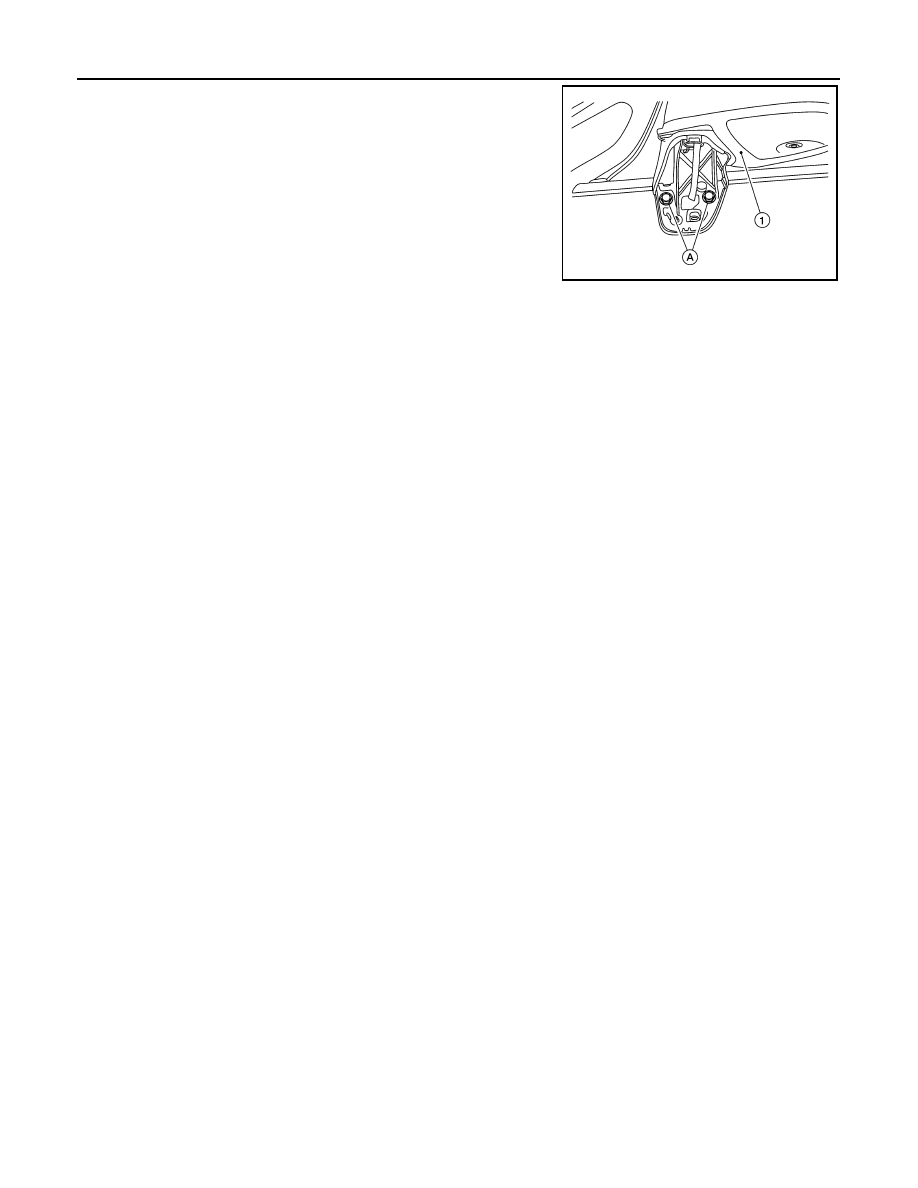

7. Remove the door mirror outer bolts (A) and the door mirror (1).

INSTALLATION

Installation is in the reverse order or removal.

CAUTION:

Visually check door mirror base cover pawls for deformation and damage during installation.

AWLIA2181ZZ
