PRECAUTIONS

LU-3

< PRECAUTION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

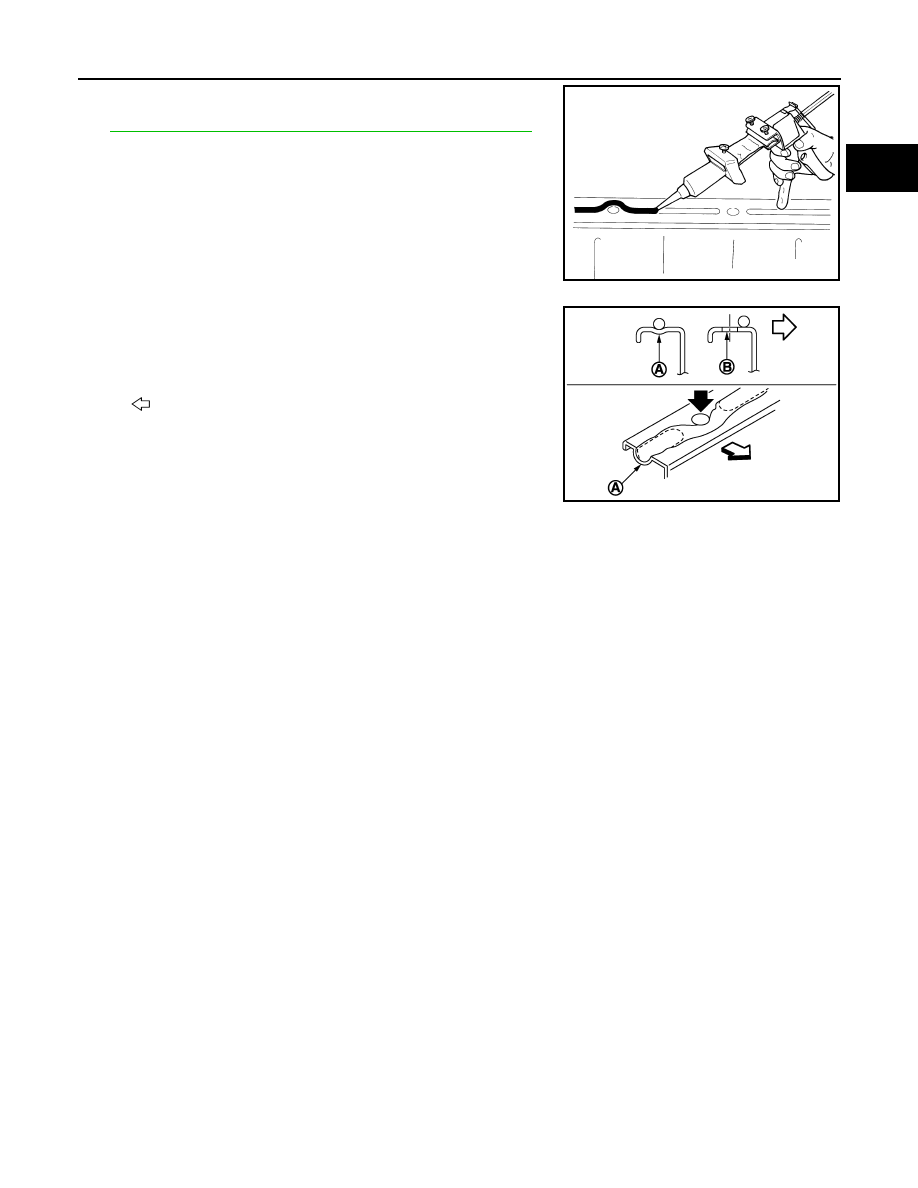

3. Attach liquid gasket tube to the suitable tool.

Use Genuine Silicone RTV Sealant, or equivalent. Refer to

GI-22, "Recommended Chemical Products and Sealants"

.

4. Apply liquid gasket without gaps to the specified location accord-

ing to the specified dimensions.

• If there is a groove for liquid gasket application, apply liquid

gasket to the groove.

• As for bolt holes (B), normally apply liquid gasket inside the

holes. Occasionally, it should be applied outside the holes.

Check to read the text of this manual.

• Within five minutes of liquid gasket application, install the mat-

ing component.

• If liquid gasket protrudes, wipe it off immediately.

• Do not retighten mounting bolts or nuts after the installation.

• After 30 minutes or more have passed from the installation, fill

engine oil and engine coolant.

CAUTION:

If there are specific instructions in the procedures contained in this manual concerning liquid gas-

ket application, observe them.

EMA0622D

(A)

: Groove

: Inside

JPBIA0010ZZ

LU-4

< PREPARATION >

[HR16DE]

PREPARATION

PREPARATION

PREPARATION

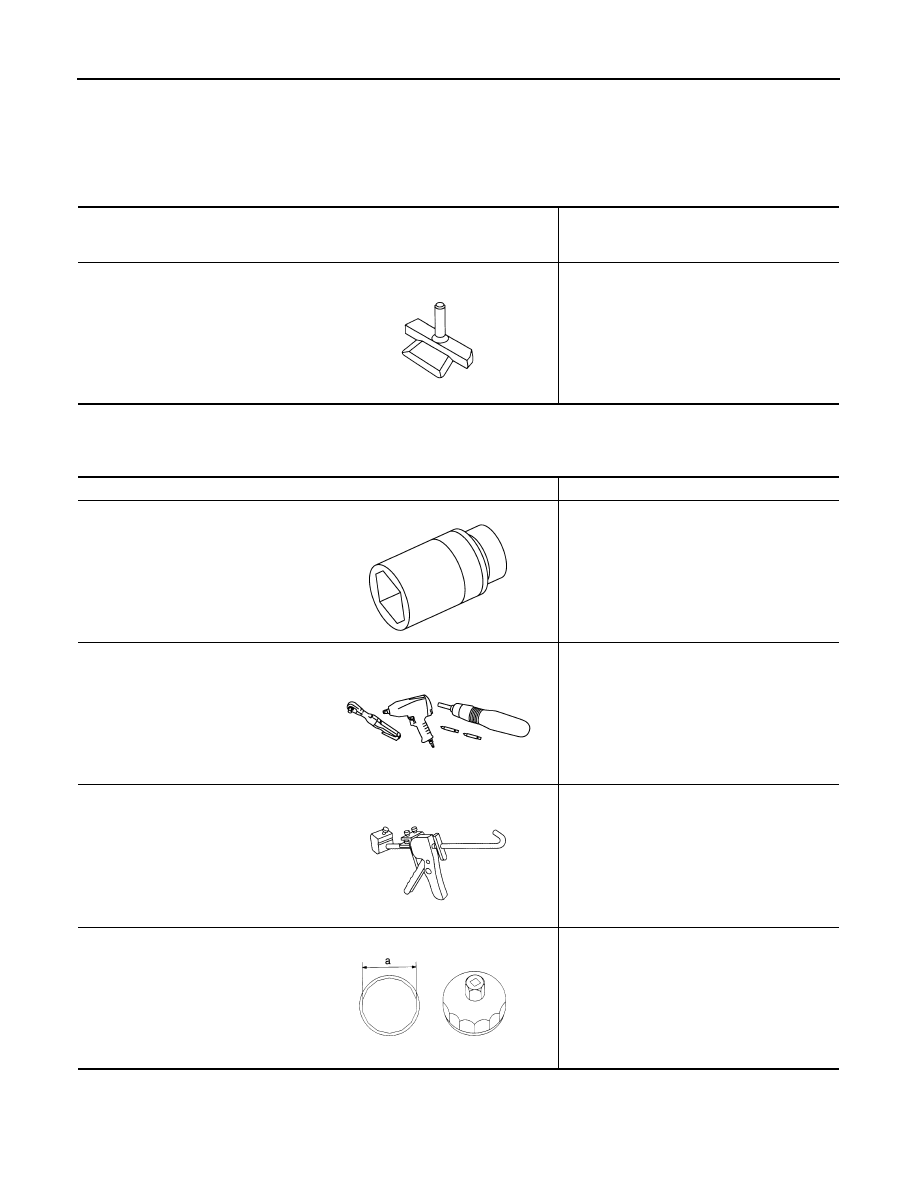

Special Service Tool

INFOID:0000000009643046

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000009444771

Tool number
(Kent-Moore No.)
Tool name

Description

KV10111100
(J-37228)
Seat cutter

Removing oil pan (lower) etc.

NT046

Tool name

Description

Deep socket

Removing and installing oil pressure sensor
27 mm (1.06 in)

Power tool

Loosening nuts, screws and bolts

Tube presser

Pressing the tube of liquid gasket

KV10115801
(J-38956)
Oil filter wrench

Removing oil filter
64.3 mm (2.531 in)

PBIC4066E

PIIB1407E

NT052

S-NT375

DESCRIPTION

LU-5

< SYSTEM DESCRIPTION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

SYSTEM DESCRIPTION

DESCRIPTION

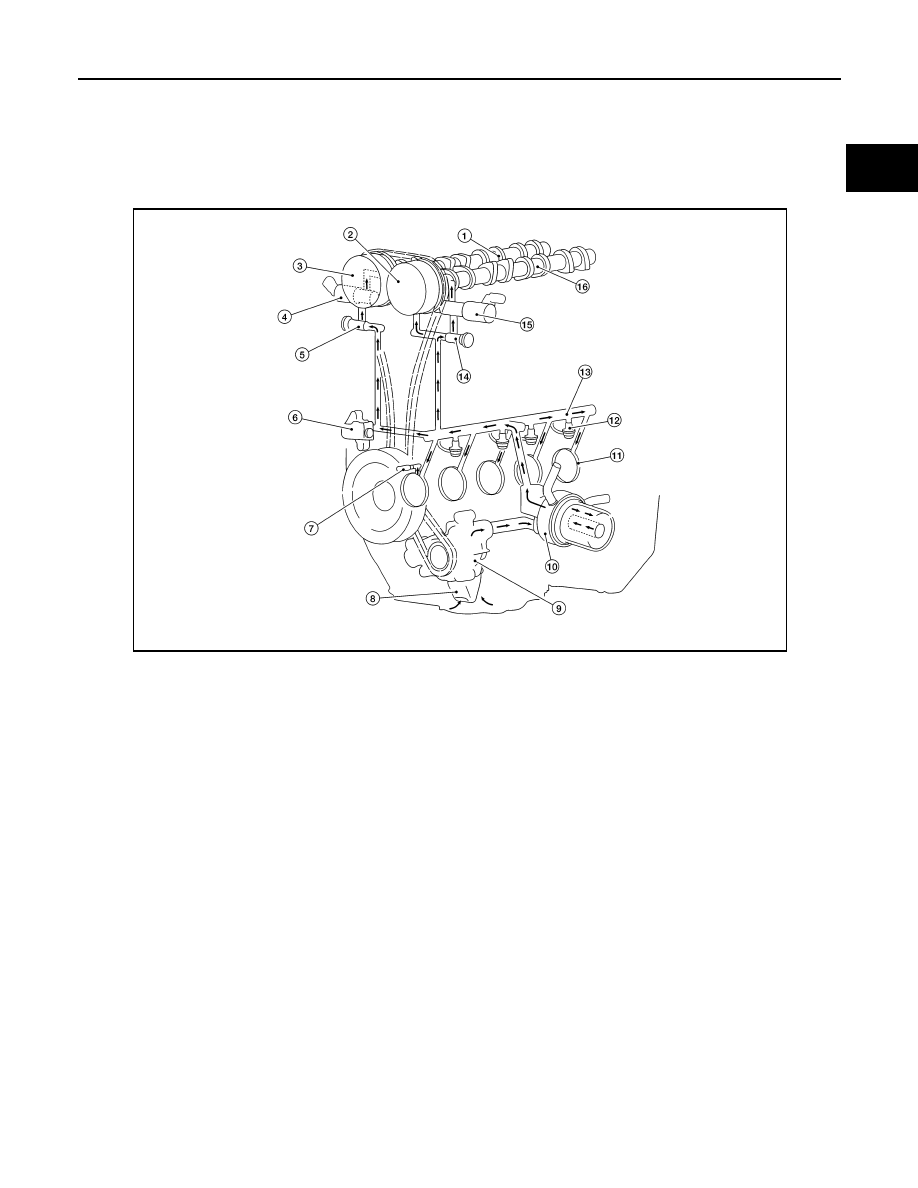

Engine Lubrication System

INFOID:0000000009444772

1.

Exhaust camshaft

2.

Intake valve timing controller

3.

Exhaust valve timing controller

4.

Exhaust valve timing control solenoid
valve

5.

Exhaust timing control oil filter

6.

Chain tensioner

7.

Chain oil jet

8.

Oil strainer

9.

Oil pump

10. Oil cooler

11. Oil filter

12. Main bearing

13. Piston oil jet

14. Intake valve timing control oil filter 15. Intake valve timing control solenoid

valve

16. Intake camshaft

ALBIA1142ZZ

LU-6

< SYSTEM DESCRIPTION >

[HR16DE]

DESCRIPTION

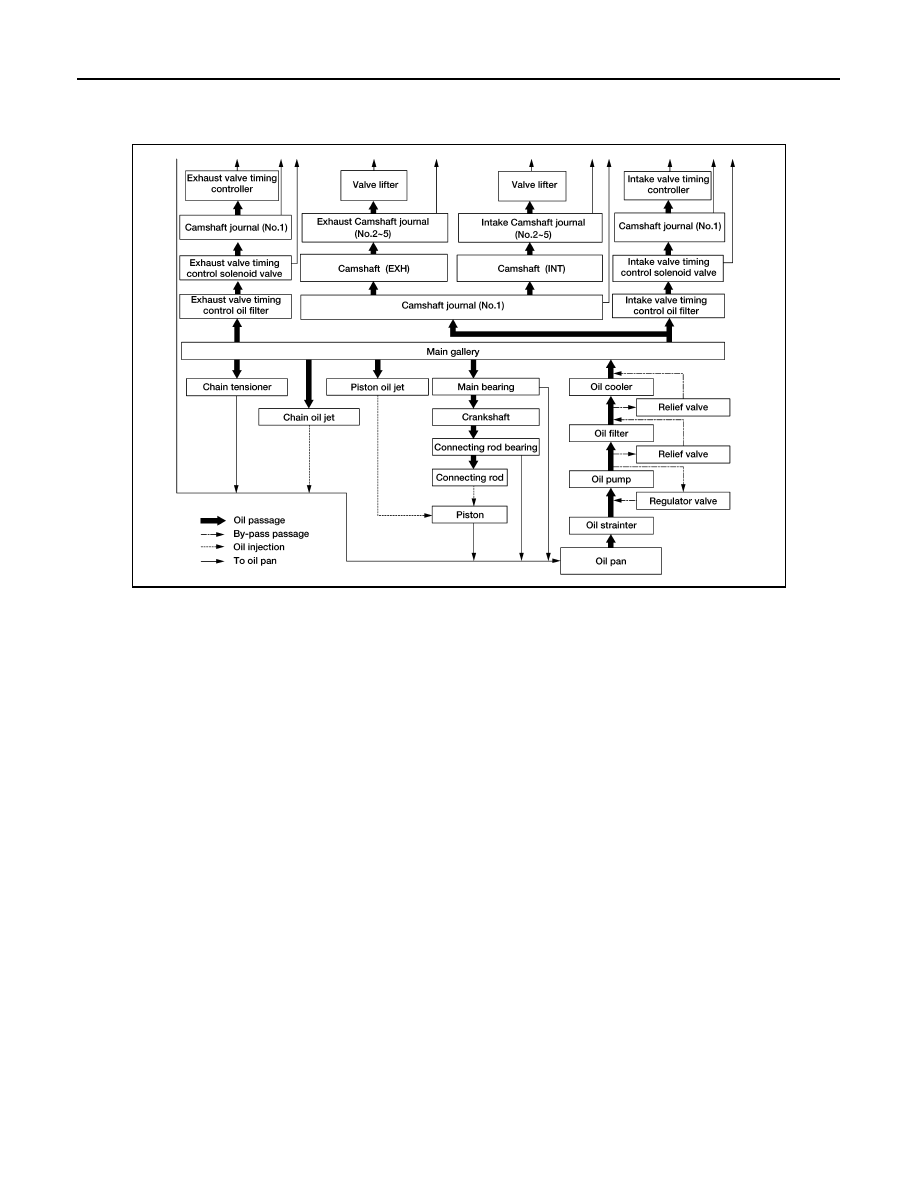

Engine Lubrication System Schematic

INFOID:0000000009444773

AWBIA1597ZZ
