INL-52

< REMOVAL AND INSTALLATION >

MAP LAMP

Do not touch bulb while it is lit or right after being turned OFF. Burning may result.

CAUTION:

• Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to bulb.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp.

REMOVAL

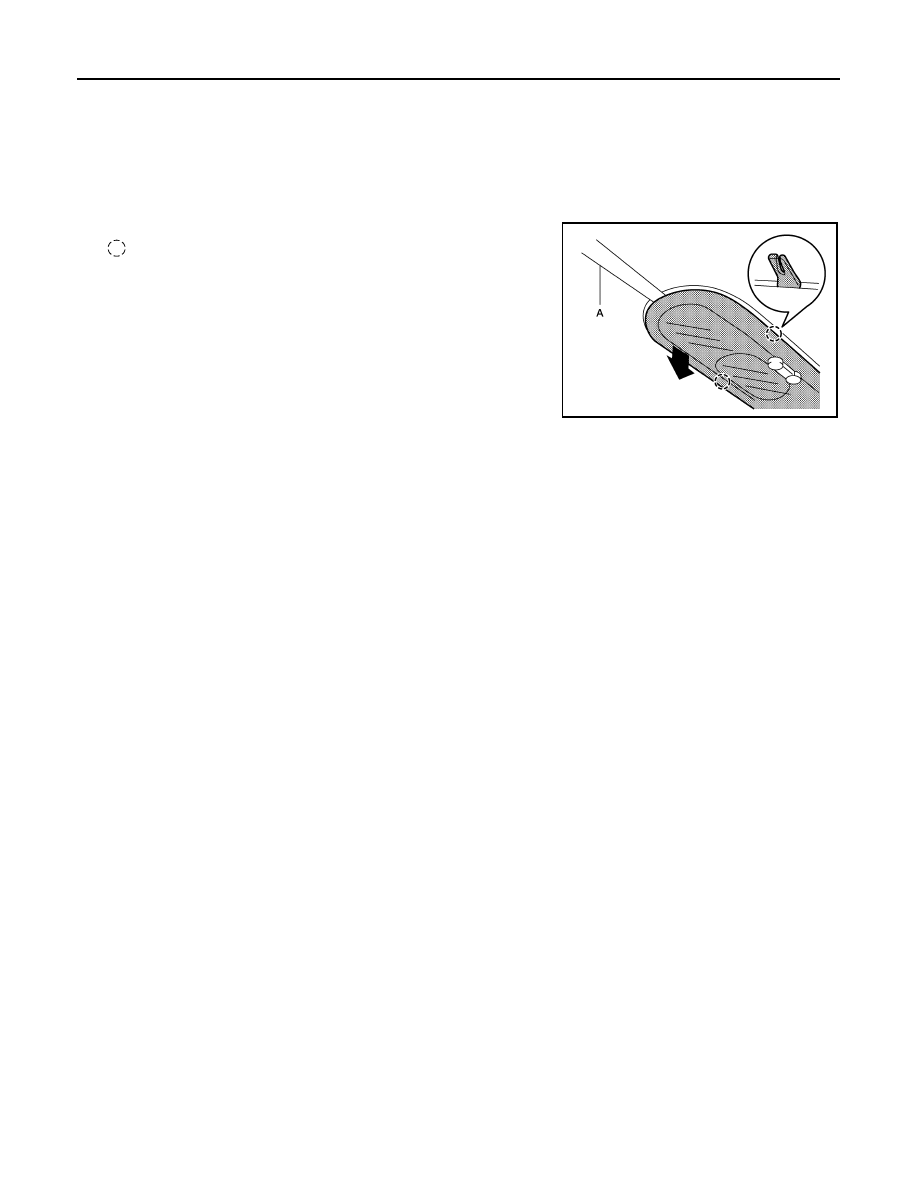

1. Release lens pawls using suitable tool (A) and remove.

: Pawl

2. Remove the bulb.

INSTALLATION

Installation is in the reverse order of removal.

AWLIA2150ZZ

INTERIOR ROOM LAMP

INL-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

INTERIOR ROOM LAMP

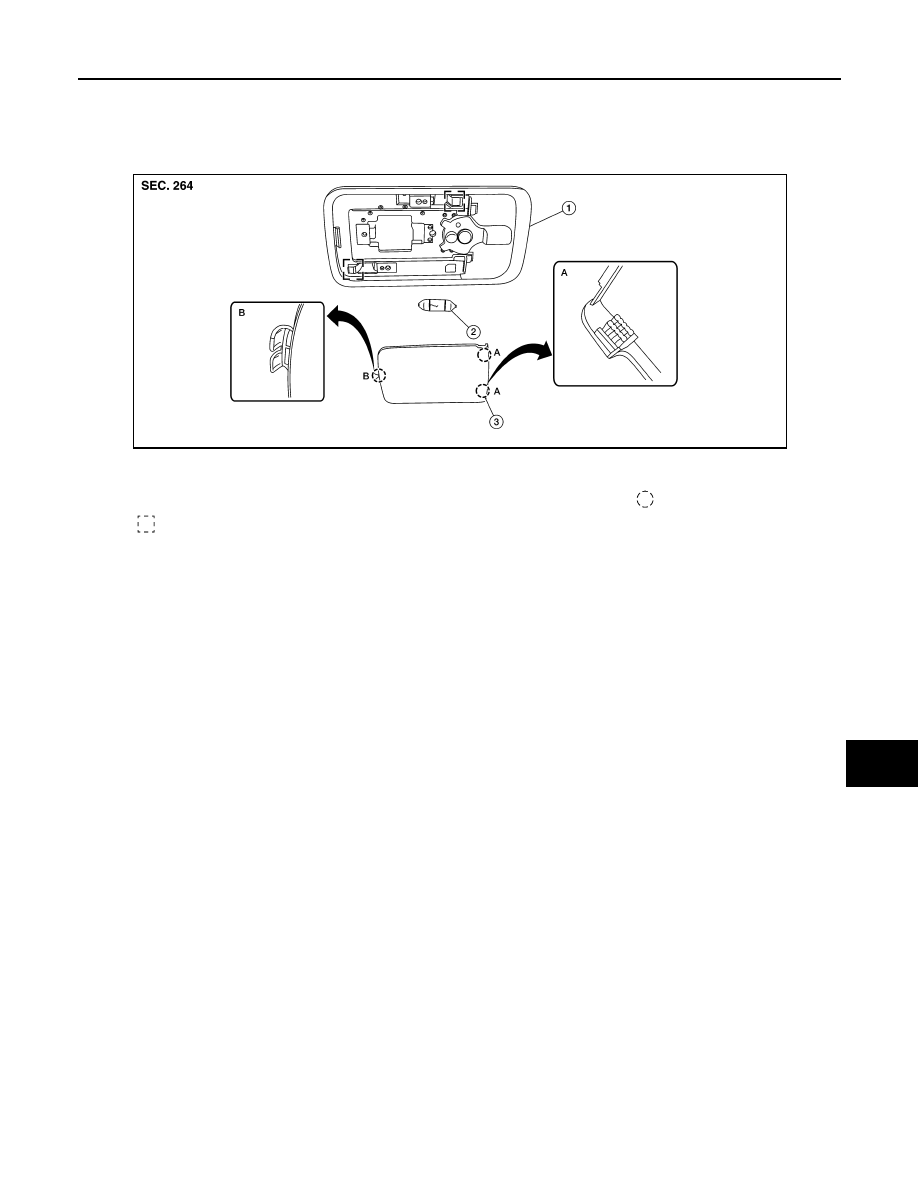

Exploded View

INFOID:0000000008969466

Removal and Installation

INFOID:0000000008969467

REMOVAL

1. Release interior room lamp metal clips using a suitable tool.
2. Disconnect the harness connector from room lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000008969468

WARNING:

Do not touch bulb while it is lit or right after being turned OFF. Burning may result.

CAUTION:

• Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to bulb.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp.

REMOVAL

1. Release interior room lamp lens pawls using a suitable tool and remove.
2. Remove bulb.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Insert the lens hook end RH side first when installing lens.

1.

Interior room lamp

2.

Bulb

3.

Lens

A.

Pawls to release first for lens removal B.

Pawl to install first for lens installation

Pawl

Metal clip

AWLIA2174ZZ

INL-54

< REMOVAL AND INSTALLATION >

CARGO ROOM LAMP

CARGO ROOM LAMP

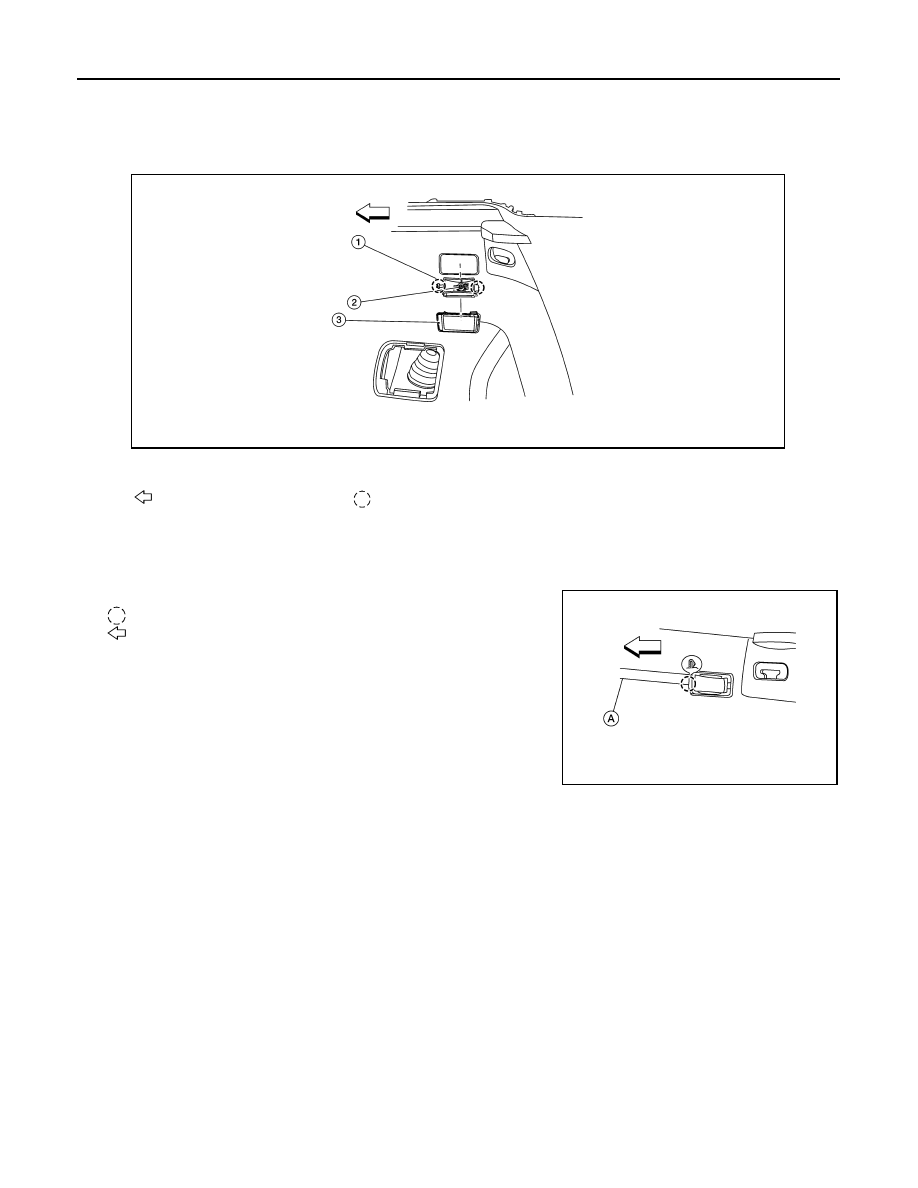

Exploded View

INFOID:0000000009445820

Removal and Installation

INFOID:0000000009445819

REMOVAL

1. Release cargo room lamp pawl with a suitable tool (A)

: Pawl

: Front

2. Disconnect harness connector from cargo room lamp and

remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000009445818

WARNING:

Do not touch bulb while it is lit or right after being turned OFF. Burning may result.

CAUTION:

• Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to bulb.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp.

REMOVAL

1. Release cargo room lamp lens pawl using a suitable tool.
2. Remove the bulb.

INSTALLATION

Installation is in the reverse order of removal.

1.

Cargo room lamp

2.

Bulb

3.

Lens

Front

Pawl

AWLIA2148ZZ

AWLIA2149ZZ

SHIFT SELECTOR LAMP

INL-55

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

SHIFT SELECTOR LAMP

Bulb Replacement

INFOID:0000000009445814

WARNING:

Do not touch bulb while it is lit or right after being turned OFF. Burning may result.

CAUTION:

• Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pro-

tect damage to bulb.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp.

REMOVAL

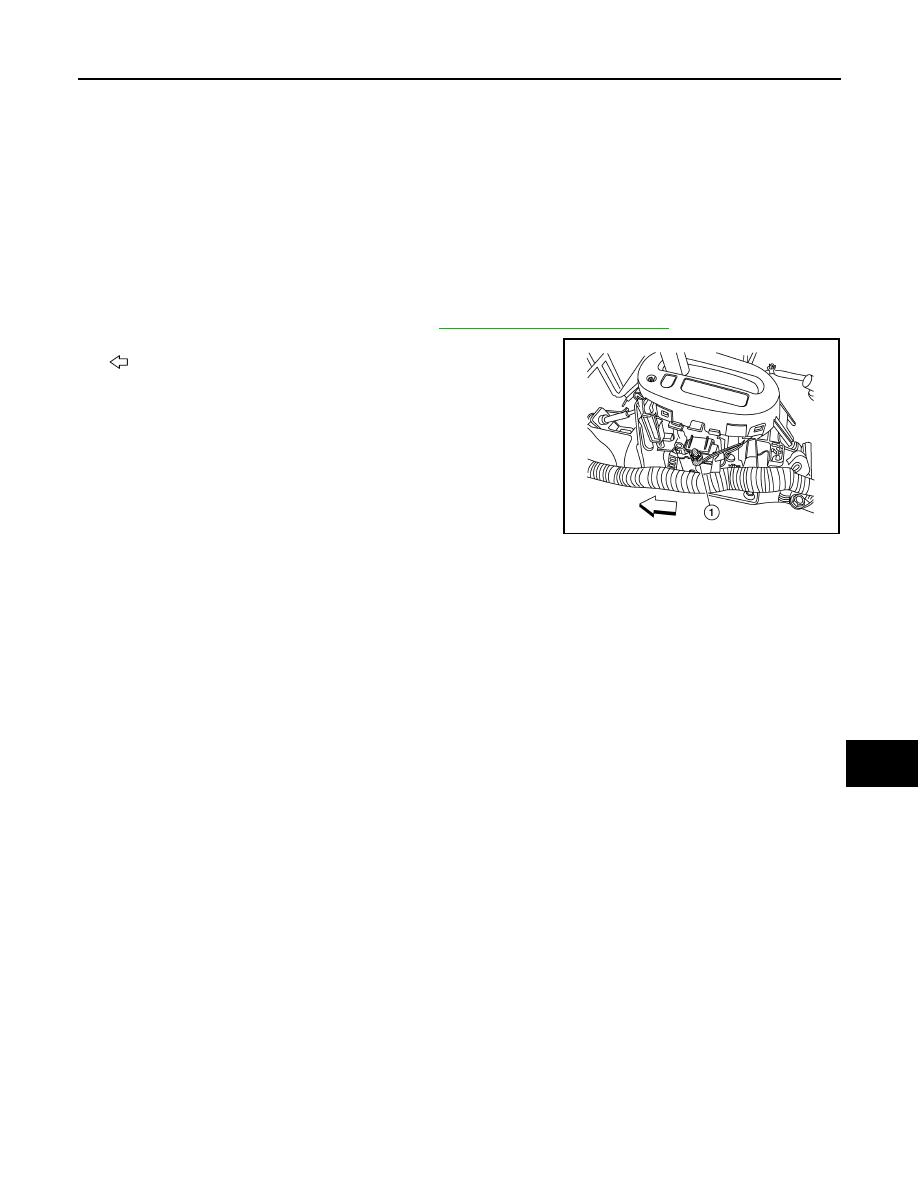

1. Remove the center console assembly. Refer to

IP-18, "Removal and Installation"

.

2. Remove shift selector lamp bulb from bulb socket (1).

: Front

INSTALLATION

Installation is in the reverse order of removal.

AWLIA2147ZZ
