INL-20

< ECU DIAGNOSIS INFORMATION >

BCM

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000009642988

ECU

Reference

BCM (with Intelligent Key)

BCS-28, "Reference Value"

BCS-46, "Fail-safe"

BCS-47, "DTC Inspection Priority Chart"

BCS-48, "DTC Index"

BCM (without Intelligent Key)

BCS-95, "Reference Value"

BCS-108, "Fail-safe"

BCS-109, "DTC Inspection Priority Chart"

BCS-109, "DTC Index"

INTERIOR ROOM LAMP CONTROL SYSTEM

INL-21

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

WIRING DIAGRAM

INTERIOR ROOM LAMP CONTROL SYSTEM

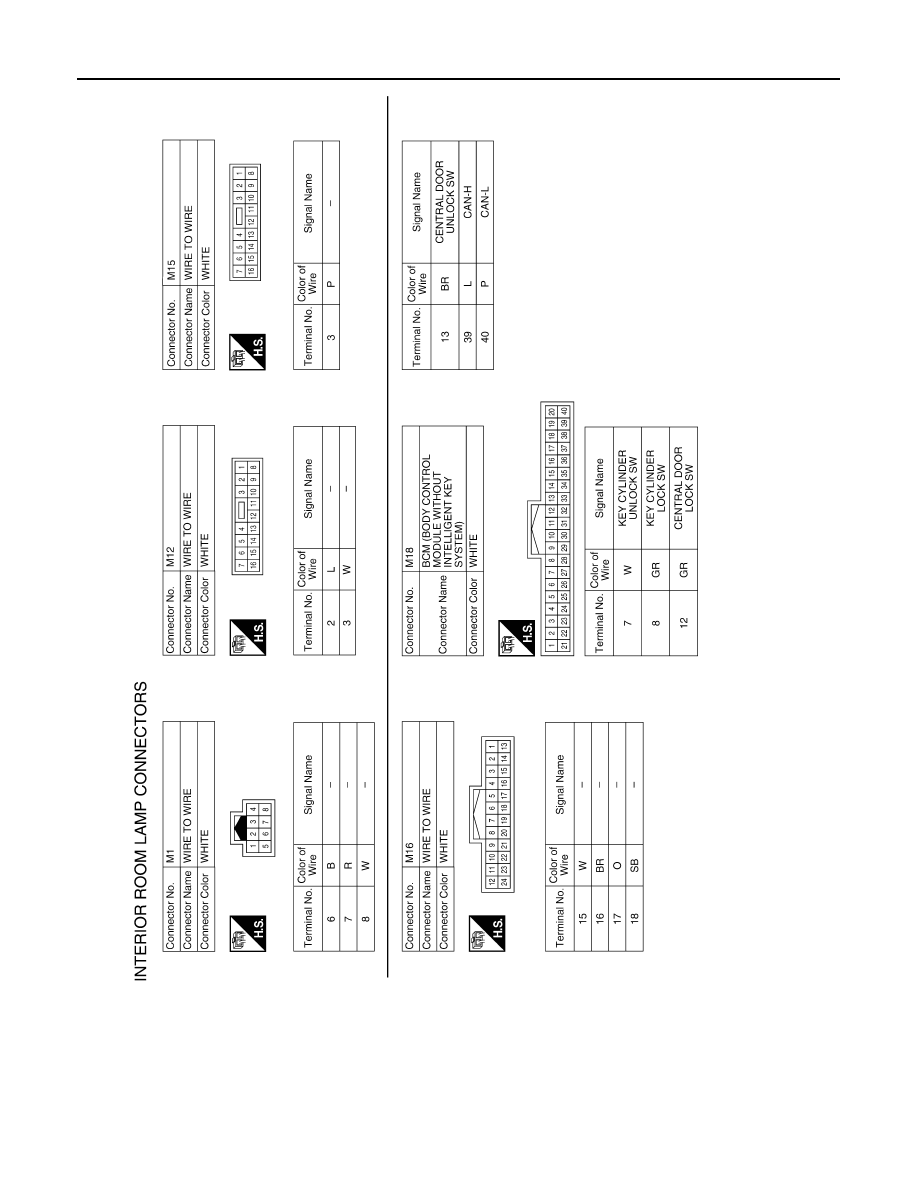

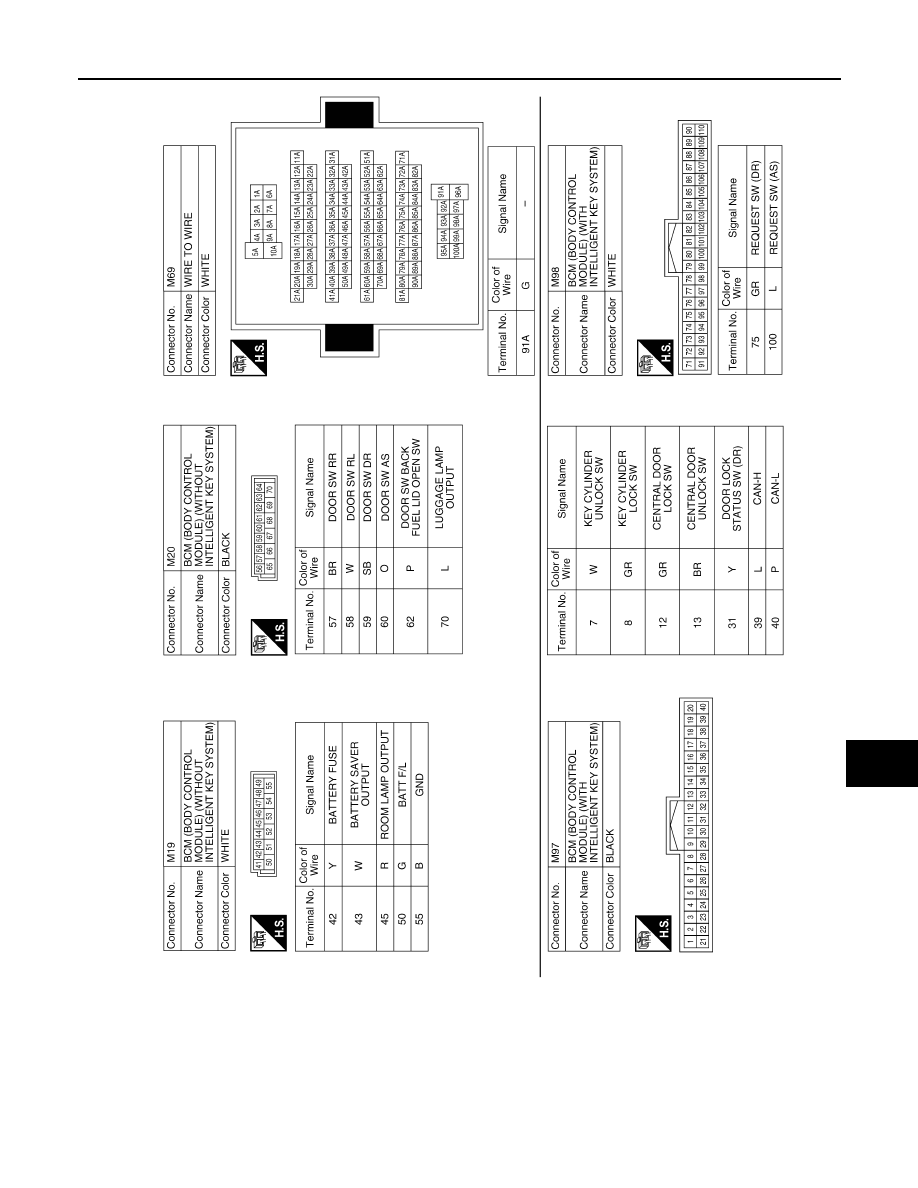

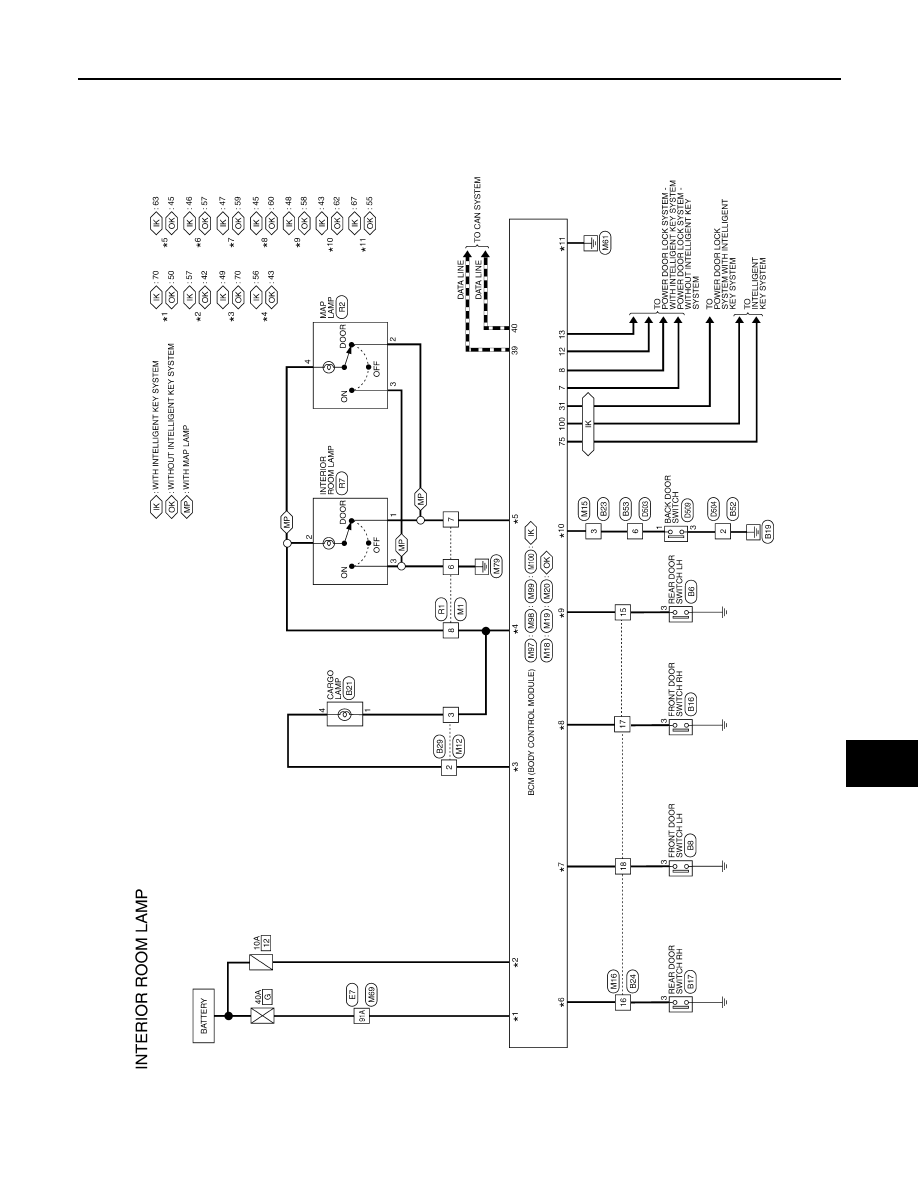

Wiring Diagram
