BCM, ECM, IPDM E/R

HAC-23

< ECU DIAGNOSIS INFORMATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

ECU DIAGNOSIS INFORMATION

BCM, ECM, IPDM E/R

List of ECU Reference

INFOID:0000000009540994

ECU

Reference

BCM (with Intelligent Key system)

BCS-28, "Reference Value"

BCS-46, "Fail-safe"

BCS-47, "DTC Inspection Priority Chart"

BCS-48, "DTC Index"

BCM (without Intelligent Key system)

BCS-95, "Reference Value"

BCS-108, "Fail-safe"

BCS-109, "DTC Inspection Priority Chart"

BCS-109, "DTC Index"

ECM

EC-70, "Reference Value"

EC-82, "Fail Safe"

EC-84, "DTC Inspection Priority Chart"

EC-86, "DTC Index"

IPDM E/R (with Intelligent Key system)

PCS-14, "Reference Value"

PCS-20, "Fail-safe"

PCS-21, "DTC Index"

IPDM E/R (without Intelligent Key system)

PCS-43, "Reference Value"

PCS-48, "Fail-Safe"

PCS-49, "DTC Index"

HAC-24

< WIRING DIAGRAM >

[MANUAL AIR CONDITIONING]

MANUAL AIR CONDITIONING SYSTEM

WIRING DIAGRAM

MANUAL AIR CONDITIONING SYSTEM

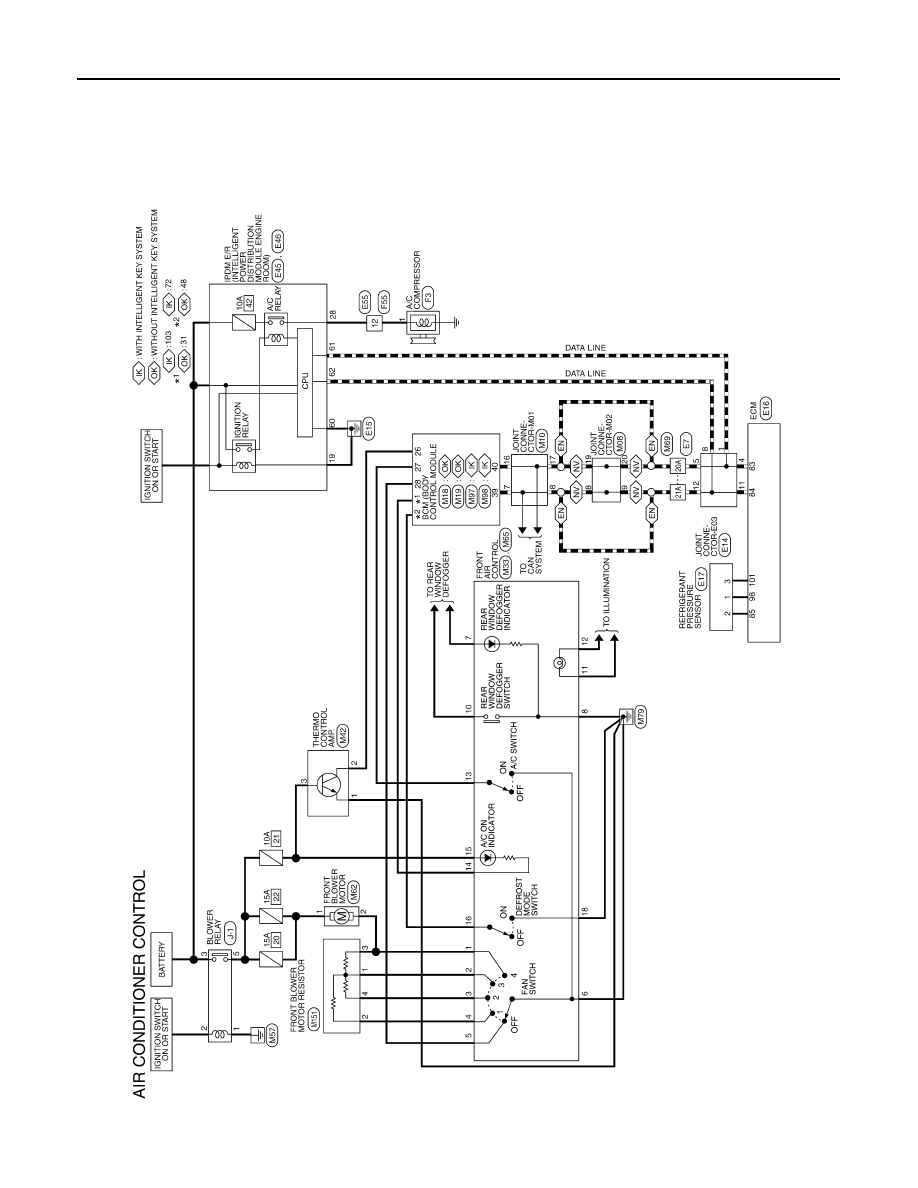

Wiring Diagram

INFOID:0000000009541019

AAIWA0150GB

MANUAL AIR CONDITIONING SYSTEM

HAC-25

< WIRING DIAGRAM >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

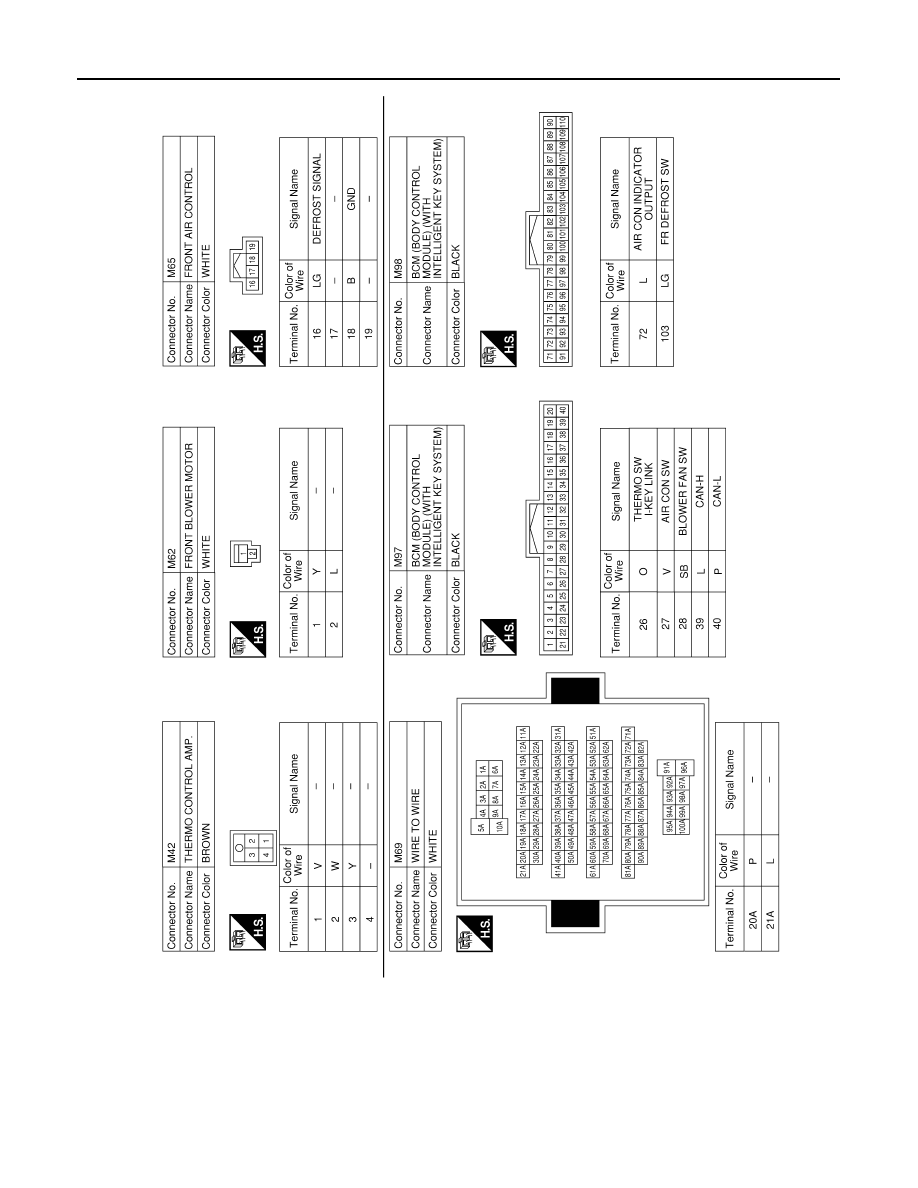

AAIIA0273GB

HAC-26

< WIRING DIAGRAM >

[MANUAL AIR CONDITIONING]

MANUAL AIR CONDITIONING SYSTEM

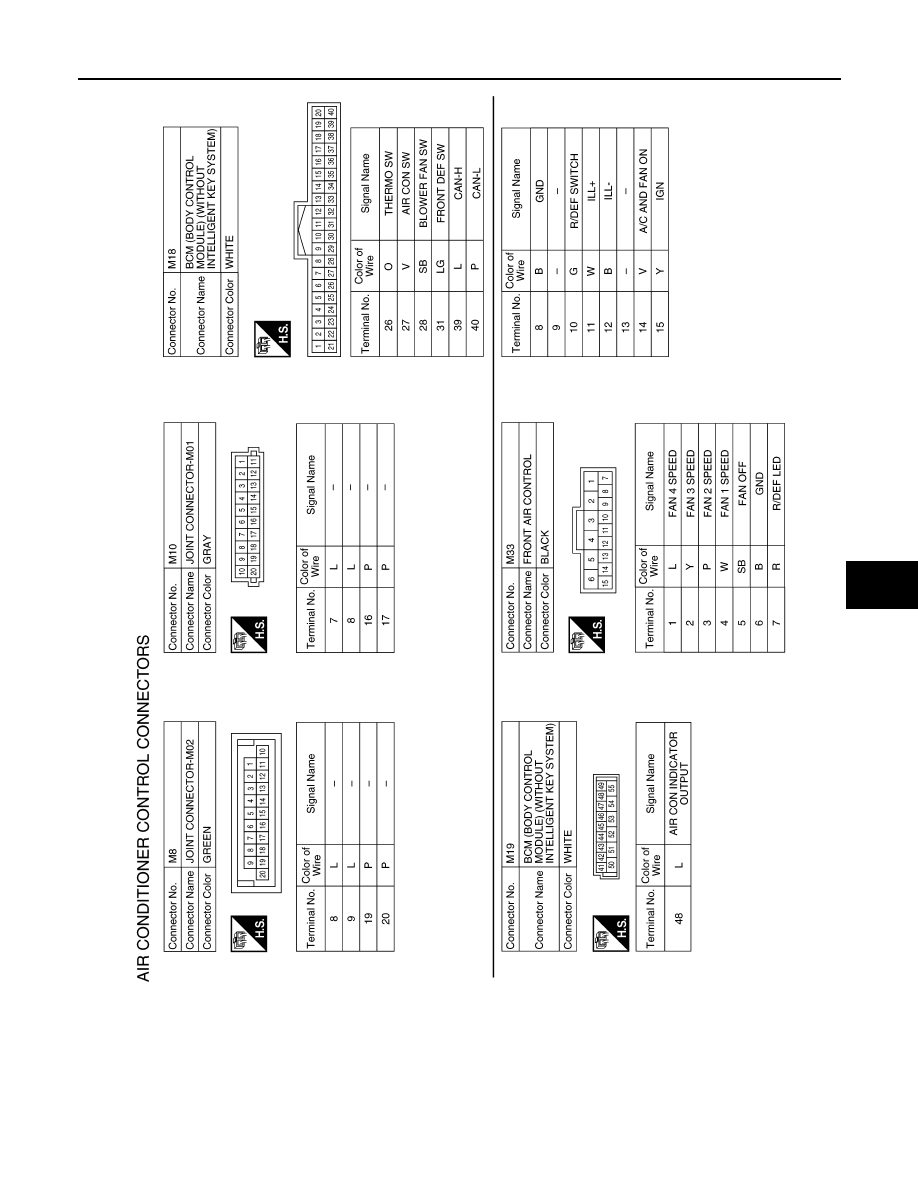

AAIIA0274GB
